思科 Catalyst 9300 系列交换机

Cisco Catalyst 9300 Series Switches
① ok采购咨询:186-1111-5727

②采购咨询:186-1111-5727

思科 Catalyst 9300X 系列交换机/Cisco Catalyst 9300L Series Switches

思科® Catalyst® 9300L 系列交换机是思科专为安全性、物联网、移动性和云打造的卓越可堆叠企业交换平台,是业界部署最广泛的下一代交换平台。

思科 Catalyst 9300X系列交换机/模块化上行

Catalyst 9300X,可选用10G, 25G, 40G, mGig 和100G上行模块 C9300X-NM-4C、C9300X-NM-2C、C9300X-NM-8Y、C9300X-NM-8M (C9300X-NM-4C 仅用于C9300X-48HX、C9300X-48TX 和 C9300X-24Y 型号)
10Ge万兆多速率系列
5Ge 多速率系列
25G SFP28 全光口系列
Catalyst 9300 48-port 10G/mGig with modular uplink, UPOE+, Network EssentialsC9300X-48HX-E
  • 型号SKU:C9300X-48HX-E
  • 所属系列:Catalyst 9300X UPOE+
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:48个10G mGig多速率口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-1100WAC-P=
  • 默认POE: 590W
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 56.0 cm
  • 设备重量:6.62 kg
  • 查看详情 >
Catalyst 9300 48-port 10G/mGig with modular uplink, UPOE+, Network AdvantageC9300X-48HX-A
  • 型号SKU:C9300X-48HX-A
  • 所属系列:Catalyst 9300X UPOE+
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:48个10G mGig多速率口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-1100WAC-P=
  • 默认POE: 590W
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 56.0 cm
  • 设备重量:6.62 kg
  • 查看详情 >
Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE+, Network AdvantageC9300X-24HX-A
  • 型号SKU:C9300X-24HX-A
  • 所属系列:Catalyst 9300X UPOE+
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:24个10G mGig多速率口
  • 上行端口:模块化上行
  • 交换容量:880 Gbps
  • 转发速率:327.38 Mpps
  • 堆叠容量:1,880 Gbps
  • 默认电源:PWR-C1-1100WAC-P=
  • 默认POE: 735W
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 52.4 cm
  • 设备重量:6.25 kg
  • 查看详情 >
Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE+, Network EssentialsC9300X-24HX-E
  • 型号SKU:C9300X-24HX-E
  • 所属系列:Catalyst 9300X UPOE+
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:24个10G mGig多速率口
  • 上行端口:模块化上行
  • 交换容量:880 Gbps
  • 转发速率:327.38 Mpps
  • 堆叠容量:1,880 Gbps
  • 默认电源:PWR-C1-1100WAC-P=
  • 默认POE: 735W
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 52.4 cm
  • 设备重量:6.25 kg
  • 查看详情 >
Catalyst 9300 48-port 10G/mGig with modular uplink, data only, Network EssentialsC9300X-48TX-E
  • 型号SKU:C9300X-48TX-E
  • 所属系列:Catalyst 9300X
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:48个10G mGig多速率口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-715WAC-P=
  • 默认POE: N/A
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 56.0 cm
  • 设备重量:6.62 kg
  • 查看详情 >
Catalyst 9300 48-port 10G/mGig with modular uplink, data only, Network AdvantageC9300X-48TX-A
  • 型号SKU:C9300X-48TX-A
  • 所属系列:Catalyst 9300X
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:48个10G mGig多速率口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-715WAC-P=
  • 默认POE: N/A
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 56.0 cm
  • 设备重量:6.62 kg
  • 查看详情 >
Catalyst 9300 40-port 5G/mGig, 8-port 10G with modular uplink, UPOE+, Network EssentialsC9300X-48HXN-E
  • 型号SKU:C9300X-48HXN-E
  • 所属系列:Catalyst 9300X UPOE+
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:8x10G多速率,40x5G多速率口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-1100WAC-P=
  • 默认POE: 690W
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 52.4 cm
  • 设备重量:6.44 kg
  • 在线咨询
Catalyst 9300 40-port 5G/mGig, 8-port 10G with modular uplink, UPOE+, Network AdvantageC9300X-48HXN-A
  • 型号SKU:C9300X-48HXN-A
  • 所属系列:Catalyst 9300X UPOE+
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Advantage
  • 下行端口:8x10G多速率,40x5G多速率口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-1100WAC-P=
  • 默认POE: 690W
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 52.4 cm
  • 设备重量:6.44 kg
  • 在线咨询
Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network EssentialsC9300X-12Y-E
  • 型号SKU:C9300X-12Y-E
  • 所属系列:Catalyst 9300X 全光口
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:12x25G SFP28口
  • 上行端口:模块化上行
  • 交换容量:1,000 Gbps
  • 转发速率:744.04 Mpps
  • 堆叠容量:2,000 Gbps
  • 默认电源:PWR-C1-715WAC-P=
  • 默认POE: N/A
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 48.8 cm
  • 设备重量:6.80 kg
  • 查看详情 >

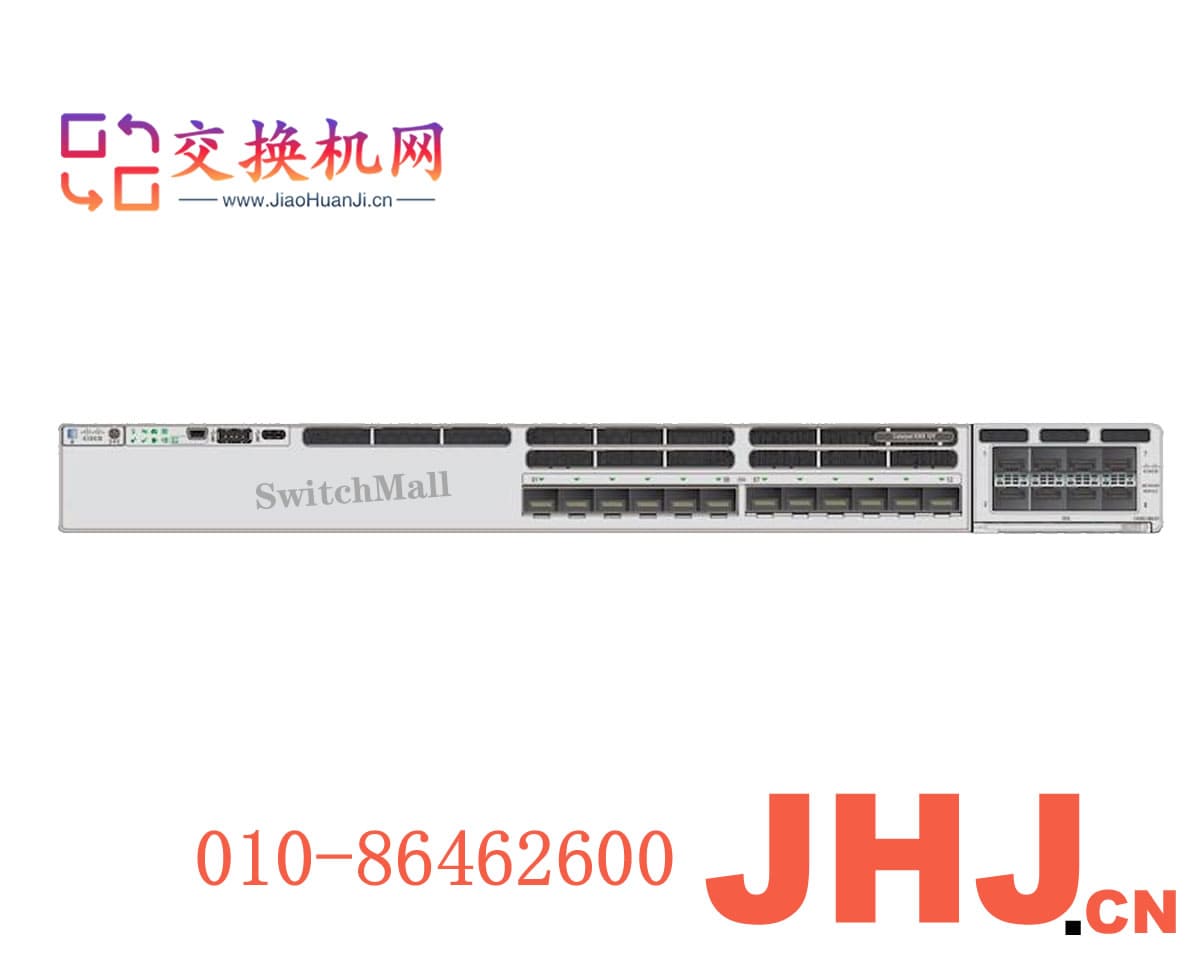

Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network AdvantageC9300X-12Y-A
  • 型号SKU:C9300X-12Y-A
  • 所属系列:Catalyst 9300X 全光口
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Advantage
  • 下行端口:12x25G SFP28口
  • 上行端口:模块化上行
  • 交换容量:1,000 Gbps
  • 转发速率:744.04 Mpps
  • 堆叠容量:2,000 Gbps
  • 默认电源:PWR-C1-715WAC-P=
  • 默认POE: N/A
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 48.8 cm
  • 设备重量:6.80 kg
  • 查看详情 >
Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network EssentialsC9300X-24Y-E
  • 型号SKU:C9300X-24Y-E
  • 所属系列:Catalyst 9300X 全光口
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Essentials
  • 下行端口:24x25G SFP28口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-715WAC-P=
  • 默认POE: N/A
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 52.6 cm
  • 设备重量:7.35 kg
  • 查看详情 >
Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network EssentialsC9300X-24Y-A
  • 型号SKU:C9300X-24Y-A
  • 所属系列:Catalyst 9300X 全光口
  • 应用层级:三层交换
  • 产品定位:企业级 汇聚/接入
  • 许可版本:Network Advantage
  • 下行端口:24x25G SFP28口
  • 上行端口:模块化上行
  • 交换容量:2,000 Gbps
  • 转发速率:1488 Mpps
  • 堆叠容量:3,000 Gbps
  • 默认电源:PWR-C1-715WAC-P=
  • 默认POE: N/A
  • 风 扇:FRU冗余
  • 设备尺寸:4.4 x 44.5 x 52.6 cm
  • 设备重量:7.35 kg
  • 查看详情 >
产品特点
产品规格
在售产品
选配信息

产品特点

专为安全性、物联网、移动性和云打造

思科® Catalyst® 9300 系列交换机是思科专为安全性、物联网、移动性和云打造的卓越可堆叠企业交换平台,是业界部署最广泛的下一代交换平台。Catalyst 9300 系列交换机是软件定义接入 (SD-Access) 这一思科领先的企业架构的基本组件。凭借最高 480 Gbps 的带宽,该系列交换机成为业界密度最高的堆叠带宽解决方案,具有无比灵活的上行链路架构。Catalyst 9300 系列是首款专门针对高密度 Wi-Fi 6 和第二代 802.11ac 技术进行优化的平台,树立了网络规模的新标杆。该系列交换机还为支持未来的技术做好了准备,凭借 x86 CPU 架构和更大的内存,它们能够承载容器并在交换机内部本地运行第三方应用和脚本。

Catalyst 9300 系列专为 Cisco StackWise® 技术设计,提供灵活的部署,支持不间断转发和状态切换 (NSF/SSO),从而在可堆叠(低于 50 微秒)解决方案中实现恢复能力极强的架构。电源架构采用 Cisco StackPower® 技术,具备极高的恢复能力和效率,可提供高密度以太网供电 Plus (PoE+)、60W 思科通用以太网供电(思科 UPOE)和 90W 思科 UPOE+© 端口。该系列交换机基于思科统一接入™ 数据平面 (UADP) 2.0 架构,不仅可以保护您的投资,还能扩大规模并提高吞吐量。交换机采用具有可编程性的 Cisco IOS® XE,这款现代化操作系统可提供高级安全功能和物联网 (IoT) 融合。

软件定义接入的基础

高级持续性安全威胁、物联网 (IoT) 设备的指数级增长、无处不在的移动性、云的采用,要应对所有这些趋势,必须采用一种集高级硬件和软件创新于一身的网络交换矩阵,在保护和简化客户网络的同时,使客户网络实现自动化。这种网络交换矩阵的目标是通过加快业务服务的部署实现客户收入的增长。

采用软件定义接入 (SD-Access) 的思科全数字化网络架构 (Cisco DNA) 正是这种能够助力业务发展的网络交换矩阵。它是一种由软件驱动且可扩展的开放式架构,可加速并简化企业网络的运营。利用可编程的架构,您的 IT 人员可从耗时、重复的网络配置任务中解放出来,从而将精力集中到积极改变业务的创新上。SD-Access 可以通过基本功能,从边缘到云端实现基于策略的自动化。其中包括:

● 简化的设备部署

● 有线和无线网络的统一管理

● 网络虚拟化和分段

● 基于组的策略

● 基于情景的分析

Cisco DNA 软件

Cisco DNA 软件为您购买适用于接入、广域网和数据中心域的软件提供了经济灵活的途径。无论是在产品生命周期的哪个阶段,Cisco DNA 软件都能帮助简化网络和基础设施软件的购买、管理和升级。Cisco DNA 软件的优势包括:

● 灵活的软件许可模式可让客户分期投入软件支出,避免开支剧增

● 可通过软件服务进行软件许可的移植,从而实现对软件购买投资的保护

● 可以通过思科® 软件支持服务 (SWSS) 获得思科更新、升级和新技术

● 可以通过新的面向交换的 Cisco DNA 订用模式降低起步成本

借助 Cisco DNA,您可以将整个交换结构作为一个融合的单一组件进行管理。通过对有线和无线网络使用统一的管理系统和统一的策略,您还可以有效提高接入安全性。

产品概述:特性

主要产品特性

● 部分型号可在一台交换机上支持 Wi-Fi 6 和第二代 802.11ac 无线接入点,从而获得最高的无线可扩展性

● 思科 UADP 2.0 专用集成电路 (ASIC) 具有可编程渲染管线和微引擎功能,并且支持基于模板配置第 2 层和第 3 层转发、访问控制列表 (ACL) 和服务质量 (QoS) 条目的分配

● x86 CPU 搭配 8 GB 内存、16 GB 闪存和用于承载容器的外部 USB 3.0 SSD 热插拔存储插槽(通过 SSD 驱动器选件提供 120 GB 的存储)

● 用于加载系统映像和设置配置的 USB 2.0 插槽

● 最高 480 Gbps 的本地可堆叠交换带宽

● 面向丰富的多媒体内容交付应用提供缓冲区更深且可扩展性更高的可选型号

● 通过千兆、多千兆、10G、25G 和 40G 非模块化或模块化上行链路提供灵活、密集的上行链路选择

● 可以通过双速率光模块从 10G 轻松过渡到 25G

● 通过千兆铜缆和光纤以及多千兆链路提供灵活的下行链路选择

● 领先的 PoE 功能,每个堆叠最多 384 个 PoE 端口,PoE+ 和高密度 IEEE 802.3bt – 60W UPOE 以及 90W 思科 UPOE+©

● 24 端口和 48 端口 UPOE 型号提供符合 UL1069 标准的版本,用于医院部署

● 通过 Cisco StackPower 技术实现智能电源管理,在堆叠成员间提供电源堆叠以实现电源冗余

● 基于硬件的线速 Flexible NetFlow (FNF),提供最多可收集 64,000 个流的流收集功能

● 硬件内的 IPv6 支持,可为 IPv6 网络提供线速转发

● IPv4/IPv6 双协议栈支持和动态硬件转发表分配,用于简化从 IPv4 到 IPv6 的迁移

● 内置 IEEE 802.1ba 音频和视频桥接 (AVB),可以改进时间同步和 QoS,提供更出色的音频和视频体验

● 精确时间协议(PTP;IEEE 1588v2)以亚微秒级精确度提供精确的时钟同步,非常适用于网络中的时间和频率分发与同步

● Cisco IOS XE 作为一种适用于企业的现代化操作系统,支持由模型驱动的可编程性(包括 NETCONF、RESTCONF、YANG)、本地 Python 脚本、数据流遥测、基于容器的应用托管,以及用于严重漏洞修复的修补功能。该操作系统还有内置的运行时攻击防御功能

● SD-Access:思科 Catalyst 9300 系列交换机是软件定义接入 (SD-Access) 这一思科领先的企业架构的基本组件:

◦ 从边缘到云端基于策略的自动化

◦ 通过可预测的性能和可扩展性,实现简化的分段和微分段

◦ 通过 Cisco DNA Center 实现自动化

◦ 通过思科身份服务引擎 (ISE) 处理策略

◦ 通过 Cisco DNA Center 提供网络状态感知功能

◦ 更快推出新的业务服务并显著缩短问题解决时间

● SD-Access 嵌入式无线功能:思科 Catalyst 9800 嵌入式无线控制器软件包可以安装在思科 Catalyst 9300 系列交换机上,为分布式分支机构和小型园区提供无线控制器功能。安装后,在 Catalyst 9300 系列交换机上运行的 Catalyst 9800 嵌入式无线控制器最多可支持 200 个 AP 和 4000 个客户端(C9300L 支持 50 个 AP/1000 个客户端)。每个站点最多可在两台不同的 Catalyst 9300 系列交换机上支持两个无线控制器,
从而将部署规模最多扩展到 400 个 AP 和 8000 个无线客户端(C9300L:100 个 AP/2000 个客户端)。Catalyst 9800 嵌入式无线控制器软件包只能在采用以下两种受支持拓扑的 SD-Access 部署中实现无线功能:

◦ 可以在用作共驻式边界和控制平面的 Catalyst 9300 系列交换机上启用 Catalyst 9800 嵌入式无线控制器软件包

◦ 可以在用作一体化交换矩阵的 Catalyst 9300 系列交换机上启用 C9800 无线软件包

● 支持即插即用 (PnP):一种简单、安全、统一的集成功能,有助于轻松部署新的分支机构或园区设备,或对现有网络进行更新

● 高级安全功能

◦ 加密流量分析 (ETA):您可以利用机器学习功能来识别网络中的威胁或异常,并对其采取操作(包括在不解密的情况下检测加密流量中恶意软件,以及执行分布式异常检测)

◦ 通过功能强大的 MACsec 256 位加密算法(在所有型号上均可用)支持 AES 256

◦ 可靠的解决方案:锚定硬件的安全启动和安全的唯一设备标识 (SUDI) 支持即插即用应用,可确认硬件和软件的身份

产品规格

Table 1.           Product Family Configurations

ModelsModular Uplinks and SpeedsStacking Bandwidth SupportmGig DensityCisco StackPowerHW-Based IPSECApp-Hosting Capacity
Catalyst 9300X10G, 25G, 40G, mGig and 100GStackwise-1T (480G when stacking with Catalyst 9300 model)48x 10G✓ (Larger Power Budget)Up to 100G IPsec*✓ (2x hosting resources over Catalyst 9300 models)
Catalyst 930010G, 25G, 40G and mGigStackwise-48048x5G and 24x10G
Catalyst 9300LStackwise-32012x10G
Catalyst 9300LMStackwise-3208x10G

*Need to order HSec Key for IPsec Feature.

Table 2.           Cisco Catalyst 9300 Series switch configurations

ModelTotal 10/100/1000, Multigigabit copper or SFP FiberUplink ConfigurationDefault AC power supply
Modular uplink models
C9300X-48HX48 port Cisco UPOE+, 48x 10G Multigigabit
(10G/5G/2.5G/1G/100M) with 90W UPOE+
Modular Uplinks1100W AC
C9300X-48TX48 port Data, 48x 10G Multigigabit
(10G/5G/2.5G/1G/100M)
Modular Uplinks715W AC
C9300X-48HXN48 port Cisco UPOE+, 8x 10G Multigigabit
(10G/5G/2.5G/1G/100M) + 40x 5G Multigigabit (5G/2.5G/1G/100M)
Modular Uplinks1100W AC
C9300X-24HX24 port Cisco UPOE+, 24x 10G Multigigabit
(10G/5G/2.5G/1G/100M)
Modular Uplinks1100W AC
C9300X-12Y12 port 25G/10G/1G SFP28Modular Uplinks715W AC
C9300X-24Y24 port 25G/10G/1G SFP28Modular Uplinks715W AC
C9300-24T24 port DataModular Uplinks350W AC
C9300-48T48 port DataModular Uplinks350W AC
C9300-24P24 port PoE+Modular Uplinks715W AC
C9300-48P48 port PoE+Modular Uplinks715W AC
C9300-24U24 port Cisco UPOEModular Uplinks1100W AC
C9300-48U48 port Cisco UPOEModular Uplinks1100W AC
C9300-24UX24 port Multigigabit Cisco UPOE
(10G/5G/2.5G/1G/100M)
Modular Uplinks1100W AC
C9300-48UXM48 port Cisco UPOE, 36 ports 100M/1G/2.5G + 12 ports Multigigabit (10G/5G/2.5G/1G/100M)Modular Uplinks1100W AC
C9300-48UN48 port 5Gbps Multigigabit UPOE ports (5G/2.5G/1G/100M)Modular Uplinks1100W AC
C9300-24UB24 port Cisco UPOEModular Uplinks1100W AC
C9300-24UXB24 port Multigigabit Cisco UPOE (10G/5G/2.5G/1G/100M)Modular Uplinks1100W AC
C9300-48UB48 port Cisco UPOEModular Uplinks1100W AC
C9300-24H24 port Cisco UPOE+Modular Uplinks1100W AC
C9300-48H48 Cisco UPOE+Modular Uplinks1100W AC
C9300-24S24 1G SFPModular Uplinks715W AC
C9300-48S48 port 1G SFPModular Uplinks715W AC
Fixed uplink models
C9300L-24T-4G24 port Data4x 1G fixed uplinks350W AC
C9300L-24T-4X24 port Data4x 10G/1G fixed uplinks350W AC
C9300L-48T-4G48 port Data4x 1G fixed uplinks350W AC
C9300L-48T-4X48 port Data4x 10G/1G fixed uplinks350W AC
C9300L-24P-4G24 port PoE+4x 1G fixed uplinks715W AC
C9300L-24P-4X24 port PoE+4x 10G/1G fixed uplinks715W AC
C9300L-48P-4G48 port PoE+4x 1G fixed uplinks715W AC
C9300L-48P-4X48 port PoE+4x 10G/1G fixed uplinks715W AC
C9300L-48PF-4G48 port PoE+4x 1G fixed uplinks1100W AC
C9300L-48PF-4X48 port PoE+4x 10G/1G fixed uplinks1100W AC
C9300L-24UXG-4X24 port Cisco UPOE, 8 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M)
4x 10G/1G fixed uplinks1100W AC
C9300L-24UXG-2Q24 port Cisco UPOE, 8 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 16 ports 1G (1G/100M/10M)
2x 40G fixed uplinks1100W AC
C9300L-48UXG-4X48 port Cisco UPOE, 12 ports Multigigabit
(10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10)
4x 10G/1G fixed uplinks1100W AC
C9300L-48UXG-2Q48 port Cisco UPOE, 12 port Multigigabit
(10G/5G/2.5G/1G/100M) + 36 port 1G (1G/100M/10M)
2x 40G fixed uplinks1100W AC
C9300LM-48UX-4Y48 port Cisco UPOE, 8 port 10G Multigigabit (10G/5G/2.5G/1G/100M) + 40 port 1G (1G/100M/10M)4x25G fixed uplinks1000W AC1
C9300LM-48U-4Y48 port 1G (1G/100M/10M) with Cisco UPOE4x25G fixed uplinks1000W AC1
C9300LM-24U-4Y24 port 1G (1G/100M/10M) with Cisco UPOE4x25G fixed uplinks600W AC1
C9300LM-48T-4Y48 port 1G (1G/100M/10M) Data4x25G fixed uplinks600W AC1

1C9300LM models use different power supplies compared to C9300, C9300X and C9300L models

Table 3.           Network module numbers and descriptions

Network moduleDescription
C9300X-NM-8MCatalyst 9300X 8x 10G/1G Multigigabit Network Module
C9300X-NM-8YCatalyst 9300X 8x 25G/10G/1G Network Module
C9300X-NM-2CCatalyst 9300X 2x 100G/40G Network Module
C9300X-NM-4C*Catalyst 9300X 4x 100G/40G Network Module
C9300-NM-4GCatalyst 9300 Series 4x 1G Network Module
C9300-NM-4MCatalyst 9300 Series 4x Multigigabit Network Module
C9300-NM-8XCatalyst 9300 Series 8x 10G/1G Network Module
C9300-NM-2QCatalyst 9300 Series 2x 40G Network Module
C9300-NM-2YCatalyst 9300 Series 2x 25G/10G/1G Network Module

*C9300X-NM-4C is compatible only with C9300X-48HX, C9300X-48TX and C9300X-24Y models

Please note: Catalyst 3850 and Catalyst 9300 network modules are supported on the Catalyst 9300 models. Catalyst 9300X network modules are only supported on the Catalyst 9300X models.

Table 4.           Power supply models

ModelsPrimary Power SupplyDefault or UpgradeAvailable PoEWith 350W Secondary PSWith 715W secondary PSWith 1100W Secondary PSWith 1900W Secondary PS
C9300X-48HXPWR-C1-1900WAC-PUpgrade1390W1740W2105W2490W3290W
PWR-C1-1100WAC-PDefault590W940W1305W1690W2490W
C9300X-48TXPWR-C1-715WAC-PDefaultNo POENo POENo POENo POENo POE
C9300X-48HXNPWR-C1-1900WAC-PUpgrade1490W1840W2205W2590W3390W
PWR-C1-1100WAC-PDefault690W1040W1405W1790W2590W
C9300X-24HXPWR-C1-1900WAC-PUpgrade1535W1885W2160W*2160W*2160W*
PWR-C1-1100WAC-PDefault735W1085W1450W1835W2160W*
C9300X-24YPWR-C1-715WAC-PDefaultNo POENo POENo POENo POENo POE
C9300X-12YPWR-C1-715WAC-PDefaultNo POENo POENo POENo POENo POE
C9300-48HPWR-C1-1900WAC-PUpgrade1622W1972W2337W2722W2880W
PWR-C1-1100WAC-PDefault822W1172W1537W1922W2722W
C9300-24HPWR-C1-1900WAC-PUpgrade1630W1980W2160W*2160W*2160W*
PWR-C1-1100WAC-PDefault830W1180W1545W1930W2160W
C9300-48UNPWR-C1-1900WAC-PUpgrade1445W1795W2160W2545W2880W*
PWR-C1-1100WAC-PDefault645W995W1360W1745W2545W
C9300-48UXMPWR-C1-1900WAC-PUpgrade1290W1640W2005W2880W*2880W*
PWR-C1-1100WAC-PDefault490W840W1205W1590W2390W
C9300-24UXPWR-C1-1900WAC-PUpgrade1360W1440W*1440W*1440W*1440W*
PWR-C1-1100WAC-PDefault560W910W1275W1440W*1440W*
C9300-48UPWR-C1-1900WAC-PUpgrade1622W1800W**1800W**1800W**1800W**
PWR-C1-1100WAC-PDefault822W1172W1537W1800W**1800W**
C9300-24UPWR-C1-1900WAC-PUpgrade1440W*1440W*1440W*1440W*1440W*
PWR-C1-1100WAC-PDefault830W1180W1440W*1440W*1440W*
C9300-48PPWR-C1-1100WAC-PUpgrade822W1172W1440W*1440W*1440W*
PWR-C1-715WAC-PDefault437W787W1152W1440W*1440W*
C9300-24PPWR-C1-1100WAC-PUpgrade720W*720W*720W*720W*720W*
PWR-C1-715WAC-PDefault445W720W*720W*720W*720W*
C9300-48TPWR-C1-350WAC-P***DefaultNo POENo POENo POENo POENo POE
C9300-24TPWR-C1-350WAC-P***DefaultNo POENo POENo POENo POENo POE
C9300-48SPWR-C1-715WAC-PDefaultNo POENo POENo POENo POENo POE
C9300-24SPWR-C1-715WAC-PDefaultNo POENo POENo POENo POENo POE
C9300-48UBPWR-C1-1900WAC-PUpgrade1622W1800W**1800W**1800W**1800W**
PWR-C1-1100WAC-PDefault822W1172W1537W1800W**1800W**
C9300-24UBPWR-C1-1900WAC-PUpgrade1440W*1440W*1440W*1440W*1440W*
PWR-C1-1100WAC-PDefault830W1180W1440W*1440W*1440W*
C9300-24UXBPWR-C1-1900WAC-PUpgrade1360W1440W*1440W*1440W*1440W*
PWR-C1-1100WAC-PDefault560W910W1275W1440W*1440W*
ModelPrimary power supplyDefault or UpgradeAvailable PoE powerWith 350W Secondary PSWith 715W Secondary PSWith 1100W Secondary PS
C9300L-24T-4GPWR-C1-350WAC-PDefaultNo PoENo PoENo PoENo PoE
C9300L-24T-4XPWR-C1-350WAC-PDefaultNo PoENo PoENo PoENo PoE
C9300L-48T-4GPWR-C1-350WAC-PDefaultNo PoENo PoENo PoENo PoE
C9300L-48T-4XPWR-C1-350WAC-PDefaultNo PoENo PoENo PoENo PoE
C9300L-24P-4GPWR-C1-715WAC-PDefault505W720W*720W*720W*
C9300L-24P-4XPWR-C1-715WAC-PDefault505W720W*720W*720W*
C9300L-48P-4GPWR-C1-715WAC-PDefault505W855W1220W1440W*
C9300L-48P-4XPWR-C1-715WAC-PDefault505W855W1220W1440W*
C9300L-48PF-4GPWR-C1-1100WAC-PDefault890W1240W1440W1440W*
C9300L-48PF-4XPWR-C1-1100WAC-PDefault890W1240W1440W1440W*
C9300L-24UXG-4XPWR-C1-1100WAC-PDefault880W1230W1440W1440W*
C9300L-24UXG-2QPWR-C1-1100WAC-PDefault722W1072W1440W1440W*
C9300L-48UXG-4XPWR-C1-1100WAC-PDefault675W1025W1390W1775W
C9300L-48UXG-2QPWR-C1-1100WAC-PDefault675W1025W1390W1775W

*Limited by port number and port rating (e.g. 24 PoE+ 30W ports = 720W)

**Limited by design

***Upgrade options for 715W and 1100W PSU are available

ModelPrimary power supplyDefault or UpgradeAvailable PoE powerWith 600W AC Secondary PSWith 715W DC Secondary PSWith 1000W AC Secondary PS
C9300LM-48UX-4YPWR-C6-1KWACDefault790W1390W1505W1790W
C9300LM-48U-4YPWR-C6-1KWACDefault790W1390W1505W1790W*
C9300LM-24U-4YPWR-C6-1KWACUpgrade820W1420W1440W*1440W*
PWR-C6-600WACDefault420W1020W1135W1420W
C9300LM-48T-4YPWR-C6-600WACDefaultNo PoENo PoENo PoENo PoE

* Limited by port number and port rating (e.g. 24 UPOE 60W ports = 1440W)

Table 5.           Supported stacking options

ModelStacking supportStacking bandwidth supportOptional Stacking hardwareNumber of membersSupported stack members
C9300X SKUsStackWise-1T1 TbpsStackWise cable8Stacks with other Catalyst 9300X models at StackWise-1T speeds with same license levelStacks with C9300 SKUs at StackWise-480 speeds with same license level
C9300 SKUsStackWise-480480 GbpsStackWise Cable8Other C9300 SKUs with same license levelC9300 higher scale SKUs only stack with other like higher scale models
C9300L SKUs C9300LM SKUsStackWise-320320 GbpsC9300L-STACK-KIT Or C9300L-STACK-KIT28Stacks with other Catalyst 9300L and 9300LM models with same license level

Table 8.           Performance specifications

DescriptionCatalyst 9300X modular uplink modelsCatalyst 9300 modular uplink modelsCatalyst 9300 higher scale, modelsCatalyst 9300L/LM fixed uplink models
Total number of MAC addresses32,00032,00064,00032,000
Total number of IPv4 routes (ARP plus learned routes)39,000 (24,000 direct routes and 15,000 indirect routes)32,000 (24,000 direct routes and 8000 indirect routes)112,000 (48,000 direct routes and 64,000 indirect routes)32,000 (24,000 direct routes and 8000 indirect routes)
IPv6 routing entries19,50016,00056,00016,000
Multicast routing scale8,0008,00016,0008,000
QoS scale entries4,0005,12018,0005,120
ACL scale entries8,0005,12018,0005,120
Packet buffer per SKU16 MB buffer for 48-port 5G Multigigabit, 24-port 10G Multigigabit and 12-port Fiber32 MB buffer for 48-port 10G Multigigabit and 24-port Fiber16 MB buffer for 24- or 48-port Gigabit Ethernet models32 MB buffer for 24 and 48-port Multigigabit32 MB buffer for 24- and 48-port Gigabit Ethernet models64 MB buffer for 24-port Multigigabit model (24UXB)16 MB buffer for 24 and 48 port Gigabit Ethernet models
FNF entries64,000 flows on 48-port 5G Multigigabit and 24-port 10G Multigigabit and 12-port Fiber128,000 flows on 48-port 10G Multigigabit and 24-port Fiber64,000 flow on 24- and 48-port Gigabit Ethernet models128,000 flows on 24-port Multigigabit128,000 flow on 24- and 48-port Gigabit Ethernet models256,000 flows on 24-port Multigigabit64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM16 GB8 GB8 GB8 GB
Flash16 GB16 GB16 GB16 GB
VLAN IDs4094409440944094
Total Switched Virtual Interfaces (SVIs)1000100010001000
Jumbo frames9198 bytes9198 bytes9198 bytes9198 bytes
Total routed ports per Catalyst 9300 Series stack448448448416

Bandwidth specifications

Table 9.           Bandwidth specifications

SKUSwitching capacitySwitching capacity with stackingForwarding rateForwarding rate with stacking
C9300X-48TX2,000 Gbps3,000 Gbps1488 Mpps2232 Mpps
C9300X-48HX2,000 Gbps3,000 Gbps1488 Mpps2232 Mpps
C9300X-48HXN2,000 Gbps3,000 Gbps1488 Mpps2232 Mpps
C9300X-24HX880 Gbps1,880 Gbps327.38 Mpps1398.80 Mpps
C9300X-12Y1,000 Gbps2,000 Gbps744.04 Mpps1488 Mpps
C9300X-24Y2,000 Gbps3,000 Gbps1488 Mpps2232 Mpps
C9300-24T208 Gbps688 Gbps154.76 Mpps511.90 Mpps
C9300-48T256 Gbps736 Gbps190.47 Mpps547.62 Mpps
C9300-24P208 Gbps688 Gbps154.76 Mpps511.90 Mpps
C9300-48P256 Gbps736 Gbps190.47 Mpps547.62 Mpps
C9300-24U208 Gbps688 Gbps154.76 Mpps511.90 Mpps
C9300-48U256 Gbps736 Gbps190.48 Mpps547.62 Mpps
C9300-24UX640 Gbps1120 Gbps476.19 Mpps833.33 Mpps
C9300-48UXM580 Gbps1060 Gbps431.54 Mpps788.69 Mpps
C9300-48UN640 Gbps1120 Gbps476.19 Mpps833.33 Mpps
C9300-24UB208 Gbps688 Gbps154.76 Mpps511.90 Mpps
C9300-48UB256 Gbps736 Gbps190.48 Mpps547.62 Mpps
C9300-24UXB640 Gbps1120 Gbps476.19 Mpps833.33 Mpps
C9300-24H208 Gbps688 Gbps154.76 Mpps511.90 Mpps
C9300-48H256 Gbps736 Gbps190.48 Mpps547.62 Mpps
C9300-24S208 Gbps688 Gbps154.76 Mpps511.90 Mpps
C9300-48S256 Gbps736 Gbps190.47 Mpps547.62 Mpps
C9300X-12Y1,000 Gbps2,000 Gbps744.04 Mpps1488 Mpps
C9300X-24Y2,000 Gbps3,000 Gbps1488 Mpps2232 Mpps
C9300LM-48UX-4Y440 Gbps760 Gbps327.36 Mpps565.44 Mpps
C9300LM-48U-4Y296 Gbps616 Gbps220.22 Mpps458.30 Mpps
C9300LM-24U-4Y248 Gbps568 Gbps184.51 Mpps422.59 Mpps
C9300LM-48T-4Y296 Gbps616 Gbps220.22 Mpps458.30 Mpps
C9300L-24T-4G56 Gbps376 Gbps41.66 Mpps279.76 Mpps
C9300L-24T-4X128 Gbps448 Gbps95.23 Mpps333.33 Mpps
C9300L-48T-4G104 Gbps424 Gbps77.38 Mpps315.48 Mpps
C9300L-48T-4X176 Gbps496 Gbps130.95 Mpps369.05 Mpps
C9300L-24P-4G56 Gbps376 Gbps41.66 Mpps279.76 Mpps
C9300L-24P-4X128 Gbps448 Gbps95.23 Mpps333.33 Mpps
C9300L-48P-4G104 Gbps424 Gbps77.38 Mpps315.48 Mpps
C9300L-48P-4X176 Gbps496 Gbps130.95 Mpps369.05 Mpps
C9300L-48PF-4G104 Gbps424 Gbps77.38 Mpps315.48 Mpps
C9300L-48PF-4X176 Gbps496 Gbps130.95 Mpps369.05 Mpps
C9300L-24UXG-4X272 Gbps592 Gbps202.38 Mpps440.47 Mpps
C9300L-24UXG-2Q352 Gbps672 Gbps261.90 Mpps500.00 Mpps
C9300L-48UXG-4X392 Gbps712 Gbps291.66 Mpps529.76 Mpps
C9300L-48UXG-2Q472 Gbps792 Gbps351.19 Mpps589.28 Mpps

All models are at wire-speed nonblocking performance for both IPv4 and IPv6. The forwarding rates in the table above are measured with 64 byte IPv4 packet sizes.

Table 10.       Power supply requirements for Catalyst 9300 Series modular uplink PoE/PoE+ models (C9300-xxP SKUs)

24-port PoE switch48-port PoE switch
PoE on all ports (15.4W per port)1 PWR-C1-715WAC/PWR-C1-715WAC-P/PWR-C1-715WDC1 PWR-C1-1100WAC/PWR-C1-1100WAC-P or 2 PWR-C1-715WAC/PWR-C1-715WAC-P/PWR-C1-715WDC
PoE+ on all ports (30W per port)1 PWR-C1-1100WAC/PWR-C1-1100WAC-P or 2 PWR-C1-715WAC/PWR-C1-715WAC-P/PWR-C1-715WDC2 PWR-C1-1100WAC/PWR-C1-1100WAC-P or 1 PWR-C1-1100WAC/PWR-C1-1100WAC-P and 1 PWR-C1-715WAC/PWR-C1-715WAC-P/PWR-C1-715WDC

Table 11.       Power supply requirements for Catalyst 9300 Series UPOE models
(C9300-xxU/UB/UXM/UN, C9300L-xxUXG-xx SKUs)

 24-port Cisco UPOE switch48-port Cisco UPOE switch48 and 24-port Multigigabit Cisco UPOE switch*
Cisco UPOE (60W per port) & IEEE 802.3bt type3 on all ports (24-port switch) or up to 30 ports (48-port switch)1 PWR-C1-1100WAC/PWR-C1-1100WAC-P and 1 PWR-C1-715WAC/PWR-C1-715WAC-P/PWR-C1-715WDC2 PWR-C1-1100WAC/PWR-C1-1100WAC-P2 PWR-C1-1100WAC/PWR-C1-1100WAC-P

Table 12.       Power supply requirements for Catalyst 9300 Series UPOE+ models (C9300-xxH SKUs)

 24-port Cisco UPOE+ switch48-port Cisco UPOE+ switch
Cisco UPOE+ (90W per port) & IEEE 802.3bt type4 on 21 ports (24-port and 48-port switch)1 PWR-C1-1100WAC/PWR-C1-1100WAC-P and 1 PWR-C1-715WAC/PWR-C1-715WAC-P/PWR-C1-715WDC2 PWR-C1-1100WAC/PWR-C1-1100WAC-P or 2 PWR-C1-1900WAC-P

Table 13.       Power supply requirements for Catalyst 9300 Series fixed uplink PoE/PoE+ models (C9300L-xxP SKUs)

24-port PoE switch48-port PoE switch
PoE on all ports (15.4W per port)1 PWR-C1-715WAC-P/PWR-C1-715WDC1 PWR-C1-1100WAC-P or 2 PWR-C1-715WAC-P
PoE+ on all ports (30W per port)1 PWR-C1-1100WAC-P or 2 PWR-C1-715WAC-P/PWR-C1-715WDC2 PWR-C1-1100WAC-P or 1 PWR-C1-1100WAC-P and 1 PWR-C1-715WAC-P/PWR-C1-715WDC

●     Perpetual PoE: With Perpetual PoE, the PoE power is maintained during a switch reload. This is important for IoT endpoints such as PoE-powered lights, so that there is no disruption during switch reboot.

●     Fast PoE: When power is restored to a switch, PoE starts delivering power to endpoints without waiting for the operating system to fully load, thereby speeding up the time for the endpoint to start up.

*C9300-48UN, C9300-24UX, C9300-48UXM are available with PWR-C1-1100WAC-P Platinum-rated power supply. Platinum-rated power supplies are more efficient, lowering operating power costs

*PWR-C1-1100WAC-UP and PWR-C1-715WAC-UP Platinum-rated power supply upgrade options are available to upgrade the default AC power supply to 1100W or 715W

Table 15.       Network Essentials and Advantage package features

FeaturesNetwork EssentialsNetwork Advantage
Switch fundamentalsLayer 2, Routed Access (RIP, EIGRP Stub, OSPF – 1000 routes), PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1X, MACsec-128, CoPP, SXP, IP SLA Responder, SSO
Advanced switch capabilities and scaleBGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR,* IP SLA, OSPF
Network segmentationVRF, VXLAN, LISP, TrustSec, SGT, MPLS, mVPN
AutomationNETCONF, RESTCONF, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)
Telemetry and visibilityModel-driven telemetry, sampled NetFlow, SPAN, RSPAN
High availability and resiliencyNonstop Forwarding (NSF), Graceful Insertion and Removal (GIR), Extended Fast Software Upgrade (xFSU), Software Patching (CLI Based)
IOT integrationAVB, PTP, CoAP
SecurityMACsec-256

Table 16.       Cisco DNA Essentials and Advantage package features (add a section for other software support and add Prime, ISE and Stealthwatch support)

FeaturesCisco DNA EssentialsCisco DNA Advantage
Switch features
Optimized network deploymentsCisco DNA Service for Bonjour
Advanced telemetry and visibilityFull Flexible NetFlow, EEM
Optimized telemetry and visibilityERSPAN, AVC (NBAR2), app hosting (in containers/VMs), Wireshark
Advanced securityEncrypted Traffic Analytics (ETA), IPSec
Cisco DNA Center features
Day-0 network bring-up automationCisco Network Plug-and-Play application, network settings, device credentials, LAN automation, host onboarding
Element managementDiscovery, inventory, topology, software image, licensing, and configuration management
Element managementPatch management
Basic AssuranceHealth dashboards – Network, Client, Application; switch and wired client health monitoring
Cisco ThousandEyes Network and Application SyntheticsNetwork performance metrics, dashboarding, visibility into app and service experience, end-to-end visibility across cloud and DC applications
SD-AccessPolicy-based automation and assurance for wired and wireless
Network assurance and analyticsGlobal insights, trends, compliance, custom reports; switch 360, wired client 360; fabric and non-fabric insights; app health, app 360, app performance (loss, latency, jitter)

Table 20.       Power specifications

DescriptionSpecification
PWR-C1-1100WAC**PWR-C1-715WAC**PWR-C1-350WAC**PWR-C1-715WDC
Power supply rated maximum1100W715W350W715W
Total output BTU (note: 1000 BTU/hr = 293W)3793 BTU/hr, 1100W2465 BTU/hr, 715W1207 BTU/hr, 350W2440 BTU/hr
Input-voltage range and frequency115V to 240 VAC,50 to 60 Hz100 to 240 VAC,50 to 60 Hz100 to 240 VAC,50 to 60 Hz-36V to -72 VDC
Input current12-6A10-5A4-2A24-12A
Output ratings-56V at 19.64A-56V at 12.8A-56V at 6.25A-56V at 12.8A
Output holdup time10 ms minimum at 100VAC16.7 ms minimum at 100VAC16.7 ms minimum at 100VAC2 ms minimum at-48Vdc
Power-supply input receptaclesIEC 320-C16(IEC60320-C16)IEC 320-C16(IEC60320-C16)IEC 320-C14(IEC60320-C14)Right angle barrier style terminal block
Power cord rating15A15A10A25A@100VDC
Physical specifications(H x W x D): 1.58 x 3.25 x 13.7 inWeight: 3.1 lb (1.4 kg)(H x W x D): 1.58 x 3.25 x 12.20 inWeight: 2.6 lb (1.2 kg)(H x W x D): 1.58 x 3.25 x 12.20 inWeight: 2.3 lb (1.2 kg)(H x W x D): 1.58 x 3.25 x 12.20 inWeight: 2.2 lb (1kg)

**These Power Supply options will not be available as options for purchase with C9300 in CCW starting Q2 FY21

Table 21.       Power specifications – platinum rated power supplies

DescriptionSpecification
*PWR-C1-1900WAC-P*PWR-C1-1100WAC-P*PWR-C1-715WAC-PPWR-C1-350WAC-P
Power supply rated maximum output power1500WWith 115V1900WWith 230 V1100W715W350W
Total output BTU
(note: 1000 BTU/hr = 293W)
5118 BTU/hr, with 115V6483 BTU/hr,With 230V3754 BTU/hr, 1100W2440 BTU/hr, 715W1194 BTU/hr, 350W
Input-voltage range and frequency115V to 127 VAC,50 to 60 Hz200V to 240 VAC55 to 60 Hz115V to 240 VAC,50 to 60 Hz100 to 240 VAC,50 to 60 Hz100 to 240 VAC,50 to 60 Hz
Input current16A maximum12A maximum12-6A10-5A4-2A
Output ratings-56V at 26.78A-56V at 33.92A-56V at 19.64A-56V at 12.8A-56V at 6.25A
Output holdup time20 ms minimum at 100VAC20 ms minimum at 100VAC20 ms minimum at 100VAC20 ms minimum at 100VAC20 ms minimum at 100VAC
Power-supply input receptaclesIEC 320-C22IEC 320-C22IEC 320-C16(IEC60320-C16)IEC 320-C16(IEC60320-C16)IEC 320-C14(IEC60320-C14)
Power cord rating20A16A15A15A10A
Physical specifications(H x W x D): 1.58 x 3.25 s 13.7 inWeight: xxx lb (x.x kg)(H x W x D): 1.58 x 3.25 s 13.7 inWeight: 3.1 lb (1.4 kg)(H x W x D): 1.58 x 3.25 x 12.20 inWeight: 2.6 lb (1.2 kg)(H x W x D): 1.58 x 3.25 x 12.20 inWeight: 2.3 lb (1.2 kg)
Operating temperatureNormal operating temperature* and altitudes:-5°C to +45°C, up to 5000 feet (1500m)-5°C to +40°C, up to 10,000 feet (3000m)-5°C to +35°C, up to 15,000 feet (5000m)* Minimum ambient temperature for cold start is 32°F (0°C)Short-term* exceptional conditions:-5°C to +55°C, at sea level-5°C to +50°C, up to 5000 feet (1500m)-5°C to +45°C, up to 10,000 feet (3000m)-5°C to +35°C, up to 15,000 feet (5000m)*Not more than following in one year period: 96 consecutive hours, or 360 hours total, or 15 occurrencesNormal operating temperature* and altitudes:●  -5°C to +45°C, up to 5000 feet (1500m)●  -5°C to +40°C, up to 10,000 feet (3000m)*Minimum ambient temperature for cold start is 32°F (0°C)Short-term* exceptional conditions:●  -5°C to +50°C, up to 5000 feet (1500m)●  -5°C to +45°C, up to 10,000 feet (3000m)●  -5°C to +45°C, at sea level with single fan failure*Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature40° to 158°F (-40° to 70°C)-40° to 158°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing5% to 90% noncondensing5% to 90% noncondensing
Altitude10,000 ft. (3000 meters), up to 45°C10,000 ft. (3000 meters), up to 45°C
EMI and EMC complianceFCC Part 15 (CFR 47) Class AICES-003 Class AEN 55032 Class ACISPR 32 Class AAS/NZS 3548 Class ABSMI Class A
(AC input models only)VCCI Class AEN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5,
EN61000-4-6
FCC Part 15 (CFR 47) Class AICES-003 Class AEN 55032 Class ACISPR 32 Class AAS/NZS 3548 Class ABSMI Class A
(AC input models only)VCCI Class AEN 55024, EN300386,
EN 61000-3-2, EN 61000-3-3EN61000-4-2, EN61000-4-3,
EN61000-4-4, EN61000-4-5,
EN61000-4-6
Safety compliance
LED indicators“AC OK”: Input power to the power supply is OK“PS OK”: Output power from the power supply is OK“AC OK”: Input power to the power supply is OK“PS OK”: Output power from the power supply is OK

*PWR-C1-1900WAC-UP is available as an PSU upgrade option to 1900W primary PSU

*PWR-C1-1100WAC-UP is available as an PSU upgrade option to 1100W primary PSU

*PWR-C1-715WAC-UP is available as an PSU upgrade option to 715W primary PSU

在售产品

联系在线客服

loading…

已经是到最后一篇内容了!

选配信息

Table.     Ordering information

Switches

Product number

Product description

C9300X-48HX-E

Catalyst 9300 48-port 10G/mGig with modular uplink, UPOE+, Network Essentials

C9300X-48HX-A

Catalyst 9300 48-port 10G/mGig with modular uplink, UPOE+, Network Advantage

C9300X-48TX-E

Catalyst 9300 48-port 10G/mGig with modular uplink, data only, Network Essentials

C9300X-48TX-A

Catalyst 9300 48-port 10G/mGig with modular uplink, data only, Network Advantage

C9300X-48HXN-E

Catalyst 9300 36-port 5G/mGig, 12-port 10G with modular uplink, UPOE+, Network Essentials

C9300X-48HXN-A

Catalyst 9300 36-port 5G/mGig, 12-port 10G with modular uplink, UPOE+, Network Advantage

C9300X-24HX-E

Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE+, Network Essentials

C9300X-24HX-A

Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE+, Network Advantage

C9300X-12Y-E

Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials

C9300X-12Y-A

Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage

C9300X-24Y-E

Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Essentials

C9300X-24Y-A

Catalyst 9300 24-port 25G/10G/1G SFP28 with modular uplinks, Network Advantage

C9300-24T-E

Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Essentials

C9300-24T-A

Catalyst 9300 24-port 1G copper with modular uplinks, data only, Network Advantage

C9300-24P-E

Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Essentials

C9300-24P-A

Catalyst 9300 24-port 1G copper with modular uplinks, PoE+, Network Advantage

C9300-24U-E

Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Essentials

C9300-24U-A

Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage

C9300-24UB-E

Catalyst 9300 higher scale 24-port 1G copper with modular uplinks, UPOE, Network Essentials

C9300-24UB-A

Catalyst 9300 higher scale 24-port 1G copper with modular uplinks, UPOE, Network Advantage

C9300-24U-E-UL

Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage

(Compatible with UL1069 Standard*)

C9300-24U-A-UL

Catalyst 9300 24-port 1G copper with modular uplinks, UPOE, Network Advantage

(Compatible with UL1069 Standard*)

C9300-24H-E

Catalyst 9300 24-port 1G copper with modular uplinks, UPOE+, Network Essentials

C9300-24H-A

Catalyst 9300 24-port 1G copper with modular uplinks, UPOE+, Network Advantage

C9300-24UX-E

Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE, Network Essentials

C9300-24UX-A

Catalyst 9300 24-port 10G/mGig with modular uplink, UPOE, Network Advantage

C9300-24UXB-E

Catalyst 9300 higher scale 24-port 10G/mGig with modular uplink, UPOE, Network Essentials

C9300-24UXB-A

Catalyst 9300 higher scale 24-port 10G/mGig with modular uplink, UPOE, Network Advantage

C9300-48T-E

Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Essentials

C9300-48T-A

Catalyst 9300 48-port 1G copper with modular uplinks, data only, Network Advantage

C9300-48P-E

Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Network Essentials

C9300-48P-A

Catalyst 9300 48-port 1G copper with modular uplinks, PoE+, Network Advantage

C9300-48U-E

Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Essentials

C9300-48U-A

Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage

C9300-48UB-E

Catalyst 9300 higher scale 48-port 1G copper with modular uplinks, UPOE, Network Essentials

C9300-48UB-A

Catalyst 9300 higher scale 48-port 1G copper with modular uplinks, UPOE, Network Advantage

C9300-48U-E-UL

Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Essentials

(Compatible with UL1069 Standard*)

C9300-48U-A-UL

Catalyst 9300 48-port 1G copper with modular uplinks, UPOE, Network Advantage

(Compatible with UL1069 Standard*)

C9300-48H-E

Catalyst 9300 48-port 1G copper with modular uplinks, UPOE+, Network Essentials

C9300-48H-A

Catalyst 9300 48-port 1G copper with modular uplinks, UPOE+, Network Advantage

C9300-48UXM-E

Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Essentials

C9300-48UXM-A

Catalyst 9300 48-port 2.5G (12 10G/mGig) copper with modular uplinks, UPOE, Network Advantage

C9300-48UN-E

Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Essentials

C9300-48UN-A

Catalyst 9300 48-port 5G copper with modular uplinks, UPOE, Network Advantage

C9300-24S-E

Catalyst 9300 24-port 1G SFP with modular uplinks, Network Essentials

C9300-24S-A

Catalyst 9300 24-port 1G SFP with modular uplinks, Network Advantage

C9300-48S-E

Catalyst 9300 48-port 1G SFP with modular uplinks, Network Essentials

C9300-48S-A

Catalyst 9300 48-port 1G SFP with modular uplinks, Network Advantage

C9300L-24T-4G-E

Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials

C9300L-24T-4G-A

Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Advantage

C9300L-24P-4G-E

Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials

C9300L-24P-4G-A

Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Advantage

C9300L-48T-4G-E

Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials

C9300L-48T-4G-A

Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Advantage

C9300L-48P-4G-E

Catalyst 9300 48-port 1G copper, with fixed 4x1G SFP uplinks, PoE+ Network Essentials

C9300L-48P-4G-A

Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+ Network Advantage

C9300L-48PF-4G-E

Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+ Network Essentials

C9300L-48PF-4G-A

Catalyst 9300 48-port 1G copper with fixed 4x1G SFP uplinks, PoE+ Network Advantage

C9300L-24T-4X-E

Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Essentials

C9300L-24T-4X-A

Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Advantage

C9300L-24P-4X-E

Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Essentials

C9300L-24P-4X-A

Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Advantage

C9300L-24UXG-4X-E

Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Essentials

C9300L-24UXG-4X-A

Catalyst 9300 24-port 8XmGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 4x10G/1G SFP+ uplinks, UPOE, Network Advantage

C9300L-48T-4X-E

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Essentials

C9300L-48T-4X-A

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Advantage

C9300L-48P-4X-E

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Essentials

C9300L-48P-4X-A

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, PoE+ Network Advantage

C9300L-48PF-4X-E

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Essentials

C9300L-48PF-4X-A

Catalyst 9300 48-port 1G copper with fixed 4x10G/1G SFP+ uplinks, full PoE+ Network Advantage

C9300L-48UXG-4X-E

Catalyst 9300 48-port fixed uplinks UPOE, 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G, 4x 10G uplinks, Network Essentials

C9300L-48UXG-4X-A

Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 4x 10G/1G SFP+ uplinks, UPOE, Network Advantage

C9300L-24UXG-2Q-E

Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials

C9300L-24UXG-2Q-A

Catalyst 9300 24-port 8x mGig (100M/1G/2.5G/5G/10G) + 16x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage

C9300L-48UXG-2Q-E

Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Essentials

C9300L-48UXG-2Q-A

Catalyst 9300 48-port 12x mGig (100M/1G/2.5G/5G/10G) + 36x 10M/100M/1G copper with fixed 2x 40G QSFP uplinks, UPOE, Network Advantage

C9300LM-48UX-4Y-E

Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit, 40-port 1G, 4x 25G uplinks, Network Essentials

C9300LM-48UX-4Y-A

Catalyst 9300 mini 48-port UPOE, 8-port 10G Multigigabit, 40-port 1G, 4x 25G uplinks, Network Advantage

C9300LM-48U-4Y-E

Catalyst 9300 mini 48-port 1G UPOE, 4x 25G uplinks, Network Essentials

C9300LM-48U-4Y-A

Catalyst 9300 mini 48-port 1G UPOE, 4x 25G uplinks, Network Advantage

C9300LM-48T-4Y-E

Catalyst 9300 mini 48-port 1G data, 4x 25G uplinks, Network Essentials

C9300LM-48T-4Y-A

Catalyst 9300 mini 48-port 1G data, 4x 25G uplinks, Network Advantage

C9300LM-24U-4Y-E

Catalyst 9300 mini 24-port 1G UPOE, 4x 25G uplinks, Network Essentials

C9300LM-24U-4Y-A

Catalyst 9300 mini 24-port 1G UPOE, 4x 25G uplinks, Network Advantage

Network modules

Product number

Product description

C9300X-NM-8M

Catalyst 9300X 8 x 10G/mGig Network Module

C9300X-NM-8M=

Catalyst 9300X 8 x 10G/mGig Network Module, spare

C9300X-NM-8Y

Catalyst 9300 8 x 25G/10G/1G multi-rate SFP Network Module

C9300X-NM-8Y=

Catalyst 9300 8 x 25G/10G/1G multi-rate SFP Network Module, spare

C9300X-NM-2C

Catalyst 9300 2 x 100G/40G dual rate QSFP Network Module

C9300X-NM-2C=

Catalyst 9300 2 x 100G/40G dual rate QSFP Network Module, spare

C9300X-NM-4C

Catalyst 9300 4 x 100G/40G dual rate QSFP Network Module

C9300X-NM-4C=

Catalyst 9300 4 x 100G/40G dual rate QSFP Network Module, spare

C9300-NM-4G

Catalyst 9300 4 x 1GE SFP Network Module

C9300-NM-4G=

Catalyst 9300 4 x 1GE SFP Network Module, spare

C9300-NM-8X

Catalyst 9300 8 x 10G/1G SFP+ Network Module

C9300-NM-8X=

Catalyst 9300 8 x 10G/1G SFP+ Network Module, spare

C9300-NM-2Q

Catalyst 9300 2 x 40GE QSFP Network Module

C9300-NM-2Q=

Catalyst 9300 2 x 40GE QSFP Network Module, spare

C9300-NM-2Y

Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module

C9300-NM-2Y=

Catalyst 9300 2 x 25G/10G/1G SFP28 Network Module, spare

C9300-NM-4M

Catalyst 9300 4 x 10G/mGig Network Module

C9300-NM-4M=

Catalyst 9300 4 x 10G/mGig Network Module, spare

NM-BLANK-T1=

Cisco Catalyst Type 1 Network Module Blank, spare

Storage Module

Product number

Product description

SSD-120G

Cisco pluggable USB3.0 120G SSD storage

SSD-120G=

Cisco pluggable USB3.0 120G SSD storage, spare

SSD-240G

Cisco pluggable USB3.0 240G SSD storage

SSD-240G=

Cisco pluggable USB3.0 240G SSD storage, spare

Software licenses for C9300 SKUs

Product number

Product description

C9300-DNA-E-24-3Y

C9300 Cisco DNA Essentials, 24-port, 3 Year Term license

C9300-DNA-E-24-5Y

C9300 Cisco DNA Essentials, 24-port, 5 Year Term license

C9300-DNA-E-24-7Y

C9300 Cisco DNA Essentials, 24-port, 7 Year Term license

C9300-DNA-A-24-3Y

C9300 Cisco DNA Advantage, 24-port, 3 Year Term license

C9300-DNA-A-24-5Y

C9300 Cisco DNA Advantage, 24-port, 5 Year Term license

C9300-DNA-A-24-7Y

C9300 Cisco DNA Advantage, 24-port, 7 Year Term license

C9300-DNA-E-48-3Y

C9300 Cisco DNA Essentials, 48-port, 3 Year Term license

C9300-DNA-E-48-5Y

C9300 Cisco DNA Essentials, 48-port, 5 Year Term license

C9300-DNA-E-48-7Y

C9300 Cisco DNA Essentials, 48-port, 7 Year Term license

C9300-DNA-A-48-3Y

C9300 Cisco DNA Advantage, 48-port, 3 Year Term license

C9300-DNA-A-48-5Y

C9300 Cisco DNA Advantage, 48-port, 5 Year Term license

C9300-DNA-A-48-7Y

C9300 Cisco DNA Advantage, 48-port, 7 Year Term license

C9300-DNA-E-24S-3Y

C9300 1G Fiber Cisco DNA Essentials, 24-port, 3 Year Term license

C9300-DNA-E-24S-5Y

C9300 1G Fiber Cisco DNA Essentials, 24-port, 5 Year Term license

C9300-DNA-E-24S-7Y

C9300 1G Fiber Cisco DNA Essentials, 24-port, 7 Year Term license

C9300-DNA-A-24S-3Y

C9300 1G Fiber Cisco DNA Advantage, 24-port, 3 Year Term license

C9300-DNA-A-24S-5Y

C9300 1G Fiber Cisco DNA Advantage, 24-port, 5 Year Term license

C9300-DNA-A-24S-7Y

C9300 1G Fiber Cisco DNA Advantage, 24-port, 7 Year Term license

C9300-DNA-E-48S-3Y

C9300 1G Fiber Cisco DNA Essentials, 48-port, 3 Year Term license

C9300-DNA-E-48S-5Y

C9300 1G Fiber Cisco DNA Essentials, 48-port, 5 Year Term license

C9300-DNA-E-48S-7Y

C9300 Cisco DNA Essentials, 48-port, 7 Year Term license

C9300-DNA-A-48S-3Y

C9300 1G Fiber Cisco DNA Advantage, 48-port, 3 Year Term license

C9300-DNA-A-48S-5Y

C9300 1G Fiber Cisco DNA Advantage, 48-port, 5 Year Term license

C9300-DNA-A-48S-7Y

C9300 1G Fiber Cisco DNA Advantage, 48-port, 7 Year Term license

C9300-DNA-L-E-3Y

C9300 Cisco DNA Essentials license (3Y) for 12Y, 24Y SKU

C9300-DNA-L-E-5Y

C9300 Cisco DNA Essentials license (5Y) for 12Y, 24Y SKU

C9300-DNA-L-E-7Y

C9300 Cisco DNA Essentials license (7Y) for 12Y, 24Y SKU

C9300-DNA-L-A-3Y

C9300 Cisco DNA Advantage license (3Y) for 12Y, 24Y SKU

C9300-DNA-L-A-5Y

C9300 Cisco DNA Advantage license (5Y) for 12Y, 24Y SKU

C9300-DNA-L-A-7Y

C9300 Cisco DNA Advantage license (7Y) for 12Y, 24Y SKU

C9300-LIC=

Electronic Cisco DNA Upgrade License for C9300 switches. Note: when upgrading from Cisco DNA Essentials to Cisco DNA Advantage, Network Essentials is also upgraded to Network Advantage

Software licenses for C9300L SKUs

Product number

Product number

C9300L-DNA-E-24-3Y

C9300L Cisco DNA Essentials, 24-port, 3 Year Term license

C9300L-DNA-E-24-5Y

C9300L Cisco DNA Essentials, 24-port, 5 Year Term license

C9300L-DNA-E-24-7Y

C9300L Cisco DNA Essentials, 24-port, 7 Year Term license

C9300L-DNA-A-24-3Y

C9300L Cisco DNA Advantage, 24-port, 3 Year Term license

C9300L-DNA-A-24-5Y

C9300L Cisco DNA Advantage, 24-port, 5 Year Term license

C9300L-DNA-A-24-7Y

C9300L Cisco DNA Advantage, 24-port, 7 Year Term license

C9300L-DNA-E-48-3Y

C9300L Cisco DNA Essentials, 48-port, 3 Year Term license

C9300L-DNA-E-48-5Y

C9300L Cisco DNA Essentials, 48-port, 5 Year Term license

C9300L-DNA-E-48-7Y

C9300L Cisco DNA Essentials, 48-port, 7 Year Term license

C9300L-DNA-A-48-3Y

C9300L Cisco DNA Advantage, 48-port, 3 Year Term license

C9300L-DNA-A-48-5Y

C9300L Cisco DNA Advantage, 48-port, 5 Year Term license

C9300L-DNA-A-48-7Y

C9300L Cisco DNA Advantage, 48-port, 7 Year Term license

C9300L-LIC=

Electronic Cisco DNA Upgrade License for C9300L switches. Note: when upgrading from Cisco DNA Essentials to Cisco DNA Advantage, Network Essentials is also upgraded to Network Advantage

Power supplies

Product number

Product description

PWR-C1-350WAC=

350WAC power supply spare

PWR-C1-715WAC=

715WAC power supply spare

PWR-C1-715WDC=

715WDC power supply spare

PWR-C1-1100WAC=

1100WAC power supply spare

PWR-C1-1900WAC=

1900WAC Power supply spare

PWR-C1-350WAC-P=

350WAC Platinum-rated power supply spare

PWR-C1-715WAC-P=

715WAC Platinum-rated power supply spare

PWR-C1-1100WAC-P=

1100WAC Platinum-rated power supply spare

PWR-C1-715WAC-UP

Upgrade to 715WAC Platinum-rated power supply

PWR-C1-1100WAC-UP

Upgrade to 1100WAC Platinum-rated power supply

PWR-C1-1900WAC-UP

Upgrade to 1900WAC Platinum-rated power supply

Cisco StackWise-480/1T and StackPower cables

Product number

Product description

STACK-T1-50CM=

Cisco StackWise-480/1T 50cm stacking cable spare

STACK-T1-1M=

Cisco StackWise-480/1T 1m stacking cable spare

STACK-T1-3M=

Cisco StackWise-480/1T 3m stacking cable spare

CAB-SPWR-30CM=

Cisco Catalyst 3850 StackPower cable 30cm spare

CAB-SPWR-150CM=

Cisco Catalyst 3850 StackPower cable 150cm spare

Cisco StackWise-320 Accessories

Product number

Product description

C9300L-STACK-KIT

Stack Kit for C9300L SKUs – includes 2 Stack Adaptors and 1 Stack Cable

C9300L-STACK-KIT=

Stack Kit for C9300L SKUs – includes 2 Stack Adaptors and 1 Stack Cable, spare

STACK-T3-50CM

50CM Type 3 Stacking Cable – default with Stack Kit for C9300L SKUs

STACK-T3-50CM=

50CM Type 3 Stacking Cable, spare for C9300L SKUs

STACK-T3-1M

1M Type 3 Stacking Cable for C9300L SKUs

STACK-T3-1M=

1M Type 3 Stacking Cable, spare for C9300L SKUs

STACK-T3-3M

3M Type 3 Stacking Cable for C9300L SKUs

STACK-T3-3M=

3M Type 3 Stacking Cable, spare for C9300L SKUs

Spare power cords

CAB-TA-NA=

AC power cord for Cisco Catalyst (North America)

CAB-TA-AP=

AC power cord for Cisco Catalyst (Australia)

CAB-TA-AR=

AC power cord for Cisco Catalyst (Argentina)

CAB-TA-SW=

AC power cord for Cisco Catalyst (Switzerland)

CAB-TA-UK=

AC power cord for Cisco Catalyst (United Kingdom)

CAB-TA-JP=

AC power cord for Cisco Catalyst (Japan)

CAB-TA-250VAC-JP=

Japan 250VAC power cord for Cisco Catalyst (Japan)

CAB-TA-EU=

AC power cord for Cisco Catalyst (Europe)

CAB-TA-IT=

AC power cord for Cisco Catalyst (Italy)

CAB-TA-IN=

AC power cord for Cisco Catalyst (India)

CAB-TA-CN=

AC power cord for Cisco Catalyst (China)

CAB-TA-DN=

AC power cord for Cisco Catalyst (Denmark)

CAB-TA-IS=

AC power cord for Cisco Catalyst (Israel)

CAB-ACBZ-12A=

AC power cord for Cisco Catalyst (Brazil), 12A/125V BR-3-20 plug up to 12A

CAB-ACBZ-10A=

AC power cord for Cisco Catalyst (Brazil), 10A/250V BR-3-10 plug up to 10A

CAB-C15-CBN

Cabinet jumper power cord, 250VAC 13A, C14-C15 connectors

③采购咨询:186-1111-5727
批量采购咨询
批量采购咨询 提交咨询

Warning: Illegal string offset 'after_widget' in /www/wwwroot/www.szww.cn/webdocs/wp-content/plugins/woocommerce/includes/abstracts/abstract-wc-widget.php on line 178
