思科工业交换机 IE 2000 ip67系列

Cisco Industrial Ethernet 2000 IP67 Series Switches

— 在您的工业网络中部署安全而灵活的可扩展交换解决方案。 —

① ok采购咨询:186-1111-5727

Cisco Industrial Ethernet 2000 IP67 Series Switches

Cisco IE 2000 IP67 系列专为制造、汽车、石油和天然气、采矿、运输和其他工业工作场所而设计。它可以壁挂式安装,无需机柜外壳。
Cisco-Switch-Industrial- 2000 IP67 Series

思科工业以太网 IE2000 IP67 系列交换机

思科工业以太网 IE2000 IP67系列交换机

Cisco ®工业以太网IE2000 IP67 系列是思科首款符合最严格IP67 工业标准的加固型交换平台。它还提供了您对互联网协议(IP) 网络全球领导者所期望的一切:与网络其他部分的轻松集成、可靠性、坚如磐石的性能和世界一流的支持。现在,这些优势和 Cisco IOS ®软件功能一直延伸到工厂车间、铁路站或其他工业场所,甚至在最恶劣的环境中也是如此。因此,您最终可以与一家供应商一起实现跨信息技术 (IT) 和运营技术(OT) 环境的网络融合承诺。

②采购咨询:186-1111-5727

思科工业以太网 IE2000 IP67 系列交换机/核心参数对比

Cisco Industrial Ethernet 2000 IP67 Series Switches
IE2000 IP67 Switch with 8 FE M12 ports (Lan Base).IE-2000-8T67-B
  • 型号SKU:IE-2000-8T67-B
  • 总端口数: 8
  • 上行端口: N/A
  • 下行端口: 8x 100 MB D-code
  • 转发速率: 6.5 Mpps
  • 警报线缆: M12 A-Coded 5-Pin Cable
  • 软件许可: LAN Base 可升级到IP Lite
  • 存储温度: -40º C to +85º C
  • 设备尺寸: 241.7 x 236.7 x 99 mm
  • 设备重量: 3.26 kg
  • 安装方式:壁挂式
  • 查看详情 >
IE2000 IP67 with 8 FE M12 ports (8 PoE+) and 2GE (Lan Base).IE-2000-8T67P-G-E
  • 型号SKU:IE-2000-8T67P-G-E
  • 总端口数: 10
  • 上行端口: 2x GE X-code ports
  • 下行端口: 8x 100 MB D-code
  • 转发速率: 6.5 Mpps
  • 警报线缆: M12 A-Coded 5-Pin Cable
  • 软件许可: LAN Base 可升级到IP Lite
  • 存储温度: -40º C to +85º C
  • 设备尺寸: 241.7 x 236.7 x 99 mm
  • 设备重量: 3.26 kg
  • 安装方式:壁挂式
  • 查看详情 >
IE2000 IP67 Switch with 16 FE M12 ports (Lan Base).IE-2000-16T67-B
  • 型号SKU:IE-2000-16T67-B
  • 总端口数: 16
  • 上行端口: N/A
  • 下行端口: 16x 100 MB D-code
  • 转发速率: 6.5 Mpps
  • 警报线缆: M12 A-Coded 5-Pin Cable
  • 软件许可: LAN Base 可升级到IP Lite
  • 存储温度: -40º C to +85º C
  • 设备尺寸: 241.7 x 300.7 x 81.5 mm
  • 设备重量: 3.30 kg
  • 安装方式:壁挂式
  • 查看详情 >
IE2000 IP67 with 16 FE M12 ports (8 PoE+) and 2GE (Lan Base).IE-2000-16T67P-G-E
  • 型号SKU:IE-2000-16T67P-G-E
  • 总端口数: 18
  • 上行端口: 2x GE X-code ports
  • 下行端口: 16x 100 MB D-code
  • 转发速率: 6.5 Mpps
  • 警报线缆: M12 A-Coded 5-Pin Cable
  • 软件许可: LAN Base 可升级到IP Lite
  • 存储温度: -40º C to +85º C
  • 设备尺寸: 241.7 x 300.7 x 81.5 mm
  • 设备重量: 3.30 kg
  • 安装方式:壁挂式
  • 查看详情 >

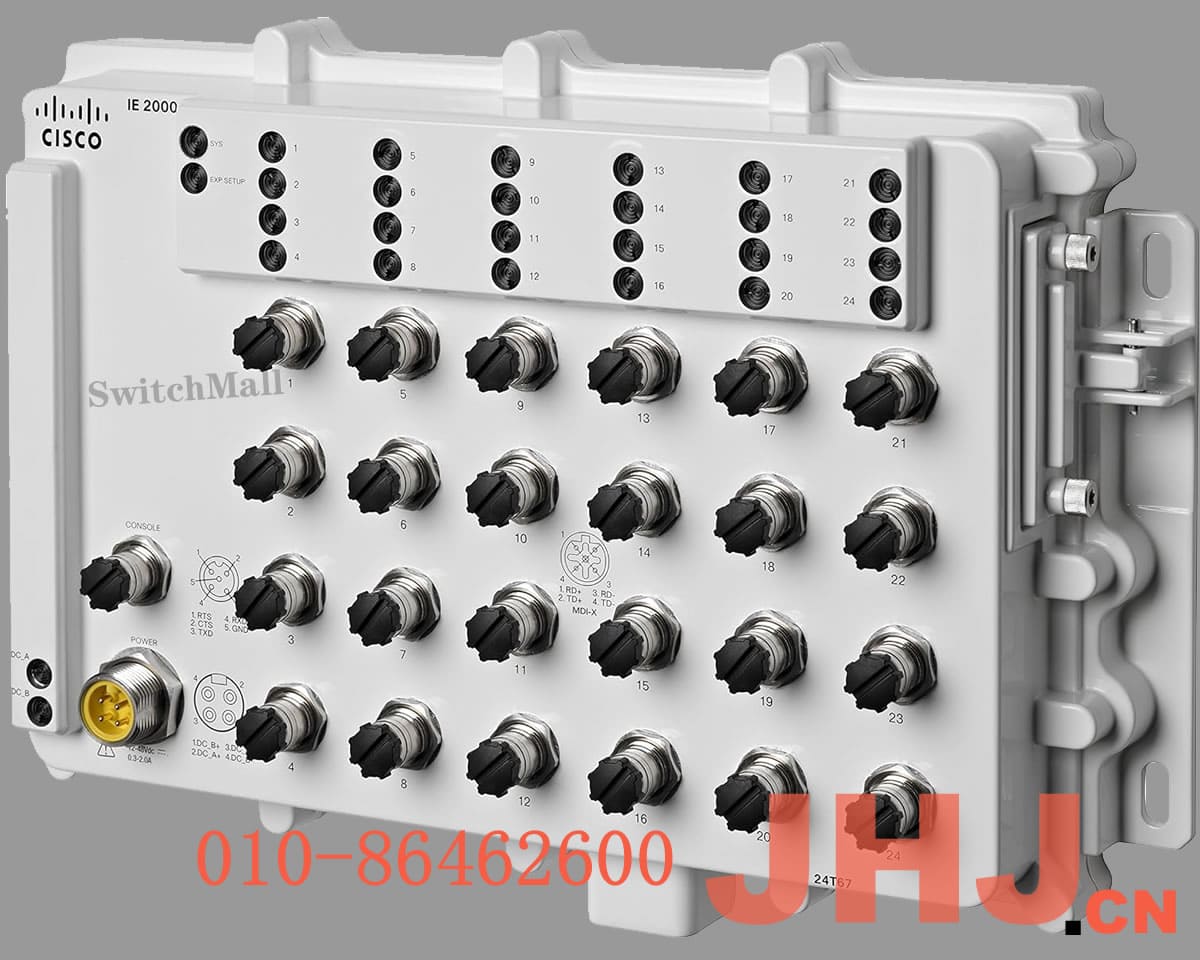

IE2000 IP67 Switch with 24 FE M12 ports (Lan Base).IE-2000-24T67-B
  • 型号SKU:IE-2000-24T67-B
  • 总端口数: 24
  • 上行端口: N/A
  • 下行端口: 24x 100 MB D-code
  • 转发速率: 6.5 Mpps
  • 警报线缆: M12 A-Coded 5-Pin Cable
  • 软件许可: LAN Base 可升级到IP Lite
  • 存储温度: -40º C to +85º C
  • 设备尺寸: 241.7 x 374.8 x 81.5 mm
  • 设备重量: 4.02 kg
  • 安装方式:壁挂式
  • 查看详情 >
160W Low DC to DC IP67 Power Supply.PWR-IE160W-67-DC=
  • 型号SKU:PWR-IE160W-67-DC=
  • 模块类型: 电源模块
  • 电源功率: 160W
  • 额定输入: 18-60VDC, 12A
  • 额定输出: 54V, 3.1A
  • 电源尺寸: 222.2 x 231.7 x 97 mm
  • 设备重量: 2.36kg
  • 安装方式:壁挂式
  • 查看详情 >
更多问题,请咨询我们
③ 采购咨询:186-1111-5727
产品特点
产品规格
在售产品
选配信息

产品特点

产品概述

Cisco ®工业以太网(IE) 2000 IP67 系列是思科首款符合最严格IP67 工业标准的加固型交换平台。它还提供了您对互联网协议 (IP) 网络全球领导者所期望的一切:与网络其他部分的轻松集成、可靠性、坚如磐石的性能和世界一流的支持。现在,这些优势和 Cisco IOS ®软件功能一直延伸到工厂车间、铁路站或其他工业场所,甚至在最恶劣的环境中也是如此。因此,您最终可以与一家供应商一起实现跨信息技术 (IT) 和运营技术 (OT) 环境的网络融合承诺。

特点和优点

Cisco IE 2000 IP67 系列专为制造、汽车、石油和天然气、采矿、运输和其他工业工作场所而设计。它可以壁挂式安装,无需机柜外壳。

表 1 总结并描述了 IE 2000 IP67 系列的主要功能。

表 1.        IE 2000 IP67 产品亮点

特征描述/优点
经过认证的 IP67 等级该解决方案的防护等级为 IP67,可防尘和防水。它符合针对极端温度和振动、湿度、电磁辐射和其他因素的最严格的工业和安全标准。
符合工业自动化标准这款坚固耐用的交换机支持 EtherNet/IP (CIP) 和 PROFINET,因此您可以轻松地将其与任何基于以太网的工业设备和管理系统集成。它还支持精确时间协议 (PTP) v2,适用于要求严格的同步应用。
轻松部署通过使用动态主机控制协议 (DHCP) 的零接触发现、快速设置和不到 60 秒的启动时间,您可以轻松迁移到全 IP 以太网网络环境。
强大的端点安全性支持以下内容:●  802.1x●  端口安全●  使用 DHCP 进行基于端口的动态身份验证●  加密的管理流量●  集中认证
弹性思科将 Flex Link 和思科弹性以太网协议 (REP) 等恢复机制引入工厂车间或其他工业场所。Profinet MRP 环提供开放标准工业弹性。
可管理性Cisco DNA Center 通过 Cisco DNA Essentials 3 年、5 年或 7 年定期订阅许可证实现大规模集中自动化和保障。●  该解决方案易于操作人员配置和管理。思科自动智能端口让您可以在几秒钟内为任何端口配置正确的服务质量 (QoS) 设置。它还允许安全的基于 Web 的管理以及与网络管理系统的轻松集成。
网络地址转换 (NAT)这些交换机提供线速、硬件支持的静态地址转换,可轻松连接复杂的第 2 层/机器节点网络。
工业以太网供电 (PoE)选择交换机型号可让您使用符合 PoE 和 PoE+ 标准的单根电缆连接端点并为其供电。
可拆卸 SD 闪存借助牢固保护的可插拔硬盘驱动器,您可以在现场快速更换交换机,同时将干扰降至最低。
平台灵活性Cisco IE2000 IP67 系列提供 8、16 或 24 个 10/100 Base-T、固定配置以太网端口和 2 个千兆位以太网端口。它提供 M12 D 编码、X 编码和微型双电源连接器,采用工业强化、壁挂式外形。

交换机性能和可扩展性

●      线速/非阻塞上行/下行端口

●      转发速率:64字节数据包6.5 mpps

●      出口缓冲区:2 MB

●      单播MAC地址:8000个

●      互联网组管理协议 (IGMP) 多播组:255 个

●      最大VLAN:1005

●      IPv4 MAC 安全 ACE:384(默认 TCAM 模板)

●      双向、128 个 NAT 条目

交换机型号和配置

图 1 显示了交换机型号,表 2 显示了 Cisco IE 2000 系列配置信息。表 3 列出了许可证升级。表 4 显示了产品规格。表 5 列出了软件功能。表 6 详细介绍了可供订购的 Cisco DNA Essentials PID。表 7 包括合规性规范。表 8 概述了管理和相关行业标准。

工业以太网 2000 IP67 系列交换机

图1。 工业以太网 2000 IP67 系列交换机

   Industrial Ethernet 2000 IP67 Series configuration

PIDTotal ports100 MB D-codeGE X-code portsManufacturing licenseIEEE1588NATPoE (+)
IE-2000-8T67-B88 LAN Base
IE-2000-16T67-B1616 LAN Base
IE-2000-24T67-B2424 LAN Base
IE-2000-8T67P-G-E1082 GELAN BaseXX*X
IE-2000-16T67P-G-E18162 GELAN BaseXX*X

*Requires LAN Base to LAN Enhanced image (enables Layer 2 NAT)

Table 3.        Power supply, license upgrade, and additional parts

Product numberDescription
PWR-IE160W-67-DC=IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W
SD-IE-1GB1GB SD Memory Card
IE-LICENSE-SPARESpare license for software upgrade (L2 to L3 features, MRP ring, etc)
IE2000-B-E=IE2000 LAN Base to Enhanced LAN Base Paper NAT License to Enable NAT Capability
LIC-MRP-MANAGER=MRP ring Manager license
LIC-MRP-Client=MRP ring Client license
LIC-IE2000-IP-L=Field upgradable IE2000 LAN Base to IP Lite license
CAB-CONSOLE-M12=Console Cable 6ft with M12 and DB9F for IE2000IP67 Switch

Table 4.        Product specifications

DescriptionSpecification
Hardware●  256MB DRAM with ECC memory●  IEEE 1588v2 FPGA●  64MB on-board flash memory●  1GB removable SD flash memory card (optional)
Alarm●  Alarm-one alarm output relay using an M12 A Coded 5 Pin connector (Max. rated: 24VDC @ 1A/48VDC @ 0.5A)
Input voltage supported●  IE-2000-8T67-B, IE-2000-16T67-B, IE-2000-24T67-B: 9.6-60VDC●  IE-2000-8T67P-G-E, IE-2000-16T67P-G-E, with PoE: 44-57VDC, with PoE+ 50-57VDC●  PWR-IE160W-67-DC=: 18-60VDC, 12A
Power rating●  IE-2000-8T67-B: 0.023KVA●  IE-2000-16T67-B: 0.027KVA●  IE-2000-24T67-B: 0.03 KVA●  8 port PoE (4 Port PoE) model: 0.12KVA●  16 port PoE (8 port PoE) model: 0.2 KVA
Power consumption●  IE-2000-8T67-B: 7-17W●  IE-2000-16T67-B: 10-20W●  IE-2000-24T67-B: 12-22W●  8-port PoE (4 Port PoE/4 Port PoE+) model: 73-140W●  16 port PoE (4 Port PoE+/8-port PoE) model: 137-150W
Connectors and cablingData cable●  Copper 100 Base-T M12 D coded 4-pole (pin) cable connector●  Copper GE M12 X coded-8-pole (pin)-cable connectorAlarm cable●  M12 A-Coded 5-Pin CableConsole cable●  M12 A Coded 5-Pin connectorPower supply cables●  Power cable for power source, Mini-Change A-Size single-ended cord set, 4 poles, female to pigtail, 16 AWG PVC cable. Molex part#130006-0737
https://www.molex.com/customer.html?supplierPN=1300060737●  Power cable to IE2000 IP67 switch: Mini-Change A-size double-Ended Cordset, 4 poles male to female. 16 AWG, TPE cable. Molex Part #130010-0863
https://www.molex.com/customer.html?supplierPN=1300100863●  Power cable for AC-DC power source, Mini-change A-size single-ended cord set, 3 pins, female insert on one end to pigtail, 16 AWG PVC cable, Molex part# 130006-2419 https://www.molex.com/customer.html?supplierPN=1300062419●  Power cord from power source to power supply: 2 hole female power cord to open for input DC connector. https://www.molex.com/customer.html?supplierPN=1300062419
Dimensions (H x W x D)●  IE-2000-8T67-B & IE-2000-8T67P-G-E 8 ports chassis’: 9.5” x 9.32” x 3.9” (241.7 x 236.7 x 99 mm)●  IE-2000-16T67-B & IE-2000-16T67P-G-E16 ports chassis’: 9.5” x 11.84” x 3.2” (241.7 x 300.7 x 81.5 mm)●  IE-2000-24T67-B 24 ports chassis: 9.5” x 14.76” x 3.2” (241.7 x 374.8 x 81.5 mm)●  PWR-IE160W-67-DC: 8.7” x 9.1” x 3.8” (222.2 x 231.7 x 97 mm)
Weight●  IE-2000 IP67 8 ports (both models; PoE and non-PoE) 7.19 lbs. (3.26 kg)●  IE-2000 IP67 16 ports (both models; PoE and non-PoE) 7.28 lbs. (3.30 kg)●  IE-2000 IP67 24 ports 8.86 lbs. (4.02 kg)●  PWR-IE160W-67-DC: 5.2 lbs. (2.36kg)●  PWR-IE180-67-AC: 5.2 lbs. (2.36kg)

Table 5.        Cisco IE 2000 software features

LAN Base license (Default)Features
Layer 2 switchingIEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Flex Link, REP, VTPv3, EtherChannel, Voice VLAN
SecuritySCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session (1), Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary
MulticastIGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
QoSIPv4 Ingress Policing, Rate-Limiting, Egress Queuing/Shaping, AutoQoS
ManagementFast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog, Port- Based DHCP, Storm Control-Unicast, Multicast, Broadcast, SPAN Sessions (2), RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration
Industrial EthernetEthernet/IP, Profinet, Profinet MRP, IEEE 1588 PTPv2
IPv4 routingIPv4 static routing
IPv6 routingIPv6 host support, HTTP over IPv6, SNMP over IPv6
Enhanced LAN BaseFeatures
Industrial ManagementLayer 2 Switching with 1:1 static NAT
IP Lite licenseFeatures
IPv4 RoutingRIP, OSPF, EIGRP, VRF Lite
IPv6 RoutingIPv6 Static routing, OSPFv3

Table 6.        Cisco IE 2000 Cisco DNA Essentials license features

Cisco DNA EssentialsFeatures
Elementry ManagementDiscovery, topology, inventory, software image management
AssuranceHealth Dashboards – Network, Client, Basic Switch & Wired Client Health Monitoring, Compliance, Custom Reports, Device 360 & Wired Client 360
AutomationCisco Network Plug-and-Play application

  Compliance specifications

DescriptionSpecification
Safety certifications●  UL/CSA 60950-1●  EN 60950-1●  CB to IEC 60950-1 with all country deviations●  NOM to NOM-019-SCFI (through partners and distributor)●  CCC (for power supply only) (Pending)
Industrial (control equipment) floor●  UL 508●  CSA C22.2, No 142●  CSA C22, 2 No 107.1 (for Power Supply Only)
Operating environment●  Operating Temperature: -40C to +60C●  EN 60068-2-1●  EN 60068-2-2●  EN 61163●  Altitude: Up to 13,800 feet or 4,200 meters
EMC emissions and immunity compliance●  FCC 47 CFR Part 15 Class A●  EN 55011●  EN 55022A Class A●  VCCI Class A●  AS/NZS CISPR 22 Class A●  CISPR 11 Class A●  CISPR 22 Class A●  ICES 003 Class A●  CNS13438 Class A●  KN22●  EN55024●  CISPR 24●  AS/NZS CISPR 24●  KN24●  Brazil ANATEL certification●  EN 61000-4-2 Electro Static Discharge●  EN 61000-4-3 Radiated RF●  EN 61000-4-4 Electromagnetic Fast Transients●  EN 61000-4-5 Surge●  EN 61000-4-6 Conducted RF●  EN 61000-4-8 Power Frequency Magnetic Field●  EN 61000-4-9 Pulse Magnetic Field●  EN 61000-4-10 Oscillatory Magnetic Field●  EN-61000-4-29 DC Power Voltage Dips and Immunity
Shock and vibration●  IEC 60068-2-6 Vibration: IEC 60068-2-6, IEC 255 21.1 Class 1 Vibration Test●  IEC 60068-2-27 (Shock)●  IEC 60068-2-31 (Shock)●  IEC 60068-2-32 (Shock)●  IEC 60068-2-64 (Vibration)●  EN 61373 Cat 1 Class B (Shock and Vibration)
Industry standards●  EN 61000-6-2 Industrial●  EN 61000-6-4 Industrial●  EN 61000-6-1 Light Industrial●  EN 61326 Industrial Control●  EN 61131-2 Programmable Controllers●  Marine (DnV) ENV3 (Pending)●  EN 60945 Maritime navigation and radio equipment and systems (Pending)●  IEEE 1613 Electric Power Stations Communications Networking (Pending)●  IEC 61850-3 Electric Substations Communications Networking (Pending)◦    EN 50155 EMC, EMI Environmental and Mechanical, galvanic isolation on uplinks (g1/1 g1/2) only●  EN 45545-3 Fire Safety in Railway Vehicles●  EN 45545-2 Fire Protection●  EN50121-4 Railway-Signaling and Telecommunications Apparatus●  EN50121-3-2 Railway-Apparatus for Rolling Stock●  NEMA TS-2 DC Power Traffic Control Equipment (Pending)●  ODVA Industrial EtherNet/IP●  ABB Industrial IT Certificate●  IP67 (per EN60529)●  NEMA 4 (per UL 50E)
Corrosive testing*●  ISO 9223: Corrosion●  class C3-Medium●  ISO 9223: Corrosion●  class C4-High●  EN 60068-2-52 Salt mist testing
Humidity●  IEC 60068-52-2 (Salt Fog Mist, Test Kb) marine environments●  IEC 60068 -2-3●  IEC 60068-2-30●  Relative humidity: 5% to 95% noncondensing
Operating temperature●  -40°C to +75°C●   -40°C to +70°C (vented enclosure operating)●   -40°C to +60°C (sealed enclosure operating)●   -34°C to +75°C (200 LFM or more fan- or blower-equipped enclosure operating)●   -40°C to +85°C (type tested to +85°C for 16 hours)●   Altitude: Up to 13,800 feet (4570 meters)
Storage temperature●  -40°C to +85°C●  IEC 60068-2-14●  Altitude: Up to 13,800 feet or 4,200 meters
MTBF●  Mean time between failures: 374,052 hours (42.7 years)
Warranty●  5-year limited warranty

在售产品

联系在线客服 139 1073 6192

loading…

已经是到最后一篇内容了!

选配信息

IE-2000-16T67P-G-EIE2000 IP67 with 16 FE M12 ports (8 PoE+) and 2GE (Lan Base).
IE-2000-16T67-BIE2000 IP67 Switch with 16 FE M12 ports (Lan Base).
IE-2000-24T67-BIE2000 IP67 Switch with 24 FE M12 ports (Lan Base).
IE-2000-8T67-BIE2000 IP67 Switch with 8 FE M12 ports (Lan Base).
IE-2000-8T67P-G-EIE2000 IP67 with 8 FE M12 ports (8 PoE+) and 2GE (Lan Base).

  Power supply, license upgrade, and additional parts

Product numberDescription
PWR-IE160W-67-DC=IP67-rated PoE DC-DC power supply, Input:18V-60V Output: 54V, 3.1A max 160W
SD-IE-1GB1GB SD Memory Card
IE-LICENSE-SPARESpare license for software upgrade (L2 to L3 features, MRP ring, etc)
IE2000-B-E=IE2000 LAN Base to Enhanced LAN Base Paper NAT License to Enable NAT Capability
LIC-MRP-MANAGER=MRP ring Manager license
LIC-MRP-Client=MRP ring Client license
LIC-IE2000-IP-L=Field upgradable IE2000 LAN Base to IP Lite license
CAB-CONSOLE-M12=Console Cable 6ft with M12 and DB9F for IE2000IP67 Switch

  Cisco IE 2000 Cisco DNA license

PIDDescription
IE2000-DNA-E-LCisco DNA Essentials license (up to 12 ports)
IE2000-DNA-E-L-3YCisco DNA Essentials 3 year term license (up to 12 ports) option
IE2000-DNA-E-L-5YCisco DNA Essentials 5 year term license (up to 12 ports) option
IE2000-DNA-E-L-7YCisco DNA Essentials 7 year term license (up to 12 ports) option
IE2000-DNA-E-MCisco DNA Essentials license (up to 24 ports)
IE2000-DNA-E-M-3YCisco DNA Essentials 3 year term license (up to 24 ports) option
IE2000-DNA-E-M-5YCisco DNA Essentials 5 year term license (up to 24 ports) option
IE2000-DNA-E-M-7YCisco DNA Essentials 7 year term license (up to 24 ports) option

Note:     Cisco DNA Advantage is not available on IE2000 Series Switches
