思科工业交换机 IE3100 R加固系列

Cisco Catalyst IE3100 Rugged Series Switches

— 在您的工业网络中部署安全而灵活的可扩展交换解决方案。 —

① ok采购咨询:186-1111-5727

Cisco Catalyst IE3100 Rugged Series Switches

思科 Catalyst ® IE3100 坚固型系列以紧凑的外形尺寸引领了千兆以太网连接的主流采用,适用于各种扩展的企业和工业应用。
Cisco-Switch-Industrial-IE3100 Rugged

思科 Catalyst IE3100 坚固型系列交换机

将快速、安全且完全托管的连接扩展到恶劣操作条件和空间受限环境中的设备。

即使在狭小的空间内也能实现快速、安全的网络连接​,Cisco Catalyst IE3100 坚固型系列交换机具有多达 20 个千兆位以太网接口,以紧凑的外形提供高速千兆位以太网连接,专为需要强化产品的各种工业应用而设计。该平台旨在承受制造、能源、交通、采矿、智能城市以及石油和天然气领域的恶劣环境。IE3100 非常适合配送中心、仓库和室外空间中空间有限的部署。

②采购咨询:186-1111-5727

思科Catalyst IE3200 Rugged 加固系列工业交换机/核心参数对比

Cisco Catalyst IE3200 Rugged Series Series Compare
Catalyst IE3100 w/4 Ports GE Copper and 2 GE SFP uplinks, NEIE-3100-4T2S-E
  • 型号SKU:IE-3100-4T2S-E
  • 总端口数: 6
  • 下行端口: 4xGe 千兆电口
  • 上行端口: 2xGE SFP千兆光口
  • POE预算: N/A
  • DNA许可: Network Essentials
  • 移动存储: SD card
  • 报警输入: 2个干触点报警输入
  • 电源输入: 直流电源输入
  • 设备尺寸: 12.70 x 6.48 x 11.00 cm
  • 设备重量: 0.73 Kg
  • 安装方式:DIN rail 导轨安装
  • 查看详情 >
Catalyst IE3100 w/8 Ports GE Copper and 4 GE SFP uplinks, NEIE-3100-8T4S-E
  • 型号SKU:IE-3100-8T4S-E
  • 总端口数: 12
  • 下行端口: 8xGe 千兆电口
  • 上行端口: 4xGE SFP千兆光口
  • POE预算: N/A
  • DNA许可: Network Essentials
  • 移动存储: SD card
  • 报警输入: 2个干触点报警输入
  • 电源输入: 直流电源输入
  • 设备尺寸: 12.70 x 7.62 x 11.00 cm
  • 设备重量: 0.86 Kg
  • 安装方式:DIN rail 导轨安装
  • 查看详情 >
Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NEIE-3100-8T2C-E
  • 型号SKU:IE-3100-8T2C-E
  • 总端口数: 10
  • 下行端口: 8xGe 千兆电口
  • 上行端口: 2xGE 光电复用口
  • POE预算: N/A
  • DNA许可: Network Essentials
  • 移动存储: SD card
  • 报警输入: 2个干触点报警输入
  • 电源输入: 直流电源输入
  • 设备尺寸: 12.70 x 7.62 x 11.00 cm
  • 设备重量: 0.86 Kg
  • 安装方式:DIN rail 导轨安装
  • 查看详情 >
Catalyst IE3105 w/8 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NEIE-3105-8T2C-E
  • 型号SKU:IE-3105-8T2C-E
  • 总端口数: 10
  • 下行端口: 8xGe 千兆电口
  • 上行端口: 2xGE 光电复用口
  • POE预算: N/A
  • DNA许可: Network Essentials
  • 移动存储: SD card
  • 报警输入: 2个干触点报警输入
  • 电源输入: 直流电源输入
  • 设备尺寸: 12.70 x 7.62 x 12.90 cm
  • 设备重量: 1.04 Kg
  • 安装方式:DIN rail 导轨安装
  • 查看详情 >

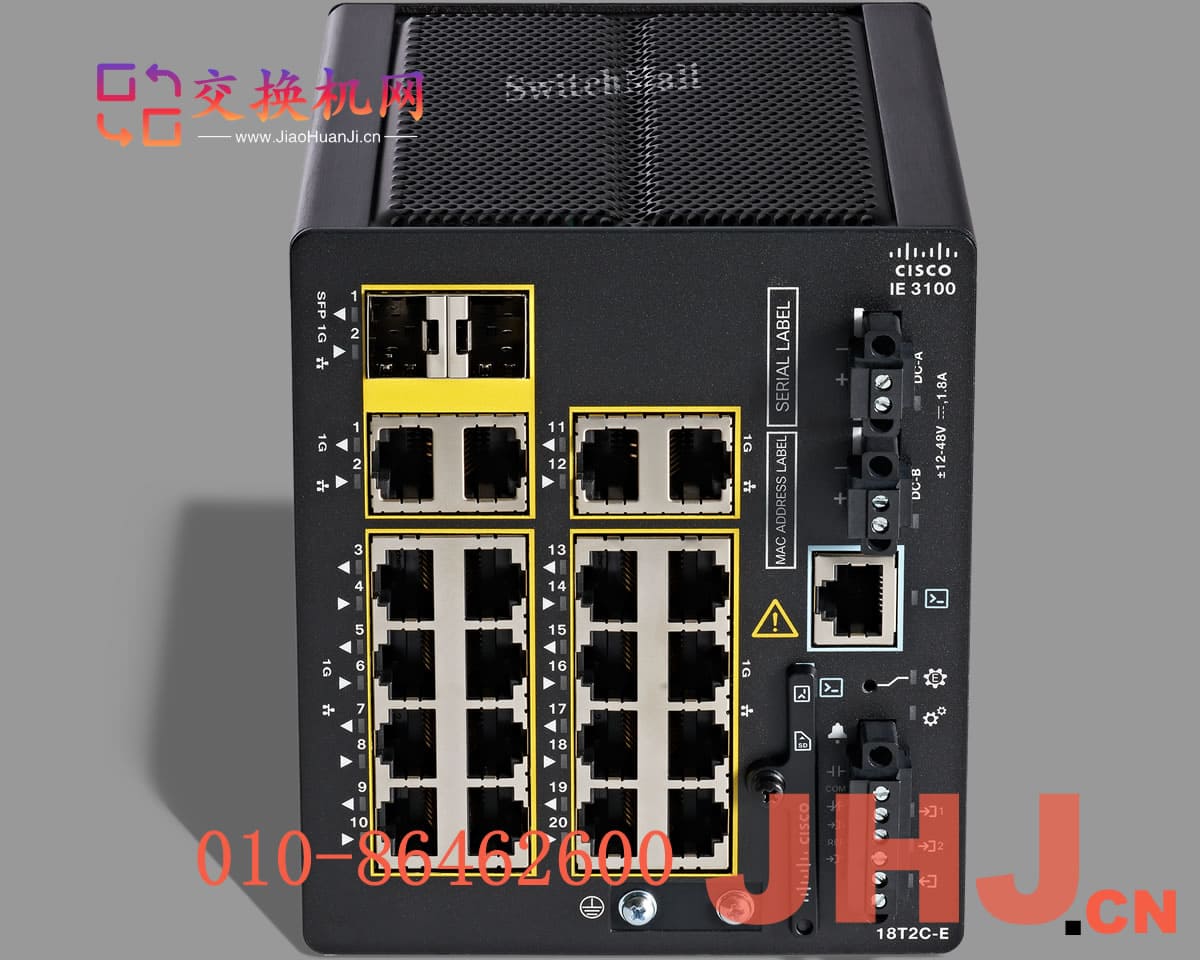

Catalyst IE3100 w/18 Ports GE Copper and 2 GE Combo uplinks, NEIE-3100-18T2C-E
  • 型号SKU:IE-3100-18T2C-E
  • 总端口数: 20
  • 下行端口: 18xGe 千兆电口
  • 上行端口: 2xGE 光电复用口
  • POE预算: N/A
  • DNA许可: Network Essentials
  • 移动存储: SD card
  • 报警输入: 2个干触点报警输入
  • 电源输入: 直流电源输入
  • 设备尺寸: 12.70 x 10.92 x 12.90 cm
  • 设备重量: 1.27 Kg
  • 安装方式:DIN rail 导轨安装
  • 查看详情 >
Catalyst IE3105 w/18 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NEIE-3105-18T2C-E
  • 型号SKU:IE-3105-18T2C-E
  • 总端口数: 20
  • 下行端口: 18xGe 千兆电口
  • 上行端口: 2xGE 光电复用口
  • POE预算: N/A
  • DNA许可: Network Essentials
  • 移动存储: SD card
  • 报警输入: 2个干触点报警输入
  • 电源输入: 直流电源输入
  • 设备尺寸: 12.70 x 10.92 x 12.90 cm
  • 设备重量: 1.27 Kg
  • 安装方式:DIN rail 导轨安装
  • 查看详情 >
更多问题,请咨询我们

思科工业DIN导轨电源/参数对比

Cisco Industrial Din-Rail Power Supplies Compare
50W AC to DC power supplyPWR-IE50W-AC-L
  • 型号SKU:PWR-IE50W-AC-L
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/1.2A, 50-60Hz
  • 电源输出: 24VDC / 24-28VDC, 2.1A
  • 电源功率: 50W
  • 防护等级: IP20
  • POE支持: No
  • 工作温度: -20°C to +70°C
  • 电源尺寸: 30 mm x 75 mm x 89.5 mm
  • 电源重量: 0.18 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
50W AC to DC or High DC to DC power supplyPWR-IE50W-AC=
  • 型号SKU:PWR-IE50W-AC=
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/1.2A, 50-60Hz DC 125-250V/1.25A
  • 电源输出: 24VDC, 2.1A
  • 电源功率: 50W
  • 防护等级: IP20
  • POE支持: No
  • 工作温度: -40°C to +75°C
  • 电源尺寸: 51 mm x 118 mm x 148 mm
  • 电源重量: 0.64 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
50W AC to DC power supply with an IEC connectorPWR-IE50W-AC-IEC=
  • 型号SKU:PWR-IE50W-AC-IEC=
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/1.25A, 50-60Hz
  • 电源输出: 24VDC, 2.1A
  • 电源功率: 50W
  • 防护等级: IP20
  • POE支持: No
  • 工作温度: -20°C to +70°C
  • 电源尺寸: 51 mm x 118 mm x 148 mm
  • 电源重量: 0.65 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
65W AC to DC power supplyPWR-IE65W-PC-AC=
  • 型号SKU:PWR-IE65W-PC-AC=
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/1.4A, 50-60Hz or DC 125-250V/1.0A
  • 电源输出: 54VDC, 1.2A
  • 电源功率: 65W
  • 防护等级: IP20
  • POE支持: Yes
  • 工作温度: -40°C to +75°C
  • 电源尺寸: 66 mm x 148 mm x 118 mm
  • 电源重量: 1.2 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
65W DC to DC power supplyPWR-IE65W-PC-DC=
  • 型号SKU:PWR-IE65W-PC-DC=
  • 所属类别: 电源模块
  • 电源输入: DC 24-48VDC/4.5A
  • 电源输出: 54VDC, 1.2A
  • 电源功率: 65W
  • 防护等级: IP20
  • POE支持: Yes
  • 工作温度: -40°C to +75°C
  • 电源尺寸: 66 mm x 150 mm x 117 mm
  • 电源重量: 1.18 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
170W AC to DC power supplyPWR-IE170W-PC-AC=
  • 型号SKU:PWR-IE170W-PC-AC=
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/2.3A, 50-60Hz or DC 125-250V/2.1A
  • 电源输出: 54VDC, 1.3A
  • 电源功率: 170W
  • 防护等级: IP20
  • POE支持: Yes
  • 工作温度: -40°C to +75°C
  • 电源尺寸: 96 mm x 150 mm x 146 mm
  • 电源重量: 1.76 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
170W DC to DC power supplyPWR-IE170W-PC-DC=
  • 型号SKU:PWR-IE170W-PC-DC=
  • 所属类别: 电源模块
  • 电源输入: DC 12-54V/2.3A
  • 电源输出: 54VDC, 1.3A
  • 电源功率: 170W
  • 防护等级: IP20
  • POE支持: Yes
  • 工作温度: -40°C to +75°C
  • 电源尺寸: 114 mm x 150 mm x 146 mm
  • 电源重量: 1.67 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
240W AC to DC power supplyPWR-IE240W-PCAC-L=
  • 型号SKU:PWR-IE240W-PCAC-L=
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/3.5A, 50-60Hz
  • 电源输出: 54VDC / 48-56VDC, 4.5A
  • 电源功率: 240W
  • 防护等级: IP20
  • POE支持: Yes
  • 工作温度: -40°C to +80°C
  • 电源尺寸: 85 mm x 121 mm x 124.1 mm
  • 电源重量: 0.96 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
480W AC to DC power supplyPWR-IE480W-PCAC-L=
  • 型号SKU:PWR-IE480W-PCAC-L=
  • 所属类别: 电源模块
  • 电源输入: AC 100-240V/6A, 50-60Hz
  • 电源输出: 54VDC / 48-56VDC, 8.9A
  • 电源功率: 480W
  • 防护等级: IP20
  • POE支持: Yes
  • 工作温度: -40°C to +75°C
  • 电源尺寸: 144 mm x 121 mm x 118.6 mm
  • 电源重量: 1.37 Kg
  • 安装方式:DIN rail 导轨
  • 查看详情 >
更多问题,请咨询我们
③ 采购咨询:186-1111-5727
产品特点
产品规格
在售产品
选配信息

产品特点

Cisco Catalyst  IE3100 坚固型系列在紧凑、固定外形的交换机中提供了千兆位以太网连接的主流采用,该交换机专为空间最受限的场景中的各种扩展企业和工业应用而构建。

产品概述

Cisco Catalyst IE3100 坚固型系列交换机具有多达 20 个千兆位以太网接口,以紧凑的外形提供高速千兆位以太网连接,专为需要强化产品的各种工业应用而设计。该平台旨在承受制造、能源、交通、采矿、智能城市以及石油和天然气领域的恶劣环境。IE3100 非常适合配送中心、仓库和室外空间中空间有限的部署。

这些交换机运行 Cisco IOS ® XE,这是一个具有内置安全性和信任功能的操作系统,具有安全启动、映像签名和 Cisco ® Trust Anchor 模块。Cisco IOS XE 还提供具有开放 API 和数据模型的 API 驱动配置。

Cisco Catalyst IE3100 坚固型系列可以使用功能强大的管理工具 Cisco DNA Center 进行管理,并且可以使用完全重新设计的用户友好型现代 GUI 工具(称为 WebUI)轻松进行设置。

IE3100 坚固型系列交换机提供:

●      提供 6、10、12 或 20 个千兆位以太网端口以及最多 4 个千兆位 SFP 上行链路端口或 2 个千兆位组合上行链路端口的型号

●      通过介质冗余协议 (MRP)、弹性以太网协议 (REP) 和双输入直流电源等功能实现强大的弹性

●      使用通用映像简化软件管理

●      支持工业自动化协议 EtherNet/IP (CIP)、Modbus 和 PROFINET

●      支持二层网络地址转换1

1仅在 IE-3105 变体上受支持。

IE-3100 坚固型系列交换机型号

图1。 IE-3100 坚固型系列交换机型号

具有增强功能集的 IE-3105 坚固型系列交换机型号

图 2. 具有增强功能集的 IE-3105 坚固型系列交换机型号

Features and benefits

Table 1.        Features and benefits

FeatureBenefits
Robust industrial design●  Built for harsh environments and temperature ranges (-40° to 75°C / -40° to 167°F)●  Fanless, convection-cooled with no moving parts for extended durability●  Hardened for vibration, shock and surge, and electrical noise immunity●  Complies with multi-industry specifications for automation, Intelligent Transport Systems (ITS), and substation environments ●  Improves the uptime, performance, and safety of industrial systems and equipment●  IEEE 1588v2 Precision Timing Protocol (PTP) (both power profile for utility and default profile for manufacturing are supported)●  Alarm I/O for monitoring and signaling to external equipment
Full Gigabit Ethernet switch●  Up to 20 Gigabit Ethernet ports provide multiple resilient design options●  Provides secure access for new high-speed applications in the industrial space●  Allows IP-based Supervisory Control And Data Acquisition (SCADA) connectivity●  Delivers multiple rings, redundant ring topology for new network configurations●  Extends geographical scalability where connectivity over longer distances is required
Redundancy and Resiliency●  Resilient Ethernet Protocol (REP)●  Media Redundancy Protocol (MRP)
User-friendly WebUI●  Allows for easy configuration and monitoring, even by nonspecialist personnel●  Eliminates the need for more complex terminal emulation programs●  Reduces the cost of deployment
Industrial automation protocols●  EtherNet/IP (CIP), Modbus, SCADA, GOOSE and PROFINET MRP (IEC 62439-2) allow integration with existing management platforms from Rockwell, Siemens, and others.

Table 2.        Product feature sets

Product seriesPlatforms supportedCisco IOS Software image (feature sets) supported
IE3100IE-3100-4T2S-ENetwork Essentials
 IE-3100-8T2C-ENetwork Essentials
 IE-3100-8T4S-ENetwork Essentials
 IE-3100-18T2C-ENetwork Essentials
 IE-3105-8T2C-ENetwork Essentials
 IE-3105-18T2C-ENetwork Essentials

Product specifications

Table 3 highlights the hardware configuration for Cisco Catalyst IE3100 Rugged Series.

Table 3.        Hardware configurations

Product numberTotal ports10/100/1000 Mbps RJ-45 ports (downlinks)1G SFP fiber ports
(uplinks)
1G combo ports
(uplinks)
Software license
IE-3100-4T2S-E6420Network Essentials
IE-3100-8T2C-E10802Network Essentials
IE-3100-8T4S-E12840Network Essentials
IE-3100-18T2C-E201802Network Essentials
IE-3105-8T2C-E10802Network Essentials
IE-3105-18T2C-E201802Network Essentials

Tables 4 and 5 highlight the hardware specifications for the Cisco Catalyst IE3100 Rugged Series.

Table 4.        Hardware specifications

Hardware specificationIE-3100-
4T2S-E
IE-3100-
8T2C-E
IE-3100-
8T4S-E
IE-3100-18T2C-EIE-3105-
8T2C-E
IE-3105-18T2C-E
Removable storageSD card1SD card1SD card1SD card1SD card1SD card1
Alarms2 dry-contact alarm inputs2 dry-contact alarm inputs2 dry-contact alarm inputs2 dry-contact alarm inputs2 dry-contact alarm inputs2 dry-contact alarm inputs
Console ports1 RS-232 (via RJ-45), 1 Micro USB1 RS-232 (via RJ-45), 1 Micro USB1 RS-232 (via RJ-45), 1 Micro USB1 RS-232 (via RJ-45), 1 Micro USB1 RS-232 (via RJ-45), 1 Micro USB1 RS-232 (via RJ-45), 1 Micro USB
Power inputsDC power inputsDC power inputsDC power inputsDC power inputsDC power inputsDC power inputs

1 The SD card is optional and not shipped by default with the switch.

Table 5.        Physical configurations

Product numberDimensions (H x W x D)WeightMounting
IE-3100-4T2S-E5.00 x 2.55 x 4.33 in. (12.70 x 6.48 x 11.00 cm)1.6 lb (0.73 kg)1DIN Rail
IE-3100-8T2C-E5.00 x 3.00 x 4.33 in. (12.70 x 7.62 x 11.00 cm)1.9 lb (0.86 kg)1DIN Rail
IE-3100-8T4S-E5.00 x 3.00 x 4.33 in. (12.70 x 7.62 x 11.00 cm)1.9 lb (0.86 kg)1DIN Rail
IE-3100-18T2C-E5.00 x 4.30 x 5.08 in (12.70 x 10.92 x 12.90 cm)2.8 lb (1.27 kg)1DIN Rail
IE-3105-8T2C-E5.00 x 3.00 x 5.08 in. (12.70 x 7.62 x 12.90 cm)2.3 lb (1.04 kg)1DIN Rail
IE-3105-18T2C-E5.00 x 4.30 x 5.08 in. (12.70 x 10.92 x 12.90 cm)2.8 lb (1.27 kg)1DIN Rail

Table 6.        Power specifications

Product numberInput Voltage RangeMax Current during normal operation1Inrush Current1Power consumption2,3,4
IE-3100-4T2S-E12V to 48V nominal
9.6V to 60V absolute
1.6 A with 12V input
0.8 A with 24V input
0.4 A with 48V input
10 A for 7 ms with 12V input
6 A for 6 ms with 24V input
6 A for 6 ms with 48V input
14W
IE-3100-8T2C-E12V to 48V nominal
9.6V to 60V absolute
2.0 A with 12V input
1.0 A with 24V input
0.5 A with 48V input
10 A for 7 ms with 12V input
6 A for 6 ms with 24V input
6 A for 6 ms with 48V input
17.7W
IE-3100-8T4S-E12V to 48V nominal
9.6V to 60V absolute
2.0 A with 12V input
1.0 A with 24V input
0.5 A with 48V input
10 A for 7 ms with 12V input
6 A for 6 ms with 24V input
6 A for 6 ms with 48V input
17.8W
IE-3100-18T2C-E12V to 48V nominal
9.6V to 60V absolute
4.2 A with 12V input
2.6 A with 24V input
1.3 A with 48V input
10 A for 7 ms with 12V input
6 A for 6 ms with 24V input
6 A for 6 ms with 48V input
36.7W
IE-3105-8T2C-E12V to 48V nominal
9.6V to 60V absolute
3.2 A with 12V input
1.6 A with 24V input
0.8 A with 48V input
10 A for 7 ms with 12V input
6 A for 6 ms with 24V input
6 A for 6 ms with 48V input
28W
IE-3105-18T2C-E12V to 48V nominal
9.6V to 60V absolute
4.2 A with 12V input
2.6 A with 24V input
1.3 A with 48V input
10 A for 7 ms with 12V input
6 A for 6 ms with 24V input
6 A for 6 ms with 48V input
36.7W

1 Max Current and Inrush current should be used for sizing power supplies and electrical wiring.

2 Power Consumption should be used for thermal load and battery capacity.

3 Power consumption varies with the local ambient temperature, the input voltage, and the number/type of active interfaces. Please see the IE-310x Power Estimator for more detailed power consumption.

4 For BTU/hr, please convert the Power Consumption watts to BTU/hr

Table 7 highlights the performance and scalability features of the Cisco Catalyst IE3100 Rugged Series.

Table 7.        Performance and scalability features

FeaturePerformance (IE-3100/IE-3105 Series)
Forwarding rateLine rate for all ports and all packet sizes
Number of queues8 egress
Unicast MAC addresses8000
Internet Group Management Protocol (IGMP) multicast groups512
VLANs256
IPv4 indirect routes2000
Spanning Tree Protocol (STP) instances128
DRAM4 GB
SD card capacity11 GB, 4 GB

1 SD card is optional and is not shipped by default with the switch.

Table 8 highlights the power supply options for the Cisco Catalyst IE3100 Rugged Series.

Table 8.        Power supply options

Product numberWattageRated nominal input operating rangeMore details
PWR-IE50W-AC=150WAC 100-240V/1.25A 50-60Hz orDC 125-250V/1.25AFor more details on these DIN rail power supplies, see the power supplies data sheet.Additional supported power supplies can be found in Table 15.
PWR-IE50W-AC-L=150WAC 100-240V/1.2A 50-60Hz

1 The power supplies are not certified for smart grid and hazardous locations. These power supplies are IP20 rated.

2 Power Supplies Datasheet Link: https://www.cisco.com/c/en/us/products/collateral/switches/industrial-ethernet-switches/datasheet-c78-742180.html

Tables 9 and 10 highlight the software features supported by the Cisco Catalyst IE3100 Rugged Series.

Table 9.        Key supported software features (Network Essentials license)

Network Essentials license (perpetual)Features
Layer 2 switching802.1Q, 802.1w, 802.1ab, 802.1s, 802.3ad, Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Switch Port Analyzer (SPAN), Remote-SPAN (RSPAN), Flow-Based SPAN (FSPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Layer 2 Tunneling Protocol (L2TP), Q-in-Q, Selective Q-in-Q, EtherChannel
MulticastIGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping
ManagementWebUI, MIB, Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, RESTCONF, Embedded Event Manager (EEM), Cisco Network Plug and Play (PnP), Express Setup
SecurityDHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP)
Quality of Service (QoS)802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, Ingress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing
Layer 3 routingInter-VLAN routing, static routing
Industrial EthernetLocate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 20172), Network Time Protocol (NTP) to PTP, Sampled Values
RedundancyResilient Ethernet Protocol (REP) ring, Media Redundancy Protocol (MRP)
AutomationYANG, NETCONF, RESTCONF
Industrial managementLayer 2 switching with 1:1 switching Network Address Translation (L2NAT)1

1 Supported on the IE-3105 variants only.

2 Support planned with future software updates.

Table 10 highlights the details of Cisco DNA Essentials for the IE3100 Rugged Series.

Table 10.     Cisco DNA Essentials license

FeatureDescriptionCisco DNA Essentials1
Cisco DNA CenterDiscovery, topology, inventory, software image managementYes
VisibilityOverall Health dashboardYes
Day-zero network bring-up automationCisco Network Plug-and-Play applicationYes

1 Cisco DNA licenses for Industrial Ethernet switches are add-on/optional and not mandatory. They do not include Network Tier features.

在售产品

联系在线客服 139 1073 6192

loading…

已经是到最后一篇内容了!

选配信息

Ordering information

Product IDDescription
IE-3100-4T2S-ECatalyst IE3100 w/4 Ports GE Copper and 2 GE SFP uplinks, NE
IE-3100-8T2C-ECatalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE
IE-3100-8T4S-ECatalyst IE3100 w/8 Ports GE Copper and 4 GE SFP uplinks, NE
IE-3100-18T2C-ECatalyst IE3100 w/18 Ports GE Copper and 2 GE Combo uplinks, NE
IE-3105-8T2C-ECatalyst IE3105 w/8 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NE
IE-3105-18T2C-ECatalyst IE3105 w/18 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NE
SD-IE-1GB=1GB SD memory card for IE
SD-IE-4GB=4GB SD memory card for IE
PWR-IE50W-AC=50W AC to DC or High DC to DC Power Supply
PWR-IE50W-AC-L=50W AC to DC Power Supply
PWR-IE50W-AC-IEC=50W AC to DC Power Supply with IEC connector
PWR-IE65W-PC-AC=65W AC to DC or High DC to DC Power Supply
PWR-IE65W-PC-DC=65W Low DC to DC Power Supply
PWR-IE170W-PC- AC=170W AC to DC or High DC to DC Power Supply
PWR-IE170W-PC- DC=170W AC to DC or High DC to DC Power Supply
PWR-IE240W-PCAC-L=240W AC to DC Power Supply
PWR-IE480W-PCAC-L=480W AC to DC Power Supply
STK-RACK-DINRAIL=19″ DIN Rail mount kit
IE3100-DNA-E-LCisco DNA Essentials license for IE3100 Series (up to 12 ports)
IE3100-DNA-E-L-1YIE3100 Cisco DNA Essentials (up to12 Ports), 1 Year Term license
IE3100-DNA-E-L-3YIE3100 Cisco DNA Essentials (up to 12 Ports), 3 Year Term license
IE3100-DNA-E-L-5YIE3100 Cisco DNA Essentials (up to 12 Ports), 5 Year Term license
IE3100-DNA-E-L-7YIE3100 Cisco DNA Essentials (up to 12 Ports), 7 Year Term license
IE3100-DNA-E-L-10YIE3100 Cisco DNA Essentials (up to 12 Ports), 10 Year Term license
IE3100-DNA-E-MCisco DNA Essentials license for IE3100 Series (up to 24 ports)
IE3100-DNA-E-M-1YIE3100 Cisco DNA Essentials (up to 24 Ports), 1 Year Term license
IE3100-DNA-E-M-3YIE3100 Cisco DNA Essentials (up to 24 Ports), 3 Year Term license
IE3100-DNA-E-M-5YIE3100 Cisco DNA Essentials (up to 24 Ports), 5 Year Term license
IE3100-DNA-E-M-7YIE3100 Cisco DNA Essentials (up to 24 Ports), 7 Year Term license
IE3100-DNA-E-M-10YIE3100 Cisco DNA Essentials (up to 24 Ports), 10 Year Term license

 SFP support

Part numberSpecificationSFP typeMax distanceCable typeTemperature rangeDigital optical monitoring (DOM) support
GLC-FE-100FX-RGD=100BASE-FXFE2kmMMFINDYes
GLC-FE-100LX-RGD100BASE-LX10FE10kmSMFINDYes
GLC-FE-100FX=100BASE-FXFE2kmMMFCOMNo
GLC-FE-100LX=100BASE-LX10FE10kmSMFCOMNo
GLC-FE-100EX=100BASE-EXFE40kmSMFCOMNo
GLC-FE-100ZX=100BASE-ZXFE80kmSMFCOMNo
GLC-FE-100BX-D=100BASE-BX10FE10kmSMFCOMNo
GLC-FE-100BX-U=100BASE-BX10FE10kmSMFCOMYes
GLC-SX-MM-RGD=1000BASE-SXGE550mMMFINDYes
GLC-LX-SM-RGD=1000BASE-LX/LHGE550m/10kmMMF/SMFINDYes
GLC-ZX-SM-RGD=1000BASE-ZXGE70kmSMFINDYes
GLC-BX40-U-I=1000BASE-BX40GE40kmSMFINDYes
GLC-BX40-D-I=1000BASE-BX40GE40kmSMFINDYes
GLC-BX40-DA-I=1000BASE-BX40GE40kmSMFINDYes
GLC-BX80-U-I=1000BASE-BX80GE80kmSMFINDYes
GLC-BX80-D-I=1000BASE-BX80GE80kmSMFINDYes
GLC-SX-MMD=1000BASE-SXGE550mMMFEXTYes
GLC-LH-SMD=1000BASE-LX/LHGE550m/10kmMMF/SMFEXTYes
GLC-EX-SMD=1000BASE-EXGE40kmSMFEXTYes
GLC-ZX-SMD=1000BASE-ZXGE70kmSMFEXTYes
GLC-BX-D=1000BASE-BX10GE10kmSMFCOMYes
GLC-BX-U=1000BASE-BX10GE10kmSMFCOMYes
CWDM-SFP-xxxx= (8 freq)CWDM 1000BASE-XGE SMFCOMYes
DWDM-SFP-xxxx= (40 freq)DWDM 1000BASE-XGE SMFCOMYes
SFP-GE-S=1000BASE-SXGE550mMMFEXTYes
SFP-GE-L=1000BASE-LX/LHGE550m/10kmMMF/SMFEXTYes
SFP-GE-Z=1000BASE-ZXGE70kmSMFEXTYes
GLC-SX-MM=1000BASE-SXGE550mMMFCOMNo
GLC-LH-SM=1000BASE-LX/LHGE550m/10kmMMF/SMFCOMNo
GLC-ZX-SM=1000BASE-ZXGE70kmSMFCOMYes
GLC-T=1000BASE-TGE100mCopperEXTNA
GLC-TE=1000BASE-TGE100mCopperEXTNA
GLC-T-RGD=1000BASE-TGE100mCopperINDNA

For DOM support and for first software release supporting SFP, refer to https://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

MMF = Multimode fiber

SMF = Single-mode fiber

③ 采购咨询:186-1111-5727
批量采购咨询
批量采购咨询 提交咨询

Warning: Illegal string offset 'after_widget' in /www/wwwroot/www.szww.cn/webdocs/wp-content/plugins/woocommerce/includes/abstracts/abstract-wc-widget.php on line 178
