工业以太网 IE5000 系列专为承受极端环境而设计，可提供高度安全的聚合以及行业领先的融合和弹性。这些交换机可以提高工厂、公用变电站、油气田、互联城市等工业系统和设备的正常运行时间、性能和安全性。
这些交换机专为承受最恶劣的工业环境而开发，提供最灵活、可扩展的工业以太网平台，可随您的网络一起发展。
产品概述
Cisco ®工业以太网 (IE) 5000 系列交换机具有 4 个 10 Gigabit 或 4 个 1 Gigabit 以太网上行链路和 24 Gigabit 以太网下行链路，是一款机架安装式加固型交换机，提供第 2 层和第 3 层线速聚合和铜缆以太网供电 (PoE) ）在最恶劣的工业环境中的连接性。
IE 5000 系列使用卓越的高带宽硬件交换和经过验证的 Cisco IOS ®软件。IE 5000 对于接入层和汇聚层部署而言具有高度安全性和可扩展性。它还提供思科堆叠技术以实现高级网络可靠性。该交换机能够承受极端环境，同时遵守整体 IT 网络设计、合规性和性能要求。IE5000内置软件镜像验证，确保思科软件的真实性。
IE 5000 系列可用于通过物联网 (IoT) 的软件定义访问扩展轻松、安全地将企业网络扩展到恶劣环境，从而实现室外区域、仓库、配送中心、道路等的连接，使用强大的企业级基于意图的网络管理平台，例如 Cisco DNA Center。
IE 5000 系列非常适合需要强化产品的工业以太网应用。这包括公用事业、制造业、能源和过程控制、智能交通系统 (ITS)、石油和天然气田、城市监控项目和采矿。Cisco IE 5000 系列交换机具有改进的整体性能、可用 10 GB 以太网接口提供的更大带宽、更丰富的功能集以及增强的硬件，是对当前工业以太网产品组合的补充。该产品组合包括思科工业以太网交换机，例如思科 IE 2000、IE 3200、IE 3300、IE 3400、IE 4000 和 IE 4010 系列交换机，以及实用型产品，例如思科 IE 2000U 工业以太网交换机。
通过用户友好的 Web 设备管理器，IE 5000 提供简单的开箱即用配置和简化的操作管理性，以通过工业网络提供高级安全、数据、视频和语音服务。
表 1 列出了 Cisco IE 5000 系列交换机的功能和优势。
表 1. Cisco IE 5000 系列交换机的特性和优势
| 特征 | 益处 |
| 稳健的工业设计 | ● 专为恶劣环境和温度范围（-40° 至 75°C）而设计。● 保形涂层可防尘、防潮。● 经过硬化处理，可抵抗振动、冲击、浪涌和电噪声。● 四个10 Gigabit 或四个1 Gigabit 以太网上行链路端口提供多种弹性设计选项。● 符合工业自动化、ITS 和变电站环境的多行业规范。● 提高工业系统和设备的正常运行时间、性能和安全性。● 紧凑型 1 机架单元设计，具有双 LED 功能，即使根据布线要求反向安装，也能轻松监控和故障排除。● 无风扇、对流冷却，无移动部件，可延长耐用性。● IEEE 1588v2 精确时间协议(PTP) – 支持电源配置文件和默认配置文件。● 报警I/O，用于监控并向外部设备发送信号。 |
| 用户友好的 GUI 设备管理器 | ● 允许使用基于Web 的设备管理器轻松配置和监控。● 无需更复杂的终端仿真程序。● 降低部署成本。● 多语言支持 – 英语、中文（繁体）、中文（简体）、法语、德语、日语、西班牙语（拉丁美洲） |
| SwapDrive：“零配置”替代 | ● 真正的零配置替换，可轻松实现半夜或突然的故障恢复。● 发生故障时可以简单地更换开关。● 无需网络专业知识。● 有助于确保快速恢复。 |
| 高密度工业以太网供电 (PoE) | ● 支持最多12 个PoE 或PoE+ 端口。● 通过限制布线、配电板和断路器来控制成本。● 减少设备需求，从而减少空间需求并减少散热。● 支持即用型PoE 设备，例如IP 电话、摄像头和无线接入点。● 支持最大高清(HD) 摄像头部署。● 使用一个电源时，PoE 或 PoE+ 的功率预算高达 165W；使用两个电源时，功率预算高达 360W。 |
| 具有 4×10 GE 或 4x1GE 上行链路和 24×1 GE 下行链路的高性能以太网交换机 | ● 连接新的无线接入点。● 支持新的高清网络摄像机。● 为PLC、控制器和相关I/O 设备提供高速、低延迟的连接。● 允许监控和数据采集(SCADA) 连接。● 提供工业领域新的高带宽应用的引入。● 具有高级硬件辅助功能（例如NAT、IEEE1588v2）的线速、低延迟转发。● 支持对延迟非常敏感的应用和时间敏感的网络。● 为新的网络配置提供多环和冗余环拓扑。● 扩展需要更长距离连接的地理可扩展性。 |
思科工业以太网 5000 系列交换机提供：
● 带宽和容量可根据您的网络需求而增长：高性能无阻塞交换机容量，每台交换机具有多达 24 个千兆位以太网下行链路端口和四个 10 个千兆位或四个 1 个千兆位以太网上行链路端口
● SFP+ 加热器允许标准 SFP+ 光学器件在 -40C 温度下运行（仅限 10GE SKU）
● Cisco IOS 软件功能可实现平稳的 IT 集成和策略一致性
● 通过功能实现强大的弹性，例如通过四个 10 Gb 以太网上行链路端口的双环设计、弹性以太网协议 (REP)、并行冗余协议 (PRP)、PROFINET – 介质冗余协议 (MRP) 环、高可用性无缝冗余 ( HSR）环、EtherChannel、Flex Links、冗余电源输入和垂死喘息
● 恒温晶体振荡器 (OCXO) 可提供精确同步应用所需的卓越频率稳定性
● 使用通用映像简化软件升级路径
● 集成支持 GPS 接收器和 IRIG 等功能
● Cisco DNA Center 管理和支持物联网软件定义的访问扩展
Cisco ONE 软件提供了一种简化的消费模型，以工业自动化和扩展企业环境中的常见客户场景为中心。Cisco ONE 软件和服务为客户提供四大优势：
● 以极具吸引力的价格满足典型客户使用场景的软件套件
● 通过软件服务支持的许可证可移植性来保护其软件购买的投资
● 通过思科软件支持服务 (SWSS) 获取持续创新和新技术
● 灵活的许可模式，可随着时间的推移平稳分配客户的软件支出
图 1 显示了交换机型号，表 2 显示了所有可用的 IE 5000 型号，表 3 列出了电源，表 4 显示了 Cisco IE 5000 系列交换机系列交换机的 PoE/PoE+ 的可用功率预算。

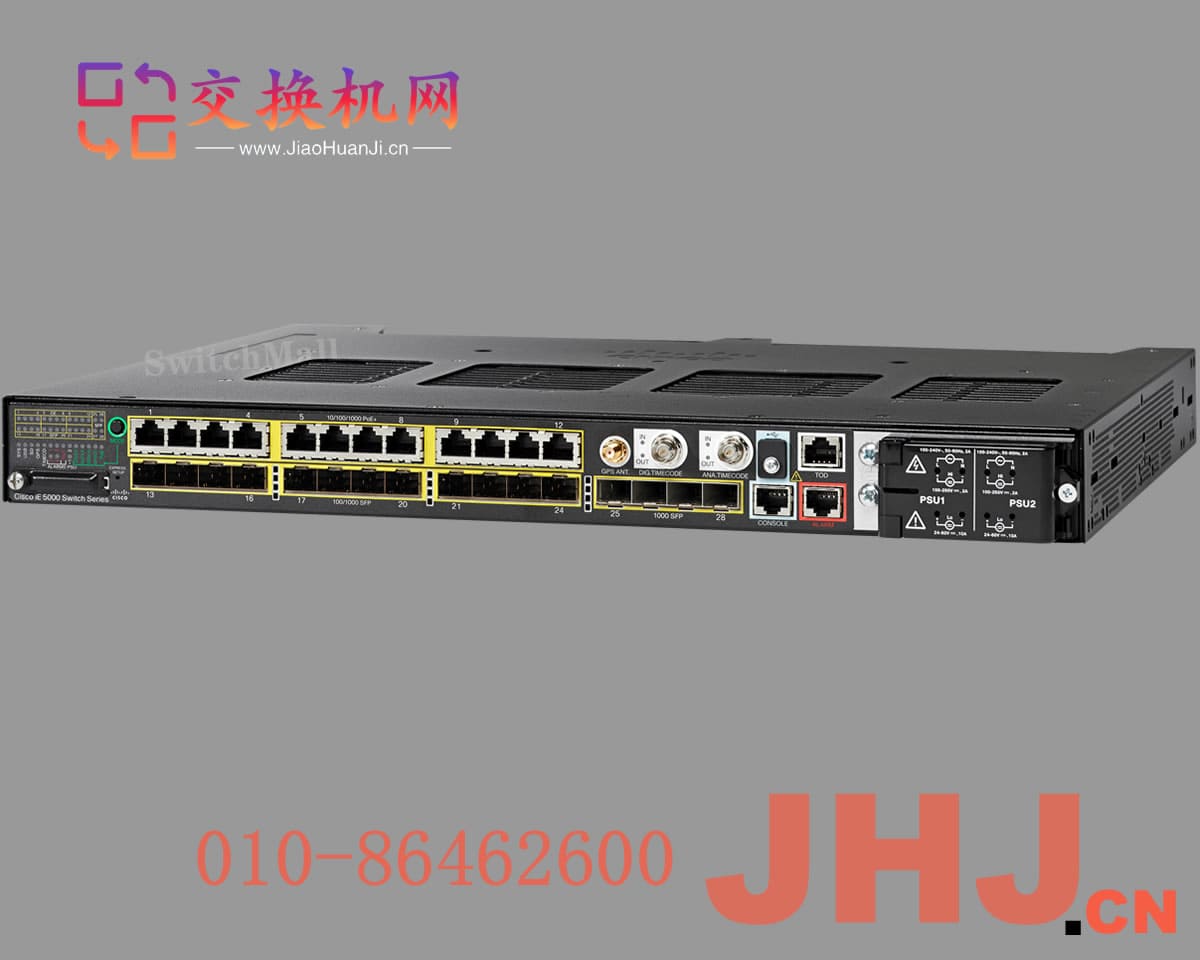

图1。 IE 5000 交换机
如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)
Cisco Industrial Ethernet 5000 Series models
| Product number | Total ports | SFP Uplinks | SFP fiber ports (S) | Copper PoE/PoE+ ports (P) | Default software |
| IE-5000-12S12P-10G | 28 | 4 1GE/10G1 | 12 FE/GE | 12 FE/GE | LAN Base2 |
| IE-5000-16S12P | 28 | 4 1GE | 12 FE/GE | 12 FE/GE | LAN Base2 |
1 Uplink ports can run at 1 Gigabit Ethernet or 10 Gigabit Ethernet mode depending on the SFP or SFP+ inserted.
2 Can be upgraded to IP Services license with the PID in Table 15.
Table 3. Power supplies for Cisco IE 5000 Series Switches
| Product number | Wattage | Rated nominal input operating range | Supported input voltage operating range | PoE/PoE+ support | Use case scenario |
| PWR-RGD-AC-DC-H | 150W | AC 100-240V/2.0A 50-60HzorDC 100-250V/2.0A | AC 85-264VorDC 88-300V | Yes | High voltage AC or DC power source, for hazardous locations1, 2, 3PoE power application |
| PWR-RGD-LOW-DC-H | 150W | DC 24-60V/10A | DC 18-75V | Yes | Low voltage DC power source, for hazardous locations1, 2, 3PoE power application |
| PWR-RGD-AC-DC-250 | 250W | AC 100-240V 3.3A 50-60HzorDC 100-250V 3.3A. | AC 85-264VorDC 88-300V | Yes | High voltage AC or DC power source, for hazardous locations2, 3, 4PoE power application |
Table 4. Available power budget for PoE/PoE+ with different power supply wattage
| Product number | 150W | 150W (dual) | 250W | 250W + 150W | 250W (dual) |
| IE-5000-12S12P-10G | 65 | 185 | 165 | 270 | 360 |
| IE-5000-16S12P | 65 | 185 | 165 | 270 | 360 |
Table 5 lists specifications, Table 6 lists information about Physical specifications, Table 7 lists information about switch performance and scalability, Tables 8 and 9 list important software license features, Tables 10-11 list the Cisco DNA Essentials and Advantage features. Table 12 lists compliance specifications, and Table 13 lists information about management and standards and Table 14 lists the supported SFPs on Cisco IE 5000 Series Switches
Table 5. Product specifications
| Description | Specification |
| Hardware | ● 1-GB DRAM● 256-MB onboard flash memory● 1-GB removable SD flash memory card (included)● Mini-USB connector● RJ-45 traditional console connector● GPS antenna interface – GPS antenna input● Analog Timing I/O interface – For analog IRIG support● Digital Timing I/O interface – For digital timing such as IRIG-B TTL |
| Alarm | ● Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
| Accessories | ● SD-IE-1GB= – Spare SD card |
Table 6. Physical specifications
| Description | IE-5000-12S12P-10G | IE-5000-16S12P |
| Dimensions, (H x W x D) | ● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm) with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm) with PWR-RGD-AC-DC-250 | |
| System Weight | Without power supply: 13.7 lb (6.21 kg) | |
| Power Supply Weight | ● PWR-RGD-AC-DC-H: 2.55 lb (1.16 kg)● PWR-RGD-LOW-DC-H: 2.5 lb (1.13 kg)● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg) | |
| Power consumption | Maximum of 90W not including PoE consumption | |
Table 7. Switch performance and scalability
| Description | Specification |
| Forwarding bandwidth | 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) – Line rate/Non-blocking |
| Switching bandwidth | 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G) |
| Forwarding rate | 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate) |
| Number of queues | 4 egress |
| Unicast MAC addresses | 16,000 |
| IGMP multicast groups | 1,000 |
| Number of VLANs | 1,005 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| NAT translation | Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
Table 8. Cisco IE 5000 Key LAN Base Software features
| LAN Base license (default) | Features |
| Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard, VTPv2, NTP, UDLD, CDP, LLDP, Unicast Mac filter, Flex links, VTPv3, EtherChannel, Voice VLAN, QinQ tunneling |
| Security | SCP, SSH, SNMPv3, TACACS+, RADIUS Server/Client, MAC Address Notification, BPDU Guard, Port -Security, Private VLAN, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN, MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, ACT2, Secure boot, Full flexible Netflow1 |
| Layer 2 multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Fast Boot, Express Setup, Web Device Manager, Cisco Network Assistant, Cisco Prime™ Infrastructure, MIB, SmartPort, SNMP, syslog, Storm Control – Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM size configuration, DOM (digital optical management), Hardware Watchdog, Port-based DHCP |
| Industrial Ethernet | CIP Ethernet/IP, PROFINET v2, IEEE1588 PTP v2 Modbus TCP, Default Profile, CIP Time Sync, NTP to PTP Translation, SPAN Traffic Time Stamping |
| Quality of service | Ingress Policing, Rate-Limit, Egress Queuing/shaping, AutoQoS, QOS, PROFINET QoS |
| Layer 2 IPv6 | IPv6 Host support, HTTP over IPv6, SNMP over IPv6 |
| Layer 3 routing | IPv4 Static Routing |
| Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| Utility | IEEE 1588 v2 PTP Power Profile 2011 & 2017, dying gasp, GOOSE messaging, SCADA protocol classification, MODBUS TCP/IP, utility SmartPort macro, BFD, Ethernet OAM, IEEE 802.3ah, CFM (IEEE 802.1ag), PTP over Port Channel (TC Mode) |
| Horizontal stacking | Horizontal Stacking supports Layer 2 switching, ARP, Spanning Tree, port channel (up to 48), Power over Ethernet, static routing, L3 host routing (via two 10GE uplink stack ports), BGP, EIGRP, OSPF, VRF, PBR, PIM, PTP |
| Timing interface | IRIG-B Input and Output interface (B002, B003, B006, B007, B122, B123, B126, B127 timecode), GNSS/GPS Support |
| Redundancy | Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP),Media Redundancy Protocol (MRP) Ring, High Availability Seamless Redundancy (HSR), PTP over HSR, PTP over PRP, MRP Auto Manager, REP Negotiated, REP Segment-ID Auto-Discovery |
1 Full flexible Netflow is included on all IE-5000 Switches and requires either one of the following licenses per switch:
● Cisco ONE™ Foundation Perpetual license
● Cisco DNA Essentials license
● Cisco IP Services license
Table 9. Cisco IE 5000 IP services license: Key software features
| IP Services Base license | Additional features |
| Industrial management | Embedded Event Manager (EEM) |
| IP unicast routing protocols | OSPF, EIGRP, BGPv4, IS-IS, RIPv2, Policy-Based Routing (PBR), HSRP |
| IP multicast | PIM Sparse Mode (PIM-SM), PIM Dense Mode (PIM-DM), and PIM sparse-dense mode |
| IPv6 routing | RIPng, OSPFv6, and EIGRPv6 support |
| Virtualization | VRF-lite |
| Security | IEEE 802.1AE MACsec (15.2(5)EA onwards supports both uplink and downlink, including PSK based MKA support), Cisco TrustSec® supports inline tagging SGT and SGACL, Full flexible Netflow, SGACL Monitor Mode, SGACL Logging, CA Based MKA MACSec Support |
Table 10. Cisco IE 5000 DNA Essentials license features
| Feature | Description |
| Element Management | Discovery, topology, inventory, software image management |
| Basic Assurance | Health Dashboards – Network, ClientBasic Switch & Wired Client Health Monitoring |
| Basic automation | Cisco Network Plug-and-Play application |
Table 11. Cisco IE 5000 DNA Advantage license features
| Feature | Description |
| Cisco DNA Essentials | All Cisco DNA Essentials features |
| Advanced Automation | SDA- IE 5000 can function as an SDA extended nodeREP ring Workflow |
| Assurance & Analytics | Compliance, Custom Reports, Device 360 & Wired Client 360 |
Table 12. Compliance specifications
| Type | Standards |
| Electromagnetic emissions | FCC 47 CFR Part 15 Class AEN 55032 Class AVCCI Class AAS/NZS CISPR 22 Class ACISPR 11 Class ACISPR 32 Class AICES 003 Class ACNS13438 Class AKN22EN 300 386 |
| Electromagnetic immunity | EN 55024CISPR 24AS/NZS CISPR 24KN24EN 61000-4-2 Electro StaticDischarge EN 61000-4-3 Radiated RFEN 61000-4-4 Electromagnetic FastTransients EN 61000-4-5 SurgeEN 61000-4-6 Conducted RFEN 61000-4-8 Power Frequency Magnetic FieldEN 61000-4-9 Pulse Magnetic FieldEN 61000-4-10 Damped Oscillatory Magnetic Field (100 A/m)EN 61000-4-11 AC Voltage Dips and InterruptionsEN 61000-4-18 Damped Oscillatory WaveEN-61000-4-29 DC Voltage Dips and Interruptions |
| Industry standards | EN 61000-6-1 Immunity for Light Industrial EnvironmentsEN 61000-6-2 Immunity for Industrial EnvironmentsEN 61000-6-4 Emission Standard for Industrial EnvironmentsEN 61326 Industrial ControlEN 61131-2 Programmable ControllersIEEE 1613 Class 2 Electric Power Stations Communications NetworkingIEC 61850-3 Electric Substations Communications NetworkingEN 50155 Railway – Electronic Equipment on Rolling Stock (EMC, ENV, Mech)EN 50121-4 Railway – Signaling and Telecommunications ApparatusEN 50121-3-2 Railway – Apparatus for Rolling StockAREMA C & S section 11, 19ODVA Industrial EtherNet/IPPROFINET conformance BIP30 (per EN60529)Marine DNV GL – Ships; High speed and light craftNEMA TS-2 (EMC, environmental, mechanical) |
| Safety standards and certifications | Information technology equipment:UL/CSA 60950-1UL/CSA 62368-1IEC 62368-1 CB with all country deviationsEN 60950-1IEC 60950-1 CB with all country deviationsNOM to NOM-019-SCFI (through partners and distributor)Industrial floor (control equipment):UL 508CSA C22.2, No 142Hazardous Locations, Class I, Div/Zone 2, gas groups IIC:ANSI/ISA 12.12.01CSA 213UL/CSA 60079-0, -15IEC 60079-0, -15 IECEx test reportEN 60079-0, -15 ATEX certification (Cabinet enclosure required) |
| Operating environment | Operating Temperature: -40°C to +75°C● -40°C to +70°C (vented enclosure – 40 LFM Air Flow)● -40°C to +60°C (sealed enclosure – 0 LFM Air Flow)● -34°C to +75°C (fan or blower equipped enclosure – 200 LFM air flow)-40°C to +85°C (IEC 60068-2-2 Environmental Type Testing 16 hours)Operating altitude Up to 13,800 feetEN 60068-2-21EN 61163 |
| Storage environment | Temperature: -40 to +85 degrees CAltitude: 0-15,000 feetIEC 60068-2-14 |
| Humidity | Relative humidity of 0% to 95% non-condensing. IEC 60068-2-3IEC 60068-2-30 |
| Shock and vibration | IEC 60068-2-27 (operational shock, 50G, 11ms, half sine)IEC 60068-2-27 (nonoperational shock, 65-80G, 9ms, trapezoidal) IEC 60068-2-32 (nonoperational shock)IEC 60068-2-6, IEC 60068-2-64, EN 61373 (operational vibration)IEC 60068-2-6, IEC 60068-2-64, EN 61373 (non-operational vibration) |
| Corrosion | ISO 9223: Corrosion class C3-Medium class C4-HighIEC 60068-2-52 (Salt Fog)IEC 60068-2-60 (Flowing Mixed Gas) |
| Others | RoHS ComplianceChina RoHS ComplianceTAA (Government)CE (Europe) |
| Warranty | 5-year limited hardware warranty on all IE 5000 PIDS including the power supplies in Table 4. See link at end of this datasheet for more details on warranty |
| Mean Time Between Failures (MTBF) | 390,190 hours |
