思科 MS425 系列交换机

提供 2 种不同的端口密度,16 或 32 x 10G SFP+,两者均包括 2 个 40G QSFP+ 上行链路/堆叠端口,能够提供高达 160Gbps 的堆叠带宽以支持园区环境

—使用与工作速度同步的交换机来改造您的网络。—

思科 Meraki MS425系列交换机

Cisco Meraki 425 系列通过我们的 10/40G 光纤聚合交换机将云管理扩展到中型网络的聚合层。与我们的接入层交换机一样,我们的聚合交换机是从头开始构建的,易于管理,而不会影响企业级交换机传统上的任何功能和灵活性。

MS425系列三层汇聚交换机

MS250 Layer 3 aggregation switch

通过思科 Meraki 仪表板进行管理,16 或 32 个 10,000 Mbps SFP+ 2 个 40G QSFP+ 上行链路/堆叠端口

思科 Catalyst Meraki 425系列交换机对比

Connect multiple access layer devices for a more versatile network.
MS425-16-HW Meraki MS425-16 L3 Cld-Mngd 16x 10G SFP+ Switch.MS425-16-HW
  • 16 个10G SFP+ 万兆光口
  • 2个 40G QSFP+端口上行
  • 包转发率:357.14 Mpps
  • 交换容量:480 Gbps
  • 160G 灵活堆叠
  • 三层,802.1X 身份验证
  • MAC转发表项,最大228K
  • OSPF 路由、STP 增强
  • DHCP服务器、DHCP中继、DHCP监听
  • IPv4 和 IPv6 ACL
  • 查看详情 >
MS425-32-HW Meraki MS425-32 L3 Cld-Mngd 32x 10G SFP+ Switch.MS425-32-HW
  • 32 个10G SFP+ 万兆光口
  • 2个 40G QSFP+端口上行
  • 包转发率:595.24 Mpps
  • 交换容量:800 Gbp
  • 160G 灵活堆叠
  • 三层,802.1X 身份验证
  • MAC转发表项,最大228K
  • OSPF 路由、STP 增强
  • DHCP服务器、DHCP中继、DHCP监听
  • IPv4 和 IPv6 ACL
  • 查看详情 >
②采购咨询:186-1111-5727
产品特点
产品规格
在售产品
选配信息

产品特点

官方描述:

MS425-16-HW Meraki MS425-16 L3 Cld-Mngd 32x 10G SFP+ Switch.

MS425-32-HW Meraki MS425-32 L3 Cld-Mngd 32x 10G SFP+ Switch.

Layer 3 aggregation switch

Connect multiple access layer devices for a more versatile network.

The Cisco Meraki 425 series extends cloud management across the aggregation layer for medium-size networks with our 10/40G fibre aggregation switches. As with our access layer switches, our aggregation switches are built from the ground up to be easy to manage without compromising any of the power and flexibility, traditionally found in enterprise-class switches.

Available in 2 different port densities, 16 or 32 x 10G SFP+, both of which include 2 × 40G QSFP+ uplink/stacking ports which are capable of providing up to 160Gbps stacking bandwidth to support campus environments.


Features

Managed via the Cisco Meraki Dashboard Remote Packet Capture Tools via Meraki DashboardAutomatic Firmware upgrades SNMP/Syslog Integration IPv4/6 ACL support 802.1q VLAN tagging  Broadcast Storm Control Dynamic ARP Inspection / DHCP Snooping 802.1X Authentication16 or 32 x 10,000 Mbps SFP+ 2x 40G QSFP+ uplink/stacking ports L3 Switching including OSPF Hot Swappable Power Supplies and Fans Warm Spare capable

产品规格

加入交换机小圈,获得更详细的资料,更专业的支持,更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料,可以在交小圈发布请求贴,让更多网友来帮你想办法,或者找找以前有没有类似资源 (https://q.jhj.cn)

Models

Model numberDescription
MS425-16Layer-3 16-port 10GbE SFP+ aggregation switch with two 40GbE QSFP ports and 1 management interface, hot-swappable power supplies / fans
MS425-32Layer-3 32-port 10GbE SFP+ aggregation switch with two 40GbE QSFP ports and 1 management interface, hot-swappable power supplies / fans

Product Overview

Physical Specifications

 MS425-16MS425-32
10GbE SFP+1632
40GbE QSFP+ uplink/stacking ports22
Dedicated Mgmt Interface11
Hot Swap Power SupplyYes, DualYes, Dual
Hot Swap FansYes, 3xYes, 3x
Power Input100 – 240 VAC, 47-63 Hz100 – 240 VAC, 47-63 Hz
Power Consumption98-136W98-136W
Operating Temperature32°F – 104 °F
0°C – 40 °C
32°F – 104 °F
0°C – 40 °C
Storage and Transportation Temperature-4°F – 158°F-20°C – 70°C-4°F – 158°F-20°C – 70°C
Humidity5% to 95%5% to 95%
Mounting1U Rack Mount1U Rack Mount

Context and Comparisons

DescriptionMS410-32MS425-32
1GbE SFP32
10GbE SFP+232
40GbE QSFP+2
Dedicated Hardware Stack Port2
Dedicated Management Interface11
Hot Swap Power SupplyYes, DualYes, Dual
Hot Swap FansYes, x2Yes, x3
Layer 3 RoutingYesYes
Max Switching Capacity144 Gbps800 Gbps
Max Stacking Bandwidth160 Gbps160 Gbps

Technical Breakdown

Hardware Breakdown

DescriptionMS425-16MS425-32
10GbE SFP+1632
40GbE QSFP+22
Dedicated Management Interface11
Hot Swap Power SupplyYes, DualYes, Dual
Hot Swap FansYes, x3Yes, x3

Throughput and Capabilities

DescriptionMS425-16MS425-32
Layer 3 RoutingYesYes
Switching Capacity480 Gbps800 Gbps
Stacking Bandwidth160 Gbps160 Gbps

Physical

DescriptionMS425-16MS425-32
Mount Type1U Rack Mount1U Rack Mount
Dimensions (h x w x d)1.72 x 19 x 20.67in
(4.42cm x 48.44cm x 48.69cm)
1.72 x 19 x 20.67in
(4.42cm x 48.44cm x 48.69cm)
Weight13.7 lbs (6.2 kg)14.00 lbs (6.35 kg)
Power Supply250W AC250W AC
Power Load (idle/max)98 / 136 W98 / 136 W
Operating Temperature 32°F – 104 °F
0°C – 40 °C
32°F – 104 °F
0°C – 40 °C
Humidity5% to 95%5% to 95%

在售产品

MS425系列交换机

详情咨询 业务经理 139 1073 6192

loading…

已经是到最后一篇内容了!

选配信息

Models

Models

Model numberDescription
MS425-16Layer-3 16-port 10GbE SFP+ aggregation switch with two 40GbE QSFP ports and 1 management interface, hot-swappable power supplies / fans
MS425-32Layer-3 32-port 10GbE SFP+ aggregation switch with two 40GbE QSFP ports and 1 management interface, hot-swappable power supplies / fans
MS425-16-HWMeraki MS425-16 L3 Cld-Mngd 16x 10G SFP+ Switch.
LIC-MS425-16-10YRMeraki MS425-16 Enterprise License and Support, 10YR.
LIC-MS425-16-1YRMeraki MS425-16 Enterprise License and Support, 1YR.
LIC-MS425-16-3YRMeraki MS425-16 Enterprise License and Support, 3YR.
LIC-MS425-16-5YRMeraki MS425-16 Enterprise License and Support, 5YR.
LIC-MS425-16-7YRMeraki MS425-16 Enterprise License and Support, 7YR.
LIC-MS425-16-1DMeraki MS425-16 Enterprise License and Support-1 Day.
EAB-MS425-16-3YMeraki MS425-16 Enterprise Agreement 3Y – Booking Only.
EAB-MS425-16-5YMeraki MS425-16 Enterprise Agreement 5Y – Booking Only.
E3N-MS425-16Meraki MS425-16 Enterprise Agreement Qty: 1-999999 Licenses Term: 60 to 60 Months.
MS425-32-HWMeraki MS425-32 L3 Cld-Mngd 32x 10G SFP+ Switch.
LIC-MS425-32-10YRMeraki MS425-32 Enterprise License and Support, 10YR.
LIC-MS425-32-1YRMeraki MS425-32 Enterprise License and Support, 1YR.
LIC-MS425-32-3YRMeraki MS425-32 Enterprise License and Support, 3YR.
LIC-MS425-32-5YRMeraki MS425-32 Enterprise License and Support, 5YR.
LIC-MS425-32-7YRMeraki MS425-32 Enterprise License and Support, 7YR.
LIC-MS425-32-1DMeraki MS425-32 Enterprise License and Support-1 Day.
EAB-MS425-32-3YMeraki MS425-32 Enterprise Agreement 3Y – Booking Only.
EAB-MS425-32-5YMeraki MS425-32 Enterprise Agreement 5Y – Booking Only.
E3N-MS425-32Meraki MS425-32 Enterprise Agreement Qty: 1-999999 Licenses Term: 60 to 60 Months.

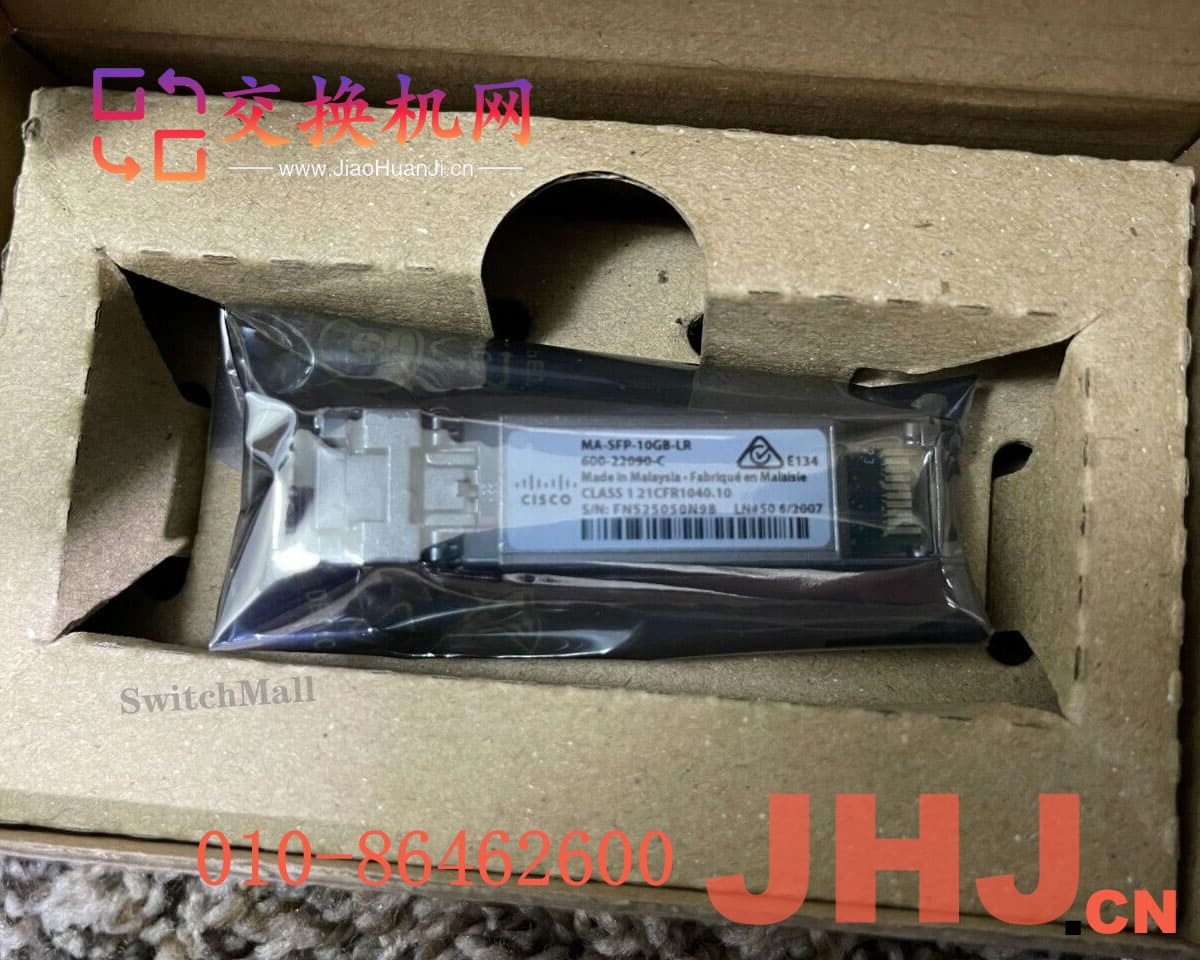

MS425Accessories
