—使用与工作速度同步的交换机来改造您的网络。—
概述

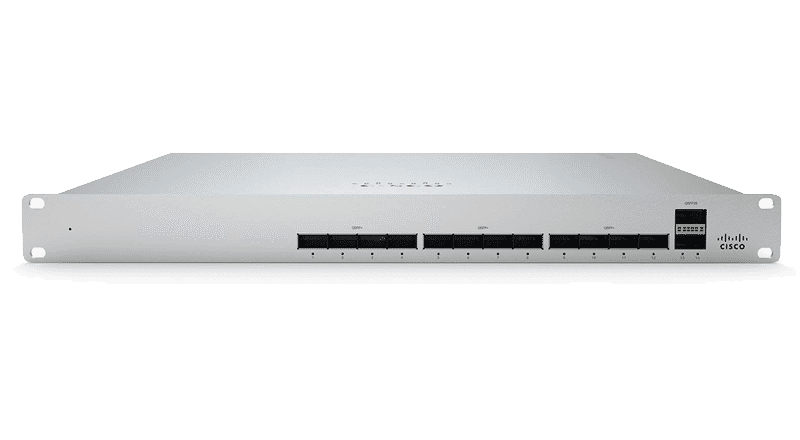

MS450 聚合交换机具有 12 个 40G 光纤端口 (QSFP+) 和两个 100G (QSFP28) 光纤上行链路端口。该交换机旨在满足高带宽、多千兆位交换的需求,与 MS355 配合使用效果最佳。
如果没有找到满意的资料,可以在交小圈发布请求贴,让更多网友来帮你想办法,或者找找以前有没有类似资源 (https://q.jhj.cn)
MS355-24X | MS355-24X2 | MS450-12 | |
1GbE RJ45 | 16 | – | – |
mGbE RJ45 | 8 | 24 | – |
10GbE SFP+ | 4 | 4 | – |
40GbE QSFP+ | 2 | 2 | 12 |
100GbE QSFP28 | – | – | 2 |
Hardware Stack Port | 2 | 2 | 2 |
Dedicated Management Interface | 1 | 1 | 1 |
Hot Swap Power Supply | Yes, Dual | Yes, Dual | Yes, Dual |
Hot Swap Fans | Yes, 3x | Yes, 3x | Yes, 3x |
Layer 3 Routing | Yes | Yes | Yes |
UPoE Capable | Yes, 740W | Yes, 740W | No |
Max Switching Capacity | 352 Gbps | 640 Gbps | 1.36 Tbps |
Max Stacking Bandwidth | 400 Gbps | 400 Gbps | 400 Gbps |
MS450-12 | |
40GbE QSFP+ | 12 |
100GbE QSFP28 Uplink Ports | 2 |
100G Hardware Stack Ports | 2 |
Dedicated RJ45 Mgmt Interface | 1 |
Hot Swap Power Supply | Yes, Dual |
Hot Swap Fans | Yes, 3x |
MS450-12 | |
Layer 3 Routing | Yes |
UPoE Capable | No |
Switching Capacity | 1.36 Tbps |
Stacking Bandwidth | 400 Gbps |
MS450-12 | |
Mount Type | 1U Rack Mount |
Dimensions (h x w x d) | 1.72” × 19.08” × 18.85” (4.37 × 48.46 × 47.88cm) |
Weight | 13.80 lbs (6.26 kg) |
Power Supply | 250W AC |
Power Load (idle/max) | 57W / 138W |
Operating Temperature | 32°F – 113 °F 0°C – 45°C |
Humidity | 5% to 95% |
The MS uses LEDs to inform the user of the device’s status. When the device powers on, all the Internet LEDs flash twice. Additional functions are described below, from left to right.
Front Panel Components
Item | Function | LED Status | Meaning |
---|---|---|---|
1 | Power | Solid orange | Switch is unable to connect to the Meraki cloud |
Flashing white | Firmware upgrade in process | ||
Solid white | Switch is fully operational and connected to the Meraki cloud | ||
Off | Switch does not have power | ||
2 | Switch Ports | Off | No client connected |
Solid orange | 10/100 Mbps (1 Gbps on SFP+) | ||
Solid green | 1/2.5/5/10 Gbps (10 Gbps on SFP+) |
Back Panel Components
Item | Function | LED Status | Meaning |
---|---|---|---|
1 | Restore | N/A | Restore button to clear switch IP and local configuration settings |
2 | Management Interface | Green | Connected, used for easy access to the local status page |
3 | Stack Ports | N/A | Stack Cables are connected here |
4 | Redundant Fans | Green | Active and operational |
5 | Redundant Power Supplies | Green | Active and functional power supplies |
MS130R-8P-HW,思科Meraki 8P 8P口二层千兆交换机, Meraki MS130R-8P L2 Cloud Managed 8Px1G ,2x1G SFP
MS130-8-HW,思科Meraki 8 8口二层千兆交换机, Meraki MS130-8 L2 Cloud Managed 8x1G ,2x1G SFP
MS130-8P-HW,思科Meraki 8P 8口二层千兆交换机, Meraki MS130-8P L2 Cloud Managed 8x1G POE+,2x1G SFP
MS130-8X-HW,思科Meraki 8X 8口二层千兆交换机, Meraki MS130-8X L2 Cloud Managed 8x1G,2×2.5G mGig,2x10G SFP+
MS130-12X-HW,思科Meraki 12X 12口二层千兆交换机, Meraki MS130-12X L2 Cloud Managed 8x1G,4×2.5G mGig,2x10G SFP+
MS130-24-HW,思科Meraki 24口二层千兆交换机, Meraki MS130-24 L2 Cloud Managed 16x1G,6×2.5G mGig,4x1G SFP
MS130-24P-HW,思科Meraki 24口二层千兆交换机, Meraki MS130-24P L2 Cloud Managed 16x1G,6×2.5G mGig,4x1G SFP
MS130-24X-HW,思科Meraki 24口二层千兆交换机, Meraki MS130-24X L2 Cloud Managed 16x1G,6×2.5G mGig,4x10G SFP+
MS130-48-HW,思科Meraki 48口二层千兆交换机, Meraki MS130-48 L2 Cloud Managed 40x1G,8×2.5G mGig,4x1G SFP
MS130-48P-HW,思科Meraki 48口二层千兆交换机, Meraki MS130-48P L2 Cloud Managed 40x1G,8×2.5G mGig,4x1G SFP
MS130-48X-HW,思科Meraki 48口二层千兆交换机, Meraki MS130-48X L2 Cloud Managed 40x1G,8×2.5G mGig,4x10G SFP+
LIC-MS130-CMPT-1Y ,思科云管理交换机企业级许可授权,LIC-MS130-CMPT-1Y ,MS130-8/12 Port Switch Enterprise License and Support 1 Year,思科Meraki MS130-8/12口企业级管理许可 1Y
loading…
已经是到最后一篇内容了!
Model number | Description |
---|---|
MS450-12-HW | Layer-3 12-port 40GbE QSFP+ aggregation switch with two 100GbE QSFP28 ports and 1 management interface, hot-swappable power supplies / fans |
