Part number	Product description	PoE / PoE+ support
PWR-IE50W-AC-L=	50W AC to DC power supply	No
PWR-IE50W-AC=	50W AC to DC or High DC to DC power supply	No
PWR-IE50W-AC-IEC=	50W AC to DC power supply with an IEC connector	No
PWR-IE65W-PC-AC=	65W AC to DC or High DC to DC power supply	Yes
PWR-IE65W-PC-DC=	65W Low DC to DC power supply	Yes
PWR-IE170W-PC-AC=	170W AC to DC or High DC to DC power supply	Yes
PWR-IE170W-PC-DC=	170W Low DC to DC power supply	Yes
PWR-IE240W-PCAC-L=	240W AC to DC power supply	Yes
PWR-IE480W-PCAC-L =	480W AC to DC power supply	Yes

Figure 1.

Cisco Industrial Din-Rail Power Supplies

datasheet-c78-742180 下载

Ordering information

Part #	Product description
PWR-IE50W-AC-L=	50W AC to DC power supply
PWR-IE50W-AC=	50W AC to DC power supply
PWR-IE50W-AC-IEC=	50W AC to DC power supply with IEC connector
PWR-IE65W-PC-AC=	65W AC to DC power supply
PWR-IE65W-PC-DC=	65W DC to DC power supply
PWR-IE170W-PC-AC=	170W AC to DC power supply
PWR-IE170W-PC-DC=	170W DC to DC power supply
PWR-IE240W-PCAC-L=	240W AC to DC power supply
PWR-IE480W-PCAC-L=	480W AC to DC power supply

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 796
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 887
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 838
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 841
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 624
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 637
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

官方描述：PWR-IE170W-PC-DC= 170W DC to DC power supply

Product specifications

Table 2 lists the input specification for Cisco industrial power supplies. Table 3 lists the output specifications.

Table 2. Input specifications

Product ID	Rated nominal input operating range	Supported input voltage operating range	Typical efficiency	Inrush current at 25C ambient	Remarks
PWR-IE50W-AC-L=	AC 100-240V/1.2A, 50-60Hz	AC 90-264V	88%	< 35A @ 115VAC and 70A @ 230VAC	Not approved for hazardous location installations
PWR-IE50W-AC=	AC 100-240V/1.25A, 50-60HzorDC 125-250V/1.25A	AC 90-264VorDC 106-300V	80%	< 35A @ 115VAC and 70A @ 230VAC	Approved for Class 1, Div 2/Zone 2 installations
PWR-IE50W-AC-IEC=	AC 100-240V/1.25A, 50-60Hz	AC 90-264V	80%	< 35A @ 115VAC and 70A @ 230VAC	Not approved for hazardous location installations
PWR-IE65W-PC-AC=	AC 100-240V/1.4A, 50-60HzorDC 125-250V/1.0A	AC 90-264VorDC 106-300V	85%	< 35A @ 115VAC and 70A @ 230VAC	Approved for Class 1, Div 2/Zone 2 installationsCSA certified
PWR-IE65W-PC-DC=	DC 24-48VDC/4.5A	DC 18-60V	92%	4A@24VDC	Approved for Class 1, Div 2/Zone 2 installations
PWR-IE170W-PC-AC=	AC 100-240V/2.3A, 50-60HzorDC 125-250V/2.1A	AC 90-264VorDC 106-300V	88%	< 35A @ 115VAC and 70A @ 230VAC	Approved for Class 1,Div 2/Zone 2 installationsCSA certified
PWR-IE170W-PC-DC=	DC 12-54V/2.3A	DC 10.8-60V	88%	17.3A @ 12VDC	Approved for Class 1, Div 2/Zone 2 installations
PWR-IE240W-PCAC-L=	AC 100-240V/3.5A, 50-60Hz	AC 90-264V	91%	< 35A @ 115VACand 230VAC	Not approved for hazardous location installations
PWR-IE480W-PCAC-L=	AC 100-240V/6A, 50-60Hz	AC 90-264V	92%	< 35A @ 115VACand 230VAC	Not approved for hazardous location installations

Table 3 lists the output specifications for Cisco industrial power supplies.

Table 3. Output specifications

Product ID	Nominal output voltage / adjustment range	Max output power	Holdup time at 100% load	Protections
PWR-IE50W-AC-L=	24VDC / 24-28VDC, 2.1A	50W	20ms	Over voltage protectionOver current protectionOver temperature protectionShort circuit protection
PWR-IE50W-AC=	24VDC, 2.1A	50W	20ms
PWR-IE50W-AC-IEC=	24VDC, 2.1A	50W	20ms
PWR-IE65W-PC-AC=	54VDC, 1.2A	65W	10ms
PWR-IE65W-PC-DC=	54VDC, 1.2A	65W
PWR-IE170W-PC-AC=	54VDC, 1.3A	170W	20ms
PWR-IE170W-PC-DC=	54VDC, 3.2A	170W	9ms (@10.8VDC) to 25.9ms (@ 60VDC)
PWR-IE240W-PCAC-L=	54VDC / 48-56VDC, 4.5A	240W	20ms
PWR-IE480W-PCAC-L=	54VDC / 48-56VDC, 8.9A	480W	20ms

Table 4 lists the environmental specifications for Cisco industrial power supplies.

Table 4. Environmental specifications

Product ID	IP rating	Operating temperature	Storage temperature	Power de-rating	Operating humidity
PWR-IE50W-AC-L=	IP20	-20°C to +70°C	-40°C to +85°C	> 55°C de-rate power by 3.33%/°C< -10°C de-rate power by 2%/°C	5 to 95% RH(non-condensing)
PWR-IE50W-AC=	IP20	-40°C to +75°C	-40°C to +85°C	No derating	<95% RH(non-condensing)
PWR-IE50W-AC-IEC=	IP20	-20°C to +70°C	-40°C to +85°C	No derating	<95% RH(non-condensing)
PWR-IE65W-PC-AC=	IP20	-40°C to +75°C	-40°C to +85°C	No derating	<95% RH(non-condensing)
PWR-IE65W-PC-DC=	IP20	-40°C to +75°C	-40°C to +85°C	No derating	<95% RH(non-condensing)
PWR-IE170W-PC-AC=	IP20	-40°C to +75°C	-40°C to +85°C	No derating	<95% RH(non-condensing)
PWR-IE170W-PC-DC=	IP20	-40°C to +75°C	-40°C to +85°C	No derating	<95% RH(non-condensing)
PWR-IE240W-PCAC-L=	IP20	-40°C to +80°C	-40°C to +85°C	Vertical mounting:> 50°C de-rate power by 2.5%/°CHorizontal mounting:> 40°C de-rate power by 2.5%/°C	5 to 95% RH(non-condensing)
PWR-IE480W-PCAC-L=	IP20	-40°C to +75°C	-40°C to +85°C	Vertical mounting:> 50°C de-rate power by 2.5%/°C> 70°C de-rate power by 5%/°C	5 to 95% RH(non-condensing)

Table 5 lists the Safety standards/EMC for Cisco industrial power supplies.

Table 5. Safety standards / EMC

Product ID	Electric safety	EMC/ Industry standards
PWR-IE50W-AC-L=	CE (EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC)UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1UL/cUL listed to UL 508 and CSA C22.2 No. 107.1-01CB scheme to IEC 60950-1, LPSNEC Class 2	EN 61000-3-2 Class A, EN 61000-3-3EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4,EN 61204-3, EN 55024 (EN 61000-4-2,3,4,5,6,8,11 LEVEL 3, Performance Criteria A)CISPR 22, EN 55022, CISPR 11, EN 55011,FCC part 15B
PWR-IE50W-AC=	EN60950-1: 2006+A1: 2010+A11: 2009 +A12:2011+A2: 2013, EN61131-2: 2007EN62368-1: 2014 + A11: 2017IEC60950-1: 2005+A1: 2009+A2: 2013IEC62368-1: 2014EN 60079-0:2012 + A11:2013, EN 60079-15:2010CE	EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-8, EN 61000-4-11IEC61000-4-11, IEC61000-4-12, IEC61000-4-16FCC part 15B
PWR-IE50W-AC-IEC=	EN60950-1: 2006+A1: 2010+A11: 2009 +A12: 2011+A2: 2013, EN62368-1: 2014 + A11: 2017CE	EN61000-4-2, EN61000-4-4, EN61000-4-5, EN61000-4-8, EN 61000-4-11IEC61000-4-11, IEC61000-4-12, IEC61000-4-16FCC part 15B
PWR-IE65W-PC-AC=	EN60950-1: 2006+A1: 2010+A11: 2009 +A12: 2011+A2: 2013, EN61131-2: 2007 EN62368-1: 2014 + A11: 2017 IEC60950-1: 2005+A1: 2009+A2: 2013 IEC62368-1: 2014UL 508Class 1, Div 2/ Zone 2 Hazardous locationCEUL60950-1 and CSA60950-1 certified	EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC61000-3-3, EN/IEC61000-4-11, IEC61000-4-12, EN61131-2: 2007EN 55032: 2012/AC: 2013, EN 55024: 2010FCC part 15BIEC 61850-3, IEEE1613EN 61000-6-4, EN 61000-6-2
PWR-IE65W-PC-DC=	EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013UL 508Class 1, Div2/ Zone 2 Hazardous LocationCCCCE	EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5, EN61000-4-6, EN61000-4-8,EN 55032:2015, EN 55024: 2010+A1:2015EN55032:2015, EN 55024: 2010FCC part 15BIEC 61850-3, IEEE1613EN 61000-6-4, EN 61000-6-2
PWR-IE170W-PC-AC=	IEC60950-1: 2005+A1: 2009+A2: 2013 EN60950-1: 2006+A1: 2010+A11: 2009 +A12: 2011+A2: 2013,KCC mark, BSMI mark, CCC, CB Scheme,Class 1, Div2/ Zone 2 Hazardous LocationCEUL60950-1and CSA60950-1 certified	EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC61000-3-3, EN/IEC61000-4-11, IEC61000-4-12EN 55032: 2012/AC: 2013, EN 55024: 2010FCC part 15BEN61131-2: 2007IEC 61850-3, IEEE 1613
PWR-IE170W-PC-DC=	EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013UL 508Class 1, Div 2/Zone 2 Hazardous locationCE	EN61000-4-2, EN61000-4-3, EN61000-4-4,EN61000-4-5, EN61000-4-6, EN61000-4-8,EN 55032:2015, EN 55024: 2010+A1:2015EN55032:2015, EN 55024: 2010FCC part 15BIEC 61850-3, IEEE1613EN 61000-6-4, EN 61000-6-2
PWR-IE240W-PCAC-L=	SIQ Bauart to EN 60950-1UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1 UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1 CB scheme to IEC 60950-1UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)CSA C22.2 No. 107.1-01 (File No. 181564)	EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, Performance Criteria A and EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, Performance Criteria A)CISPR 32, EN 55032, CISPR 11, EN 55011,FCC Title 47: Class A
PWR-IE480W-PCAC-L=	SIQ Bauart to EN 60950-1UL/cUL recognized to UL 60950-1 and CSA C22.2 No. 60950-1 UL/cUL recognized to UL 62368-1 and CSA C22.2 No. 62368-1 CB scheme to IEC 60950-1UL 508 and CSA C22.2 No. 107.1-01 (File No. E315355)CSA C22.2 No. 107.1-01 (File No. 181564)	EN 61000-3-2 Class A, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2,EN 61204-3, EN 55024 (EN 61000-4-2 LEVEL 3, Performance Criteria A and EN 61000-4-3,4,5,6,8,11,12 LEVEL 3, Performance Criteria A)CISPR 32, EN 55032, CISPR 11, EN 55011,FCC Title 47: Class A

Table 6 lists the Mechanical and Reliability data for Cisco industrial power supplies.

Table 6. Mechanical and Reliability data

Product ID	Dimensions (W x H x D)	Unit weight	MTBF (Telcordia SR-332)
PWR-IE50W-AC-L=	30 mm x 75 mm x 89.5 mm1.18 in x 2.95 in x 3.52 in	0.39 lb (0.18 kg)	2,255,613 hours
PWR-IE50W-AC=	51 mm x 118 mm x 148 mm2 in x 4.64 in x 5.82 in	1.41 lb (0.64 kg)	1,662,359 hours
PWR-IE50W-AC-IEC=	51 mm x 118 mm x 148 mm2 in x 4.64 in x 5.82 in	1.43 lb (0.65 kg)	1,662,359 hours
PWR-IE65W-PC-AC=	66 mm x 148 mm x 118 mm2.5 in x 5.82 in x 4.64 in	2.64 lb (1.2 kg)	2,488,401 hours
PWR-IE65W-PC-DC=	66 mm x 150 mm x 117 mm2.59 in x 5.90 in x 4.60 in	2.60 lb (1.18 kg)	4,802,673 hours
PWR-IE170W-PC-AC=	96 mm x 150 mm x 146 mm3.77 in x 5.90 in x 5.74 in	3.88 lb (1.76 kg)	2,384,975 hours
PWR-IE170W-PC-DC=	114 mm x 150 mm x 146 mm4.48 in x 5.90 in x 5.74 in	3.68 lb (1.67 kg)	2,164,641 hours
PWR-IE240W-PCAC-L=	85 mm x 121 mm x 124.1 mm3.34 in x 4.76 in x 4.88 in	2.11 lb (0.96 kg)	1,579,900 hours
PWR-IE480W-PCAC-L=	144 mm x 121 mm x 118.6 mm5.66 in x 4.76 in x 4.66 in	3.02 lb (1.37 kg)	1,058,750 hours

Ordering information

Table 7 provides ordering information for Cisco industrial power supplies.

Table 7. Ordering information

Part #	Product description
PWR-IE50W-AC-L=	50W AC to DC power supply
PWR-IE50W-AC=	50W AC to DC power supply
PWR-IE50W-AC-IEC=	50W AC to DC power supply with IEC connector
PWR-IE65W-PC-AC=	65W AC to DC power supply
PWR-IE65W-PC-DC=	65W DC to DC power supply
PWR-IE170W-PC-AC=	170W AC to DC power supply
PWR-IE170W-PC-DC=	170W DC to DC power supply
PWR-IE240W-PCAC-L=	240W AC to DC power supply
PWR-IE480W-PCAC-L=	480W AC to DC power supply

datasheet-c78-742180 下载

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

IOS软件,3C证书,检测报告,操作手册,安装手册,命令手册,产品教程,配置教程，一对一指导

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 796
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 887
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 838
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 841
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 624
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 637
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

产品型号图集

如果这想要获得更多高清图册，请加入交小圈获得 https://Q.JHJ.cn 交换机小圈

点击放大的图片列表

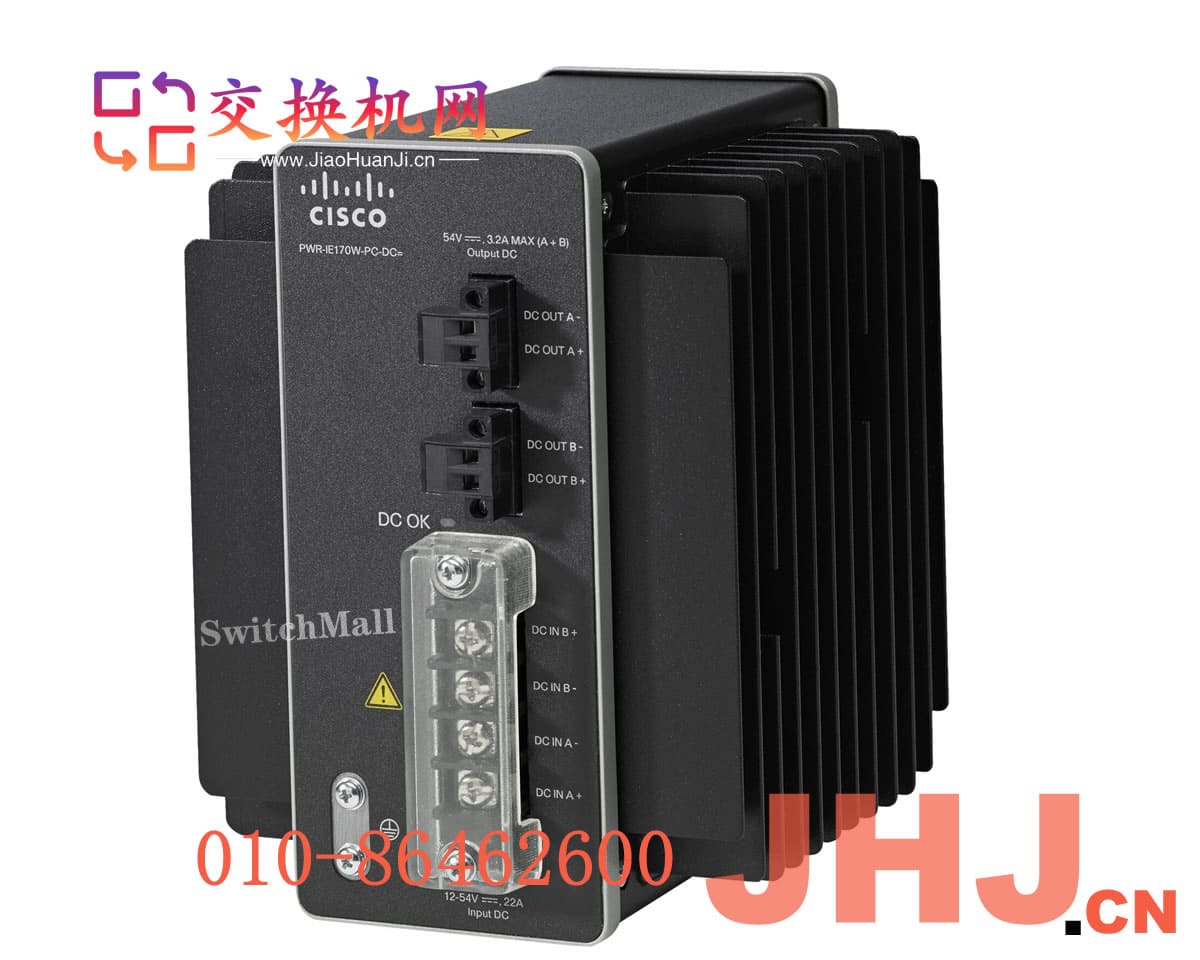

PWR-IE170W-PC-DC= 170W DC to DC power supply
