C9500系列思科交换机 | C9500-24Y4C-A= | Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. LicenseC9500-24Y4C-E Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License

C9500-24Y4C-E Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License

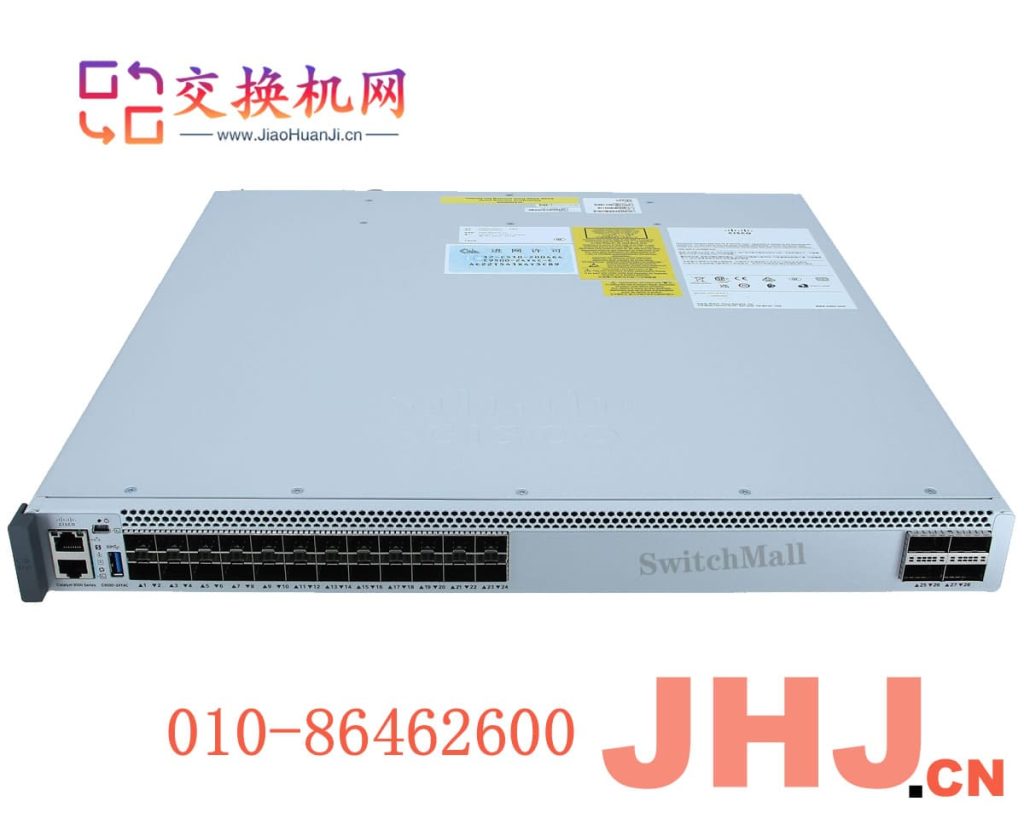

思科C9500系列交换机24个1/10/25G 光口交换机

C9500系列交换机 1187

设备品牌:思科(Cisco)
产品分类:园区交换机-核心/汇聚
产品系列:C9500系列
型号SKU:C9500-24Y4C-E
许可类型:Cisco DNA Essentials
上行端口: 4x 40/100G 光口
下行端口:24x 1/10/25G 光口
交换容量: 可达 2.0 Tbps
转发速率:可达 1 Bpps
风扇个数:C9K-T1-FANTRAY x4 Max
默认电源:C9K-PWR-650WAC-R
设备尺寸:1.73 x 17.5 x 18.0 in
设备重量:9.96 kg
采购电话:010-8646 2600
模块选择C9500系列思科交换机 | C9500-24Y4C-A= | Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License

加入咨询列表

去旗舰店购买

在线客服

②采购咨询:186-1111-5727

产品介绍

产品参数

资料下载

产品相册

型号：C9500-24Y4C-E= | C9500-24Y4C-E

重新构想、强化、重新定义

Catalyst 9500 系列（包括全新 Catalyst 9500X 型号）将继续通过持续创新塑造未来，帮助您重新构想连接、增强安全性并重新定义大大小小的混合员工队伍的体验。

基于思科统一接入数据平面 (UADP) 专用集成电路 (ASIC) 的思科 Catalyst 9500 系列交换机是思科领先的固定企业核心和聚合交换平台，作为 Catalyst 9000 系列的一部分，旨在转变您的网络以处理在一个混合世界中，工作场所可以在任何地方，端点可以是任何东西，并且应用程序可以在任何地方托管。

基于 Cisco Silicon One Q200 ASIC 的 Cisco Catalyst 9500X 交换机专为具有可编程管道 (P4) 的下一代核心而构建，是首款在企业中提供高达 12.8 Tbps 全双工交换容量的网络芯片。Q200 ASIC 提供高性能以及完整的路由和交换功能，无需外部存储器。这是通过包含片上高带宽存储器 (HBM) 的内部架构实现的。Catalyst 9500X 交换机采用高性能多核 x86 CPU，是思科领先的专用固定核心和边缘服务企业交换平台，专为安全、物联网和云而构建。

Cisco Catalyst 9500X 交换机是业界首款针对企业园区的专用固定 10、25、50、40、100、200 和 400 千兆位以太网交换机。Catalyst 9500X 交换机为企业应用提供无与伦比的转发规模（MAC 地址、IP 单播和组播路由、MPLS 标签）和深度缓冲。Catalyst 9500X 型号包括无阻塞 50 Gb 以太网小型可插拔 (SFP-56) 和无阻塞 400 Gb 以太网四路小型可插拔双密度 (QSFP-DD) 端口。

Catalyst 9500 系列交换机支持高级路由和基础设施服务（例如多协议标签交换 [MPLS] 第 2 层和第 3 层 VPN、组播 VPN [MVPN] 和网络地址转换 [NAT]）；思科软件定义的访问功能（例如主机跟踪数据库、跨域连接以及 VPN 路由和转发 [VRF] 感知定位器/ID 分离协议 [LISP]）；以及采用 Cisco StackWise Virtual 技术的网络系统虚拟化，这对于它们在园区核心中的部署至关重要。Cisco Catalyst 9500 系列还支持基本的高可用性功能，例如修补、带状态切换的思科不间断转发(NSF/SSO)、冗余白金级电源和风扇，同时支持各种光学器件。Catalyst 9500 系列交换机提供 Cisco DNA Center 或 Meraki 云监控的操作选择。

软件定义访问的基础

企业网络是数字化转型的核心。开放、可编程、集成且安全的网络可以最大限度地提高业务敏捷性，从而帮助人们追求和捕捉新的商机。

具有软件定义接入(SD-Access) 的思科数字网络架构(Cisco DNA ) 是为业务提供支持的网络结构。思科 SD-Access 是一种开放且可扩展的软件驱动架构，可加速并简化您的企业网络运营。SD-Access 通过基础功能实现从边缘到云的基于策略的自动化。

产品概述

思科 Catalyst 9500X 型号

● Cisco Silicon One Q200专用集成电路(ASIC) 专为下一代网络核心+边缘交换机而构建。它是首款提供高达 12.8 Tbps 全双工速度和 8 Bpps 转发性能的企业 ASIC，同时支持高性能和完整路由和交换功能，无需外部存储器。

● Cisco Silicon One Q200 ASIC 采用 7 纳米制造技术构建，能够在保持低功耗的同时提供高性能。

● 高达 12.0 Tbps 的交换容量和 8 Bpps 的转发速率

● 80MB 专用低延迟缓冲区，高达 8GB HBM 缓冲区用于深度数据包缓冲区

● 多达 28 个本机无阻塞 40/100 千兆位以太网 QSFP28 端口

● 多达 60 个本机无阻塞 10/25/50 千兆位以太网 SFP56 端口

● 多达 8 个本机无阻塞 40/100/200/400 千兆位以太网 QSFPDD 端口

● Intel 2.43-GHz x86 CPU，具有 8 核和 32-GB DDR4 内存

● 高达 960 GB 的 SSD 本地存储，用于基于容器的应用程序托管（2 个 10G KR 端口）

● 灵活的路由（IPv4、IPv6、组播）表、二层表、ACL 表、QoS 表。

● 用于交换的ASIC 表最多可扩展至256K MAC 地址，路由可扩展至最多2M 路由。

● IPv4/IPv6 双栈和动态硬件转发表分配，便于 IPv4 到 IPv6 的迁移

● 应用程序托管的硬件支持

● 硬件支持精确时间协议（PTP、IEEE 1588v2）具有精确的时钟同步和亚微秒级精度，适合时间和频率的分配和同步。

● 硬件支持线速256 位802.1ae MACsec 和WAN-MACsec 数据加密。

● 硬件支持线速 256 位 IKEv2 ESP IPsec 数据加密（仅限 C9500X-60L4D）

◦ 有关详细信息，请参阅平台详细信息部分

● 白金级（90% 效率）1500 瓦交流和/或直流电源。

● 可现场更换的N+1 冗余风扇托架单元，增加了选择气流方向的灵活性。

思科 Catalyst 9500 型号

● 思科统一接入数据平面 (UADP)专用集成电路 (ASIC)，具有可编程管道、微引擎功能以及基于模板、可配置的第 2 层和第 3 层转发分配、访问控制列表，已为下一代技术做好了准备(ACL) 和服务质量 (QoS) 条目

● 高达 6.4 Tbps 的交换容量和高达 2 Bpps 的转发性能

每个 ASIC高达 36 MB 的统一缓冲区

● Intel 2.4-GHz x86 CPU，具有高达 120 GB 的 USB 3.0 或高达 960 GB 的 SATA SSD 存储，用于基于容器的应用程序托管

● 多达 32 个无阻塞 100 Gb 以太网 QSFP28 端口

● 多达 32 个无阻塞 40 Gb 以太网 QSFP+ 端口

● 多达 48 个无阻塞 25 Gb 以太网 SFP28 端口

● 多达 48 个无阻塞 10 Gb 以太网 SFP+ 端口

● 可扩展的第 3 层路由（IPv4、IPv6 和组播）表和第 2 层交换表

● 应用程序托管的硬件支持（例如使用Cisco HundredEyes Enterprise Agent）。

● 内置 IEEE 802.1ba AV 桥接 (AVB)，通过改进的时间同步和 QoS 提供更好的 AV 体验

● 精确时间协议（PTP；IEEE 1588v2）提供亚微秒精度的精确时钟同步，使其适合通过网络分配和同步时间和频率

● 支持静态和动态NAT 以及端口地址转换(PAT)

● Cisco StackWise Virtual 技术，一种网络系统虚拟化技术，可提高运营效率并增强不间断通信和扩展系统带宽。可以跨 StackWise-Virtual 成员配置多机箱 EtherChannel，以实现高弹性

● 白金级（效率超过 90%）交流和/或直流电源

● 可现场更换的风扇托架单元

● Meraki 云监控选项

C9500X-28C8D-A	Catalyst 9500 28x100G + 8x400G switch, NW Advantage License
C9500X-28C8D-E	Catalyst 9500 28x100G + 8x400G switch, NW Essentials License
C9500X-60L4D-A	Catalyst 9500 60x50G + 4x400G switch, NW Advantage License
C9500-32C-E	Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess. License
C9500-32C-A	Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License
C9500-32QC-E	Cisco Catalyst 9500 Series high performance 32-port 40G switch, NW Ess. License
C9500-32QC-A	Cisco Catalyst 9500 Series high performance 32-port 40G switch, NW Adv. License
C9500-48Y4C-E	Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Ess. License
C9500-48Y4C-A	Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License
C9500-24Y4C-E	Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License
C9500-24Y4C-A	Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License
C9500-24Q-E	Cisco Catalyst 9500 24-port 40G switch, NW Ess. License
C9500-24Q-A	Cisco Catalyst 9500 24-port 40G switch, NW Adv. License
C9500-12Q-E	Cisco Catalyst 9500 12-port 40G switch, NW Ess. License
C9500-12Q-A	Cisco Catalyst 9500 12-port 40G switch, NW Adv. License
C9500-40X-E	Cisco Catalyst 9500 40-port 10G switch, NW Ess. License
C9500-40X-A	Cisco Catalyst 9500 40-port 10G switch, NW Adv. License
C9500-16X-E	Cisco Catalyst 9500 16-port 10G switch, NW Ess. License
C9500-16X-A	Cisco Catalyst 9500 16-port 10G switch, NW Adv. License
C9500-NM-2Q	Cisco Catalyst 9500 2 x 40GE Network Module
C9500-NM-8X	Cisco Catalyst 9500 8 x 10GE Network Module
C9500-NM-2Q=	Cisco Catalyst 9500 2 x 40GE Network Module Spare
C9500-NM-8X=	Cisco Catalyst 9500 8 x 10GE Network Module Spare
C9500-48X-A	Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Adv. License
C9500-48X-E	Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Ess. License
C9500-24X-A	Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Adv. License
C9500-24X-E	Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. License
C9500-16X-2Q-A	Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Adv. License
C9500-16X-2Q-E	Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Ess. License
C9500-40X-2Q-A	Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Adv. License
C9500-40X-2Q-E	Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. License

nb-06-cat9500-series-data-sheet 下载

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 793
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 881
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 828
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 835
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 618
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 633
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

型号：C9500-24Y4C-E= | C9500-24Y4C-E

Table 1. Cisco Catalyst 9500X switch configurations and port density

Model	Description	10/25/50G port density	40/100G port density	400G port density	10/25G port density with breakout cable	50G port density with breakout cable	40G port density with breakout cable	100G port density with breakout cable
C9500X-28C8D	Cisco Catalyst 9500X with 28x100G + 8x400G Gigabit Ethernet	–	28	8	120¹	120¹	60	60
C9500X-60L4D	Cisco Catalyst 9500X with 60x50G + 4x400G Gigabit Ethernet	60	4	4	76	76	16	16

¹ Roadmap. All numbers in the above table are for a single standalone switch.

Table 2 shows the Cisco Catalyst 9500 Series configurations

Table 2. Cisco Catalyst 9500 Series configurations and port density

Model	Description	1G port density	10G port density	25G port density	40G port density	100G Port density	10G port density with breakout cable	25G port density with breakout cable
C9500-32C	Cisco Catalyst 9500 Series high-performance 32-port 100 Gigabit Ethernet switch with QSFP28	–	–	–	32	32	96	96
C9500-32QC	Cisco Catalyst 9500 Series high-performance 32-port 40 Gigabit Ethernet switch with QSFP+	–	–	–	32	16	–	–
C9500-48Y4C	Cisco Catalyst 9500 Series high-performance 48-port 1/10/25G Gigabit Ethernet switch with SFP28	48	48	48	4	4	–	–
C9500-24Y4C	Cisco Catalyst 9500 Series high-performance 24-port 1/10/25G Gigabit Ethernet switch with SFP28	24	24	24	4	4	–	–
C9500-24Q	Cisco Catalyst 9500 Series 24-port 40 Gigabit Ethernet switch with QSFP+	–	–	–	24	–	96	–
C9500-12Q	Cisco Catalyst 9500 Series 12-port 40 Gigabit Ethernet switch with QSFP+	–	–	–	12	–	48	–
C9500-40X	Cisco Catalyst 9500 Series 40-port 1/10 Gigabit Ethernet Switch with SFP/SFP+	40+8¹	40+8¹	–	2	–	8¹	–
C9500-16X	Cisco Catalyst 9500 Series 16-port 1/10 Gigabit Ethernet switch with SFP/SFP+	16+8¹	16+8¹	–	2	–	8¹	–

All numbers in the above table are for the standalone switch.

¹with uplink module.

Network modules

The Cisco Catalyst 9500 Series Switches support optional network modules for uplink ports on some of the configurations.

The default switch configuration does not include the network module. When you purchase the switch, you can choose from the network modules described in Tables 3 and 4.

Table 3. Network module numbers and descriptions

Network module	Description
C9500-NM-8X	Cisco Catalyst 9500 Series Network Module 8-port 1/10 Gigabit Ethernet with SFP/SFP+
C9500-NM-2Q	Cisco Catalyst 9500 Series Network Module 2-port 40 Gigabit Ethernet with QSFP+

Table 4. Network module matrix

Model	C9500-NM-8X	C9500-NM-2Q
C9500X-28C8D	No	No
C9500-32C	No	No
C9500-32QC	No	No
C9500-48Y4C	No	No
C9500-24Y4C	No	No
C9500-24Q	No	No
C9500-12Q	No	No
C9500-40X	Yes	Yes
C9500-16X	Yes	Yes

Figures 10 and 11 show the available network modules

Platform benefits

Model	Catalyst 9500	Catalyst 9500X
Resiliency and High Availability
Software Maintenance Upgrade (SMU)	Yes	Yes
Cisco StackWise Virtual	Yes	Yes³
Stateful Switchover (SSO)	Yes (SVL)	Yes (SVL)³
In-Service Software Upgrade (ISSU)	Yes (SVL)	No¹
Graceful Insertion and Removal (GIR)	Yes	Yes
MKA High Availability	Yes	No¹
Enterprise Security
Trustworthy Solutions	Yes	Yes
Image Signing	Yes	Yes
Secure Boot	Yes	Yes
Cisco Trust Anchor Module	Yes	Yes
MACsec Encryption (256-bit AES-GCM)	Yes	Yes
Cisco WAN MACsec (256-bit AES-GCM)	No	Yes^{2, 6}
Cisco IPSec (256-bit AES-GCM)	No	Yes^{4, 6}
Object-Group ACLs (IPv4/IPv6)	Yes	Yes⁵
Enterprise QoS
Modular QoS CLI (MQC)	Yes	Yes
Strict Priority Queuing	Yes	Yes
Class/Color-aware Queuing	Yes (WFQ)	Yes (VoQ)
Policing/Metering	Yes	Yes
Shaping/Bandwidth	Yes	Yes
Hierarchical QoS	Yes (2-level)	Yes (2-level)
IP Routing
Routing Information Protocol version 2 (RIPv2), and next generation [RIPng]	Yes	Yes
Open Shortest Path First version 2 (OSPFv2), and OSPFv3	Yes	Yes
Enhanced Interior Gateway Routing Protocol (EIGRP), and EIGRPv6	Yes	Yes
Intermediate System-to-Intermediate System Version 4 (IS-ISv4)	Yes	Yes
Border Gateway Protocol Version 4 (BGPv4), and BGPv6	Yes	Yes
Protocol-Independent Multicast (PIM) Sparse-Mode (PIM-SM)	Yes	Yes
Protocol-Independent Multicast (PIM) Source-Specific Mode (PIM-SSM)	Yes	Yes
Bidirectional PIM BIDIR-PIM	Yes	No¹
IPv6 routing	Yes	Yes
L3 Routed Sub-Interfaces	Yes	Yes
Multi-Protocol Label Switching (MPLS)
MPLS L3 VPN	Yes	Yes
Ethernet over MPLS (EoMPLS)	Yes	Yes
Virtual Private LAN Service (VPLS)	Yes	No¹
MPLS over GRE	Yes	No¹
MPLS Traffic-Engineering (MPLS-TE)	Yes	No¹
BGP Ethernet VPN (EVPN) VXLAN
Fabric Spine, Leaf and Border Support	Yes	Yes³
L2/L3 Virtual Network Interface (VNI)	Yes	Yes³
Distributed Anycast Gateway (Symmetric IRB)	Yes	Yes³
Centralized Gateway (Asymmetric IRB)	Yes	No
ESI Multi-Home Support	Yes	No
Tenant Routed Multicast (IPv4/IPv6)	Yes	Yes³
Border Handoff: Multi-VRF, MPLS VPN, VPLS, L2/L3	Yes	Yes³
Software-Defined Access (SD-Access)
Virtual eXtensible LAN (VXLAN)	Yes	Yes
L2 Virtual Network Interace (VNI)	Yes	Yes
L3 Virtual Network Interace (VNI)	Yes	Yes
Distributed Anycast Gateway	Yes	Yes
SDA Control-Plane	Yes	Yes
SDA Border	Yes	Yes
SDA Edge	Yes	No
Flexible NetFlow (FNF)
FNF IPv4 flow records	Yes	Yes² (software)
FNF IPv6 flow records	Yes	Yes² (software)
FNF sampler	Yes	Yes²
FNF data export	Yes	Yes²
NetFlow version 9 (NFv9) export	Yes	Yes²
IPFIX export	Yes	Yes²
Programmability
NETCONF	Yes	Yes
RESTCONF	Yes	Yes
gNMI/gNOI	Yes	Yes
YANG Config models	Yes	Yes
YANG Oper models	Yes	Yes
ZTP/PnP	Yes	Yes
Smart Operations
Bluetooth Ready	Yes	Yes²
RFID Tags	Yes	Yes
Blue Beacon	Yes	Yes
Out of Band Device Mgmt	Yes (RJ45 and USB-mini type B)	Yes (RJ-45 and USB-C)
Meraki Cloud Monitoring	Yes	No

¹ Roadmap

²C9500X models: minimum IOS XE software release 17.8.1 (C9500X-28C8D) and 17.10.1 (C9500X-60L4D)

³ C9500X models: minimum IOS XE software release 17.10.1 (C9500X-28C8D) and 17.11.1 (C9600X-60L4D). SSO support requires StackWise Virtual for fixed Catalyst 9500 models.

⁴ C9500X models: feature is not available at FCS, but will be available in future software releases only on C9500X-60L4D (not supported on C9500X-28C8D)

⁵ C9500X models : Object-Group ACLs are supported only in the ingress direction

⁶ Need to order HSEC Key

Table 25. Dimensions, physical specifications, weight and operating temperature

Description	Specifications
SKU	C9500X-28C8D	C9500X-60L4D
Dimensions (H x W x D)	H = 1.73” (4.39 cm)W = 17.5” (44.45 cm)D = 21.8” (55.37 cm) including Fan/Tray Handles	H = 1.73” (4.39 cm)W = 17.5” (44.45 cm)D = 21.8” (55.37 cm) including Fan/Tray Handles
Rack Units (RU)	1 RU	1RU
Chassis with 2 power supplies and built-In fan	29.27 lbs (13.28kg)Weights separated:Chassis = 22.13 lbs (10.04kg)Each Fan Tray = 0.26 lbs (0.12kg) AC PSU = 2.77 lbs (1.26kg)DC PSU = 2.71 lbs (1.23kg)	28.10 lbs (12.75kg)Weights separated:Chassis = 20.96 lbs (9.51kg)Each Fan Tray = 0.26 lbs (0.12kg) AC PSU = 2.77 lbs (1.26kg)DC PSU = 2.71 lbs (1.23kg)
Input voltage	See Table 3
SKU	C9500X-FAN-1U-R	C9500X-FAN-1U-F
Operating temperature	-5°C to +45°C (23° to 133° F) sea level	-5°C to +35°C (23° to 95° F) sea level
Altitude	-5°C to +40°C (23° to 104 F) up to 5,000 feet (1500 m)-5°C to +35°C (23° to 95° F) up to 10,000 feet (3000 m)	-5°C to +30°C (23° to 86° F) up to 5,000 feet (1500 m)-5°C to +25°C (23° to 77° F) up to 10,000 feet (3000 m)
Storage temperature	-40°C to 70°C (-40° to 158° F)	-40°C to 70°C (-40° to 158° F)
Relative humidity operating and nonoperating (noncondensing)	Relative humidity operating: 10 to 85% (noncondensing)Relative humidity nonoperating: 0 to 95% (noncondensing)	Relative humidity operating: 10 to 85% (noncondensing)Relative humidity nonoperating: 0 to 95% (noncondensing)

Catalyst 9500 models

Table 26 lists the dimensions, specifications, weight and operating temperature for the Cisco Catalyst 9500 models.

Table 26. Dimensions, physical specifications, weight and operating temperature

Description	Specifications
SKU	C9500-32C	C9500-32QC		C9500- 48YC		C9500- 24YC	C9500-12Q	C9500-24Q		C9500-40X		C9500-16X
Dimensions (H x W x D)	1.73 x 17.5 x 21.2 in				1.73 x 17.5 x 18.0 in				1.73 x 17.5 x 21.52 in
Rack Units (RU)	1 RU
Chassis with 2 power supplies and built-In fan	25.64 lb (11.63 kg)		21.85lLb (9.91 kg)		21.96 lb (9.96 kg)		20.99 lb (9.52 kg)		25.75 lb (11.68 kg)		23.6 lb (10.7 kg)
Input voltage	90 to 264 VAC^*
Operating temperature	32° to 104°F (0° to 40°C) up to altitude of 10,000 feet
Altitude	Operation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating (noncondensing)	Ambient (noncondensing) operating: 5% to 90%Ambient (noncondensing) nonoperating and storage: 5% to 95%
NEBS criteria levels	NEBS:● ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.● SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue)

^*Minimum input voltage is 90VAC, and maximum input voltage is 264VAC.

Licensing combinations

	Cisco DNA Essentials	Cisco DNA Advantage
Network Essentials	Yes	No
Network Advantage	No^*	Yes

Network Essentials and Advantage package features

Features	Network Essentials	Network Advantage
Switch fundamentalsLayer 2, Routed Access (RIP, EIGRP Stub, OSPF – Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN², VRRP, PBR², CDP, QoS, FHS, 802.1x², Macsec-128, CoPP, SXP, IP SLA Responder, SSO²	Yes	Yes
Advanced switch capabilities and scaleBGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR², IP SLA, OSPF	No	Yes
Network segmentationVRF, VXLAN, LISP, BGP-EVPN², TrustSec², SGT², MPLS, mVPN²	No	Yes
AutomationNETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)	Yes	Yes
Telemetry and visibilityModel-driven telemetry, sampled NetFlow², SPAN, RSPAN	Yes	Yes
High availability and resiliencyGIR, NSF, ISSU², StackWise Virtual², SMU	No	Yes
IoT integrationPTP² (IEEE1588v2)	No	Yes
SecurityMACsec-256, WAN MACsec^{1, 3}	No	Yes
Cisco trustworthy solutionsTrust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime Defenses	Yes	Yes

Table 24. Cisco DNA Essentials and Advantage package features

Features	Cisco DNA Essentials	Cisco DNA Advantage
Switch features
Optimized network deploymentsCisco DNA Service for Bonjour	No	Yes
Advanced telemetry and visibilityFlexible NetFlow², EEM	Yes	Yes
Optimized telemetry a visibilityERSPAN², App Hosting (in Containers/VMs), Wireshark, ThousandEyes	No	Yes
Cisco DNA Center features
Day 0 network bring-up automationCisco Network Plug-n-Play application, network settings, device credentials, LAN Automation, Host onboarding	Yes	Yes
Element managementDiscovery, inventory, topology, software image, licensing, and configuration management	Yes	Yes
Element managementPatch Management	No	Yes
Basic AssuranceHealth Dashboards – Network, Client, Application; Switch and Wired Client Health Monitoring	Yes	Yes
SD-AccessPolicy-based Automation and Assurance for Wired and Wireless¹	No	Yes
Embedded Wireless (with or without SD-Access)²Cisco Catalyst 9800 wireless software package to enable wireless controller functionality^**	No	Yes
Network assurance and analyticsGlobal Insights, Trends, Compliance, Custom Reports; Switch 360, Wired Client 360; Fabric and Non-Fabric Insights; App Health	No	Yes
Meraki Cloud Monitoring²	Yes^* limited device visibility	Yes

^* Feature will be available in future software releases

^**Note: A purchase of Cisco DNA Advantage per access point is required in order to enable the wireless controller functionality on Cisco Catalyst switches.

¹ Not supported on C9500 UADP based models

² Not supported on C9500X models

³ Need to order HSEC Key

Ordering information

Product number	Product description
C9500X-28C8D-A	Catalyst 9500 28x100G + 8x400G switch, NW Advantage License
C9500X-28C8D-E	Catalyst 9500 28x100G + 8x400G switch, NW Essentials License
C9500X-60L4D-A	Catalyst 9500 60x50G + 4x400G switch, NW Advantage License
C9500-32C-E	Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess. License
C9500-32C-A	Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License
C9500-32QC-E	Cisco Catalyst 9500 Series high performance 32-port 40G switch, NW Ess. License
C9500-32QC-A	Cisco Catalyst 9500 Series high performance 32-port 40G switch, NW Adv. License
C9500-48Y4C-E	Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Ess. License
C9500-48Y4C-A	Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License
C9500-24Y4C-E	Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License
C9500-24Y4C-A	Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License
C9500-24Q-E	Cisco Catalyst 9500 24-port 40G switch, NW Ess. License
C9500-24Q-A	Cisco Catalyst 9500 24-port 40G switch, NW Adv. License
C9500-12Q-E	Cisco Catalyst 9500 12-port 40G switch, NW Ess. License
C9500-12Q-A	Cisco Catalyst 9500 12-port 40G switch, NW Adv. License
C9500-40X-E	Cisco Catalyst 9500 40-port 10G switch, NW Ess. License
C9500-40X-A	Cisco Catalyst 9500 40-port 10G switch, NW Adv. License
C9500-16X-E	Cisco Catalyst 9500 16-port 10G switch, NW Ess. License
C9500-16X-A	Cisco Catalyst 9500 16-port 10G switch, NW Adv. License
C9500-NM-2Q	Cisco Catalyst 9500 2 x 40GE Network Module
C9500-NM-8X	Cisco Catalyst 9500 8 x 10GE Network Module
C9500-NM-2Q=	Cisco Catalyst 9500 2 x 40GE Network Module Spare
C9500-NM-8X=	Cisco Catalyst 9500 8 x 10GE Network Module Spare
C9500-48X-A	Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Adv. License
C9500-48X-E	Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Ess. License
C9500-24X-A	Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Adv. License
C9500-24X-E	Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. License
C9500-16X-2Q-A	Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Adv. License
C9500-16X-2Q-E	Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Ess. License
C9500-40X-2Q-A	Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Adv. License
C9500-40X-2Q-E	Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. License
Cisco DNA License Upgrade	Upgrade from Essentials to Advantage
C9500-LIC=	Electronic SW License for C9500 Switches
Cisco DNA Term Licenses
C9500X-DNA-E-3Y	Catalyst 9500X Cisco DNA Essential license (3Y) for 28C8D SKU
C9500X-DNA-E-5Y	Catalyst 9500X Cisco DNA Essential license (5Y) for 28C8D SKU
C9500X-DNA-E-7Y	Catalyst 9500X Cisco DNA Essential license (7Y) for 28C8D SKU
C9500X-DNA-A-3Y	Catalyst 9500X Cisco DNA Advantage license (3Y) for 28C8D, 60L4D SKU
C9500X-DNA-A-5Y	Catalyst 9500X Cisco DNA Advantage license (5Y) for 28C8D, 60L4D SKU
C9500X-DNA-A-7Y	Catalyst 9500X Cisco DNA Advantage license (7Y) for 28C8D, 60L4D SKU
C9500-DNA-E-3Y	Catalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-5Y	Catalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-7Y	Catalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-3Y	Catalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-5Y	Catalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-7Y	Catalyst 9500 NW and Cisco DNA Advantage license (7Y)
C9500-DNA-L-E-3Y	Catalyst 9500 NW and Cisco DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-E-5Y	Catalyst 9500 NW and Cisco DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-E-7Y	Catalyst 9500 NW and Cisco DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-3Y	Catalyst 9500 NW and Cisco DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-5Y	Catalyst 9500 NW and Cisco DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-7Y	Catalyst 9500 NW and Cisco DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU
Power supplies, cables, and fan for the Cisco Catalyst 9500 Series
C9K-PWR-1600WAC-R	1600W AC Power Supply
C9K-PWR-650WAC-R	650W AC Power Supply
C9K-PWR-650WACL-R	650W AC Power Supply
C9K-PWR-1600WDC-R	1600W DC Power Supply
C9K-PWR-930WDC-R	930W DC Power Supply
C9K-PWR-1600WACR/2	1600W AC Power Supply, Redundant
C9K-PWR-650WAC-R/2	650W AC Power Supply, Redundant
C9K-PWR-650WACLR/2	650W AC Power Supply, Redundant
C9K-PWR-1600WDCR/2	1600W DC Power Supply, Redundant
C9K-PWR-930WDC-R/2	930W DC Power Supply, Redundant
C9K-PWR-C4-BLANK	Catalyst 9500 power supply blank cover
C9K-PWR-C5-BLANK	Catalyst 9500 power supply blank cover
C9K-T1-FANTRAY	Catalyst 9500 fan tray
FAN-T4-R	Catalyst 9500 Type 4 front to back cooling Fan
PWR-C4-950WAC-R	950W AC Config 4 Power Supply front to back cooling
PWR-C4-950WAC-R/2	950W AC Config 4 Power Supply front to back cooling, Redundant
PWR-C4-BLANK	Catalyst 9500 power supply blank cover
CAB-C15-CBN-JP	Japan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15
CAB-TA-250V-JP	Japan 250V AC Type A Power Cable
CAB-TA-AP	Australia AC Type A Power Cable
CAB-TA-AR	Argentina AC Type A Power Cable
CAB-TA-DN	Denmark AC Type A Power Cable
CAB-TA-EU	Europe AC Type A Power Cable
CAB-TA-IN	India AC Type A Power Cable
CAB-TA-IS	Israel AC Type A Power Cable
CAB-TA-IT	Italy AC Type A Power Cable
CAB-TA-SW	Switzerland AC Type A Power Cable
CAB-TA-UK	United Kingdom AC Type A Power Cable
CAB-TA-NA	North America AC Type A Power Cable
CAB-C15-CBN	Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
CAB-TA-JP	Japan AC Type A Power Cable
Spare accessory and rack mount kits for the Cisco Catalyst 9500 Series
C9500-ACCKITH-19I=	Accessory Kit for Cisco Catalyst 9500 Series – High-End – 19″ rack mount
C9500-ACCKITH-23I=	Accessory Kit for Cisco Catalyst 9500 Series – High-End – 23″ rack mount
C9500-4PTH-KIT=	Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series – High-End
C9500-ACC-KIT-19I=	Accessory Kit for Cisco Catalyst 9500 Series – 19″ rack mount
C9500-ACC-KIT-23I=	Accessory Kit for Cisco Catalyst 9500 Series – 23″ rack mount
C9500-4PT-KIT=	Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series
Power supplies, cables, and fan for the Cisco Catalyst 9500X Switch
C9K-PWR-1500WAC	Catalyst 9500X 1500W AC Power Supply
C9K-PWR-1500WDC	Catalyst 9500X 1500W DC Power Supply
C9K-PWR-1500WAC/2	Catalyst 9500X 1500W AC Power Supply, Redundant
C9K-PWR-1500WDC/2	Catalyst 9500X 1500W DC Power Supply, Redundant
PWR-C6-BLANK	Catalyst 9500X power supply blank cover
C9500X-FAN-1U-R	Catalyst 9500X front to back cooling fan
C9500X-FAN-1U-F	Catalyst 9500X back to front cooling fan
NO-POWER-CORD	ECO friendly green option, no power cable will be shipped
PWR-CAB-AC-USA520	US AC Power Cord for Cisco ASR 900, NEMA 5-20
PWR-CAB-AC-USA	Power Cord for AC V2 Power Module (USA), NEMA L6-20P
PWR-CAB-AC-AUS	Power Cord for AC V2 Power Module (Australia), AS 3112
PWR-CAB-AC-EU	Power Cord for AC V2 Power Module (Europe), CEE 7/7
PWR-CAB-AC-ITA	Power Cord for AC V2 Power Module (Italy), CEI-23-50
PWR-CAB-AC-SA	Power Cord for AC V2 Power Module (South Africa), SABS 164
PWR-CAB-AC-UK	Power Cord for AC V2 Power Module (UK), EN 60309-2
PWR-CAB-AC-ISRL	Power Cord for AC V2 Power Module (Israel), SI 32
PWR-CAB-AC-CHN	Power Cord for AC V2 Power Module (China), GB2099.1/GB1002
PWR-CAB-AC-BRA	Power Cord for AC V2 Power Module (Brazil), NBR 14136
PWR-CAB-AC-SUI	Power Cord for AC V2 Power Module (Swiss), SEV 1011
PWR-CAB-AC-JPN	Power Cord for AC V2 Power Module (Japan), JIS C8303
PWR-CAB-AC-IND	India AC Power Cord for Cisco ASR 900, IS:1293
PWR-CAB-AC-ARG	AC POWER CORD, WIRE HARNESS, Argentina, IRAM 2073, IEC60320 C21, ST, 4M, 30 AWG, STRANDED, 250.0 V, 16.0 A
PWR-2KW-DC-CBL	Power Cord – 2KW DC
Spare accessory and rack mount kits for the Cisco Catalyst 9500X Switch
C9500X-ACCKIT-19I=	Accessory Kit for Cisco Catalyst 9500X Switch – 19″ rack mount
C9500X-ACCKIT-23I=	Accessory Kit for Cisco Catalyst 9500X Switch – 23″ rack mount
C9500X-4PTH-KIT=	Extension rails and brackets for four-point mounting for Cisco Catalyst 9500X Switch
Spare storage options for the Cisco Catalyst 9500X Switch
C9K-F3-SSD-240GB=	Cisco pluggable SSD storage – 240 GB
C9K-F3-SSD-480GB=	Cisco pluggable SSD storage – 480 GB
C9K-F3-SSD-960GB=	Cisco pluggable SSD storage – 960 GB

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

IOS软件,3C证书,检测报告,操作手册,安装手册,命令手册,产品教程,配置教程，一对一指导

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 793
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 881
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 828
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 835
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 618
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 633
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
