思科 Cisco C9500系列交换机型号汇总

C9500系列核心交换机 ,C9500X系列,C9500高性能系列,C9500系列
Catalyst 9500X 系列型号
Catalyst 9500高性能型号
Catalyst 9500 系列型号

Catalyst 9500X 系列型号/ Catalyst 9500 Series models

Cisco Catalyst 9500 Series Switches
Catalyst 9500 28x100G + 8x400G switch, NW Advantage LicenseC9500X-28C8D-A
  • 型号SKU: C9500X-28C8D-A
  • 上行端口: 8x400G 光口
  • 下行端口: 28x100G 光口
  • 许可类型: Network Advantage
  • 交换容量: 可达 12 Tbps
  • 转发速率: 可达 8 Bpps
  • 风扇个数: C9500X-FAN-1U x6 Max
  • 默认电源: C9K-PWR-1500WAC
  • 设备尺寸: 4.4 X 44.5 X 55.4 cm
  • 设备重量: 12.72 kg
  • 查看详情 >
Catalyst 9500 28x100G + 8x400G switch, NW Essentials LicenseC9500X-28C8D-E
  • 型号SKU: C9500X-28C8D-E
  • 上行端口: 8x400G 光口
  • 下行端口: 28x100G 光口
  • 许可类型: Network Essentials
  • 交换容量: 可达 12 Tbps
  • 转发速率: 可达 8 Bpps
  • 风扇个数: C9500X-FAN-1U x6 Max
  • 默认电源: C9K-PWR-1500WAC
  • 设备尺寸: 4.4 X 44.5 X 55.4 cm
  • 设备重量: 12.72 kg
  • 查看详情 >

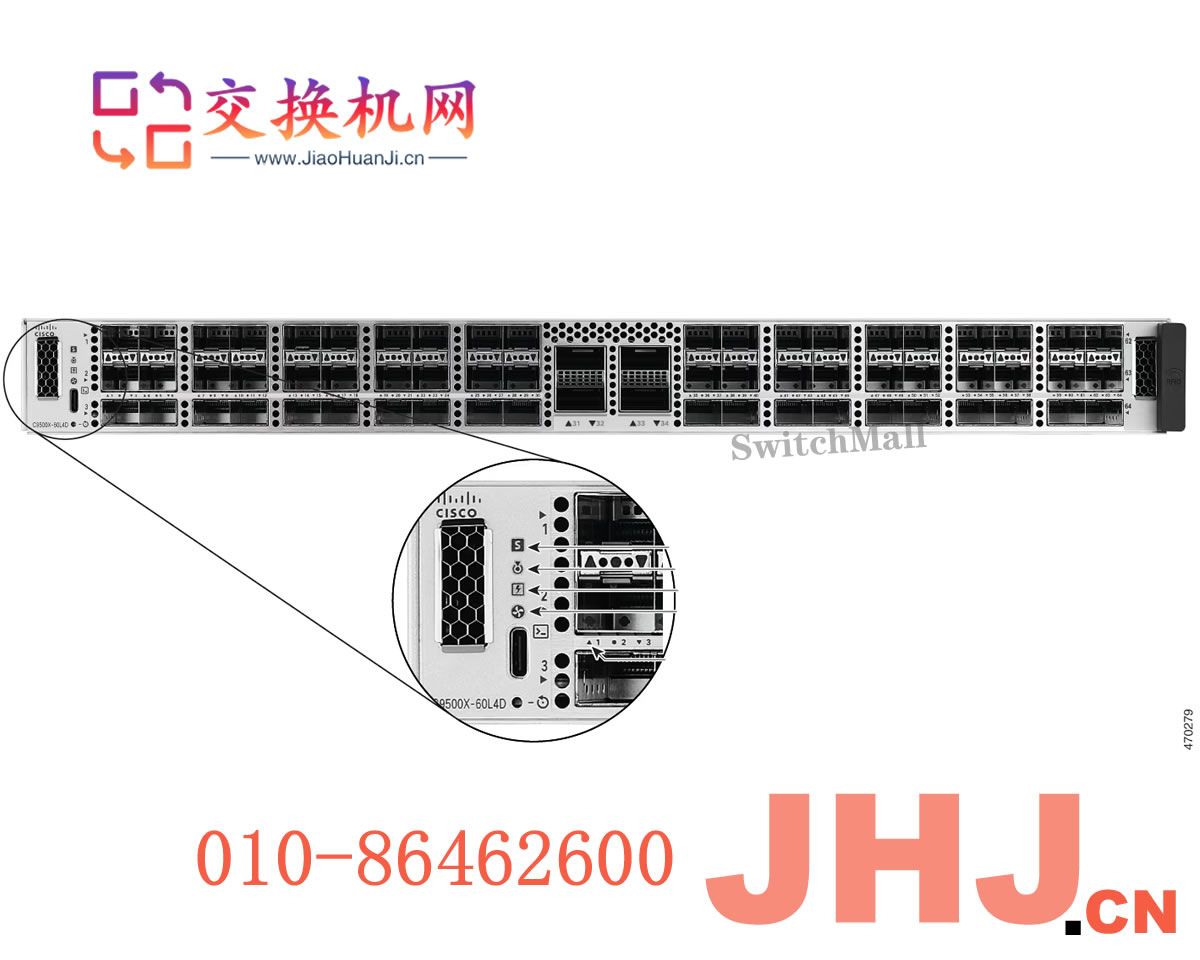

Catalyst 9500 60x50G + 4x400G switch, NW Advantage LicenseC9500X-60L4D-A
  • 型号SKU: C9500X-60L4D-A
  • 上行端口: 4x400G 光口
  • 下行端口: 60x50G 光口
  • 许可类型: Network Advantage
  • 交换容量: 可达 9.2 Tbps
  • 转发速率: 可达 8 Bpps
  • 风扇个数: C9500X-FAN-1U x6 Max
  • 默认电源: C9K-PWR-1500WAC
  • 设备尺寸: 4.4 x 44.5 x 55.4 cm
  • 设备重量: 12.75 kg
  • 查看详情 >

Catalyst 9500 高性能系列/Catalyst 9500 high performance models

Cisco Catalyst 9500 Series Switches Catalyst 9500 Series models
Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess. LicenseC9500-32C-E
  • 型号SKU: C9500-32C-E
  • 交换容量: 高达 6.4 Tbps
  • 转发速率: 高达 2 Bpps
  • 端口数量: 32
  • 端口速率: 32x100G QSFP28
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: C9K-PWR-1600WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.2 in
  • 设备重量: 11.63 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. LicenseC9500-32C-A
  • 型号SKU: C9500-32C-A
  • 交换容量: 高达 6.4 Tbps
  • 转发速率: 高达 2 Bpps
  • 端口数量: 32
  • 端口速率: 32x100G QSFP28
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: C9K-PWR-1600WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.2 in
  • 设备重量: 11.63 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 32-port 40G switch, NW Ess. LicenseC9500-32QC-E
  • 型号SKU: C9500-32QC-E
  • 交换容量: 高达 3.2 Tbps
  • 转发速率: 高达 1 Bpps
  • 端口数量: 32
  • 端口速率: 32x40G QSFP+
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: C9K-PWR-650WAC-R
  • 适配风扇: C9K-T1-FANTRAY x4
  • 设备尺寸: 1.73 x 17.5 x 21.2 in
  • 设备重量: 11.63 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 32-port 40G switch, NW Adv. LicenseC9500-32QC-A
  • 型号SKU: C9500-32QC-A
  • 交换容量: 高达 3.2 Tbps
  • 转发速率: 高达 1 Bpps
  • 端口数量: 32
  • 端口速率: 32x40G QSFP+
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: C9K-PWR-650WAC-R
  • 适配风扇: C9K-T1-FANTRAY x4
  • 设备尺寸: 1.73 x 17.5 x 21.2 in
  • 设备重量: 11.63 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Ess. LicenseC9500-48Y4C-E
  • 型号SKU: C9500-48Y4C-E
  • 交换容量: 高达 3.2 Tbps
  • 转发速率: 高达 1 Bpps
  • 端口数量: 52
  • 端口速率: 48×1/10/25G光口,4×40/100G光口
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: C9K-PWR-650WAC-R
  • 适配风扇: C9K-T1-FANTRAY x4
  • 设备尺寸: 1.73 x 17.5 x 18.0 in
  • 设备重量: 9.96 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. LicenseC9500-48Y4C-A
  • 型号SKU: C9500-48Y4C-A
  • 交换容量: 高达 3.2 Tbps
  • 转发速率: 高达 1 Bpps
  • 端口数量: 52
  • 端口速率: 48×1/10/25G光口,4×40/100G光口
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: C9K-PWR-650WAC-R
  • 适配风扇: C9K-T1-FANTRAY x4
  • 设备尺寸: 1.73 x 17.5 x 18.0 in
  • 设备重量: 9.96 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. LicenseC9500-24Y4C-E
  • 型号SKU: C9500-24Y4C-E
  • 交换容量: 高达 2.0 Tbps
  • 转发速率: 高达 1 Bpps
  • 端口数量: 28
  • 端口速率: 24×1/10/25G光口,4×40/100G光口
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: C9K-PWR-650WAC-R
  • 适配风扇: C9K-T1-FANTRAY x4
  • 设备尺寸: 1.73 x 17.5 x 18.0 in
  • 设备重量: 9.96 kg
  • 查看详情 >
Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License C9500-24Y4C-A
  • 型号SKU: C9500-24Y4C-A
  • 交换容量: 高达 2.0 Tbps
  • 转发速率: 高达 1 Bpps
  • 端口数量: 28
  • 端口速率: 24×1/10/25G光口,4×40/100G光口
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: C9K-PWR-650WAC-R
  • 适配风扇: C9K-T1-FANTRAY x4
  • 设备尺寸: 1.73 x 17.5 x 18.0 in
  • 设备重量: 9.96 kg
  • 查看详情 >

Catalyst 9500 系列/Cisco Catalyst 9500 Series Switches

Cisco Catalyst 9500 Series Switches
Cisco Catalyst 9500 24-port 40G switch, NW Ess. LicenseC9500-24Q-E
  • 型号SKU: C9500-24Q-E
  • 交换容量: 高达 1920 Gbps
  • 转发速率: 高达 1440 Mpps
  • 端口数量: 24
  • 端口速率: 24x40G QSFP+
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 11.68 kg
  • 查看详情 >
Cisco Catalyst 9500 24-port 40G switch, NW Adv. LicenseC9500-24Q-A
  • 型号SKU: C9500-24Q-A
  • 交换容量: 高达 1920 Gbps
  • 转发速率: 高达 1440 Mpps
  • 端口数量: 24
  • 端口速率: 24x40G QSFP+
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 11.68 kg
  • 查看详情 >
Cisco Catalyst 9500 12-port 40G switch, NW Ess. LicenseC9500-12Q-E
  • 型号SKU: C9500-12Q-E
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 12
  • 端口速率: 12x40G QSFP+
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 18.0 in
  • 设备重量: 9.52 kg
  • 查看详情 >
Cisco Catalyst 9500 12-port 40G switch, NW Adv. LicenseC9500-12Q-A
  • 型号SKU: C9500-24Q-A
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 12
  • 端口速率: 12x40G QSFP+
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 18.0 in
  • 设备重量: 9.52 kg
  • 查看详情 >
isco Catalyst 9500 40-port 10G switch, NW Ess. LicenseC9500-40X-E
  • 型号SKU: C9500-40X-E
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 40
  • 端口速率: 40×1/10G SFP/SFP+
  • 上行端口: 模块化上行
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 11.68 kg
  • 查看详情 >
Cisco Catalyst 9500 40-port 10G switch, NW Adv. LicenseC9500-40X-A
  • 型号SKU: C9500-40X-A
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 40
  • 端口速率: 40×1/10G SFP/SFP+
  • 上行端口: 模块化上行
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 11.68 kg
  • 查看详情 >
Cisco Catalyst 9500 16-port 10G switch, NW Ess. LicenseC9500-16X-E
  • 型号SKU: C9500-16X-E
  • 交换容量: 高达 480 Gbps
  • 转发速率: 高达 360 Mpps
  • 端口数量: 16
  • 端口速率: 16×1/10G SFP/SFP+
  • 上行端口: 模块化上行
  • 软件许可: Network Essentials
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 16-port 10G switch, NW Adv. LicenseC9500-16X-A
  • 型号SKU: C9500-16X-A
  • 交换容量: 高达 480 Gbps
  • 转发速率: 高达 360 Mpps
  • 端口数量: 16
  • 端口速率: 16×1/10G SFP/SFP+
  • 上行端口: 模块化上行
  • 软件许可: Network Advantage
  • 网络模块: N/A
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Ess. LicenseC9500-48X-E
  • 型号SKU: C9500-48X-E
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 48
  • 端口速率: 40×1/10G SFP/SFP+
  • 上行端口: 8x10G SFP+
  • 软件许可: Network Essentials
  • 网络模块: C9500-NM-8X=
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 11.68 kg
  • 查看详情 >
Cisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Adv. LicenseC9500-48X-A
  • 型号SKU: C9500-48X-A
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 48
  • 端口速率: 40×1/10G SFP/SFP+
  • 上行端口: 8x10G SFP+
  • 软件许可: Network Advantage
  • 网络模块: C9500-NM-8X
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 11.68 kg
  • 查看详情 >
Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. LicenseC9500-40X-2Q-E
  • 型号SKU: C9500-40X-2Q-E
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 42
  • 端口速率: 40×1/10G SFP/SFP+
  • 上行端口: 2x40GE
  • 软件许可: Network Essentials
  • 网络模块: C9500-NM-2Q=
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Adv. LicenseC9500-40X-2Q-A
  • 型号SKU: C9500-40X-2Q-A
  • 交换容量: 高达 960 Gbps
  • 转发速率: 高达 720 Mpps
  • 端口数量: 42
  • 端口速率: 40×1/10G SFP/SFP+
  • 上行端口: 2x40GE
  • 软件许可: Network Advantage
  • 网络模块: C9500-NM-2Q=
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. LicenseC9500-24X-E
  • 型号SKU: C9500-24X-E
  • 交换容量: 高达 480 Gbps
  • 转发速率: 高达 360 Mpps
  • 端口数量: 24
  • 端口速率: 16×1/10G SFP/SFP+
  • 上行端口: 8x10G SFP+
  • 软件许可: Network Essentials
  • 网络模块: C9500-NM-8X=
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Adv. LicenseC9500-24X-A
  • 型号SKU: C9500-24X-A
  • 交换容量: 高达 480 Gbps
  • 转发速率: 高达 360 Mpps
  • 端口数量: 24
  • 端口速率: 16×1/10G SFP/SFP+
  • 上行端口: 8x10G SFP+
  • 软件许可: Network Advantage
  • 网络模块: C9500-NM-8X
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Ess. LicenseC9500-16X-2Q-E
  • 型号SKU: C9500-16X-2Q-E
  • 交换容量: 高达 480 Gbps
  • 转发速率: 高达 360 Mpps
  • 端口数量: 18
  • 端口速率: 16×1/10G SFP/SFP+
  • 上行端口: 2x40GE
  • 软件许可: Network Essentials
  • 网络模块: C9500-NM-2Q=
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
Cisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Adv. LicenseC9500-16X-2Q-A
  • 型号SKU: C9500-16X-2Q-A
  • 交换容量: 高达 480 Gbps
  • 转发速率: 高达 360 Mpps
  • 端口数量: 18
  • 端口速率: 16×1/10G SFP/SFP+
  • 上行端口: 2x40GE
  • 软件许可: Network Advantage
  • 网络模块: C9500-NM-2Q=
  • 适配电源: PWR-C4-950WAC-R
  • 适配风扇: FAN-T4-R x5
  • 设备尺寸: 1.73 x 17.5 x 21.52 in
  • 设备重量: 10.4 kg
  • 查看详情 >
更多问题,请咨询我们
②采购咨询:186-1111-5727
产品特点
产品规格
在售产品
选配信息

产品特点

重新构想、强化、重新定义

Catalyst 9500 系列(包括全新 Catalyst 9500X 型号)将继续通过持续创新塑造未来,帮助您重新构想连接、增强安全性并重新定义大大小小的混合员工队伍的体验。

基于思科统一接入数据平面 (UADP) 专用集成电路 (ASIC) 的思科 Catalyst 9500 系列交换机是思科领先的固定企业核心和聚合交换平台,作为 Catalyst 9000 系列的一部分,旨在转变您的网络以处理在一个混合世界中,工作场所可以在任何地方,端点可以是任何东西,并且应用程序可以在任何地方托管。

基于 Cisco Silicon One Q200 ASIC 的 Cisco Catalyst 9500X 交换机专为具有可编程管道 (P4) 的下一代核心而构建,是首款在企业中提供高达 12.8 Tbps 全双工交换容量的网络芯片。Q200 ASIC 提供高性能以及完整的路由和交换功能,无需外部存储器。这是通过包含片上高带宽存储器 (HBM) 的内部架构实现的。Catalyst 9500X 交换机采用高性能多核 x86 CPU,是思科领先的专用固定核心和边缘服务企业交换平台,专为安全、物联网和云而构建。

Cisco Catalyst 9500X 交换机是业界首款针对企业园区的专用固定 10、25、50、40、100、200 和 400 千兆位以太网交换机。Catalyst 9500X 交换机为企业应用提供无与伦比的转发规模(MAC 地址、IP 单播和组播路由、MPLS 标签)和深度缓冲。Catalyst 9500X 型号包括无阻塞 50 Gb 以太网小型可插拔 (SFP-56) 和无阻塞 400 Gb 以太网四路小型可插拔双密度 (QSFP-DD) 端口。

Catalyst 9500 系列交换机支持高级路由和基础设施服务(例如多协议标签交换 [MPLS] 第 2 层和第 3 层 VPN、组播 VPN [MVPN] 和网络地址转换 [NAT]);思科软件定义的访问功能(例如主机跟踪数据库、跨域连接以及 VPN 路由和转发 [VRF] 感知定位器/ID 分离协议 [LISP]);以及采用 Cisco StackWise Virtual 技术的网络系统虚拟化,这对于它们在园区核心中的部署至关重要。Cisco Catalyst 9500 系列还支持基本的高可用性功能,例如修补、带状态切换的思科不间断转发(NSF/SSO)、冗余白金级电源和风扇,同时支持各种光学器件。Catalyst 9500 系列交换机提供 Cisco DNA Center 或 Meraki 云监控的操作选择。

软件定义访问的基础

企业网络是数字化转型的核心。开放、可编程、集成且安全的网络可以最大限度地提高业务敏捷性,从而帮助人们追求和捕捉新的商机。

具有软件定义接入(SD-Access) 的思科数字网络架构(Cisco DNA ) 是为业务提供支持的网络结构。思科 SD-Access 是一种开放且可扩展的软件驱动架构,可加速并简化您的企业网络运营。SD-Access 通过基础功能实现从边缘到云的基于策略的自动化。

产品概述

思科 Catalyst 9500X 型号

●      Cisco Silicon One Q200专用集成电路(ASIC) 专为下一代网络核心+边缘交换机而构建。它是首款提供高达 12.8 Tbps 全双工速度和 8 Bpps 转发性能的企业 ASIC,同时支持高性能和完整路由和交换功能,无需外部存储器。

●      Cisco Silicon One Q200 ASIC 采用 7 纳米制造技术构建,能够在保持低功耗的同时提供高性能。

●      高达 12.0 Tbps 的交换容量和 8 Bpps 的转发速率

●      80MB 专用低延迟缓冲区,高达 8GB HBM 缓冲区用于深度数据包缓冲区

●      多达 28 个本机无阻塞 40/100 千兆位以太网 QSFP28 端口

●      多达 60 个本机无阻塞 10/25/50 千兆位以太网 SFP56 端口

●      多达 8 个本机无阻塞 40/100/200/400 千兆位以太网 QSFPDD 端口

●      Intel 2.43-GHz x86 CPU,具有 8 核和 32-GB DDR4 内存

●      高达 960 GB 的 SSD 本地存储,用于基于容器的应用程序托管(2 个 10G KR 端口)

●      灵活的路由(IPv4、IPv6、组播)表、二层表、ACL 表、QoS 表。

●      用于交换的ASIC 表最多可扩展至256K MAC 地址,路由可扩展至最多2M 路由。

●      IPv4/IPv6 双栈和动态硬件转发表分配,便于 IPv4 到 IPv6 的迁移

●      应用程序托管的硬件支持

●      硬件支持精确时间协议(PTP、IEEE 1588v2)具有精确的时钟同步和亚微秒级精度,适合时间和频率的分配和同步。

●      硬件支持线速256 位802.1ae MACsec 和WAN-MACsec 数据加密。

●      硬件支持线速 256 位 IKEv2 ESP IPsec 数据加密(仅限 C9500X-60L4D)

◦    有关详细信息,请参阅平台详细信息部分

●      白金级(90% 效率)1500 瓦交流和/或直流电源。

●      可现场更换的N+1 冗余风扇托架单元,增加了选择气流方向的灵活性。

思科 Catalyst 9500 型号

●      思科统一接入数据平面 (UADP)专用集成电路 (ASIC),具有可编程管道、微引擎功能以及基于模板、可配置的第 2 层和第 3 层转发分配、访问控制列表,已为下一代技术做好了准备(ACL) 和服务质量 (QoS) 条目

●      高达 6.4 Tbps 的交换容量和高达 2 Bpps 的转发性能

每个 ASIC高达      36 MB 的统一缓冲区

●      Intel 2.4-GHz x86 CPU,具有高达 120 GB 的 USB 3.0 或高达 960 GB 的 SATA SSD 存储,用于基于容器的应用程序托管

●      多达 32 个无阻塞 100 Gb 以太网 QSFP28 端口

●      多达 32 个无阻塞 40 Gb 以太网 QSFP+ 端口

●      多达 48 个无阻塞 25 Gb 以太网 SFP28 端口

●      多达 48 个无阻塞 10 Gb 以太网 SFP+ 端口

●      可扩展的第 3 层路由(IPv4、IPv6 和组播)表和第 2 层交换表

●      应用程序托管的硬件支持(例如使用Cisco HundredEyes Enterprise Agent)。

●      内置 IEEE 802.1ba AV 桥接 (AVB),通过改进的时间同步和 QoS 提供更好的 AV 体验

●      精确时间协议(PTP;IEEE 1588v2)提供亚微秒精度的精确时钟同步,使其适合通过网络分配和同步时间和频率

●      支持静态和动态NAT 以及端口地址转换(PAT)

●      Cisco StackWise Virtual 技术,一种网络系统虚拟化技术,可提高运营效率并增强不间断通信和扩展系统带宽。可以跨 StackWise-Virtual 成员配置多机箱 EtherChannel,以实现高弹性

●      白金级(效率超过 90%)交流和/或直流电源

●      可现场更换的风扇托架单元

●      Meraki 云监控选项

思科 IOS XE

这款面向企业的现代操作系统提供对模型驱动的可编程性、机载 Python 脚本、流式遥测、基于容器的应用程序托管以及关键错误修复补丁的支持。思科IOSXE 还具有内置防御措施来防止运行时攻击。

●      启用思科即插即用 (PnP):简单、安全、统一和集成的产品,可简化新分支机构或园区设备的部署或现有网络的更新

●      自动设备配置:当思科 Catalyst 交换机首次部署在网络中时,能够自动执行升级软件映像和在 Cisco Catalyst 交换机上安装配置文件的过程。思科提供即插即用 (PnP) 等统包解决方案和零接触配置 (ZTP) 和预启动执行环境 (PXE) 等现成工具,可实现轻松的自动化部署。

API      驱动的配置: Cisco Catalyst 9500 系列等现代网络交换机支持广泛的自动化功能,并通过网络配置协议(NETCONF、RESTCONF 和 gNMI)提供强大的开放式 API,使用外部工具的 YANG 数据模型,无论是离线还是远程工具。 -架子和定制的,自动配置网络资源。

●      精细可见性:模型驱动的遥测提供了一种将数据从交换机传输到目的地的机制。要流式传输的数据是通过订阅 YANG 模型中的数据集来驱动的。订阅的数据集按配置的时间间隔流式传输到目的地。此外,Cisco IOS XE 支持推送模型,可提供近乎实时的网络监控,从而快速检测和纠正故障。

●      无缝软件升级和修补:为了增强操作系统的弹性,Cisco IOS XE 支持修补,它可以修复定期维护版本之间的关键错误和安全漏洞。此支持允许客户添加补丁,而无需等待下一个维护版本。

●       WebUI:基于嵌入式GUI 的设备管理工具,提供配置设备、简化设备部署和可管理性并增强用户体验的能力。WebUI 带有默认图像。无需在设备上启用任何内容或安装任何许可证。您可以使用 WebUI 构建第 1 天配置,然后从那时起监视设备并对其进行故障排除,而无需了解如何使用 CLI。

交换机型号和配置

所有交换机默认配备 650W、950W、1500W 或 1600W 交流电源

图 1 至图 9 显示了 Cisco Catalyst 9500 系列交换机

相关图像、图表或屏幕截图

图1。 C9500X-28C8D:思科 Catalyst 9500X 交换机,具有 28 个 40/100G QSFP28 端口 + 8 个 40/100/200/400G 千兆位以太网

相关图像、图表或屏幕截图

图 2. C9500X-60L4D:具有 60 个 10/25/50G 千兆位以太网 + 4 个 40/100/200/400G 千兆位以太网的 Cisco Catalyst 9500X 交换机

相关图像、图表或屏幕截图

图 3. C9500-32C:具有 32 个 100 千兆位以太网的 Cisco Catalyst 9500 系列高性能交换机

相关图像、图表或屏幕截图

图 4. C9500-32QC:具有 32x 40 或 16×100 千兆位以太网的 Cisco Catalyst 9500 系列高性能交换机

相关图像、图表或屏幕截图

图 5. C9500-48Y4C:Cisco Catalyst 9500 系列高性能交换机,具有 48 个 1/10/25G 千兆位以太网 + 4 个 40/100G 上行链路

相关图像、图表或屏幕截图

图 6. C9500-24Y4C:Cisco Catalyst 9500 系列高性能交换机,具有 24 个 1/10/25G 千兆位以太网 + 4 个 40/100G 上行链路

相关图像、图表或屏幕截图

图 7. C9500-24Q:具有 24 个 40G 千兆位以太网的 Cisco Catalyst 9500 系列交换机

相关图像、图表或屏幕截图

图 8. C9500-12Q:具有 12 个 40G 千兆位以太网的 Cisco Catalyst 9500 系列交换机

相关图像、图表或屏幕截图

图 9. C9500-40X:具有 40 个 1/10G 千兆位以太网的 Cisco Catalyst 9500 系列交换机

相关图像、图表或屏幕截图

图 10. C9500-16X:具有 16 个 1/10G 千兆位以太网的 Cisco Catalyst 9500 系列交换机

Platform benefits

ModelCatalyst 9500Catalyst 9500X
Resiliency and High Availability
Software Maintenance Upgrade (SMU)YesYes
Cisco StackWise VirtualYesYes3
Stateful Switchover (SSO)Yes (SVL)Yes (SVL)3
In-Service Software Upgrade (ISSU)Yes (SVL)No1
Graceful Insertion and Removal (GIR)YesYes
MKA High AvailabilityYesNo1
Enterprise Security
Trustworthy SolutionsYesYes
Image SigningYesYes
Secure BootYesYes
Cisco Trust Anchor ModuleYesYes
MACsec Encryption (256-bit AES-GCM)YesYes
Cisco WAN MACsec (256-bit AES-GCM)NoYes2, 6
Cisco IPSec (256-bit AES-GCM)NoYes4, 6
Object-Group ACLs (IPv4/IPv6)YesYes5
Enterprise QoS
Modular QoS CLI (MQC)YesYes
Strict Priority QueuingYesYes
Class/Color-aware QueuingYes (WFQ)Yes (VoQ)
Policing/MeteringYesYes
Shaping/BandwidthYesYes
Hierarchical QoSYes (2-level)Yes (2-level)
IP Routing
Routing Information Protocol version 2 (RIPv2), and next generation [RIPng]YesYes
Open Shortest Path First version 2 (OSPFv2), and OSPFv3YesYes
Enhanced Interior Gateway Routing Protocol (EIGRP), and EIGRPv6YesYes
Intermediate System-to-Intermediate System Version 4 (IS-ISv4)YesYes
Border Gateway Protocol Version 4 (BGPv4), and BGPv6YesYes
Protocol-Independent Multicast (PIM) Sparse-Mode (PIM-SM)YesYes
Protocol-Independent Multicast (PIM) Source-Specific Mode (PIM-SSM)YesYes
Bidirectional PIM BIDIR-PIMYesNo1
IPv6 routingYesYes
L3 Routed Sub-InterfacesYesYes
Multi-Protocol Label Switching (MPLS)
MPLS L3 VPNYesYes
Ethernet over MPLS (EoMPLS)YesYes
Virtual Private LAN Service (VPLS)YesNo1
MPLS over GREYesNo1
MPLS Traffic-Engineering (MPLS-TE)YesNo1
BGP Ethernet VPN (EVPN) VXLAN
Fabric Spine, Leaf and Border SupportYesYes3
L2/L3 Virtual Network Interface (VNI)YesYes3
Distributed Anycast Gateway (Symmetric IRB)YesYes3
Centralized Gateway (Asymmetric IRB)YesNo
ESI Multi-Home SupportYesNo
Tenant Routed Multicast (IPv4/IPv6)YesYes3
Border Handoff: Multi-VRF, MPLS VPN, VPLS, L2/L3YesYes3
Software-Defined Access (SD-Access)
Virtual eXtensible LAN (VXLAN)YesYes
L2 Virtual Network Interace (VNI)YesYes
L3 Virtual Network Interace (VNI)YesYes
Distributed Anycast GatewayYesYes
SDA Control-PlaneYesYes
SDA BorderYesYes
SDA EdgeYesNo
Flexible NetFlow (FNF)
FNF IPv4 flow recordsYesYes2 (software)
FNF IPv6 flow recordsYesYes2 (software)
FNF samplerYesYes2
FNF data exportYesYes2
NetFlow version 9 (NFv9) exportYesYes2
IPFIX exportYesYes2
Programmability
NETCONFYesYes
RESTCONFYesYes
gNMI/gNOIYesYes
YANG Config modelsYesYes
YANG Oper modelsYesYes
ZTP/PnPYesYes
Smart Operations
Bluetooth ReadyYesYes2
RFID TagsYesYes
Blue BeaconYesYes
Out of Band Device MgmtYes (RJ45 and USB-mini type B)Yes (RJ-45 and USB-C)
Meraki Cloud MonitoringYesNo

1 Roadmap

C9500X models: minimum IOS XE software release 17.8.1 (C9500X-28C8D) and 17.10.1 (C9500X-60L4D)

3 C9500X models: minimum IOS XE software release 17.10.1 (C9500X-28C8D) and 17.11.1 (C9600X-60L4D). SSO support requires StackWise Virtual for fixed Catalyst 9500 models.

4 C9500X models: feature is not available at FCS, but will be available in future software releases only on C9500X-60L4D (not supported on C9500X-28C8D)

5 C9500X models : Object-Group ACLs are supported only in the ingress direction

6 Need to order HSEC Key

Switch configurations and port density

Table 1 shows the Cisco Catalyst 9500X switch configurations

Table 1.        Cisco Catalyst 9500X switch configurations and port density

ModelDescription10/25/50G port density40/100G port density400G port density10/25G port density with breakout cable50G port density with breakout cable40G port density with breakout cable100G port density with breakout cable
C9500X-28C8DCisco Catalyst 9500X with 28x100G + 8x400G Gigabit Ethernet288120112016060
C9500X-60L4DCisco Catalyst 9500X with 60x50G + 4x400G Gigabit Ethernet604476761616

1 Roadmap. All numbers in the above table are for a single standalone switch.

Table 2 shows the Cisco Catalyst 9500 Series configurations

Table 2.        Cisco Catalyst 9500 Series configurations and port density

ModelDescription1G port density10G port density25G port density40G port density100G Port density10G port density with breakout cable25G port density with breakout cable
C9500-32CCisco Catalyst 9500 Series high-performance 32-port 100 Gigabit Ethernet switch with QSFP2832329696
C9500-32QCCisco Catalyst 9500 Series high-performance 32-port 40 Gigabit Ethernet switch with QSFP+3216
C9500-48Y4CCisco Catalyst 9500 Series high-performance 48-port 1/10/25G Gigabit Ethernet switch with SFP2848484844
C9500-24Y4CCisco Catalyst 9500 Series high-performance 24-port 1/10/25G Gigabit Ethernet switch with SFP2824242444
C9500-24QCisco Catalyst 9500 Series 24-port 40 Gigabit Ethernet switch with QSFP+2496
C9500-12QCisco Catalyst 9500 Series 12-port 40 Gigabit Ethernet switch with QSFP+1248
C9500-40XCisco Catalyst 9500 Series 40-port 1/10 Gigabit Ethernet Switch with SFP/SFP+40+8140+81281
C9500-16XCisco Catalyst 9500 Series 16-port 1/10 Gigabit Ethernet switch with SFP/SFP+16+8116+81281

All numbers in the above table are for the standalone switch.

1with uplink module.

Network modules

The Cisco Catalyst 9500 Series Switches support optional network modules for uplink ports on some of the configurations.

The default switch configuration does not include the network module. When you purchase the switch, you can choose from the network modules described in Tables 3 and 4.

Table 3.        Network module numbers and descriptions

Network moduleDescription
C9500-NM-8XCisco Catalyst 9500 Series Network Module 8-port 1/10 Gigabit Ethernet with SFP/SFP+
C9500-NM-2QCisco Catalyst 9500 Series Network Module 2-port 40 Gigabit Ethernet with QSFP+

Table 4.        Network module matrix

ModelC9500-NM-8XC9500-NM-2Q
C9500X-28C8DNoNo
C9500-32CNoNo
C9500-32QCNoNo
C9500-48Y4CNoNo
C9500-24Y4CNoNo
C9500-24QNoNo
C9500-12QNoNo
C9500-40XYesYes
C9500-16XYesYes

Figures 10 and 11 show the available network modules

Cisco Catalyst 9500 Series network module 8-port 1/10 Gigabit Ethernet with SFP/SFP+

Figure 11.

Cisco Catalyst 9500 Series network module 8-port 1/10 Gigabit Ethernet with SFP/SFP+

Cisco Catalyst 9500 Series network module 2-port 40 Gigabit Ethernet with QSFP+

Figure 12.

Cisco Catalyst 9500 Series network module 2-port 40 Gigabit Ethernet with QSFP+

Table 6.        Accessory matrix

ModelC9500-ACCKITH-19I=C9500-ACCKITH-23I=C9500-4PTH-KIT=C9500-ACC-KIT-19I=C9500-ACC-KIT-23I=C9500-4PT-KIT=C9K-F1-SSD-240GC9K-F1-SSD-480GC9K-F1-SSD-960G
C9500-32CYesYesYesNoNoNoYesYesYes
C9500-32QCYesYesYesNoNoNoYesYesYes
C9500-48Y4CYesYesYesNoNoNoYesYesYes
C9500-24Y4CYesYesYesNoNoNoYesYesYes
C9500-24QNoNoNoYesYesYesNoNoNo
C9500-12QNoNoNoYesYesYesNoNoNo
C9500-40XNoNoNoYesYesYesNoNoNo
C9500-16XNoNoNoYesYesYesNoNoNo

Catalyst 9500X models have their own Accessory kits and SSD storage.

Table 8.        C9500 Fan and Fan tray matrix

ModelFAN-T4-R (Max # of fans)C9K-T1-FANTRAY (Max # of fans)
C9500-32CYes (5)No
C9500-32QCNoYes (4)
C9500-48Y4CNoYes (4)
C9500-24Y4CNoYes (4)
C9500-24QYes (5)No
C9500-12QYes (5)No
C9500-40XYes (5)No
C9500-16XYes (5)No

 C9500X Power supply specifications

Power supply featureC9K-PWR-1500WACC9K-PWR-1500WDC
Power max rating15001500
Input-voltage range and frequency90-264Vac 47-63Hz-40Vdc to -72Vdc
Power supply efficiency92% (115Vac 50% load)94% (230Vac 50% load)94% (-48Vdc to -60Vdc, 50% load)
Input current17A (max) at Vac 100V7A (max) at Vac 240V45A (max) at -40Vdc
Output ratingsMain Output: 12V 125AStandby Output: 3.3V 5AMain Output: 12V 125AStandby Output: 3.3V 5A
Output holdup time12ms2ms
Power-supply input receptaclesC221C10-638977-00 Amphenol Connector
Power cord rating16AN/A

1The Catalyst 9500X uses a different AC connector (C21) than the rest of the C9500 Product Family

   C9500 Power supply specifications

Power supply featurePWR-C4-950WAC-RPWR-C4-950WDC-RC9K-PWR-650WAC-RC9K-PWR-650WACL-RC9K-PWR-930WDC-RC9K-PWR-1600WAC-RC9K-PWR-1600WDC-R
Power max rating950W950W650W650W930W1600W1600W
Input-voltage range and frequencyAC 90 to 264 VAC, 47 to 63 Hz-36Vdc~ -72VdcAC 90VAC to 264VAC, 47 to 63 HzAC 90VAC to 264VAC, 47 to 63 HzDC -40VDC to -72VDCAC 90VAC to 140VAC and 180VAC to 264VAC 47 to 63 HzDC -40VDC to -72VDC
Power supply efficiency94%91% at 48Vin, 50% load94% (Typ)94% (Typ)92% (Typ)94% (Typ)92% (Typ)
Input currentAC 10A at 115VAC, 5 A at 230VAC22.6A @ 48Vin, 950WAC 6.8A Max at 115VAC, 3.4 A Max at 230VAC (when full loading)AC 6.8A Max at 115VAC, 3.4 A Max at 230VAC (when full loading)DC 23A max at -48VDC (when full loading)AC 10.5A Max at 115VAC (1050W), 7.8 A Max at 230VAC (1600W)DC 40A max at -48VDC (when full loading)
Output ratings12V at 79A, 12V at 3A950W12Vmain at 54A, 12Vsb at 3A12Vmain at 54A, 12Vsb at 3A12Vmain at 54A, 12Vsb at 3A12Vmain at 133A, 12Vsb at 3A12Vmain at 133A, 12Vsb at 3A
Output holdup timeAC = 10 ms at maximum load1msAC = 20 ms minimum for systemAC = 12 ms minimum at maximum loadAC = 8 ms minimum for systemAC = 20 ms minimum for systemAC = 5 ms minimum for system
Power-supply input receptaclesAC IEC 60320 C16 AC IEC 60320 C14AC IEC 60320 C14Molex Minifit 44540-1001AC IEC 60320 C16Amphenol C10-638976-000
Power cord ratingAC 15ADC 40AAC 10AAC 10ADC 40AAC 15ADC 70A

 C9500 Power supply matrix

ModelC9K-PWR-1600WAC-RC9K-PWR-1600WDC-RC9K-PWR-650WAC-RC9K-PWR-650WACL-RC9K-PWR-930WDC-RPWR-C4-950WAC-RPWR-C4-950WDC-R
C9500-32CYesYesNoNoNoNoNo
C9500-32QCNoNoYesYesYesNoNo
C9500-48Y4CNoNoYesYesYesNoNo
C9500-24Y4CNoNoYesYesYesNoNo
C9500-24QNoNoNoNoNoYesYes
C9500-12QNoNoNoNoNoYesYes
C9500-40XNoNoNoNoNoYesYes
C9500-16XNoNoNoNoNoYesYes

Switch performance

Table 15 shows performance specifications for the Cisco Catalyst 9500 Series Switches

Table 15.     Performance specifications

Performance numbers for all switch modelsC9500-24QC9500-12QC9500-40XC9500-16XC9500-32CC9500-32QCC9500-48Y4CC9500-24Y4CC9500X-28C8DC9500X-60L4D
ASICUADP 2.0UADP 3.0Q200
Switching capacityUp to 1920 GbpsUp to 960 GbpsUp to 960 GbpsUp to 480 GbpsUp to 6.4 Tbps2Up to 3.2 Tbps2Up to 3.2 Tbps2Up to 2.0 Tbps2Up to 12 TbpsUp to 9.2 Tbps
Forwarding rateUp to 1440 MppsUp to 720 MppsUp to 720 MppsUp to 360 MppsUp to 2 BppsUp to 1 BppsUp to 1 BppsUp to 1 Bpps8 Bpps8 Bpps
Total number of MAC addressesUp to 64,0001Up to 82,0001Up to 256,0001
Total number of IPv4 routes (indirect routes)Up to 64,000 indirect1,6Up to 256,000 indirect + direct1,6Up to 2,000,0006
Total number of IPv4 host routes (direct routes and ARP)Up to 80,000 host1,6Up to 90,000 host/ARP2,6Up to 256,0001,6
Total number of IPv6 routes (indirect routes)Up to 32,000 indirect1,6Up to 256,000 indirect + direct1,6Up to 1,000,0006
Total number of IPv6 host routes (direct routes and NDP)Up to 40,000 host1,6Up to 90,000 host1,6Up to 128,0001,6
Total number of IPv4 Multicast routesUp to 32,0001,6Up to 32,0001,6Up to 32,0001,6
Total number of IPv6 Multicast routesUp to 16,0001,6Up to 32,0001,6Up to 16,0001,6
QoS ACL scale (v4/v6)Up to 18,000/9,0001Up to 16,000/8,0001Up to 8,000/4,0001, 7
Security ACL scale (v4/v6)Up to 18,000/9,0001Up to 27,000/13,5001Up to 8,000/4,0001,7
FNF entriesUp to 512,0001Up to 256,0001Up to 2,000,0005
DRAM16 GB16 GB32 GB
Flash16 GB16 GB16 GB
VLAN IDs4,0944,0944,094
PVST Instances30034,00014,094
STP Virtual Ports (Port* VLANs) for PVST13,00016,00032,000
STP Virtual Ports (Port* VLANs) for MST13,000100,000432,000
Total Switched Virtual Interfaces (SVIs)1,0004,00014,096
Jumbo frame9,198 bytes9,216 bytes9,216 bytes

1 Varies based on selected flexible ASIC template and platform.

2 Line rate for 187byte packet size and above.

3 300 with IOS XE release 17.1.1 or later. 256 with IOS XE 16.12.x and 16.11.x 128 with IOS XE 16.10.x or earlier.

4 100,000 with IOSXE release 17.5.1 or later.  With IOS XE 17.4.1 or earlier: 32,000 with C9500-32C and C9500-32QC; 52,000 with C9500-48Y4C; 28,000 with C9500-24Y4C.

5 Flexible Netflow requires IOS XE release 17.8.1 or later.

6 Table Maximum. The exact % of allocation will depend on specific IP/mask combinations.

7 Table Maximum. Shared hardware resource. Maximum ACEs depends on number and type of ACLs configured across various interface types

Flexible ASIC templates

Cisco Catalyst 9000 series switches use flexible Software Database Manager (SDM) ASIC templates to enable universal deployments by leveraging the UADP’s ability to create resources to optimize table sizes for different places in the network. Based on how the switch is used in the network, an appropriate SDM ASIC template may be selected to configure the switch for specific features.

Catalyst 9500X models

Cisco Catalyst 9500X models support the following SDM ASIC templates

●      Default (Core)

●      Custom

Table 16 describes the default SDM ASIC template for C9500X models.

Table 16.     SDM template descriptions for C9500X models

FeaturesDefault Template
MAC Addresses128,000
IP Host Routes1128,000
IP LPM Routes12,000,000
IP Multicast Routes132,000
IGMP/MLD Snooping116,000
MPLS Labels2256,000
Security/Object Groups32,000
Security ACLs18,000
QoS ACLs18,000
PBR/NAT316,000
GRE Tunnels1,024
Sampled NetFlow entries12,000,000

1 IPv4 and IPv6 entries coexist in the same tables, but IPv6 entries require two entries.

2 Per-prefix labels are divided into internal (iBGP) and external (eBGP)

3 Feature is not available at FCS, but will be available in future software releases

Catalyst 9500 models

The following SDM ASIC templates are supported on the Cisco Catalyst 9500 Series.

●      Distribution: Maximizes system resources for MAC and security

●      Core: Maximizes system resources for unicast and multicast routing

●      SDA: Maximizes system resources to support fabric deployment

●      NAT: Maximizes system resources for Layer 3 and NAT for support collapsed core WAN deployments

Table 17 describes the standard SDM ASIC templates for C9500 models.

Table 17.     SDM template descriptions for C9500 models

Template numbers for models
C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C
Distribution templateCore template (Default)NAT templateSDA template2
IPv4/IPv6(LPM/Host)114,000212,000212,000212,000
Multicast route(IPv4/IPv6)16,00032,00032,00032,000
IGMP/MLD snooping2,0002,0002,0002,000
MAC addresses82,00032,00032,00032,000
MPLS/SGT label32,00032,00032,00032,000
NetFlow/ASIC98,00064,00064,00064,000
Security ACL27,000127,000120,000127,0001
QoS ACL16,000116,00018,000116,0001
PBR/NAT3,0003,00015,5002,000
Tunnel/MACsec3,0003,0002,0003,000
LISP1,0001,0001,0002,000
SPAN1,0001,0001,0001,000
STP Instances1,0001,0001,0001,000
Control Plane Policing (CoPP)1,0001,0001,0001,000
NetFlow ACL1,000 ingress,
1,000 egress
1,000 ingress,
1,000 egress
1,000 ingress,
1,000 egress
1,000 ingress,
1,000 egress
Template numbers for models C9500-12Q, C9500-24Q, C9500-40X, C9500-16XDistribution template (Default)Core templateNAT templateSDA template2
IPv4/IPv6 LPM64,000 / 32,00064,000 / 32,00064,000 / 32,00064,000 / 32,000
IPv4/IPv6 host48,000 / 24,00032,000 / 16,00048,000 / 24,00080,000 / 40,000
IPv4/ IPv6 Multicast route16,000 / 8,00032,000 / 16,00032,000 / 16,00016,000 / 8,000
IGMP/MLD snooping16,00016,00016,00016,000
MAC address64,00016,00016,00016,000
SGT label8,0008,0008,0008,000
NetFlow/ASIC128,000128,000128,000128,000
Security ACL18,00018,00018,00018,000
QoS ACL18,00018,000300018,000
PBR/NAT2,0002,00016,0002,000
Tunnel/MACsec1,0001,0001,0001,000
LISP1,0001,0001,0001,000
SPAN1,0001,0001,0001,000
STP instances3003300330033003
CoPP1,0001,0001,0001,000
NetFlow ACL1,000 ingress,
2,000 egress
1,000 ingress,
2,000 egress
1,000 ingress,
2,000 egress
1,000 ingress,
2,000 egress

1 ACL allocation is configurable between ingress, egress, IPv4 and non IPv4 (layer 2 and IPv6)

2 SD-Access template has been removed from IOS XE 17.3.1 onwards (in lieu of Custom ASIC templates)

3 300 with IOS XE release 17.1.1 or later. 256 with IOS XE 16.12.x and 16.11.x 128 with IOS XE 16.10.x or earlier

Custom ASIC templates

Catalyst 9500X Models (C9500X-28C8D and C9500X-60L4D)

Beginning with the Cisco IOS XE 17.7.1 release, a custom SDM template allows you to configure several features of the template based on your requirements and not the location of the device in the network.

Table 18.     Custom template FIB configurable values

FeaturesDefault ValueScale Values
(Min – Max)
Step Units
MAC Addresses128,00032,0001 – 256,0001,000
IPv4 Host Routes32,00032,0001 – 256,0001,000
IPv6 Host Routes16,00016,0001 – 128,0001,000
MPLS Labels3256,00002 – 512,0001,000
Security/Object Groups32,00002 – 64,0001,000
Total Resources608,000

1 Critical features require a minimum allocation to insure operation. If a custom value if not defined, this value is used.

2 Some (non-critical) features are allowed to have a 0 entry allocation, to allow increased allocation of other features.

3 Per-prefix labels are divided into internal (iBGP) and external (eBGP)

C9500-32C, C9500-32QC, C9500-24Y4C, C9500-48Y4C

Standard SDM templates can be used to configure system resources and optimize support for specific features. However SDM templates are defined based on how the device is deployed in the network.

Beginning with the Cisco IOS XE 17.3.1 release, a custom SDM template will allow you to configure the features of the template based on your requirements and not the location of the device in the network.

Table 19.     Custom template configurable FIB values

FeaturesScale Values (Min – Max)Step UnitsDefault Value
MAC addresses32,000 – 128,00016,00032,000
IPv4/IPv6 routes64,000 – 256,00016,00064,000
Multicast routes10 – 32,00016,00016,000
IGMP/MLD Snooping10 – 32,00016,00016,000
SGT/MPLS labels20 – 64,00032,00032,000
Netflow entries – Input30 – 64,00032,00032,000
Netflow entries – Output30 – 64,00032,0000
Total Resources416,000

1 Total Layer 2 and Layer 3 Multicast entries may not exceed 48,000

2 Each resource holds two SGT + MPLS entries

3 NetFlow entries require double entries

Table 20.     Custom template configurable ACL values

FeaturesScale Values (Min – Max)Step UnitsDefault Value
Security ACL – Input4K-26K, 27K2K4K
Security ACL – Output4K-26K, 27K2K4K
QoS ACL – Input1K, 2K-16K2K1K
QoS ACL – Output1K, 2K-16K2K1K
PBR/NAT1K, 2K-16K2K2K
Netflow ACL1K-2K1K1K
LISP1K-2K1K1K
TUNNELS1K-2K1K1K
Total Resources54k

Software requirements

The Cisco Catalyst 9500 Series Switches run on Cisco IOS XE Software version 16.5.1a or later. This software release includes all the features listed earlier in the Platform Benefits section. Table 20 lists the minimum software requirements for the switch models.

Table 21.     Minimum software requirements

ModelDescriptionMinimum software requirement
C9500X-28C8DCisco Catalyst 9500X Switch with 28x 100G + 8x 400G Gigabit EthernetCisco IOS XE Software Release 17.7.1
C9500X-60L4DCisco Catalyst 9500X Switch with 60x 50G + 4x 400G Gigabit EthernetCisco IOS XE Software Release 17.10.1
C9500-32CCisco Catalyst 9500 Series 32-port 40/100 Gigabit Ethernet with QSFP+/QSFP28Cisco IOS XE Software Release 16.8.1a
C9500-32QCCisco Catalyst 9500 Series 32-port 40 Gigabit Ethernet with QSFP+ / 16- port 100 Gigabit Ethernet with QSFP28Cisco IOS XE Software Release 16.8.1a
C9500-48Y4CCisco Catalyst 9500 Series high-performance 48-port 1/10/25G Gigabit Ethernet switch with SFP/SFP+/SFP28Cisco IOS XE Software Release 16.8.1a
C9500-24Y4CCisco Catalyst 9500 Series high-performance 24-port 1/10/25G Gigabit Ethernet switch with SFP/SFP+/SFP28Cisco IOS XE Software Release 16.8.1a
C9500-24QCisco Catalyst 9500 Series 24-port 40 Gigabit Ethernet with QSFP+Open Cisco IOS XE Software Release 16.5.1a
C9500-12QCisco Catalyst 9500 Series 12-port 40 Gigabit Ethernet with QSFP+Open Cisco IOS XE Software Release 16.6.1
C9500-40XCisco Catalyst 9500 Series 40-port 1/10 Gigabit Ethernet with SFP/SFP+Open Cisco IOS XE Software Release 16.6.1
C9500-16XCisco Catalyst 9500 Series 16-port 1/10 Gigabit Ethernet with SFP/SFP+Open Cisco IOS XE Software Release 16.8.1

  Network Essentials and Advantage package features

FeaturesNetwork EssentialsNetwork Advantage
Switch fundamentalsLayer 2, Routed Access (RIP, EIGRP Stub, OSPF – Up to 1000 routes),PBR, PIM Stub Multicast (up to 1000 routes)), PVLAN2, VRRP, PBR2, CDP, QoS, FHS, 802.1x2, Macsec-128, CoPP, SXP, IP SLA Responder, SSO2YesYes
Advanced switch capabilities and scaleBGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM SM, PIM SSM, PIM-BIDIR2, IP SLA, OSPFNoYes
Network segmentationVRF, VXLAN, LISP, BGP-EVPN2, TrustSec2, SGT2, MPLS, mVPN2NoYes
AutomationNETCONF, RESTCONF, gRPC, gNMI/gNOI, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)YesYes
Telemetry and visibilityModel-driven telemetry, sampled NetFlow2, SPAN, RSPANYesYes
High availability and resiliencyGIR, NSF, ISSU2, StackWise Virtual2, SMUNoYes
IoT integrationPTP2 (IEEE1588v2)NoYes
SecurityMACsec-256, WAN MACsec1, 3NoYes
Cisco trustworthy solutionsTrust Anchor module, Secure Boot, Image Signing, Modern Crypto, Runtime DefensesYesYes

Table 24.     Cisco DNA Essentials and Advantage package features

FeaturesCisco DNA EssentialsCisco DNA Advantage
Switch features
Optimized network deploymentsCisco DNA Service for BonjourNoYes
Advanced telemetry and visibilityFlexible NetFlow2, EEMYesYes
Optimized telemetry a visibilityERSPAN2, App Hosting (in Containers/VMs), Wireshark, ThousandEyesNoYes
Cisco DNA Center features
Day 0 network bring-up automationCisco Network Plug-n-Play application, network settings, device credentials, LAN Automation, Host onboardingYesYes
Element managementDiscovery, inventory, topology, software image, licensing, and configuration managementYesYes
Element managementPatch ManagementNoYes
Basic AssuranceHealth Dashboards – Network, Client, Application; Switch and Wired Client Health MonitoringYesYes
SD-AccessPolicy-based Automation and Assurance for Wired and Wireless1NoYes
Embedded Wireless (with or without SD-Access)2Cisco Catalyst 9800 wireless software package to enable wireless controller functionality**NoYes
Network assurance and analyticsGlobal Insights, Trends, Compliance, Custom Reports; Switch 360, Wired Client 360; Fabric and Non-Fabric Insights; App HealthNoYes
Meraki Cloud Monitoring2Yes*
limited device visibility
Yes

* Feature will be available in future software releases

**Note: A purchase of Cisco DNA Advantage per access point is required in order to enable the wireless controller functionality on Cisco Catalyst switches.

1 Not supported on C9500 UADP based models

2 Not supported on C9500X models

3 Need to order HSEC Key

Catalyst 9500X models

Table 25 lists the dimensions, specifications, weight and operating temperature for the Cisco Catalyst 9500X models.

Table 25.     Dimensions, physical specifications, weight and operating temperature

DescriptionSpecifications
SKUC9500X-28C8DC9500X-60L4D
Dimensions
(H x W x D)
H = 1.73” (4.39 cm)W = 17.5” (44.45 cm)D = 21.8” (55.37 cm) including Fan/Tray HandlesH = 1.73” (4.39 cm)W = 17.5” (44.45 cm)D = 21.8” (55.37 cm) including Fan/Tray Handles
Rack Units (RU)1 RU1RU
Chassis with 2 power supplies and built-In fan29.27 lbs (13.28kg)Weights separated:Chassis = 22.13 lbs (10.04kg)Each Fan Tray = 0.26 lbs (0.12kg) AC PSU = 2.77 lbs (1.26kg)DC PSU = 2.71 lbs (1.23kg)28.10 lbs (12.75kg)Weights separated:Chassis = 20.96 lbs (9.51kg)Each Fan Tray = 0.26 lbs (0.12kg) AC PSU = 2.77 lbs (1.26kg)DC PSU = 2.71 lbs (1.23kg)
Input voltageSee Table 3
SKUC9500X-FAN-1U-RC9500X-FAN-1U-F
Operating temperature-5°C to +45°C (23° to 133° F) sea level-5°C to +35°C (23° to 95° F) sea level
Altitude-5°C to +40°C (23° to 104 F) up to 5,000 feet (1500 m)-5°C to +35°C (23° to 95° F) up to 10,000 feet (3000 m)-5°C to +30°C (23° to 86° F) up to 5,000 feet (1500 m)-5°C to +25°C (23° to 77° F) up to 10,000 feet (3000 m)
Storage temperature-40°C to 70°C (-40° to 158° F)-40°C to 70°C (-40° to 158° F)
Relative humidity operating and nonoperating (noncondensing)Relative humidity operating: 10 to 85% (noncondensing)Relative humidity nonoperating: 0 to 95% (noncondensing)Relative humidity operating: 10 to 85% (noncondensing)Relative humidity nonoperating: 0 to 95% (noncondensing)

Catalyst 9500 models

Table 26 lists the dimensions, specifications, weight and operating temperature for the Cisco Catalyst 9500 models.

Table 26.     Dimensions, physical specifications, weight and operating temperature

DescriptionSpecifications
SKUC9500-32CC9500-32QCC9500- 48YCC9500- 24YCC9500-12QC9500-24QC9500-40XC9500-16X
Dimensions (H x W x D)1.73 x 17.5 x 21.2 in1.73 x 17.5 x 18.0 in1.73 x 17.5 x 21.52 in
Rack Units (RU)1 RU
Chassis with 2 power supplies and built-In fan25.64 lb (11.63 kg)21.85lLb (9.91 kg)21.96 lb (9.96 kg)20.99 lb (9.52 kg)25.75 lb (11.68 kg)23.6 lb (10.7 kg)
Input voltage90 to 264 VAC*
Operating temperature32° to 104°F (0° to 40°C) up to altitude of 10,000 feet
AltitudeOperation up to 10,000 feet at 40°C; up to 6,000 feet at 45°C
Storage temperature-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating (noncondensing)Ambient (noncondensing) operating: 5% to 90%Ambient (noncondensing) nonoperating and storage: 5% to 95%
NEBS criteria levelsNEBS:●  ETSI 300-019 Requirements are covered under GR-63-CORE with some deviations.●  SR-3580 NEBS level 3 (GR-63-CORE, to current issue, GR-1089-CORE, to current issue)

*Minimum input voltage is 90VAC, and maximum input voltage is 264VAC.

Cisco Embedded Support for Cisco DNA term components

Cisco Embedded Support delivers the right support for Cisco software products and suites. It will keep your business applications performing as expected and protect your investment. Cisco Embedded Support for the Cisco DNA Essentials and Cisco DNA Advantage term components is included as part of the switch value. Embedded Support provides access to TAC support, major software updates, maintenance and minor software releases, and the Cisco Software Support site, for increased productivity with anytime access.

Table 33.     Cisco DNA Term Support on the 9500 Series

ModelC9500X-DNA-A-3Y/5Y/7Y or
C9500X-DNA-E-3Y/5Y/7Y
C9500-DNA-A-3Y/5Y/7Y or
C9500-DNA-E-3Y/5Y/7Y
C9500-DNA-L-A-3Y/5Y/7Y or
C9500-DNA-L-E-3Y/5Y/7Y
C9500X-28C8DYesN/AN/A
C9500-32CN/AYesNo
C9500-32QCN/AYesNo
C9500-48Y4CN/AYesNo
C9500-24Y4CN/ANoYes
C9500-24QN/AYesNo
C9500-12QN/ANoYes
C9500-40XN/AYesNo
C9500-16XN/ANoYes

在售产品

联系在线客服 139 1073 6192

loading…

已经是到最后一篇内容了!

选配信息

 Ordering information

Product numberProduct description
C9500X-28C8D-ACatalyst 9500 28x100G + 8x400G switch, NW Advantage License
C9500X-28C8D-ECatalyst 9500 28x100G + 8x400G switch, NW Essentials License
C9500X-60L4D-ACatalyst 9500 60x50G + 4x400G switch, NW Advantage License
C9500-32C-ECisco Catalyst 9500 Series high performance 32-port 100G switch, NW Ess. License
C9500-32C-ACisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License
C9500-32QC-ECisco Catalyst 9500 Series high performance 32-port 40G switch, NW Ess. License
C9500-32QC-ACisco Catalyst 9500 Series high performance 32-port 40G switch, NW Adv. License
C9500-48Y4C-ECisco Catalyst 9500 Series high performance 48-port 25G switch, NW Ess. License
C9500-48Y4C-ACisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License
C9500-24Y4C-ECisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License
C9500-24Y4C-ACisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Adv. License
C9500-24Q-ECisco Catalyst 9500 24-port 40G switch, NW Ess. License
C9500-24Q-ACisco Catalyst 9500 24-port 40G switch, NW Adv. License
C9500-12Q-ECisco Catalyst 9500 12-port 40G switch, NW Ess. License
C9500-12Q-ACisco Catalyst 9500 12-port 40G switch, NW Adv. License
C9500-40X-ECisco Catalyst 9500 40-port 10G switch, NW Ess. License
C9500-40X-ACisco Catalyst 9500 40-port 10G switch, NW Adv. License
C9500-16X-ECisco Catalyst 9500 16-port 10G switch, NW Ess. License
C9500-16X-ACisco Catalyst 9500 16-port 10G switch, NW Adv. License
C9500-NM-2QCisco Catalyst 9500 2 x 40GE Network Module
C9500-NM-8XCisco Catalyst 9500 8 x 10GE Network Module
C9500-NM-2Q=Cisco Catalyst 9500 2 x 40GE Network Module Spare
C9500-NM-8X=Cisco Catalyst 9500 8 x 10GE Network Module Spare
C9500-48X-ACisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Adv. License
C9500-48X-ECisco Catalyst 9500 40-port 10G switch, 8 x 10GE Network Module, NW Ess. License
C9500-24X-ACisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Adv. License
C9500-24X-ECisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module, NW Ess. License
C9500-16X-2Q-ACisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Adv. License
C9500-16X-2Q-ECisco Catalyst 9500 16-port 10G switch, 2 x 40GE Network Module, NW Ess. License
C9500-40X-2Q-ACisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Adv. License
C9500-40X-2Q-ECisco Catalyst 9500 40-port 10G switch, 2 x 40GE Network Module, NW Ess. License
Cisco DNA License UpgradeUpgrade from Essentials to Advantage
C9500-LIC=Electronic SW License for C9500 Switches
Cisco DNA Term Licenses
C9500X-DNA-E-3YCatalyst 9500X Cisco DNA Essential license (3Y) for 28C8D SKU
C9500X-DNA-E-5YCatalyst 9500X Cisco DNA Essential license (5Y) for 28C8D SKU
C9500X-DNA-E-7YCatalyst 9500X Cisco DNA Essential license (7Y) for 28C8D SKU
C9500X-DNA-A-3YCatalyst 9500X Cisco DNA Advantage license (3Y) for 28C8D, 60L4D SKU
C9500X-DNA-A-5YCatalyst 9500X Cisco DNA Advantage license (5Y) for 28C8D, 60L4D SKU
C9500X-DNA-A-7YCatalyst 9500X Cisco DNA Advantage license (7Y) for 28C8D, 60L4D SKU
C9500-DNA-E-3YCatalyst 9500 NW and Cisco DNA Essentials. license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-5YCatalyst 9500 NW and Cisco DNA Essentials. license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-E-7YCatalyst 9500 NW and Cisco DNA Essentials. license (7Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-3YCatalyst 9500 NW and Cisco DNA Advantage license (3Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-5YCatalyst 9500 NW and Cisco DNA Advantage license (5Y) for 24Q, 40X, 32C, 32QC, 48Y4C SKU
C9500-DNA-A-7YCatalyst 9500 NW and Cisco DNA Advantage license (7Y)
C9500-DNA-L-E-3YCatalyst 9500 NW and Cisco DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-E-5YCatalyst 9500 NW and Cisco DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-E-7YCatalyst 9500 NW and Cisco DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-3YCatalyst 9500 NW and Cisco DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-5YCatalyst 9500 NW and Cisco DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU
C9500-DNA-L-A-7YCatalyst 9500 NW and Cisco DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU
Power supplies, cables, and fan for the Cisco Catalyst 9500 Series
C9K-PWR-1600WAC-R1600W AC Power Supply
C9K-PWR-650WAC-R650W AC Power Supply
C9K-PWR-650WACL-R650W AC Power Supply
C9K-PWR-1600WDC-R1600W DC Power Supply
C9K-PWR-930WDC-R930W DC Power Supply
C9K-PWR-1600WACR/21600W AC Power Supply, Redundant
C9K-PWR-650WAC-R/2650W AC Power Supply, Redundant
C9K-PWR-650WACLR/2650W AC Power Supply, Redundant
C9K-PWR-1600WDCR/21600W DC Power Supply, Redundant
C9K-PWR-930WDC-R/2930W DC Power Supply, Redundant
C9K-PWR-C4-BLANKCatalyst 9500 power supply blank cover
C9K-PWR-C5-BLANKCatalyst 9500 power supply blank cover
C9K-T1-FANTRAYCatalyst 9500 fan tray
FAN-T4-RCatalyst 9500 Type 4 front to back cooling Fan
PWR-C4-950WAC-R950W AC Config 4 Power Supply front to back cooling
PWR-C4-950WAC-R/2950W AC Config 4 Power Supply front to back cooling, Redundant
PWR-C4-BLANKCatalyst 9500 power supply blank cover
CAB-C15-CBN-JPJapan Cabinet Jumper Power Cord, 250 VAC 12A, C14-C15
CAB-TA-250V-JPJapan 250V AC Type A Power Cable
CAB-TA-APAustralia AC Type A Power Cable
CAB-TA-ARArgentina AC Type A Power Cable
CAB-TA-DNDenmark AC Type A Power Cable
CAB-TA-EUEurope AC Type A Power Cable
CAB-TA-INIndia AC Type A Power Cable
CAB-TA-ISIsrael AC Type A Power Cable
CAB-TA-ITItaly AC Type A Power Cable
CAB-TA-SWSwitzerland AC Type A Power Cable
CAB-TA-UKUnited Kingdom AC Type A Power Cable
CAB-TA-NANorth America AC Type A Power Cable
CAB-C15-CBNCabinet Jumper Power Cord, 250 VAC 13A, C14-C15 Connectors
CAB-TA-JPJapan AC Type A Power Cable
Spare accessory and rack mount kits for the Cisco Catalyst 9500 Series
C9500-ACCKITH-19I=Accessory Kit for Cisco Catalyst 9500 Series – High-End – 19″ rack mount
C9500-ACCKITH-23I=Accessory Kit for Cisco Catalyst 9500 Series – High-End – 23″ rack mount
C9500-4PTH-KIT=Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series – High-End
C9500-ACC-KIT-19I=Accessory Kit for Cisco Catalyst 9500 Series – 19″ rack mount
C9500-ACC-KIT-23I=Accessory Kit for Cisco Catalyst 9500 Series – 23″ rack mount
C9500-4PT-KIT=Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series
Power supplies, cables, and fan for the Cisco Catalyst 9500X Switch
C9K-PWR-1500WACCatalyst 9500X 1500W AC Power Supply
C9K-PWR-1500WDCCatalyst 9500X 1500W DC Power Supply
C9K-PWR-1500WAC/2Catalyst 9500X 1500W AC Power Supply, Redundant
C9K-PWR-1500WDC/2Catalyst 9500X 1500W DC Power Supply, Redundant
PWR-C6-BLANKCatalyst 9500X power supply blank cover
C9500X-FAN-1U-RCatalyst 9500X front to back cooling fan
C9500X-FAN-1U-FCatalyst 9500X back to front cooling fan
NO-POWER-CORDECO friendly green option, no power cable will be shipped
PWR-CAB-AC-USA520US AC Power Cord for Cisco ASR 900, NEMA 5-20
PWR-CAB-AC-USAPower Cord for AC V2 Power Module (USA), NEMA L6-20P
PWR-CAB-AC-AUSPower Cord for AC V2 Power Module (Australia), AS 3112
PWR-CAB-AC-EUPower Cord for AC V2 Power Module (Europe), CEE 7/7
PWR-CAB-AC-ITAPower Cord for AC V2 Power Module (Italy), CEI-23-50
PWR-CAB-AC-SAPower Cord for AC V2 Power Module (South Africa), SABS 164
PWR-CAB-AC-UKPower Cord for AC V2 Power Module (UK), EN 60309-2
PWR-CAB-AC-ISRLPower Cord for AC V2 Power Module (Israel), SI 32
PWR-CAB-AC-CHNPower Cord for AC V2 Power Module (China), GB2099.1/GB1002
PWR-CAB-AC-BRAPower Cord for AC V2 Power Module (Brazil), NBR 14136
PWR-CAB-AC-SUIPower Cord for AC V2 Power Module (Swiss), SEV 1011
PWR-CAB-AC-JPNPower Cord for AC V2 Power Module (Japan), JIS C8303
PWR-CAB-AC-INDIndia AC Power Cord for Cisco ASR 900, IS:1293
PWR-CAB-AC-ARGAC POWER CORD, WIRE HARNESS, Argentina, IRAM 2073, IEC60320 C21, ST, 4M, 30 AWG, STRANDED, 250.0 V, 16.0 A
PWR-2KW-DC-CBLPower Cord – 2KW DC
Spare accessory and rack mount kits for the Cisco Catalyst 9500X Switch
C9500X-ACCKIT-19I=Accessory Kit for Cisco Catalyst 9500X Switch – 19″ rack mount
C9500X-ACCKIT-23I=Accessory Kit for Cisco Catalyst 9500X Switch – 23″ rack mount
C9500X-4PTH-KIT=Extension rails and brackets for four-point mounting for Cisco Catalyst 9500X Switch
Spare storage options for the Cisco Catalyst 9500X Switch
C9K-F3-SSD-240GB=Cisco pluggable SSD storage – 240 GB
C9K-F3-SSD-480GB=Cisco pluggable SSD storage – 480 GB
C9K-F3-SSD-960GB=Cisco pluggable SSD storage – 960 GB

 Accessories and descriptions

Product numberDescription
C9500X-ACCKIT-19I=Accessory Kit for Cisco Catalyst 9500X Switch – 19″ rack mount1
C9500X-ACCKIT-23I=Accessory Kit for Cisco Catalyst 9500X Switch – 23″ rack mount1
C9500X-4PTH-KIT=Extension rails and brackets for four-point mounting for Cisco Catalyst 9500X Switch1
C9500-ACCKITH-19I=Accessory Kit for Cisco Catalyst 9500 Series – High-End – 19″ rack mount
C9500-ACCKITH-23I=Accessory Kit for Cisco Catalyst 9500 Series – High-End – 23″ rack mount
C9500-4PTH-KIT=Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series – High-End
C9500-ACC-KIT-19I=Accessory Kit for Cisco Catalyst 9500 Series – 19″ rack mount
C9500-ACC-KIT-23I=Accessory Kit for Cisco Catalyst 9500 Series – 23″ rack mount
C9500-4PT-KIT=Extension rails and brackets for four-point mounting for Cisco Catalyst 9500 Series
SSD-120GCisco pluggable USB3.0 SSD storage – 120 GB
C9K-F3-SSD-240GBCisco pluggable SSD storage – 240 GB (Catalyst 9500X)1
C9K-F3-SSD-480GBCisco pluggable SSD storage – 480 GB (Catalyst 9500X)1
C9K-F3-SSD-960GBCisco pluggable SSD storage – 960 GB (Catalyst 9500X)1
C9K-F1-SSD-240GCisco pluggable SSD storage – 240 GB
C9K-F1-SSD-480GCisco pluggable SSD storage – 480 GB
C9K-F1-SSD-960GCisco pluggable SSD storage – 960 GB
③ 采购咨询:186-1111-5727
批量采购咨询
批量采购咨询 提交咨询

Warning: Illegal string offset 'after_widget' in /www/wwwroot/www.szww.cn/webdocs/wp-content/plugins/woocommerce/includes/abstracts/abstract-wc-widget.php on line 178
