官方描述：C9600-SUP-1 | C9600-SUP-1= | C9600-SUP-1/2 Cisco Catalyst 9600 Series Supervisor 1 Module

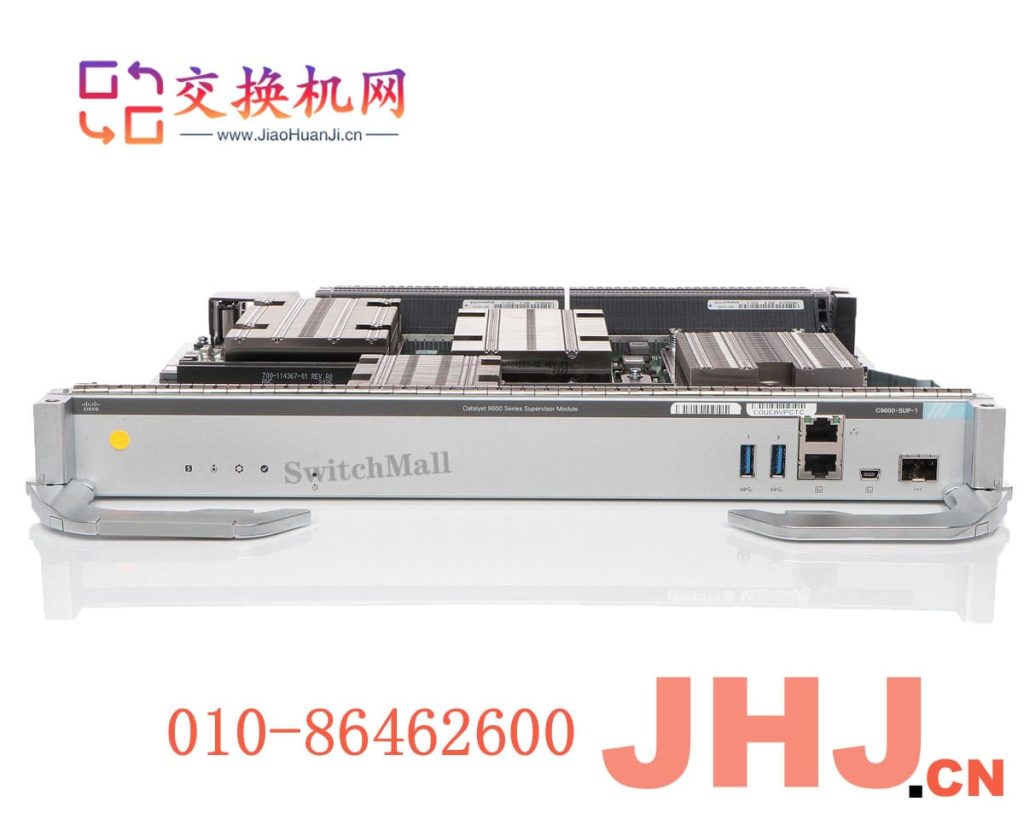

C9600-SUP-1=,思科交换机引擎模块, Cisco Catalyst 9600 Series Supervisor 1 Module
C9600-SUP-1= | C9600-SUP-1 Cisco Catalyst 9600 Series Supervisor 1 Module

以更高的速度和规模增强核心层和边缘服务

思科 Catalyst 9600 系列交换机专为实现大规模弹性而设计，具有业界最全面的安全性，并允许您的业务以最低的总运营成本实现增长。Catalyst 9600 系列建立在 Catalyst 9000 的基础上，在必须始终在线的情况下提供规模和安全性。

作为思科数字网络架构的基础构建块，Catalyst 9600 系列交换机通过利用其他供应商无法提供的智能、自动化和人员专业知识，帮助客户简化复杂性、优化 IT 并降低运营成本，无论您身在何处基于意图的网络之旅。

Catalyst 9600 系列交换机提供的安全功能可保护硬件、软件以及流经交换机的所有数据的完整性。它提供弹性，让您的业务保持无缝运行。将其与 Cisco IOS XE 的开放 API 以及 UADP 和 Silicon1 ASIC 技术的可编程性相结合，Catalyst 9600 系列交换机可为您提供当前所需的功能，并为未来创新提供投资保护。

作为业界首款面向企业园区的专用 40,100、200 和 400 千兆位以太网模块化交换机系列，Catalyst 9600 系列交换机为企业应用提供无与伦比的表规模（MAC、路由和访问控制列表 [ACL]）和缓冲。Cisco Catalyst 9606R 机箱的硬件已准备好支持高达 25.6 Tbps 的有线交换容量，每个插槽的带宽高达 6.4 Tbps。思科 Catalyst 9600 系列交换机支持满足不同园区需求的精细端口密度，包括无阻塞 40、100、200 和 400 千兆位以太网 (GE) 四路小型双密度 (QSFP-DD)、40 和 100 千兆位以太网 (GE) 四路小型可插拔（QSFP+、QSFP28）；1、10、25 和 50 GE 小型可插拔 Plus（SFP、SFP+、SFP28、SFP56）；10G 多千兆位以太网 (GE) (10G/5G/2. 5G/1G/100M/10M) RJ45 铜端口。这些交换机还支持高级路由和基础设施服务（例如行业标准 BGP EVPN VXLAN、多协议标签交换 [MPLS] 第 2 层和第 3 层 VPN、组播 VPN [MVPN] 和网络地址转换 [NAT]）；思科软件定义的访问功能（例如主机跟踪数据库、跨域连接以及 VPN 路由和转发 [VRF] 感知定位器/ID 分离协议 [LISP]）；以及采用 Cisco StackWise 虚拟技术的网络系统虚拟化，这对于它们在园区核心中的部署至关重要。Cisco Catalyst 9600 系列还支持基本的高可用性功能，例如修补、带状态切换的思科不间断转发 (NSF/SSO)、冗余铂金级 (2KW) 或钛金级 (3KW) 电源以及风扇，

软件定义访问的基础

企业网络是数字化转型的核心。开放、可编程、集成且安全的网络可以最大限度地提高业务敏捷性，从而帮助人们追求和捕捉新的商机。具有软件定义接入 (SD-Access) 的思科数字网络架构 (Cisco DNA) 是为业务提供支持的网络结构。

思科 SD-Access 是一种开放且可扩展的软件驱动架构，可加速并简化您的企业网络运营。SD-Access 通过基础功能实现从边缘到云的基于策略的自动化。

产品概述

思科 Catalyst 9600 系列机箱

● 硬件可支持高达25.6 Tbps 的有线交换容量，每个插槽的带宽高达6.4 Tbps。

● Cisco Catalyst 9600 系列管理引擎 2 释放 25.6 Tbps 有线交换容量。 Cisco Catalyst 9600 系列管理引擎 1 的有线交换容量高达 9.6 Tbps，转发性能为 3 Bpps。

● 使用思科 Catalyst 9600 系列管理引擎 2，可容纳多达 32 个 400G 千兆以太网 QSFP-DD 端口。当前一代线卡支持多达 8 个无阻塞 400 千兆以太网 QSFP-DD 端口。

● 使用思科 Catalyst 9600 系列管理引擎 1 时最多可提供 48 个非阻塞 100 吉位以太网 QSPF28 端口，使用思科 Catalyst 9600 系列管理引擎 2 时可提供最多 128 个非阻塞 100 吉位以太网 QSPF28 端口。

● 使用思科 Catalyst 9600 系列管理引擎 2 时最多可提供 128 个非阻塞 40 千兆位以太网 QSPF28 端口，使用思科 Catalyst 9600 系列管理引擎 1 时可提供最多 96 个非阻塞 40 千兆位以太网 QSFP+ 端口。

● 使用思科 Catalyst 9600 系列管理引擎 2 时最多可提供 256 个无阻塞 50G/25G/10G 千兆位以太网 QSPF56 端口，使用思科 Catalyst 9600 系列管理引擎 1 时可提供最多 192 个无阻塞 25 千兆位以太网/10 千兆位以太网 SFP28/SFP+ 端口。

● Cisco Catalyst 9600 系列管理引擎 1 具有多达 192 个无阻塞 10G 多千兆位（10 吉位以太网/5 吉位以太网/2.5 吉位以太网/1 吉位以太网/100 兆位/10 兆位）RJ45 铜缆端口。管理引擎 2 仅支持速度达到或超过 10 GBps。

● 铂金级(2KW) 或钛金级(3KW) 交流电源。

● 白金级（2KW）直流电源。

nb-06-cat9600-series-data-sheet-cte下载

交换机商城商务值班经理

微信扫一扫，价格早知道
最新产品
最新商品
促销商品

最新产品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    820
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    927
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    855
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    872
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    638
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    653
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

最新商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    820
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    927
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    855
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    872
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    638
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    653
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

促销商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    820
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    927
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    855
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    872
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    638
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    653
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

官方描述：C9600-SUP-1 | C9600-SUP-1= | C9600-SUP-1/2 Cisco Catalyst 9600 Series Supervisor 1 Module

思科 C9606交换机机箱安装官方指导文件

Cisco Catalyst 9600 Series Supervisor Engine 1

Figure 2.

Cisco Catalyst 9600 Series Supervisor Engine 1

Catalyst 9600 SUP-1 overview

●      The Cisco Unified AccessData Plane (UADP) Application-Specific Integrated Circuit (ASIC)1 is future- ready for next- generation core technologies, with a programmable pipeline, micro-engine capabilities, and template-based customizable allocation of Layer 2, Layer 3, forwarding, ACL, and Quality-of- Service (QoS) entries.

●      It is the first ASIC to support double-width hardware tables that provides equivalent table size and processing performance for IPv4 and IPv6.

●      2.0-GHz Intel x86 CPU with 8 cores.

●      Up to 960 GB of SATASSD local storage for container-based application hosting.

●      Up to 108 MB of buffer (36 MB of unified buffer per ASIC).

●      Line-rate, hardware-based Flexible NetFlow (FNF) delivers flow collection for up to 294,000 flows.

●      IPv6 support in hardware provides wire-rate forwarding for IPv6 networks.

●      Dual-stack support for IPv4 and IPv6 and dynamic hardware forwarding table allocations enable easyIPv4-to-IPv6 migration.

●      Flexible routing (IPv4, IPv6, and multicast) tables, Layer 2 tables, ACL tables, and QoS tables.

1The UADP ASIC resides in the Cisco Catalyst 9600 Supervisor Engine 1.

Table 11.     Performance and scalability features of C9600X-SUP-2 and C9600-SUP-1

FeatureC9600X-SUP-2C9600-SUP-1
System Switching CapacityUp to 25.6 Tbps1Up to 9.6 Tbps1
Per-slot Switching CapacityUp to 6.4 TbpsUp to 2.4 Tbps
ASICs1x Q2003x UADP 3.0
Forwarding Rate8 Bpps3 Bpps (1 Bpps per ASIC)
DRAM32 GB16 GB
Flash16 GB16 GB
SSD capacityUp to 960 GBUp to 960 GB
VLAN IDs4,09644,094
PVST Instances4,09641,000
STP Virtual Ports (Port*VLANs) for PVST32,00016,000
STP Virtual Ports (Port* VLANs) for MST100,000100,000
Switched Virtual Interfaces (SVIs)4,0961,000
Jumbo Frames9,2169,216
Total number of MAC AddressesUp to 256,0002Up to 128,0002,3
Total number of IPv4 RoutesUp to 2,000,0002,3,4Up to 256,000 (indirect + direct)2,3,4
Total number of IPv6 RoutesUp to 1,000,0002,3,4Up to 256,0002,3,4
Address Resolution Protocol (ARP) entriesUp to 128,000Up to 90,000
Neighbor Discovery Protocol (NDP) entriesUp to 128,000Up to 128,000
IGMP/MLD Snooping entriesUp to 16,000Up to 16,000
Multicast RoutesUp to 32,000Up to 32,0002
QoS ACL Scale (v4/v6)Up to 8,000/4,0002Up to 16,000/8,0002
Security ACL Scale (v4/v6)Up to 8,000/4,0002Up to 27,000/13,5002
GRE TunnelsUp to 1,024Up to 1,024
MACsec sessionsUp to 1,024 per PHYUp to 2,000
NetFlow entries (IPv4/IPv6)Up to 2,000,000 (sampled)Up to 384,000 (full, 128,000 per ASIC)2,3
Packet Buffer80 MB (Shared Memory System) + 8 GB (High Bandwidth Memory)Up to 108 MB (36 MB per ASIC)

1 Based on C9606R chassis with 4 Line Cards operating at 2.4 Tbps.

2 Varies based on selected flexible SDM ASIC template.

3 Total routes are shared between IPv4 and IPv6.

4 Table Maximum. The exact % of allocation will depend on specific IP/mask combinations.

Catalyst 9600 Chassis and Line Cards with C9600-SUP-1

The following table shows the supervisor engine and line-card slot assignment options in the Catalyst 9600 Series chassis.

Table 5.        Chassis slot assignment options

ChassisSingle Supervisor Engine 1 slot assignmentsRedundant Supervisor Engine 1 slot assignmentsLine Card slot options
Cisco Catalyst 9606RSlot 3 or 4Slot 3 and 4Slots 1 to 2 and 5 to 6

Table 6.        Minimum software

ChassisMinimum software
Cisco Catalyst 9606RCisco IOS XE 16.11.1

The following table summarizes the performance capacities of the Supervisor Engine 1.

Table 7.        Bandwidth per slot for the 9606R chassis

Supervisor engineBandwidth per slot
Supervisor Engine 12.4 Tbps per slot

The following table summarizes the line-card modules supported on the Catalyst 9600 Supervisor Engine 1.

Table 8.        Line-card and module support for Catalyst 9600 Supervisor Engine 1.

Line CardDescriptionBandwidthMinimum SW requirement
C9600-LC-40YL4CDCisco Catalyst 9600X Series 40-Port 10/25/50GE1, 2- Port 100GE/200GE1, 2-Port 400GE12.4 Tbps17.8.1
C9600-LC-24CCisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE2.4 Tbps16.11.1
C9600-LC-48YLCisco Catalyst 9600 Series 48-Port 1GE/10GE/25GE/50GE12.4 Tbps16.11.1
C9600-LC-48TXCisco Catalyst 9600 Series 48-Port 100M/1GE/2.5GE/5GE/10GE960 Gbps17.1.1
C9600-LC-48SCisco Catalyst 9600 Series 48 Port 1GE96 Gbps17.2.1

1 C9600-SUP-1 does not support 50GE, 200GE or 400GE. C9600X-SUP-2 is required to support 50GE, 200GE and 400GE. 200GE hardware capable with SUP-2.

Note: C9600X-LC-32CD is not supported on C9600-SUP-1.

Table 9.        Platform benefits of the Cisco Catalyst 9600 and 9600X

ModelCatalyst 9600 (C9600-SUP-1)Catalyst 9600X (C9600-SUP-2)
Resiliency and High Availability
Software Maintenance Upgrade (SMU)YesYes
Cisco StackWise VirtualYesYes
Cisco StackWise Virtual (QuadSup RPR)YesNo
Stateful Switchover (SSO)Yes (2 SUP, SVL)Yes (2 SUP, SVL)
In-Service Software Upgrade (ISSU)Yes (2 SUP, SVL)Yes (2 SUP, SVL)
Graceful Insertion and Removal (GIR)YesYes
MKA High AvailabilityYesYes1
Enterprise Security
Trustworthy SolutionsYesYes
Image SigningYesYes
Secure BootYesYes
Cisco Trust Anchor ModuleYesYes
MACsec Encryption (256-bit AES-GCM)YesYes
Cisco WAN MACsec (256-bit AES-GCM)NoYes4
Object-Group ACLs (IPv4/IPv6)YesYes3
Enterprise QoS
Modular QoS CLI (MQC)YesYes
Strict Priority QueuingYesYes
Class/Color-aware QueuingYes (WFQ)Yes (VoQ)
Policing/MeteringYesYes
Shaping/BandwidthYesYes
Hierarchical QoSYes (2-level)Yes (2-level)
IP Routing
Routing Information Protocol version 2 (RIPv2), and next generation (RIPng)YesYes
Open Shortest Path First version 2 (OSPFv2), and OSPFv3YesYes
Enhanced Interior Gateway Routing Protocol (EIGRP), and EIGRPv6YesYes
Intermediate System-to-Intermediate System Version 4 (IS-ISv4)YesYes
Border Gateway Protocol version 4 (BGPv4), and BGPv6YesYes
Protocol-Independent Multicast (PIM) Sparse- Mode (PIM- SM)YesYes
Protocol-Independent Multicast (PIM) Source- Specific Mode (PIM-SSM)YesYes
Bidirectional PIM (BIDIR-PIM)YesNo
Ipv6 routingYesYes
L3 Routed Sub-InterfacesYesYes
Multi-Protocol Label Switching (MPLS)
MPLS L3 VPNYesYes
Ethernet over MPLS (EoMPLS)YesYes
Virtual Private LAN Service (VPLS)YesNo2
MPLS over GREYesNo2
MPLS Traffic-Engineering (MPLS-TE)YesNo2
BGP Ethernet VPN (EVPN) VXLAN
Fabric Spine, Leaf and Border SupportYesYes
L2/L3 Virtual Network Interface (VNI)YesYes
Distributed Anycast Gateway (Symmetric IRB)YesYes
Centralized Gateway (Asymmetric IRB)YesNo
ESI Multi-Home SupportYesNo
Tenant Routed Multicast (Ipv4/Ipv6)YesYes
Border Handoff: Multi-VRF, MPLS VPN, VPLS, L2/L3YesYes
Software-Defined Access (SD-Access)
Virtual eXtensible LAN (VXLAN)YesYes
L2 Virtual Network Interface (VNI)YesYes
L3 Virtual Network Interface (VNI)YesYes
Distributed Anycast GatewayYesYes
SDA Control-PlaneYesYes
SDA BorderYesYes
SDA EdgeYesNo
Flexible NetFlow (FNF)
FNF Ipv4 flow recordsYesYes1 (software)
FNF Ipv6 flow recordsYesYes1 (software)
FNF samplerYesYes1
FNF data exportYesYes1
NetFlow version 9 (NFv9) exportYesYes1
IPFIX exportYesYes1
Programmability
NETCONFYesYes
RESTCONFYesYes
gNMI/gNOIYesYes
YANG modelsYesYes
ZTP/PnPYesYes
Smart Operations
Bluetooth Wireless UIYesYes
RFID tagsYesYes
Blue beaconYesYes
Out-of-Band ManagementYesYes

1 C9600X models: minimum IOS XE software release 17.8.1.

2 C9600X models: feature is not available at FCS, but it is hardware capable.

3 C9600X models: Object Group ACLs are supported only in the ingress direction.

4 Need to order HSec Key.

Table 1.        Catalyst 9600 Supervisor and Line Card compatibility and bandwidth

Line CardC9600-SUP-1C9600X-SUP-2
BandwidthMinimum SW requirementBandwidthMinimum SW requirement
C9600X-LC-32CDNANA6.4 Tbps17.9.1
C9600-LC-40YL4CD2.4 Tbps17.8.16.4 Tbps17.7.1
C9600-LC-24C2.4 Tbps16.11.14.8 Tbps17.7.1
C9600-LC-48YL2.4 Tbps16.11.14.8 Tbps17.7.1
C9600-LC-48TX960 Gbps17.1.1960 Gbps17.7.1
C9600-LC-48S96 Gbps17.2.1Not CompatibleNA

Table 2.        Port information for Line Cards

Line CardPort SpeedMaximum ports with C9600X-SUP-2Maximum ports with C9600-SUP-1
C9600X-LC-32CD40 GE128NA
100 GE128NA
200 GE8NA
400 GE8NA
C9600-LC-40YL4CD25, 10 GE2561192
50 GE2561NA
100 GE968
200 GE8NA
400 GE8NA
C9600-LC-24C40 GE9696
100 GE9648
10 GE29696
C9600-LC-48YL25, 10, 1 GE1923192
50 GE192NA
C9600-LC-48S1GENA192
C9600-LC-48TX10GE, 5GE, 2.5GE, 1GE, 100M, 10M1923192

1Breakout support in roadmap, not available at FCS.

2With CVR adapter.

3Speeds below 10GE not supported on C9600X-SUP-2.

Power details

The following table gives power details information for the Line Cards.

Table 3.        Rated Power Details by line card

Line CardMax rated power C9600X-SUP-2Max rated power C9600-SUP-1
C9600X-LC-32CD420 WNA
C9600-LC-40YL4CD420 W420 W
C9600-LC-24C280 W200 W
C9600-LC-48YL300 W230 W
C9600-LC-48TX315 W315 W
C9600-LC-48SNA160 W

Catalyst 9600X-SUP-2 provides higher power to support higher high port speeds and density.

Cisco Catalyst 9600 Series Line Cards
C9600-LC-24CCisco Catalyst 9600 Series 24-port 40GE/100GE line cardCisco IOS XE Software Release 17.7.1
C9600-LC-48YLCisco Catalyst 9600 Series 48-port 25GE/10GE1 SFP28 line cardCisco IOS XE Software Release 17.7.1
C9600-LC-48TXCisco Catalyst 9600 Series 48-port RJ45 Copper – 10GE1 line cardCisco IOX XE Software Release 17.7.1
C9600-LC-40YL4CDCisco Catalyst 9600 Series Combo line card40 ports 50/25/10GE SFP562 ports 200/100/40GE QSFP56 uplinks2 ports 400/2002/100/40GE QSFP-DD uplinksCisco IOX XE Software Release 17.7.1
C9600X-LC-32CDCisco Catalyst 9600 Series Combo line card30 ports 100/40GE QSFP282 ports 400/2002/100/40GE QSFP-DDCisco IOS XE Software Release 17.9.1

1 C9600X-SUP-2 only supports speeds of 10GE or higher.

2 Hardware capable.

Cisco Catalyst 9600 Series switches has flexible interface types and port densities that allow you to mix and match network configurations to meet the specific needs of campus networks in the following table.

Table 7.        Maximum Chassis Port Densities

Cisco Catalyst 9606R ChassisC9600-SUP-1C9600X-SUP-2
400G–8
200G–8
100G48128
50G–2561
40G96128
25G1922561
10G1922561
5G**192–
2.5G**192–
1G192–
100M**192–
10M**192–

**Using C9600-LC-48TX

1 With Breakouts

  Ordering information

Product NumberDescription
C9606R (=)Cisco Catalyst 9600 Series 6 Slot Chassis
C9600-SUP-1 (=)Cisco Catalyst 9600 Series Supervisor 1 Module
C9600-SUP-1/2Cisco Catalyst 9600 Series Redundant Supervisor 1 Module
C9600X-SUP-2 (=)Cisco Catalyst 9600 Series Supervisor 2 Module
C9600X-SUP-2/2Cisco Catalyst 9600 Series Redundant Supervisor 2 Module
C9600-LC-24C (=)Cisco Catalyst 9600 Series 24-Port 40GE/12-Port 100GE line card
C9600-LC-48YL (=)Cisco Catalyst 9600 Series 48-Port 25GE/10GE/1GE line card
C9600-LC-48TX (=)Cisco Catalyst 9600 Series 48-port RJ45 Copper –10GE/5GE/2.5GE/1GE/100Mbps/10Mbps line card
C9600-LC-48S (=)Cisco Catalyst 9600 Series 48-Port 1GE line card
C9600-LC-40YL4CD (=)Cisco Catalyst 9600 Series Combo line card40 ports 50/25/10GE SFP562 ports 200/100/40QSFP56 uplinks2 ports 400/200/100GE QSFP-DD uplinks
C9600X-LC-32CD (=)Cisco Catalyst 9600 Series Combo line card30 ports 100/40G QSFP282 ports 400/200/100G QSFP-DD
C9606-FAN (=)Cisco Catalyst 9600 Series C9606 Chassis Fan Tray
C9K-F2-SSD-240GB (=)Cisco Catalyst 9600 Series 240GB SSD Storage
C9K-F2-SSD-480GB (=)Cisco Catalyst 9600 Series 480GB SSD Storage
C9K-F2-SSD-960GB (=)Cisco Catalyst 9600 Series 960GB SSD Storage
Cisco DNA Term LicensesDescription
C9600-DNA-AC9600 Cisco DNA Advantage Term License
C9600-DNA-A-3YC9600 Cisco DNA Advantage 3 Year License
C9600-DNA-A-5YC9600 Cisco DNA Advantage 5 Year License
C9600-DNA-A-7YC9600 Cisco DNA Advantage 7 Year License
Power SuppliesDescription
C9600-PWR-3KWAC (=)Cisco Catalyst 9600 Series 3000W AC Power Supply
C9600-PWR-2KWAC (=)Cisco Catalyst 9600 Series 2000W AC Power Supply
C9600-PWR-2KWDC (=)Cisco Catalyst 9600 Series 2000W DC Power Supply
Spare Accessories and KitsDescription
C9606-SLOT-BLANK (=)Cisco Catalyst 9600 Series Blank for Chassis Module Slot
C9606-PWR-BLANK (=)Cisco Catalyst 9600 Series Blank for Chassis Power Supply Slot
CAB-CONSOLE-USBConsole Cable 6ft with USB Type A and mini-B
CAB-CONSOLE-RJ45Console Cable 6ft with RJ45 and DB9F
C9606-RACK-KIT=Cisco Catalyst 9600 Series 6 slot chassis Rack Mount
C9606-ACC-KIT=Cisco Catalyst 9600 Series 6 slot chassis Accessory Kit
C9606-SHELF-KIT=Cisco Catalyst 9600 Series 6 slot chassis Shelf Install Kit
C9606-FB-23-KIT=Cisco Catalyst 9600 Series 6 slot chassis Front to Back Kit
