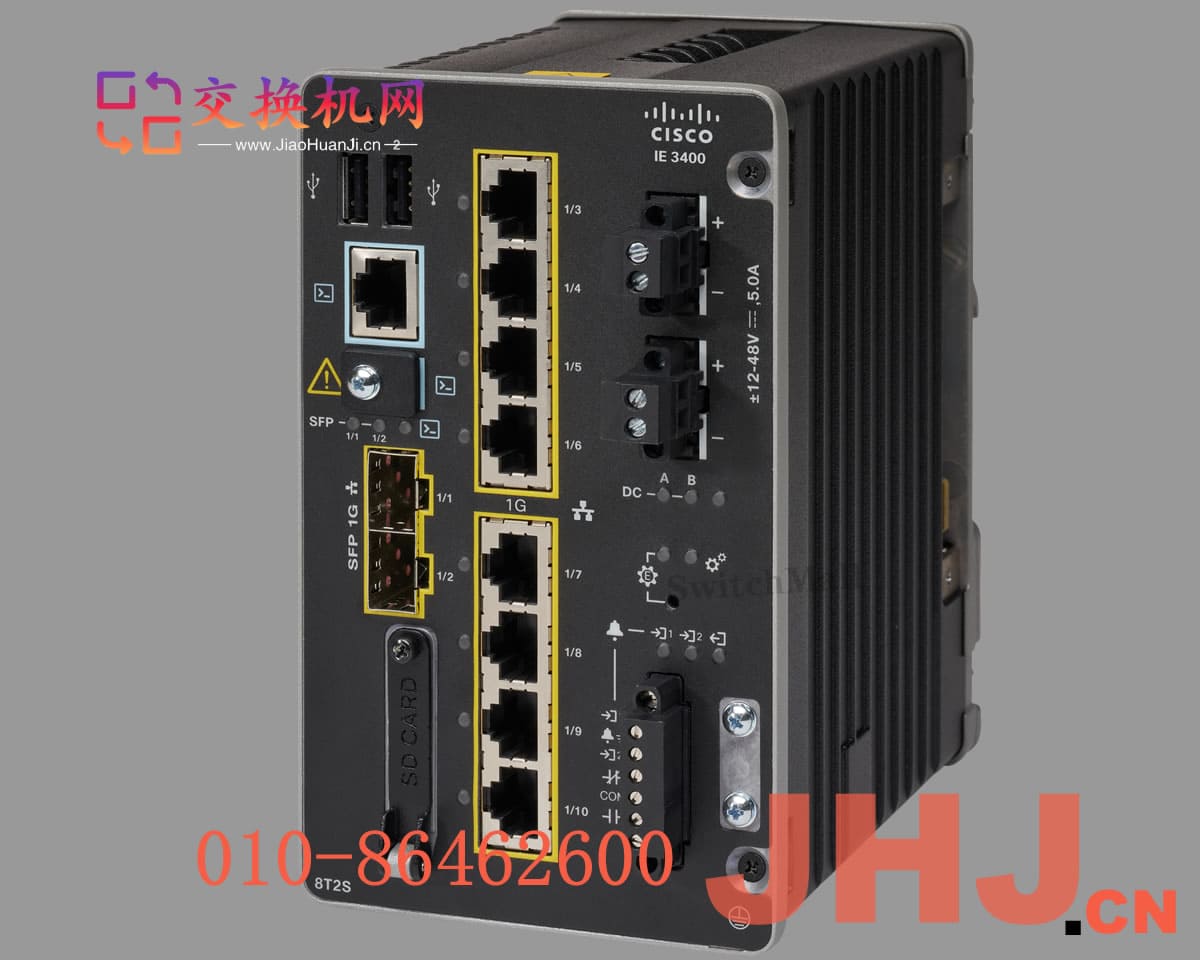

IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network EssentialsIE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials
IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network EssentialsIE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials
IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network EssentialsIE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials

IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials

思科工业交换机 IE3400系列 8个千兆口，2个SFP 光口
IE3400 Rugged Series 562
Industrial Ethernet Switches思科 IE-3400-8T2S-EIE-3400-8T2S-ECisco IE-3400-8T2S-ECatalyst IE3400 with 8 GE PoE/PoE+ 2 GE SFP Adv. Modular思科Cisco Catalyst IE3400加固系列Cisco Catalyst IE3400 Rugged Series思科工业交换机8口交换机三层交换机GE 口上行支持双电源Network Essentials导轨安装交换机二层交换机工业交换机
加入咨询列表
去旗舰店购买
在线客服
②采购咨询:186-1111-5727

产品介绍
产品参数
资料下载
产品相册

官方描述：IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials

Cisco Catalyst ® IE3400 坚固型系列在专为各种扩展企业和工业应用而构建的紧凑型模块化交换机中引领了高级千兆位以太网连接的主流采用。

产品概述

Cisco Catalyst IE3400 坚固型系列交换机以紧凑的外形提供先进的高速千兆位以太网连接，专为需要强化产品的各种工业应用而设计。Cisco Catalyst IE3400 坚固型系列的模块化设计可通过一系列扩展模块选项灵活地扩展多达 26 个千兆位以太网端口。该平台旨在承受制造、能源、交通、采矿、智能城市以及石油和天然气领域的恶劣环境。IE3400 平台还非常适合户外空间、仓库和配送中心的扩展企业部署。

IE3400 系列运行 Cisco IOS ® XE，这是一种具有内置安全性和信任功能的下一代操作系统，具有安全启动、映像签名和 Cisco ® Trust 锚点模块。Cisco IOS XE 还提供具有开放 API 和数据模型的 API 驱动配置。

Cisco Catalyst IE3400 Rugged 系列可以使用功能强大的管理工具（例如 Cisco DNA Center）进行管理，并且可以使用完全重新设计的、用户友好的现代 GUI 工具（称为 WebUI）轻松进行设置。该平台还支持完全灵活的 NetFlow (FNF)，通过 Cisco Stealthwatch ®实时了解流量模式和威胁分析。

通过媒体冗余协议 (MRP)、弹性以太网协议 (REP)、设备级环网 (DLR) 和双输入电源等功能实现强大的弹性。

IE3400 系列（带扩展模块）支持高达 480W 的 PoE/PoE+ 功率预算，跨 24 个端口共享，非常适合连接 PoE 供电的终端设备，例如 IP 摄像机、电话、无线接入点、传感器等。

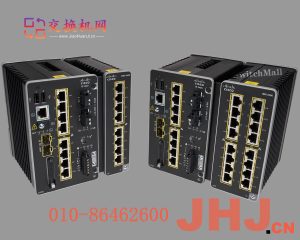

思科 Catalyst IE3400 坚固型系列

图1。

思科 Catalyst IE3400 坚固型系列

cat-ie3400-rugged-series-ds下载

Ordering information

Product IDDescription
IE-3400-8T2S-ECatalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials
IE-3400-8T2S-ACatalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Advantage
IE-3400-8P2S-ECatalyst IE3400 with 8 GE PoE/PoE+, 2 GE SFP, Adv. Modular, Network Essentials
IE-3400-8P2S-ACatalyst IE3400 with 8 GE PoE/PoE+, 2 GE SFP, Adv. Modular, Network Advantage
IEM-3300-8T=Catalyst IE3300 with 8 GE Copper ports, Expansion Module
IEM-3300-8S=Catalyst IE3300 with 8 GE SFP Fiber ports, Expansion Module
IEM-3300-16T=Catalyst IE3300 with 16 GE Copper ports, Expansion Module
IEM-3300-6T2S=Catalyst IE3300 with 6 GE Copper + 2 GE SFP, Expansion Module
IEM-3300-14T2S=Catalyst IE3300 with 14 GE Copper + 2 GE SFP, Expansion Module
IEM-3300-8P=Catalyst IE3300 with 8 GE PoE/PoE+ Copper ports, Expansion Module
IEM-3300-16P=Catalyst IE3300 with 16 GE PoE/PoE+ Copper, Expansion Module
IEM-3400-8T=Catalyst IE3400 with 8 GE Copper ports, Expansion Module
IEM-3400-8S=Catalyst IE3400 with 8 GE SFP ports, Expansion Module
IEM-3400-8P=Catalyst IE3400 with 8 GE Copper PoE/PoE+, Expansion Module
IEM-3300-4MU=Catalyst IE3300 with 4 2.5G Copper (4PPoE), Expansion Module
SD-IE-4GB=IE 4GB SD memory card for IE
STK-RACK-DINRAIL=19” DIN Rail mount kit
IE3400-NW-A=Network Advantage License for IE3400, Perpetual
IE3400-DNA-ECisco DNA Essentials license for IE3400 Series
IE3400-DNA-E-3YIE 3400 Cisco DNA Essentials, 3 Year Term license
IE3400-DNA-E-5YIE 3400 Cisco DNA Essentials, 5 Year Term license
IE3400-DNA-E-7YIE 3400 Cisco DNA Essentials, 7 Year Term license
IE3400-DNA-ACisco DNA Advantage license for IE3400 Series
IE3400-DNA-A-3YIE 3400 Cisco DNA Advantage, 3 Year Term license
IE3400-DNA-A-5YIE 3400 Cisco DNA Advantage, 5 Year Term license
IE3400-DNA-A-7YIE 3400 Cisco DNA Advantage, 7 Year Term license
LIC-MRP-MGR-XE=MRP Ring Manager License
LIC-MRP-CLIENT-XE=MRP Ring Client License

* MRP Feature Licenses are not required from release IOS XE 17.7.1 onwards. Please refer to the IOS XE 17.7.1 Release Notes.

交换机商城商务值班经理

微信扫一扫，价格早知道
最新产品
最新商品
促销商品

最新产品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    881
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    828
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    835
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    618
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    633
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

最新商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    881
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    828
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    835
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    618
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    633
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

促销商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    881
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    828
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    835
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    618
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    633
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

官方描述：IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials

Features and benefits

Table 1.        IE3400 Features and benefits

FeatureBenefit
Robust industrial design●  Built for harsh environments and temperature ranges (-40°C to +75°C)●  Fanless, convection-cooled with no moving parts for extended durability●  Hardened for vibration, shock and surge, and electrical noise immunity●  Complies with multi-industry specifications for automation, ITS, and substation environments●  Improves uptime, performance, and safety of industrial systems and equipment●  Covers a wide range of Power over Ethernet (PoE) application requirements●  Alarm I/O for monitoring and signaling to external equipment
Full Gigabit Ethernet interfaces●  Provides secure access for new high-speed applications in the industrial space●  Packs up to 10 ports of GE – 2×1 Gigabit Small Form-Factor Pluggable (SFP) uplinks plus 8×1 Gigabit Copper or PoE+ RJ45 downlinks in a small form-factor base system●  Expandable to 26 ports of GE by attaching one of 10 compatible modules (copper, fiber options)●  Connects high-speed wireless access points (802.11n, 802.11ac)●  Enables High-Definition (HD) IP cameras and Programmable Logic Controllers (PLC)●  Supports delay-sensitive applications and time-sensitive networks●  Delivers multiple rings and redundant ring topology for new network configurations●  Extends geographical scalability where longer-distance connectivity is required
High-density industrial Power over Ethernet (PoE)●  Supports up to 24 PoE/PoE+ ports or up to 8 PoE/PoE+ Ports and 4 “802.3bt type 4” Ports with the 2.5G expansion module [System Power budget – 480W]●  Controls costs by limiting wiring, distribution panels, and circuit breakers●  Reduces equipment needs, thus requiring less space and reducing heat dissipation●  Enables ready-to-use PoE devices, such as IP phones, cameras, and wireless access points
User-friendly WEB-based UI (WebUI)●  Allows for easy configuration and monitoring●  Eliminates the need for more complex terminal emulation programs●  Reduces the cost of deployment
SwapDrive zero-configuration replacement●  True zero-configuration and simple switch replacement in case of a failure●  No networking expertise required●  Helps ensure fast recovery
Full Flexible NetFlow (FNF)●  Provides enhanced flow and threat visibility●  Enables optimization of the network infrastructure, reduces operation costs, and improves capacity planning and security incident detection
Advanced Data plane features●  Parallel redundancy protocol (PRP) 1●  Advanced Security with SGT/SGACL
IPv6 Ready Logo●  IPv6 Ready Logo Certified

1Parallel Redundancy Protocol (PRP) is available on IE3400 base switch on select ports only (Gig1/1 – Gig1/4). Single instance of PRP is supported.

Products overview

Table 2.        Product feature sets

Product familyPlatforms supportedCisco IOS Software images (feature sets) supported
IE3000IE3400Network Essentials1, Network Advantage1

1The Hardware PID with “-E” suffix is Network Essentials and with “-A” suffix is Network Advantage. Network Advantage License includes all Network Essentials Features.

Product specifications

Table 3 highlights the hardware configuration for Cisco Catalyst IE3400 Rugged Series switches and the supported modules with these switches.

Table 3.        IE3400 Hardware configurations (incl. IE3400 and IE3300 modules)

Product number*Total ports10/100/1000 RJ45 Copper ports100/1000 SFP ports1GE/2.5G RJ45 Copper portsSoftware license (Default)**PoE/PoE (+) budget
IE-3400-8T2S-E1082N.A.Network EssentialsN.A.
IE-3400-8T2S-A1082N.A.Network AdvantageN.A.
IE-3400-8P2S-E1082N.A.Network Essentials240W (base), 480W (with expansion module)
IE-3400-8P2S-A1082N.A.Network Advantage240W (base), 480W (with expansion module)
IEM-3400-8T=88N.A.N.A.N.A.N.A.
IEM-3400-8S=8N.A.8N.A.N.A.N.A.
IEM-3400-8P=88N.A.N.A.N.A.Supported with IE3400 PoE base modules only to provide a total PoE budget of 480W
IEM-3300-8P=88N.A.N.A.N.A.Supported with IE3400 PoE base modules to provide a total PoE budget of 480W
IEM-3300-16P=1616N.A.N.A.N.A.Supported IE3400 PoE base modules to provide a total PoE budget of 480W
IEM-3300-8S=8N.A.8N.A.N.A.N.A.
IEM-3300-8T=88N.A.N.A.N.A.N.A.
IEM-3300-16T=1616N.A.N.A.N.A.N.A.
IEM-3300-6T2S=862N.A.N.A.N.A.
IEM-3300-14T2S=16142N.A.N.A.N.A.
IEM-3300-4MU=4N.A.N.A.4N.A.Supported IE3400 PoE base modules to provide a total PoE budget of 480W

*PoE modules can only be plugged with PoE base switch. IE3300 expansion modules can also be plugged with IE3400 base switch. However, this combination prevents support for advanced security feature such as SGT/SGACL on the IE3400 base switch.

** Network Advantage License includes all Network Essentials features.

Table 4 highlights the hardware specifications for Cisco Catalyst IE3400 Rugged Series switches.

Table 4.        IE3400 hardware Specifications

Hardware specificationsCisco IE-3400-8T2S-E/ -ACisco IE-3400-8P2S-E/ -A
PoE power budgetNot applicable480W1(including expansion module)
Removable storageUSB2,3, SD card2USB2,3, SD card2
Alarms2 alarms in, 1 alarm out2 alarms in, 1 alarm out
Console ports1 RS-232 (via RJ-45), 1 USB Mini Type B1 RS-232 (via RJ-45), 1 USB Mini Type B
Power inputsDual DC power inputDual DC power input

1 In order to achieve 480W power budget, the minimum power requirements as specified in Table 8 for the switch need to be considered when selecting the power supply.

2The USB and SD card are optional and are not shipped by default with the switch.

3 USB 2.0 to load system images and set configurations

Expansion modules

Figure 2.

Expansion modules

Table 5 highlights the hardware configuration for Cisco Catalyst IE3400 Rugged Series modules.

Table 5.        Hardware configuration for Cisco Catalyst IE3300 and IE3400 Rugged Series modules

Product IDTotal ports on expansion moduleCopper (RJ45)PoE/PoE+SFPCopper (RJ45)1GE/2.5G (with up to 802.3bt type 4 PoE)Total system ports (including expansion module)
IEM-3400-8T=88–––18
IEM-3400-8S=8––8–18
IEM-3400-8P=8–8––18
IEM-3300-8P=8–8––18
IEM-3300-16P=16–16––26
IEM-3300-8S=8––8–18
IEM-3300-8T=88–––18
IEM-3300-16T=1616–––26
IEM-3300-6T2S=86–2–18
IEM-3300-14T2S=1614–2–26
IEM-3300-4MU=14–––414

1Please refer to the conditions for using IEEE 802.3bt type 4 standard power in the Hardware Installation Guide

Table 6 highlights the physical configuration for Cisco Catalyst IE3400 Rugged Series switches and modules.

Table 6.        IE3400 physical configurations

Product IDDimensions (H x W x D)WeightMounting
IE-3400-8T2S-E6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		3.8 lbs
1.7 Kg		DIN rail
IE-3400-8T2S-A6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		3.8 lbs
1.7 Kg		DIN rail
IE-3400-8P2S-E6 in. X 4.4 in. X 5.3 in.
15.2 cm. x 11.2 cm. x 13.5cm		5.0 lbs
2.3 Kg		DIN rail
IE-3400-8P2S-A6 in. X 4.4 in. X 5.3 in.
15.2 cm. x 11.2 cm. x 13.5cm		5.0 lbs
2.3 Kg		DIN rail
IEM-3300-8T=6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm		2.0 lbs
0.9 Kg		DIN rail
IEM-3300-8S=6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm		2.0 lbs
0.9 Kg		DIN rail
IEM-3300-16T=6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		2.7 lbs
1.2 Kg		DIN rail
IEM-3300-6T2S=6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm		2.0 lbs
0.9 Kg		DIN rail
IEM-3300-14T2S=6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		2.7 lbs
1.2 Kg		DIN rail
IEM-3300-8P=6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm		2.0 lbs
0.9 Kg		DIN rail
IEM-3300-16P=6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		2.7 lbs
1.2 Kg		DIN rail
IEM-3400-8T=6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm		2.0 lbs
0.9 Kg		DIN rail
IEM-3400-8S=6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		3.6 lbs
1.6 Kg		DIN rail
IEM-3400-8P=6 in. X 2.6 in. X 5.3 in.
15.2 cm. x 6.6 cm. x 13.5cm		2.0 lbs
0.9 Kg		DIN rail
IEM-3300-4MU=6 in. X 3.6 in. X 5.3 in.
15.2 cm. x 9.1 cm. x 13.5cm		3.0 lbs
1.4 Kg		DIN rail

Table 7.        IE3400 performance and scalability features

FeaturesCisco IE-3400-8T2S-E/-ACisco IE-3400-8P2S-E/-A
Forwarding rateLine rate for all ports and all packet sizesLine rate for all ports and all packet sizes
Number of queues88
Unicast MAC addresses16K16K
Internet Group Management Protocol (IGMP multicast groups)1K1K
No. of VLANs256256
IPv4 Indirect routes130003000
IPv6 Indirect routes1512512
Spanning Tree Protocol (STP) instances128128
Access Control Entries (PACL/VACL/RACL)3K3K
DRAM4 GB4 GB
Flash [User Accessible]1.5 GB1.5 GB
SD card capacity24 GB4 GB
Jumbo Frames2000 bytes2000 bytes

1 Supported with -A SKUs or -E SKUs (with Network Advantage license).

2The SD card is optional and is not shipped by default with the switch.

Table 8 highlights the power specifications for Cisco Catalyst IE3400 Rugged Series switches.

Table 8.        IE3400 power specifications

 Cisco IE-3400-8T2S-E/-ACisco IE-3400-8P2S-E/-A
Input voltage rangeRedundant DC input voltage: 9.6 to 60VDCRedundant DC input voltage: 9.6 to 60VDC48VDC is required for PoE and 54VDC is required for PoE+
Input current6.3A10.6A
Power consumption136W47W

1Power consumption for non PoE supported model is measured at 12V and for the PoE supported model is measured at 54V. Power consumption does not include PoE power.

Table 9 highlights the power specifications for supported expansion modules in Cisco Catalyst IE3400 Rugged Series switches.

Table 9.        IEM3300/IEM3400 expansion modules power consumption

Product IDPower Consumption1
IEM-3300-8T=6W
IEM-3300-8S=19W
IEM-3300-16T=12W
IEM-3300-6T2S=9W
IEM-3300-14T2S=16W
IEM-3300-8P=14W
IEM-3300-16P=21W
IEM-3400-8T=12W
IEM-3400-8S=27W
IEM-3400-8P=20W
IEM-3300-4MU=20W

1 Power consumption for non PoE supported model is measured at 12V and for the PoE supported model is measured at 54V. Power consumption does not include PoE power.

Table 10 highlights the power supply options for Cisco Catalyst IE3400 Rugged Series switches.

Table 10.     Power supply options

Product IDWattageRated nominal input operating rangePoE/PoE+ support1More Details
PWR-IE50W-AC=50WAC 100-240V/1.25A 50-60Hz
or
DC 125-250V/1.25A		NoClick here for more details on these DIN Rail power supplies
PWR-IE50W-AC-IEC=50WAC 90-264VNo
PWR-IE50W-AC-L=250WAC 100-240V/1.0A 50-60HzNo
PWR-IE65W-PC-AC=65WAC 100-240V/1.4A 50-60Hz
or
DC 125-250V/1.0A		Yes
PWR-IE65W-PC-DC=65WDC 24-48VDC/4.5AYes
PWR-IE170W-PC-AC=170WAC 100-240V/2.3A 50-60Hz
or
DC 125-250V/2.1A		Yes
PWR-IE170W-PC-DC=170WDC 12-54VDC/23AYes
PWR-IE240W-PCAC-L=2240WAC 100-240V/2.5A 50-60HzYes
PWR-IE480W-PCAC-L=2480WAC 100-240V/5.0A 50-60HzYes

1 The entire power budget for the switch and PoE ports must stay within the power supply wattage.

2 The power supplies are not certified for smart grid and hazardous locations. These power supplies are IP20 rated.

Table 11 and 12 highlights the supported software features for Cisco Catalyst IE3400 Rugged Series switches.

Table 11.     Key supported software features (Network Essentials License)

Network Essentials License (Perpetual)Features
Layer 2 switchingIEEE 802.1, 802.3 standard, NTP, UDLD, CDP, LLDP, unicast MAC filter, PaGP, LACP VTPv2, VTPv3, EtherChannel, Q-in-Q tunneling, voice VLAN, PVST+, MSTP, and RSTP
MulticastIGMPv1, v2, v3 snooping, IGMP filtering, IGMP querier
ManagementWebUI, MIB, SmartPort, SNMP, syslog, DHCP server, SPAN session, RSPAN, FSPAN, Express setup, NETCONF, RESTCONF
SecurityPort security, 802.1x, Dynamic Host Configuration Protocol (DHCP) snooping, dynamic ARP inspection, IP source guard, guest VLAN, MAC authentication bypass, 802.1x multidomain authentication, storm control – unicast, multicast, broadcast, SCP, SSH, SNMPv3, TACACS+, RADIUS server/client, MAC address notification, BPDU guard, Access Lists(PACL/RACL/VACL), SUDI 2099 (Secure Unique Device identifier), Full Flexible NetFlow (FNF), MACsec-128, FIPS 140-2
Quality of Service (QoS)Ingress policing, rate limit, egress queuing/shaping, auto QoS
IPv6IPv6 host support, SNMP over IPv6, HTTP/HTTP(s) over IPv6, SNMP over IPv6, Syslog over IPv6, DHCPv6 relay source, DHCPv6 bulk lease query (RFC 5460), IPv6 stateless Auto Config, SCP/SSH, Radius, TACACS+, NTP over IPv6, IPv6 VRF aware BGPv6, IPV6 ND cache expire, IPv6 support for TFTP, IPv6 DNS transport, IPv6 QoS, IPv6 FHS RA Guard, IPv6 FHS DHCPv6 Guard
Layer 3 routingInter-VLAN routing, Static routing
Industrial EthernetCIP Ethernet/IP, 3IEEE 1588 PTP v2 (default and power), PROFINET
RedundancyResilient Ethernet Protocol (REP) ring, PROFINET-Multi Ring Protocol (MRP), REP Negotiated, Fast REP, Parallel redundancy protocol (PRP)2, PTP over PRP, High-Availability Seamless Redundancy (HSR-SAN), Device Level Ring
UtilityDying gasp, SCADA protocol classification – GOOSE messaging, MODBUS TCP/IP
AutomationYANG, NETCONF, RESTCONF
Industrial ManagementLayer 2 switching with 1:1 switch Network Address Translation (L2NAT)1
IOxContainer (Native docker)

1 Supported on Uplink ports

2Parallel Redundancy Protocol (PRP) is available on IE3400 base switch on select ports only (Gig1/1 – Gig1/4). Single instance of PRP is supported.

3 IEM-3300-4MU expansion module does not support PTP.

Table 12.     Key supported software features (Network Advantage License)*

Network Advantage License (Perpetual)Features
IP routing ProtocolsOSPF (IPv4 and IPv6), BGP (v4 and v6), ISIS (v4 and v6), RIP (v1 and v2), EIGRP (v4 and v6), Policy based routing (PBR), VRRP (v4 and v6), HSRP (v4 and v6), BFD Echo Mode for OSPFv3
VirtualizationVrf-lite
SecurityMACsec-256, SGT/SGACL1
IP MulticastPIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), and PIM sparse-dense mode, MSDP, Multicast routing BSR (IPv4/IPv6), Auto RP (IPv4), Embedded RP (IPv6)

* Network Advantage License includes all Network Essentials features.

1SGT/SGACL is supported on IE3400 base switch and only on IEM-3400 expansion modules.

Table 13 highlights the details on Cisco DNA Essentials and Cisco DNA Advantage License for Cisco Catalyst IE3400 Rugged Series switches.

Table 13.     Cisco IE3400 Cisco DNA Essentials and Cisco DNA Advantage license

FeatureCisco DNA EssentialsCisco DNA Advantage
Element ManagementDiscovery, Topology, Inventory, software image management, Config Change AuditYesYes
Basic AssuranceHealth dashboard – Network, Client monitoring; switch and wired client health monitoringYesYes
Assurance and AnalyticsCompliance, Custom Reports, Device 360 and Client 360 -Display device and client connectivity for granular troubleshootingNoYes
Basic AutomationCisco Network Plug-and-Play applicationYesYes
Element ManagementPatch/SMUNoYes
Software-defined AccessExtended Node, REP Ring Workflow for Extended NodesYesYes
Software-defined AccessPolicy based automation and assurance for wired clients, IE3400 can function as an SD-Access Policy extended node in a REP ring WorkflowNoYes

Cisco DNA licenses for Industrial Ethernet switches are add-on/optional and not mandatory, and need to be purchased separately. These do not include Network Tier features. Network Advantage License is a mandatory requirement on the Switch for DNA Advantage License.

Table 17.     SFP support

Product IDSpecificationsSFP typeTemperature range1Maximum distanceCable typeDom support
GLC-FE-100FX-RGD=100BASE-FXFEIND2 kmMultimode fiber (MMF)No
GLC-FE-100LX-RGD=100BASE-LX10FEIND10 kmSingle-Mode Fiber (SMF)No
GLC-FE-100FX=100BASE-FXFECOM2 kmMMFNo
GLC-FE-100LX=100BASE-LX10FECOM10 kmSMFNo
GLC-FE-100EX=100BASE-EXFECOM40 kmSMFNo
GLC-FE-100ZX=100BASE-ZXFECOM80 kmSMFNo
GLC-FE-100BX-U=100BASE-BX10FECOM10 kmSMFNo
GLC-FE-100BX-D=100BASE-BX10FECOM10 kmSMFNo
GLC-SX-MM-RGD=1000BASE-SXGEIND220-550 mMMFYes
GLC-LX-SM-RGD=1000BASE-LX/LHGEIND550 m/10 kmMMF/SMFYes
GLC-ZX-SM-RGD=1000BASE-ZXGEIND70 kmSMFYes
SFP-GE-S=1000BASE-SXGEEXT220-550 mMMFYes
SFP-GE-L=1000BASE-LX/LHGEEXT550 m/10 kmMMF/SMFYes
SFP-GE-Z=1000BASE-ZXGEEXT70 kmSMFYes
GLC-BX-U=1000BASE-BX10GECOM10 kmSMFYes
GLC-BX-D=1000BASE-BX10GECOM10 kmSMFYes
GLC-SX-MM=1000BASE-SXGECOM220-550 mMMFYes
GLC-LH-SM=1000BASE-LX/LHGECOM550 m/10 kmMMF/SMFYes
GLC-ZX-SM=1000BASE-ZXGECOM70 kmSMFYes
GLC-EX-SMD=1000BASE-EXGECOM40 kmSMFYes
GLC-TE=1000BASE-TGEEXT100 mCat5eNo
GLC-BX40-U-I=1000BASE-BX40GEIND40 kmSMFYes
GLC-BX40-D-I=1000BASE-BX40GEIND40 kmSMFYes
GLC-BX40-DA-I=1000BASE-BX40GEIND40 kmSMFYes
GLC-BX80-U-I=1000BASE-BX80GEIND80 kmSMFYes
GLC-BX80-D-I=1000BASE-BX80GEIND80 kmSMFYes
GLC-SX-MMD=1000BASE-SXGEEXT550 mMMFYes
GLC-LH-SMD=1000BASE-LX/LHGEEXT550m/10kmMMF/SMFYes
GLC-ZX-SMD=1000BASE-ZXGEEXT70 kmSMFYes
GLC-T-RGD=1000BASE-TGEIND100 mCopperNA
GLC-BX-U-I=1000BASE-BXGEIND10kmSMFYes
GLC-BX-D-I=1000BASE-BXGEIND10kmSMFYes
CWDM-SFP-1470=1000BASE-CWDM10GECOM80kmSMFYes
CWDM-SFP-1610=1000BASE-CWDM10GECOM80kmSMFYes
CWDM-SFP-1530=1000BASE-CWDM10GECOM80kmSMFYes
CWDM-SFP-1490=1000BASE-CWDM10GECOM80kmSMFYes
DWDM-SFP-3033=1000BASE-DWDM10GECOM80kmSMFYes
DWDM-SFP-3112=1000BASE-DWDM10GECOM80kmSMFYes

1If non-industrial SFPs (EXT, COM) are used, the switch operating temperature must be derated.

cat-ie3400-rugged-series-ds下载

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

IOS软件,3C证书,检测报告,操作手册,安装手册,命令手册,产品教程,配置教程，一对一指导

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)

相关文档

datasheet-c78-744825下载

交换机商城商务值班经理

微信扫一扫，价格早知道
最新产品
最新商品
促销商品

最新产品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    881
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    828
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    835
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    618
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    633
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

最新商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    881
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    828
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    835
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    618
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    633
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

促销商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    881
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    828
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    835
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    618
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    633
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

产品型号图集

如果这想要获得更多高清图册，请加入交小圈获得 https://Q.JHJ.cn 交换机小圈

IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network EssentialsIE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials
IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network EssentialsIE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials

点击放大的图片列表

IE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network EssentialsIE-3400-8T2S-E Catalyst IE3400 with 8 GE Copper and 2 GE SFP, Adv. Modular, Network Essentials
③ 采购咨询:186-1111-5727

批量采购咨询
批量采购咨询 提交咨询
