IE-9310-26S2C-E Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NEIE-9310-26S2C-E Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

IE-9310-26S2C-E Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

思科Catalyst IE9300 系列加固型工业交换机22个千兆SFP光口，2个千兆双介质口，4个1G千兆 SFP光口上行口

IE9300 Rugged Series 工业交换机 423

设备品牌:思科(Cisco)
产品类别:工业交换机
产品系列:IE9300 Rugged Series
型号SKU:IE-9310-26S2C-E
交换容量:56 Gbps
转发速率:28Gbps
上行端口:4x1G SFP光口
下行端口:22x1G SFP光口,2个千兆双介质口
POE功率:N/A
设备重量:5.53 kg
设备尺寸:4.4×44.5×36 cm
安装方式:机架安装
采购电话:010-8646 2600
模块选择IE-9320-26S2C-A Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NA

产品介绍

产品参数

资料下载

产品相册

官方描述：IE-9310-26S2C-E Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

IE-9320-26S2C-E ,思科工业交换机,IE-9320-26S2C-E ,Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NE

Figure 3.

IE-9320-22S2C4X Switch with advanced feature set, including support for GPS/IRIG-B input

Cisco Catalyst ^™ IE9300 坚固型系列在紧凑型 1RU 机架式交换机中引领了千兆位/10 千兆位以太网连接的主流采用，这些交换机专为各种工业和扩展企业应用而构建。

产品概述

Cisco Catalyst IE9300 坚固型系列交换机具有 28 个千兆位和 10 个千兆位以太网接口端口，以紧凑的外形尺寸提供高速以太网连接，专为需要强化产品的各种工业应用而设计。该平台旨在承受制造、能源、交通、采矿、智能城市以及石油和天然气领域的恶劣环境。这些交换机非常适合室外机柜或恶劣环境，同时符合整体 IT 网络设计、合规性和性能要求。

这些交换机运行 Cisco IOS ^® XE，这是一个具有内置安全性和信任功能的操作系统，具有安全启动、映像签名和 Cisco ^® Trust Anchor 模块。Cisco IOS XE 还提供具有开放 API 和数据模型的 API 驱动配置。

Cisco Catalyst IE9300 Rugged 系列可以使用功能强大的管理工具 Cisco DNA Center 进行管理，并且可以使用完全重新设计的用户友好型现代 GUI 工具（称为 WebUI）轻松进行设置。该平台支持完全灵活的 NetFlow (FNF)，可实时查看流量模式和威胁分析，并支持 Cisco Cyber Vision 和 Cisco Secure Network Analytics。

IE9300 坚固型系列交换机提供：

● 通过双环设计、弹性以太网协议 (REP)、并行冗余协议 (PRP) ²、PROFINET、介质冗余协议 (MRP) ¹环、高可用性无缝冗余 (HSR) ^1,2环、 EtherChannel、集成冗余电源、垂死喘息等。

● 真正的零接触更换，解决半夜或突然发生的故障

● 线速、低时延转发

● 使用通用映像简化软件管理

● 支持工业自动化协议 EtherNet/IP (CIP) 和 PROFINET

¹计划在未来的软件更新中提供支持。

²仅 IE-9320-26S2C 和 IE-9320-22S2C4X 支持。

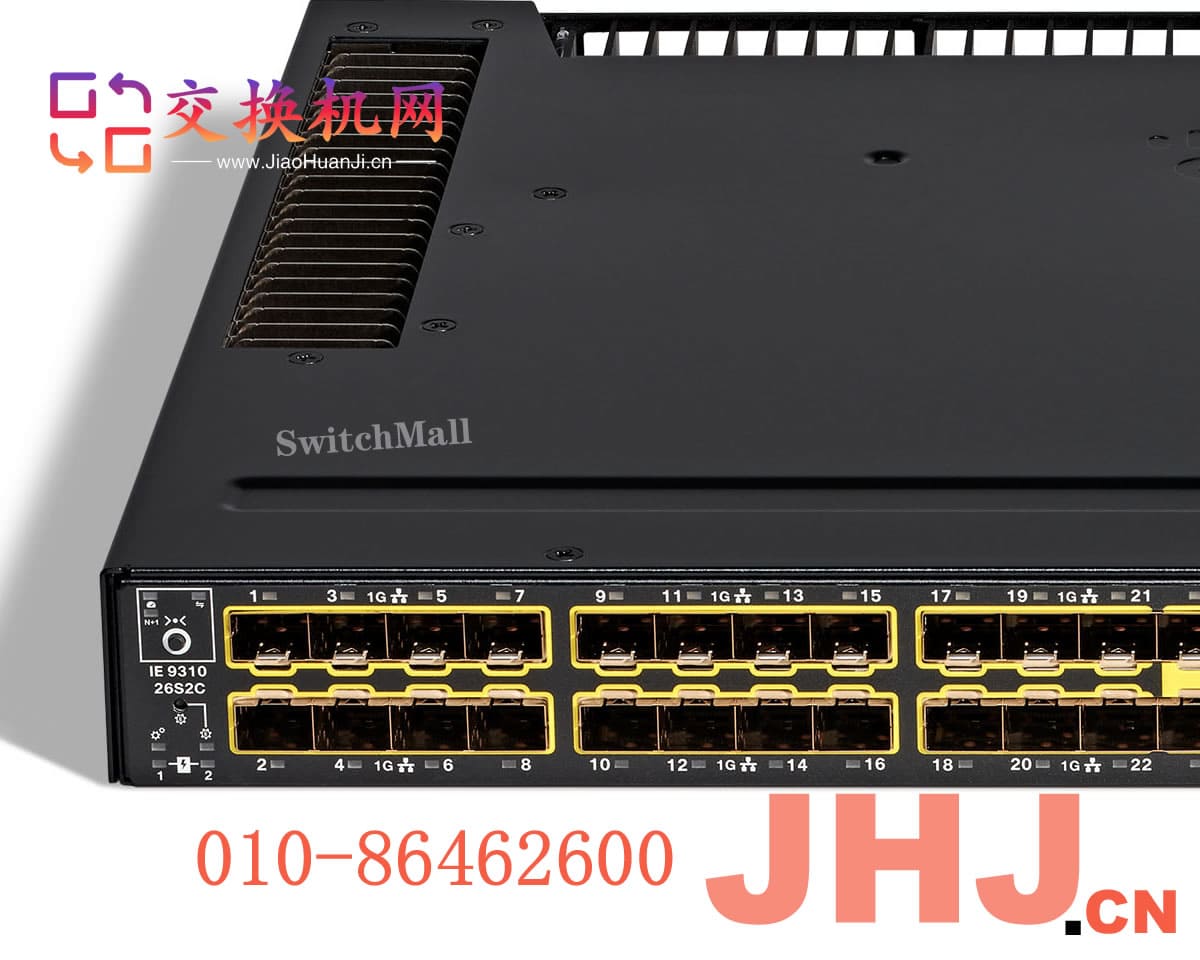

图1。

IE-9310-26S2C开关

图 2.

具有高级功能集的 IE-9320-26S2C 交换机

图 3.

IE-9320-22S2C4X 交换机具有高级功能集，包括支持 GPS/IRIG-B 输入

图 4.

IE-9320-24P4S 交换机

图 5.

IE-9320-24T4X 交换机

图 6.

IE-9320-24P4X 交换机

图 7.

IE-9320-16P8U4X 多千兆位和 4PPoE 交换机

catalyst-ie9300-rugged-series-ds 下载

Ordering information

Product ID	Description
IE-9310-26S2C-E	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE
IE-9310-26S2C-A	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NA
IE-9320-26S2C-E	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NE
IE-9320-26S2C-A	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NA
IE-9320-22S2C4X-E	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-22S2C4X-A	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
IE-9320-24P4S-E¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports GE SFP uplinks, Stackable, NE
IE-9320-24P4S-A¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports GE SFP uplinks, Stackable, NA
IE-9320-24T4X-E¹	Catalyst IE9300 w/ 24 Ports GE Cu Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-24T4X-A¹	Catalyst IE9300 w/ 24 Ports GE Cu Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
IE-9320-24P4X-E¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-24P4X-A¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
IE-9320-16P8U4X-E¹	Catalyst IE9300 w/ 16 Ports GE PoE+ and 8 Ports 2.5G 4PPoE Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-16P8U4X-A¹	Catalyst IE9300 w/ 16 Ports GE PoE+ and 8 Ports 2.5G 4PPoE Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
SD-IE-4GB=	4GB SD memory card for IE
CAB-STK-0.5M=	Cisco 0.5M stack cable
CAB-STK-1M=	Cisco 1M stack cable
RM-RGD-19IN=	Spare 19IN rack-mount kit
RM-RGD-23IN=	23IN NEBS rack-mount kit
RM-RGD-ETSI=	ETSI rack-mount kit
PWR-RGD-AC-DC-H	Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC
PWR-RGD-LOW-DC-H	Hazloc Power Supply Low DC 24-60V/10A
PWR-RGD-AC-DC-250	Hazloc Power Supply 100-240VAC/100-250VDC
PWR-RGD-AC-DC-400¹	Hazloc Power Supply 100-240VAC/100-250VDC, 400W
IE9300-NW-A=	Network Advantage License for IE9300, Perpetual
IE9300-DNA-E	Cisco DNA Essentials license for IE9300 Series
IE9300-DNA-E-3Y	IE 9300 Cisco DNA Essentials, 3 Year Term license
IE9300-DNA-E-5Y	IE 9300 Cisco DNA Essentials, 5 Year Term license
IE9300-DNA-E-7Y	IE 9300 Cisco DNA Essentials, 7 Year Term license
IE9300-DNA-A	Cisco DNA Advantage license for IE9300 Series
IE9300-DNA-A-3Y	IE 9300 Cisco DNA Advantage, 3 Year Term license
IE9300-DNA-A-5Y	IE 9300 Cisco DNA Advantage, 5 Year Term license
IE9300-DNA-A-7Y	IE 9300 Cisco DNA Advantage, 7 Year Term license

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 789
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 871
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 819
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 818
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 614
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 631
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

官方描述：IE-9310-26S2C-E Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

Product specifications

Table 3 highlights the hardware configuration for Cisco Catalyst IE9300 Rugged Series switches.

Table 3. Hardware configurations

Product number	Total ports	Downlinks	Uplinks(SFP/SFP+)	Software license (default)
IE-9310-26S2C-E	28	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)	4 ports 1000M	Network Essentials
IE-9310-26S2C-A	28	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)	4 ports 1000M	Network Advantage
IE-9320-26S2C-E	28	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)	4 ports 100/1000M	Network Essentials
IE-9320-26S2C-A	28	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)	4 ports 100/1000M	Network Advantage
IE-9320-22S2C4X-E	28	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)	4 ports 1/10G	Network Essentials
IE-9320-22S2C4X-A	28	22 ports 100/1000M SFP and 2 ports Dual-Media (100/1000M SFP or 10/100/1000M RJ45)	4 ports 1/10G	Network Advantage
IE-9320-24P4S-E	28	24 ports 10/100/1000M RJ45 PoE+	4 ports 1000M	Network Essentials
IE-9320-24P4S-A	28	24 ports 10/100/1000M RJ45 PoE+	4 ports 1000M	Network Advantage
IE-9320-24T4X-E	28	24 ports 10/100/1000M RJ45	4 ports 1/10G	Network Essentials
IE-9320-24T4X-A	28	24 ports 10/100/1000M RJ45	4 ports 1/10G	Network Advantage
IE-9320-24P4X-E	28	24 ports 10/100/1000M RJ45 PoE+	4 ports 1/10G	Network Essentials
IE-9320-24P4X-A	28	24 ports 10/100/1000M RJ45 PoE+	4 ports 1/10G	Network Advantage
IE-9320-16P8U4X-E	28	16 ports 10/100/1000M PoE+ and 8 ports 100/1000/2500M 4PPoE (up to 90W/port)	4 ports 1/10G	Network Essentials
IE-9320-16P8U4X-A	28	16 ports 10/100/1000M PoE+ and 8 ports 100/1000/2500M 4PPoE (up to 90W/port)	4 ports 1/10G	Network Advantage

Tables 4 and 5 highlight the hardware specifications for the Cisco Catalyst IE9300 Rugged Series switches.

Table 4. Hardware specifications

Hardware specification	IE-9310-26S2C -E/-A	IE-9320-26S2C -E/-AIE-9320-22S2C4X-E/-AIE-9320-24P4S-E/-AIE-9320-24T4X-E/-AIE-9320-24P4X-E/-AIE-9320-16P8U4X-E/-A
Hardware	4-GB DRAM8-GB onboard flash memory¹	4-GB DRAM8-GB onboard flash memory¹
Removable storage	USB^2,3, SD card²	USB^2,3, SD card²
Alarms	4 dry-contact alarm inputs1 dry-contact Form-C relay alarm output	4 dry-contact alarm inputs1 dry-contact Form-C relay alarm output
Console ports	1 RS-232 (via RJ-45), 1 Micro USB	1 RS-232 (via RJ-45), 1 Micro USB
Power inputs	Dual AC/DC power inputs	Dual AC/DC power inputs
Cisco StackWise^® ports	–	2 stacking ports

¹ User-accessible flash memory is approximately 2.5 GB.

² The SD card and USB are optional and are not shipped by default with the switch.

³ USB 2.0 to load system images and set configurations.

Table 5. Physical configurations

Product number	Dimensions (H x W x D)	Weight¹	Mounting	Power consumption²
IE-9310-26S2C-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H	12.2 lb(5.53 kg)	Rack mount	61W
IE-9320-26S2C-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H	12.2 lb(5.53 kg)	Rack mount	64W
IE-9320-22S2C4X-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H	12.7 lb(5.76 kg)	Rack mount	73W
IE-9320-24P4S-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250● 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400	9.7 lb(4.4 kg)	Rack mount	37W
IE-9320-24T4X-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H	9.5 lb(4.3 kg)	Rack mount	35W
IE-9320-24P4X-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250● 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400	9.7 lb(4.4 kg)	Rack mount	39W
IE-9320-16P8U4X-E/-A	● 1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H● 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250● 1.72 x 17.5 x 15.57 in. with PWR-RGD-AC-DC-400	9.9 lb(4.5 kg)	Rack mount	45W

¹ Chassis only (does not include power supplies or blank cover).

² System power consumption is indicative only and will depend on multiple factors:

● The type and number of Small Form-Factor Pluggable (SFP) modules used.

● The type and efficiency of the power supply used.

● The number of power supplies: One power supply versus two power supplies used in the system.

Table 6 highlights the performance and scalability features of the Cisco Catalyst IE9300 Rugged Series switches.

Table 6. Performance and scalability features

Feature	IE-9310-26S2C -E/-A	IE-9320-26S2C -E/-AIE-9320-24P4S-E/-A	IE-9320-22S2C4X-E/-AIE-9320-24T4X-E/-AIE-9320-24P4X-E/-A	IE-9320-16P8U4X-E/-A
Forwarding rate	28 Gbps (line rate/nonblocking)	28 Gbps (line rate/nonblocking)	64 Gbps (line rate/nonblocking)	76 Gbps (line rate/nonblocking)
Switching bandwidth	56 Gbps (switching bandwidth is full-duplex capacity)	56 Gbps (switching bandwidth is full-duplex capacity)	128 Gbps (switching bandwidth is full-duplex capacity)	152 Gbps (switching bandwidth is full-duplex capacity)
Number of queues / port	8 egress	8 egress	8 egress	8 egress
Unicast MAC addresses	16,000	16,000	16,000	16,000
Internet Group Management Protocol (IGMP) multicast groups	1000	1000	1000	1000
VLANs	1024	1024	1024	1024
IPv4 indirect routes	4000	4000	4000	4000
IPv6 indirect routes	2000	2000	2000	2000
Spanning Tree Protocol (STP) instances	128	128	128	128
Access Control List (ACL) entries (port ACL [PACL], VLAN ACL [VACL], router ACL [RACL])	1408	1408	1408	1408
DRAM	4 GB	4 GB	4 GB	4 GB
Flash (user accessible)	2.5 GB	2.5 GB	2.5 GB	2.5 GB
SD card capacity¹	4 GB	4 GB	4 GB	4 GB
SD Access Fabric Edge Support	Yes (32 VNs)	Yes (32 VNs)	Yes (32 VNs)	Yes (32 VNs)
SGT/DGT policies	2000	2000	2000	2000
IPv4 to SGT binding	10000	10000	10000	10000
Maximum SVIs	984	984	984	984
SXP Sessions	200	200	200	200

¹ The SD card is optional and is not shipped by default with the switch.

Table 7 highlights the power supply options for the Cisco Catalyst IE9300 Rugged Series switches.

Table 7. Power supply options

Product number	Wattage	Rated nominal input operating range	Supported input voltage operating range	Use case scenario
PWR-RGD-LOW-DC-H	150W	DC 24-60V/10A	DC 18-75V	Low-voltage DC power sourceCompliant for use in hazardous locations
PWR-RGD-AC-DC-H	150W	AC 100-240V/2.0A 50-60 HzorDC 100-250V/2.0A	AC 85-264VorDC 88-300V	High-voltage AC or DC power source.Compliant for use in hazardous locations
PWR-RGD-AC-DC-250	250W	AC 100-240V 3.3A 50-60 HzorDC 100-250V 3.3A	AC 85-264VorDC 88-300V	High-voltage AC or DC power sourceCompliant for use in hazardous locations
PWR-RGD-AC-DC-400¹	400W	AC 100-240V 3.3A 50-60 HzorDC 100-250V 3.3A	AC 85-264VorDC 88-300V	High-voltage AC or DC power sourceCompliant for use in hazardous locations

¹ Target shipment September 2023 onwards.

Table 8 highlights the PoE capability of the Cisco Catalyst IE9300 Rugged Series switches.

Table 8. Available power¹ budget for PoE/PoE+ with different power supply wattage

Product number	150W	150W (dual)	250W	250W + 150W	250W (dual)	400W	400W (dual)
IE-9320-24P4S-E/-A	70W	190W	170W	280W	370W	320W	385W
IE-9320-24P4X-E/-A	70W	190W	170W	280W	370W	320W	720W
IE-9320-16P8U4X-E/-A	70W	190W	170W	280W	370W	320W	720W

¹150W and 250W Power Supplies cannot be used with the 400W Power Supply in a load sharing configuration.

Tables 9 and 10 highlight the software features supported by the Cisco Catalyst IE9300 Rugged Series switches.

Table 9. Key supported software features (Network Essentials license)

Network Essentials license (perpetual)	Features
Layer 2 switching	802.1Q, 802.1w, 802.1ab, 802.1s, 802.3ad, Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Remote Switched Port Analyzer (RSPAN), Switched Port Analyzer (SPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Layer 2 Tunneling Protocol (L2TP), Q-in-Q, Selective Q-in-Q, EtherChannel
Multicast	IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping
Management	WebUI, MIB, Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, Embedded Event Manager (EEM), Cisco Plug and Play (PnP), Express Setup
Security	DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, Flexible NetFlow, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP), IEEE 802.1AE MACsec-128, TLS 1.3
Quality of Service (QoS)	802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, egress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing
Layer 3 routing	Static routing, Open Shortest Path First (OSPF), OSPFv3, Routing Information Protocol (RIP), Policy-Based Routing (PBR)
Industrial Ethernet	Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 2017), Network Time Protocol (NTP) to PTP, Bidirectional Forwarding Detection (BFD), PTP as refclock for NTP, PROFINET support, Common Industrial Protocol (CIP) Support, Cisco IOx support, Layer 2 Network Address Translation (L2 NAT)
Redundancy	Resilient Ethernet Protocol (REP) ring, REP Fast, HSR^1,2, PRP², MRP¹, PTP over PRP²
Automation	YANG, NETCONF, RESTCONF

¹ Support planned with future software updates.

² Supported on the IE-9320-26S2C-E/-A and IE-9320-22S2C4X-E/-A only.

Table 10. Key supported software features (Network Advantage license)

Network Advantage license (perpetual)¹	Features
IP routing protocols	Hot Standby Router Protocol (HSRP), Border Gateway Protocol (BGP), Enhanced Interior Gateway Routing Protocol (EIGRP), Intermediate System-to-Intermediate System (IS-IS), Nonstop Forwarding (NSF), LISP
Virtualization	VRF-lite
Security	Cisco TrustSec^®: Security group ACL (SGACL), SGACL logging, Extensible Authentication Protocol – Transport Layer Security (EAP-TLS), IEEE 802.1AE MACsec-256^, SD-Access Policy Extended Node, SD-Access Fabric Edge Node
IP Multicast	Auto-RP, Multicast Source Discovery Protocol (MSDP), Protocol Independent Multicast (PIM) v2, IPv6 Multicast with VRF-lite support
Industrial Ethernet	Layer 3 Network Address Translation (L3 NAT)

¹ Network Advantage license includes all Network Essentials features.

Table 11 highlights the details of Cisco DNA Essentials and Cisco DNA Advantage licenses for the IE9300 Rugged Series switches.

Table 11. Cisco DNA Essentials and Cisco DNA Advantage licenses

Feature	Description	Cisco DNA Essentials²	Cisco DNA Advantage^1,2
Cisco DNA Center	Discovery, topology, inventory, software image management	Yes	Yes
Visibility	Overall Health Dashboard, Full Flexible Netflow	Yes	Yes
Day-zero network bring-up automation	Cisco Network Plug-and-Play application	Yes	Yes
SD-Access Extended Node	SD-Access fabric overlay extension	Yes	Yes
LAN Automation	Lan automation helps create error-free underlay network for SDA deployments	No	Yes
SD-Access Policy Extended Node	SD-Access fabric overlay extension and segmentation	No	Yes
SD-Access Fabric Edge Node	A fabric device that connects wired endpoints to the SDA fabric.	No	Yes
Device 360	Device 360, Client 360, and Network Health Insights	No	Yes
Patch/SMU Lifecycle Management	Management of Software Maintenance Upgrades (SMU) or Patches via Cisco DNA Centre	No	Yes
Application Visibility and Control (NBAR2)	Provides application-level classification, monitoring, and traffic control	No	Yes

¹ Cisco DNA Advantage license can be paired only with the Network Advantage license.

² Cisco DNA licenses for Industrial Ethernet switches are add-on/optional and not mandatory. They do not include Network Tier features.

Table 12 highlights the compliance specifications for the Cisco Catalyst IE9300 Rugged Series switches.

Table 15. SFP support

Part number	Specification	SFP type	Max distance	Cable type	Temperature range¹	Digital optical monitoring (DOM) support
GLC-FE-100FX-RGD=	100BASE-FX	FE	2 km	MMF	IND	Yes
GLC-FE-100LX-RGD=	100BASE-LX10	FE	10 km	SMF	IND	Yes
GLC-FE-100FX=	100BASE-FX	FE	2 km	MMF	COM	No
GLC-FE-100LX=	100BASE-LX10	FE	10 km	SMF	COM	No
GLC-FE-100EX=	100BASE-EX	FE	40 km	SMF	COM	No
GLC-FE-100ZX=	100BASE-ZX	FE	80 km	SMF	COM	No
GLC-FE-100BX-D=	100BASE-BX10	FE	10 km	SMF	COM	No
GLC-FE-100BX-U=	100BASE-BX10	FE	10 km	SMF	COM	Yes
GLC-SX-MM-RGD=	1000BASE-SX	GE	550 m	MMF	IND	Yes
GLC-LX-SM-RGD=	1000BASE-LX/LH	GE	550 m/10 km	MMF/SMF	IND	Yes
GLC-ZX-SM-RGD=	1000BASE-ZX	GE	70 km	SMF	IND	Yes
GLC-BX40-U-I=	1000BASE-BX40	GE	40 km	SMF	IND	Yes
GLC-BX40-D-I=	1000BASE-BX40	GE	40 km	SMF	IND	Yes
GLC-BX80-U-I=	1000BASE-BX80	GE	80 km	SMF	IND	Yes
GLC-BX80-D-I=	1000BASE-BX80	GE	80 km	SMF	IND	Yes
GLC-SX-MMD=	1000BASE-SX	GE	550 m	MMF	EXT	Yes
GLC-LH-SMD=	1000BASE-LX/LH	GE	550 m/10 km	MMF/SMF	EXT	Yes
GLC-EX-SMD=	1000BASE-EX	GE	40 km	SMF	EXT	Yes
GLC-ZX-SMD=	1000BASE-ZX	GE	70 km	SMF	EXT	Yes
GLC-BX-D=	1000BASE-BX10	GE	10 km	SMF	COM	Yes
GLC-BX-U=	1000BASE-BX10	GE	10 km	SMF	COM	Yes
CWDM-SFP-xxxx=	CWDM 1000BASE-X	GE		SMF	COM	Yes
DWDM-SFP-xxxx=	DWDM 1000BASE-X	GE		SMF	COM	Yes
SFP-GE-S=	1000BASE-SX	GE	550 m	MMF	EXT	Yes
SFP-GE-L=	1000BASE-LX/LH	GE	550 m/10 km	MMF/SMF	EXT	Yes
SFP-GE-Z=	1000BASE-ZX	GE	70 km	SMF	EXT	Yes
GLC-SX-MM=	1000BASE-SX	GE	550 m	MMF	COM	No
GLC-LH-SM=	1000BASE-LX/LH	GE	550 m/10 km	MMF/SMF	COM	No
GLC-ZX-SM=	1000BASE-ZX	GE	70 km	SMF	COM	Yes
GLC-TE=²	1000BASE-T	GE	100 m	Copper	EXT	NA
GLC-T=²	1000BASE-T	GE	100 m	Copper	COM	NA
GLC-T-RGD=²	1000BASE-T	GE	100 m	Copper	IND	NA
ONS-SI-GE-SX=	1000BASE-SX	GE	500 m	MMF	IND
ONS-SI-GE-LX=	1000BASE-LX	GE	10 km	SMF	IND
ONS-SI-GE-EX=	1000BASE-EX	GE	40 km	SMF	IND
ONS-SI-GE-ZX=	1000BASE-ZX	GE	80 km	SMF	IND
ONS-SE-GE-BXU=	1000BASE-BX	GE	10 km	SMF	EXT
ONS-SE-GE-BXD=	1000BASE-BX	GE	10 km	SMF	EXT
GLC-BX-U-I=	1000BASE-BX	GE	10 km	SMF	IND
GLC-BX-D-I=	1000BASE-BX	GE	10 km	SMF	IND
SFP-10G-BXD-I=	10GBASE-BX	10G	10 km	SMF	IND	Yes
SFP-10G-BXU-I=	10GBASE-BX	10G	10 km	SMF	IND	Yes
SFP-10G-BX40D-I=	10GBASE-BX	10G	40 km	SMF	IND	Yes
SFP-10G-BX40U-I=	10GBASE-BX	10G	40 km	SMF	IND	Yes
SFP-10G-SR-X=	10GBASE-SR	10G	400 m	MMF	EXT	Yes
SFP-10G-SR-I=	10GBASE-SR	10G	400 m	MMF	EXT	Yes
SFP-10G-LR-X=	10GBASE-LR	10G	10 km	SMF	EXT	Yes
SFP-10G-SR=	10GBASE-SR	10G	400 m	MMF	COM	Yes
SFP-10G-LR=	10GBASE-LR	10G	10 km	SMF	COM	Yes
SFP-10G-ER=	10GBASE-ER	10G	40 km	SMF	COM	Yes
SFP-10G-ZR=	10GBASE-ZR	10G	80 km	SMF	COM	Yes
SFP-H10GB-CUxM=	Twinax Cable	10G	1m, 3m, 5m	–	COM	–
SFP-H10GB-ACUxM=	Twinax Cable	10G	7m, 10m	–	COM	–
ONS-SI+-10G-SR=	10GBASE-SR	10G	400 m	MMF	IND	Yes
ONS-SI+-10G-LR=	10GBASE-LR	10G	10 km	SMF	IND	Yes
ONS-SI+-10G-ER=	10GBASE-ER	10G	40 km	SMF	IND	Yes
ONS-SI+-10G-ZR=	10GBASE-ZR	10G	80 km	SMF	IND	Yes
SFP-10G-ER-I=	10GBASE-ER	10G	40 km	SMF	IND	Yes
SFP-10G-ZR-I=	10GBASE-ZR	10G	80 km	SMF	IND	Yes
SFP-10G-T-X=	10GBASE-T	10G	30 m	Copper	EXT	NA
SFP-10G-LR10-I=	10GBASE-LR	10G	10 km	SMF	IND	Yes
DWDM-SFP10G-xxxx=	DWDM 10GBASE-X	10G		SMF	COM	Yes
CWDM-SFP10G-xxxx=	CWDM 10GBASE-X	10G		SMF	COM	Yes

¹ If nonindustrial SFPs (EXT, COM) are used, the switch operating temperature must be derated.

² Degrades PTP performance.

Ordering information

Table 16 lists the ordering information for the Cisco Catalyst IE9300 Rugged Series switches.

Table 16. Ordering information

Product ID	Description

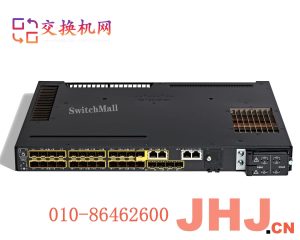

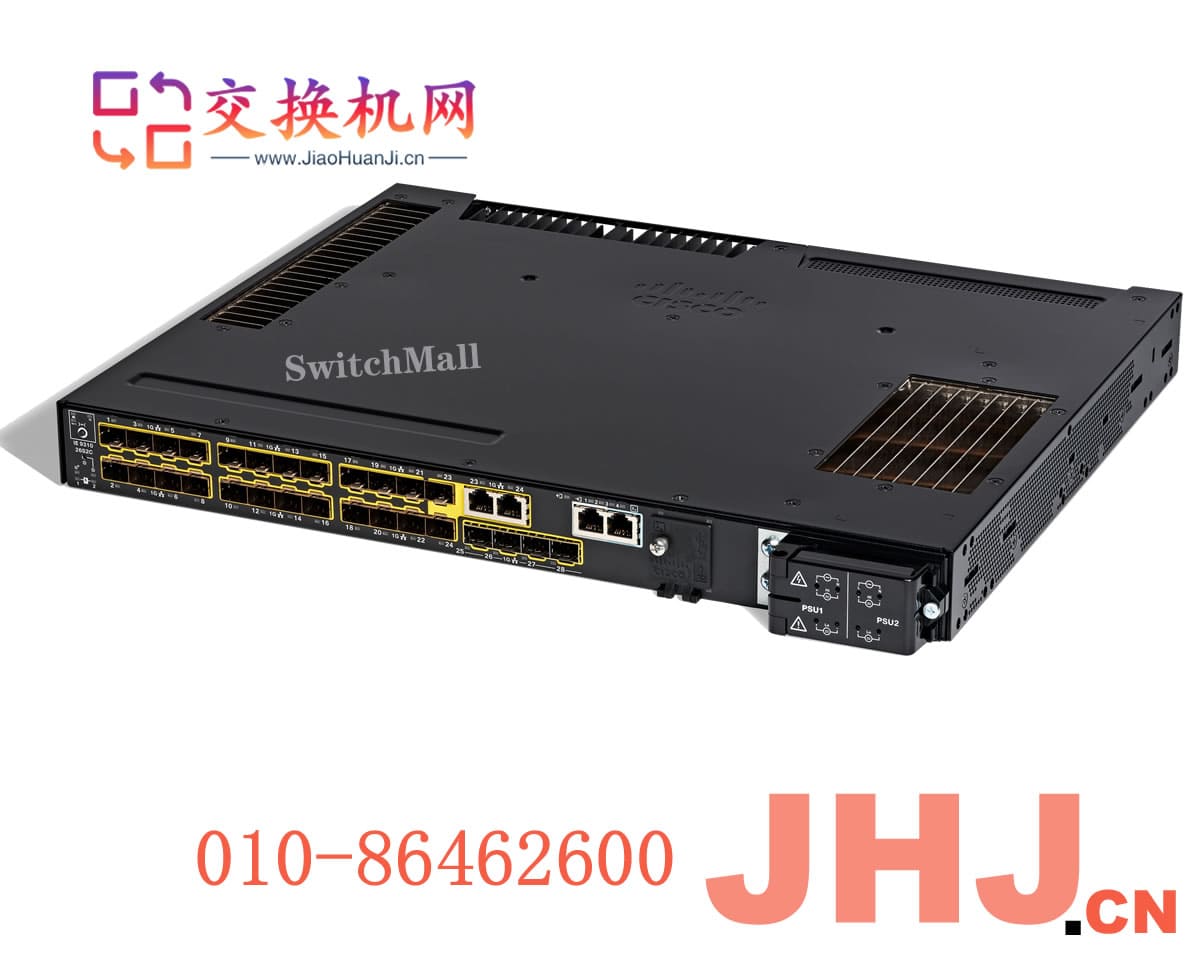

IE-9310-26S2C-E	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NE

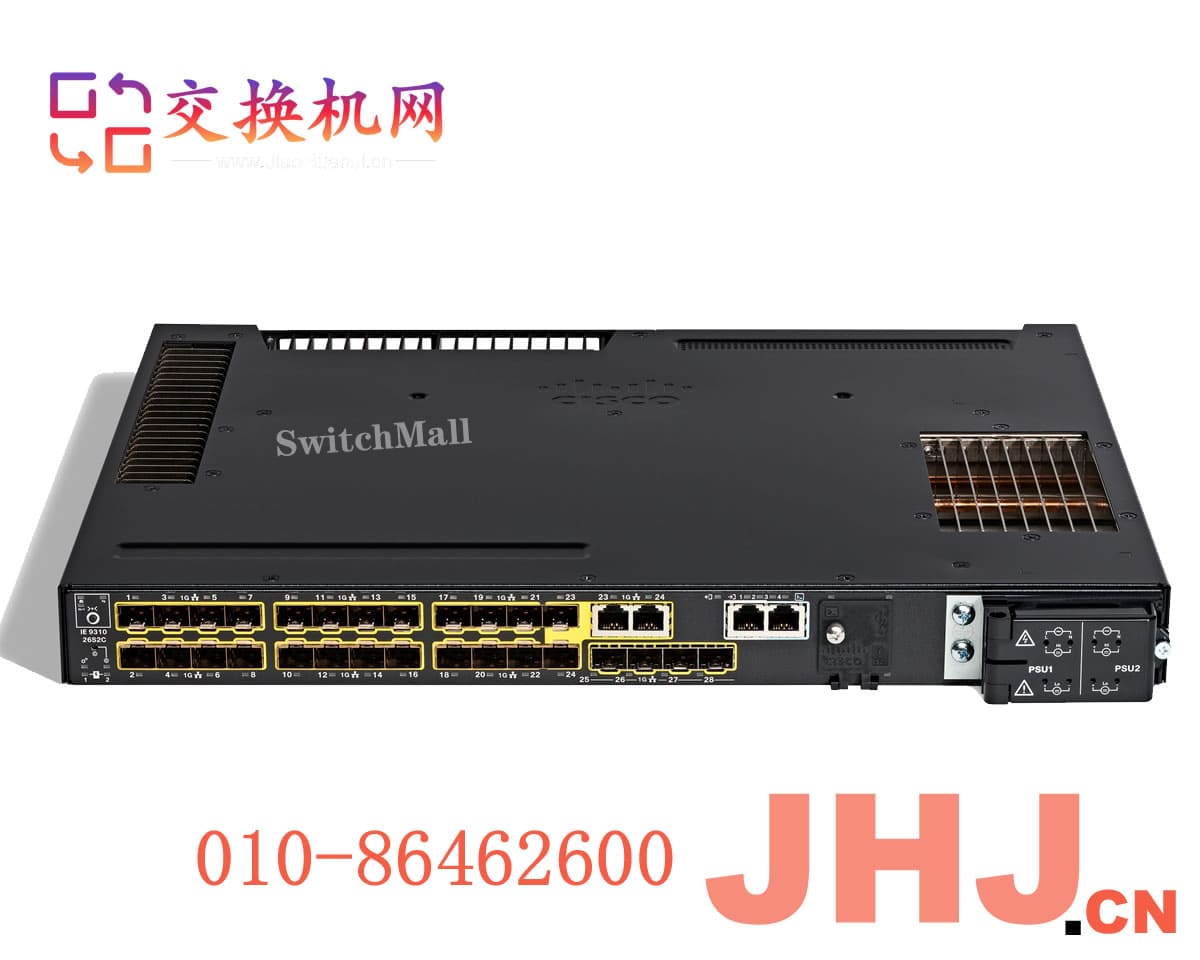

IE-9310-26S2C-A	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, NA

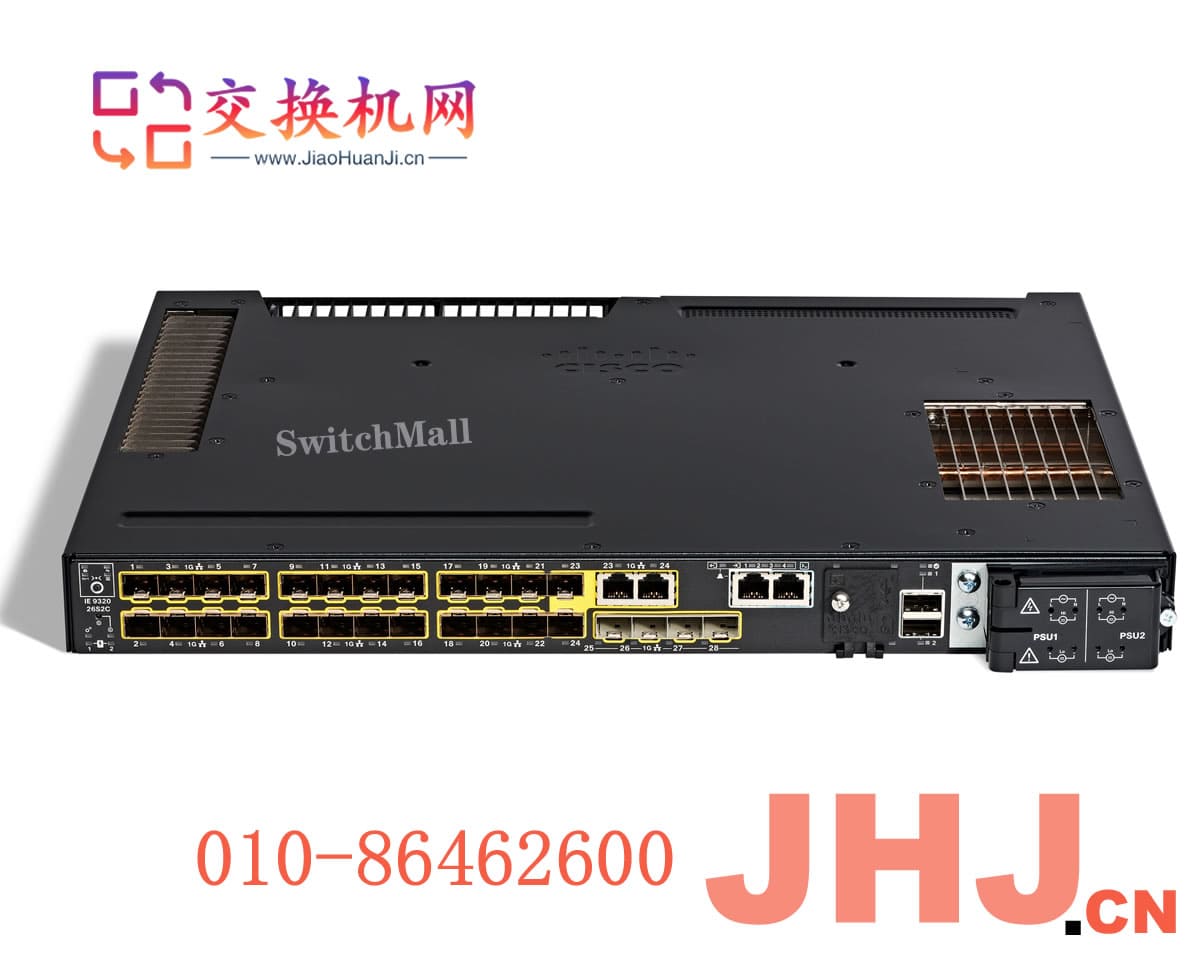

IE-9320-26S2C-E	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NE
IE-9320-26S2C-A	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports GE SFP uplinks, Stackable, NA
IE-9320-22S2C4X-E	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-22S2C4X-A	Catalyst IE9300 w/ 24 Ports GE SFP Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
IE-9320-24P4S-E¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports GE SFP uplinks, Stackable, NE
IE-9320-24P4S-A¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports GE SFP uplinks, Stackable, NA
IE-9320-24T4X-E¹	Catalyst IE9300 w/ 24 Ports GE Cu Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-24T4X-A¹	Catalyst IE9300 w/ 24 Ports GE Cu Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
IE-9320-24P4X-E¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-24P4X-A¹	Catalyst IE9300 w/ 24 Ports GE PoE+ Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
IE-9320-16P8U4X-E¹	Catalyst IE9300 w/ 16 Ports GE PoE+ and 8 Ports 2.5G 4PPoE Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NE
IE-9320-16P8U4X-A¹	Catalyst IE9300 w/ 16 Ports GE PoE+ and 8 Ports 2.5G 4PPoE Downlinks and 4 Ports 10G SFP+ uplinks, Stackable, NA
SD-IE-4GB=	4GB SD memory card for IE
CAB-STK-0.5M=	Cisco 0.5M stack cable
CAB-STK-1M=	Cisco 1M stack cable
RM-RGD-19IN=	Spare 19IN rack-mount kit
RM-RGD-23IN=	23IN NEBS rack-mount kit
RM-RGD-ETSI=	ETSI rack-mount kit
PWR-RGD-AC-DC-H	Hazloc Power Supply High AC/DC 85-264VAC/88-300VDC
PWR-RGD-LOW-DC-H	Hazloc Power Supply Low DC 24-60V/10A
PWR-RGD-AC-DC-250	Hazloc Power Supply 100-240VAC/100-250VDC
PWR-RGD-AC-DC-400¹	Hazloc Power Supply 100-240VAC/100-250VDC, 400W
IE9300-NW-A=	Network Advantage License for IE9300, Perpetual
IE9300-DNA-E	Cisco DNA Essentials license for IE9300 Series
IE9300-DNA-E-3Y	IE 9300 Cisco DNA Essentials, 3 Year Term license
IE9300-DNA-E-5Y	IE 9300 Cisco DNA Essentials, 5 Year Term license
IE9300-DNA-E-7Y	IE 9300 Cisco DNA Essentials, 7 Year Term license
IE9300-DNA-A	Cisco DNA Advantage license for IE9300 Series
IE9300-DNA-A-3Y	IE 9300 Cisco DNA Advantage, 3 Year Term license
IE9300-DNA-A-5Y	IE 9300 Cisco DNA Advantage, 5 Year Term license
IE9300-DNA-A-7Y	IE 9300 Cisco DNA Advantage, 7 Year Term license

¹Target shipment September 2023 onwards

catalyst-ie9300-rugged-series-ds 下载

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

IOS软件,3C证书,检测报告,操作手册,安装手册,命令手册,产品教程,配置教程，一对一指导

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 789
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 871
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 819
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 818
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 614
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 631
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
