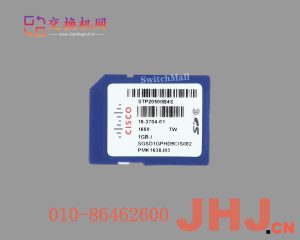

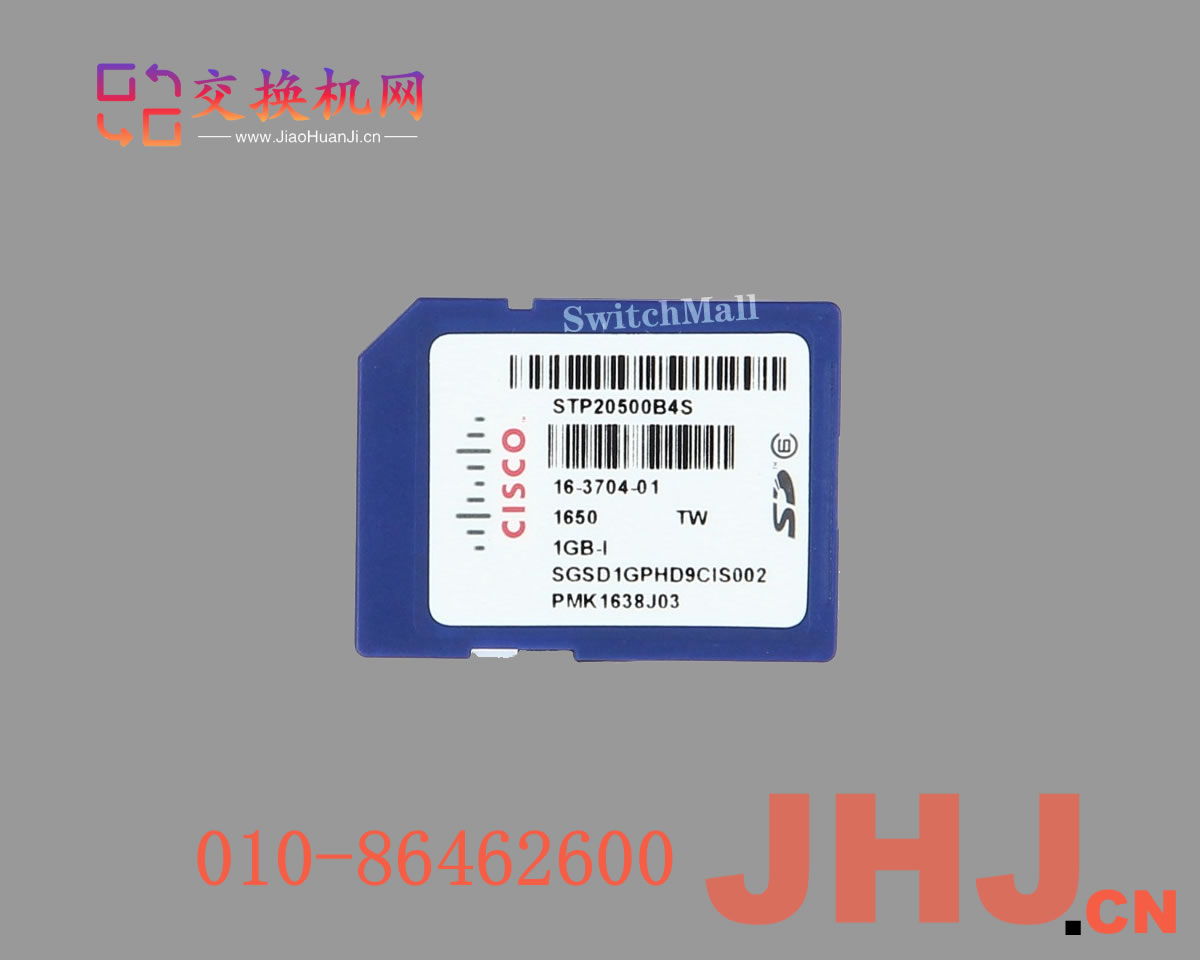

SD-IE-1GB= 1GB SD memory card for IE

思科工业交换机存储模块

设备品牌:思科(Cisco)
所属系列:配件-存储模块
适用产品:IE3100 Rugged Series
型号SKU:SD-IE-1GB=
存储容量:1 GB
采购电话:010-8646 2600
模块选择SD-IE-1GB=,Cisco Catalyst IE3100 Rugged Series,工业交换机存储模块,SD-IE-1GB=, I1GB SD memory card for IE

Industrial Ethernet Switches Cisco Catalyst IE3100 Rugged Series IE 3100 Cisco DNA Essentials IE 3100 Cisco DNA Essentials license Cisco SD-IE-1GB=SD-IE-1GB=思科 SD-IE-1GB=思科Cisco Catalyst IE3100加固系列存储卡思科工业交换机存储模块

产品介绍

产品参数

资料下载

产品相册

官方描述：SD-IE-1GB= 1GB SD memory card for IE

Cisco Catalyst ^™IE3100 坚固型系列在紧凑、固定外形的交换机中提供了千兆位以太网连接的主流采用，该交换机专为空间最受限的场景中的各种扩展企业和工业应用而构建。

产品概述

Cisco Catalyst IE3100 坚固型系列交换机具有多达 20 个千兆位以太网接口，以紧凑的外形提供高速千兆位以太网连接，专为需要强化产品的各种工业应用而设计。该平台旨在承受制造、能源、交通、采矿、智能城市以及石油和天然气领域的恶劣环境。IE3100 非常适合配送中心、仓库和室外空间中空间有限的部署。

这些交换机运行 Cisco IOS ^® XE，这是一个具有内置安全性和信任功能的操作系统，具有安全启动、映像签名和 Cisco ^® Trust Anchor 模块。Cisco IOS XE 还提供具有开放 API 和数据模型的 API 驱动配置。

Cisco Catalyst IE3100 坚固型系列可以使用功能强大的管理工具 Cisco DNA Center 进行管理，并且可以使用完全重新设计的用户友好型现代 GUI 工具（称为 WebUI）轻松进行设置。

IE3100 坚固型系列交换机提供：

● 提供 6、10、12 或 20 个千兆位以太网端口以及最多 4 个千兆位 SFP 上行链路端口或 2 个千兆位组合上行链路端口的型号

● 通过介质冗余协议 (MRP)、弹性以太网协议 (REP) 和双输入直流电源等功能实现强大的弹性

● 使用通用映像简化软件管理

● 支持工业自动化协议 EtherNet/IP (CIP)、Modbus 和 PROFINET

● 支持二层网络地址转换¹

¹仅在 IE-3105 变体上受支持。

图1。

IE-3100 坚固型系列交换机型号

图 2.

具有增强功能集的 IE-3105 坚固型系列交换机型号

特点和优点

表 1. 特性和优点

特征	好处
稳健的工业设计	● 专为恶劣环境和温度范围（-40° 至 75°C / -40° 至 167°F）而设计● 无风扇、对流冷却且无移动部件，可延长耐用性● 针对振动、冲击和浪涌以及电噪声进行了硬化处理● 符合自动化、智能运输系统 (ITS) 和变电站环境的多行业规范 ● 提高工业系统和设备的正常运行时间、性能和安全性● IEEE 1588v2 精确定时协议 (PTP)（支持公用事业的功率配置文件和制造的默认配置文件）● 报警I/O，用于监控并向外部设备发送信号
全千兆以太网交换机	● 多达 20 个千兆位以太网端口提供多种弹性设计选项● 为工业领域的新型高速应用提供安全访问● 允许基于IP 的监控和数据采集(SCADA) 连接● 为新网络配置提供多环、冗余环拓扑● 扩展需要长距离连接的地理可扩展性
冗余和弹性	● 弹性以太网协议(REP)● 介质冗余协议(MRP)
用户友好的网络用户界面	● 即使非专业人员也能轻松配置和监控● 无需更复杂的终端仿真程序● 降低部署成本
工业自动化协议	● EtherNet/IP (CIP)、Modbus、SCADA、GOOSE 和 PROFINET MRP (IEC 62439-2) 允许与 Rockwell、Siemens 等公司的现有管理平台集成。

catalyst-ie3100-rugged-series-ds 下载

Ordering information

Product ID	Description
IE-3100-4T2S-E	Catalyst IE3100 w/4 Ports GE Copper and 2 GE SFP uplinks, NE
IE-3100-8T2C-E	Catalyst IE3100 w/8 Ports GE Copper and 2 GE Combo uplinks, NE
IE-3100-8T4S-E	Catalyst IE3100 w/8 Ports GE Copper and 4 GE SFP uplinks, NE
IE-3100-18T2C-E	Catalyst IE3100 w/18 Ports GE Copper and 2 GE Combo uplinks, NE
IE-3105-8T2C-E	Catalyst IE3105 w/8 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NE
IE-3105-18T2C-E	Catalyst IE3105 w/18 Ports GE Copper and 2 GE Combo uplinks, Advanced features, NE
SD-IE-1GB=	1GB SD memory card for IE
SD-IE-4GB=	4GB SD memory card for IE
PWR-IE50W-AC=	50W AC to DC or High DC to DC Power Supply
PWR-IE50W-AC-L=	50W AC to DC Power Supply
PWR-IE50W-AC-IEC=	50W AC to DC Power Supply with IEC connector
PWR-IE65W-PC-AC=	65W AC to DC or High DC to DC Power Supply
PWR-IE65W-PC-DC=	65W Low DC to DC Power Supply
PWR-IE170W-PC- AC=	170W AC to DC or High DC to DC Power Supply
PWR-IE170W-PC- DC=	170W AC to DC or High DC to DC Power Supply
PWR-IE240W-PCAC-L=	240W AC to DC Power Supply
PWR-IE480W-PCAC-L=	480W AC to DC Power Supply
STK-RACK-DINRAIL=	19″ DIN Rail mount kit
IE3100-DNA-E-L	Cisco DNA Essentials license for IE3100 Series (up to 12 ports)
IE3100-DNA-E-L-1Y	IE3100 Cisco DNA Essentials (up to12 Ports), 1 Year Term license
IE3100-DNA-E-L-3Y	IE3100 Cisco DNA Essentials (up to 12 Ports), 3 Year Term license
IE3100-DNA-E-L-5Y	IE3100 Cisco DNA Essentials (up to 12 Ports), 5 Year Term license
IE3100-DNA-E-L-7Y	IE3100 Cisco DNA Essentials (up to 12 Ports), 7 Year Term license
IE3100-DNA-E-L-10Y	IE3100 Cisco DNA Essentials (up to 12 Ports), 10 Year Term license
IE3100-DNA-E-M	Cisco DNA Essentials license for IE3100 Series (up to 24 ports)
IE3100-DNA-E-M-1Y	IE3100 Cisco DNA Essentials (up to 24 Ports), 1 Year Term license
IE3100-DNA-E-M-3Y	IE3100 Cisco DNA Essentials (up to 24 Ports), 3 Year Term license
IE3100-DNA-E-M-5Y	IE3100 Cisco DNA Essentials (up to 24 Ports), 5 Year Term license
IE3100-DNA-E-M-7Y	IE3100 Cisco DNA Essentials (up to 24 Ports), 7 Year Term license
IE3100-DNA-E-M-10Y	IE3100 Cisco DNA Essentials (up to 24 Ports), 10 Year Term license

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 793
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 881
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 828
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 835
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 618
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 633
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

官方描述：SD-IE-1GB= 1GB SD memory card for IE

Table 2. Product feature sets

Product series	Platforms supported	Cisco IOS Software image (feature sets) supported
IE3100	IE-3100-4T2S-E	Network Essentials
	IE-3100-8T2C-E	Network Essentials
	IE-3100-8T4S-E	Network Essentials
	IE-3100-18T2C-E	Network Essentials
	IE-3105-8T2C-E	Network Essentials
	IE-3105-18T2C-E	Network Essentials

Product specifications

Table 3 highlights the hardware configuration for Cisco Catalyst IE3100 Rugged Series.

Table 3. Hardware configurations

Product number	Total ports	10/100/1000 Mbps RJ-45 ports (downlinks)	1G SFP fiber ports (uplinks)	1G combo ports (uplinks)	Software license
IE-3100-4T2S-E	6	4	2	0	Network Essentials
IE-3100-8T2C-E	10	8	0	2	Network Essentials
IE-3100-8T4S-E	12	8	4	0	Network Essentials
IE-3100-18T2C-E	20	18	0	2	Network Essentials
IE-3105-8T2C-E	10	8	0	2	Network Essentials
IE-3105-18T2C-E	20	18	0	2	Network Essentials

Tables 4 and 5 highlight the hardware specifications for the Cisco Catalyst IE3100 Rugged Series.

Table 4. Hardware specifications

Hardware specification	IE-3100- 4T2S-E	IE-3100- 8T2C-E	IE-3100- 8T4S-E	IE-3100-18T2C-E	IE-3105- 8T2C-E	IE-3105-18T2C-E
Removable storage	SD card¹	SD card¹	SD card¹	SD card¹	SD card¹	SD card¹
Alarms	2 dry-contact alarm inputs	2 dry-contact alarm inputs	2 dry-contact alarm inputs	2 dry-contact alarm inputs	2 dry-contact alarm inputs	2 dry-contact alarm inputs
Console ports	1 RS-232 (via RJ-45), 1 Micro USB	1 RS-232 (via RJ-45), 1 Micro USB	1 RS-232 (via RJ-45), 1 Micro USB	1 RS-232 (via RJ-45), 1 Micro USB	1 RS-232 (via RJ-45), 1 Micro USB	1 RS-232 (via RJ-45), 1 Micro USB
Power inputs	DC power inputs	DC power inputs	DC power inputs	DC power inputs	DC power inputs	DC power inputs

¹ The SD card is optional and not shipped by default with the switch.

Table 5. Physical configurations

Product number	Dimensions (H x W x D)	Weight	Mounting
IE-3100-4T2S-E	5.00 x 2.55 x 4.33 in. (12.70 x 6.48 x 11.00 cm)	1.6 lb (0.73 kg)¹	DIN Rail
IE-3100-8T2C-E	5.00 x 3.00 x 4.33 in. (12.70 x 7.62 x 11.00 cm)	1.9 lb (0.86 kg)¹	DIN Rail
IE-3100-8T4S-E	5.00 x 3.00 x 4.33 in. (12.70 x 7.62 x 11.00 cm)	1.9 lb (0.86 kg)¹	DIN Rail
IE-3100-18T2C-E	5.00 x 4.30 x 5.08 in (12.70 x 10.92 x 12.90 cm)	2.8 lb (1.27 kg)¹	DIN Rail
IE-3105-8T2C-E	5.00 x 3.00 x 5.08 in. (12.70 x 7.62 x 12.90 cm)	2.3 lb (1.04 kg)¹	DIN Rail
IE-3105-18T2C-E	5.00 x 4.30 x 5.08 in. (12.70 x 10.92 x 12.90 cm)	2.8 lb (1.27 kg)¹	DIN Rail

Table 6 highlights power specifications for the Cisco Catalyst IE3100 Rugged Series.

Table 6. Power specifications

Product number	Input Voltage Range	Max Current during normal operation¹	Inrush Current¹	Power consumption^2,3,4
IE-3100-4T2S-E	12V to 48V nominal 9.6V to 60V absolute	1.6 A with 12V input 0.8 A with 24V input 0.4 A with 48V input	10 A for 7 ms with 12V input 6 A for 6 ms with 24V input 6 A for 6 ms with 48V input	14W
IE-3100-8T2C-E	12V to 48V nominal 9.6V to 60V absolute	2.0 A with 12V input 1.0 A with 24V input 0.5 A with 48V input	10 A for 7 ms with 12V input 6 A for 6 ms with 24V input 6 A for 6 ms with 48V input	17.7W
IE-3100-8T4S-E	12V to 48V nominal 9.6V to 60V absolute	2.0 A with 12V input 1.0 A with 24V input 0.5 A with 48V input	10 A for 7 ms with 12V input 6 A for 6 ms with 24V input 6 A for 6 ms with 48V input	17.8W
IE-3100-18T2C-E	12V to 48V nominal 9.6V to 60V absolute	4.2 A with 12V input 2.6 A with 24V input 1.3 A with 48V input	10 A for 7 ms with 12V input 6 A for 6 ms with 24V input 6 A for 6 ms with 48V input	36.7W
IE-3105-8T2C-E	12V to 48V nominal 9.6V to 60V absolute	3.2 A with 12V input 1.6 A with 24V input 0.8 A with 48V input	10 A for 7 ms with 12V input 6 A for 6 ms with 24V input 6 A for 6 ms with 48V input	28W
IE-3105-18T2C-E	12V to 48V nominal 9.6V to 60V absolute	4.2 A with 12V input 2.6 A with 24V input 1.3 A with 48V input	10 A for 7 ms with 12V input 6 A for 6 ms with 24V input 6 A for 6 ms with 48V input	36.7W

¹ Max Current and Inrush current should be used for sizing power supplies and electrical wiring.

² Power Consumption should be used for thermal load and battery capacity.

³ Power consumption varies with the local ambient temperature, the input voltage, and the number/type of active interfaces. Please see the IE-310x Power Estimator for more detailed power consumption.

⁴ For BTU/hr, please convert the Power Consumption watts to BTU/hr

Table 7 highlights the performance and scalability features of the Cisco Catalyst IE3100 Rugged Series.

Table 7. Performance and scalability features

Feature	Performance (IE-3100/IE-3105 Series)
Forwarding rate	Line rate for all ports and all packet sizes
Number of queues	8 egress
Unicast MAC addresses	8000
Internet Group Management Protocol (IGMP) multicast groups	512
VLANs	256
IPv4 indirect routes	2000
Spanning Tree Protocol (STP) instances	128
DRAM	4 GB
SD card capacity¹	1 GB, 4 GB

¹ SD card is optional and is not shipped by default with the switch.

Table 8 highlights the power supply options for the Cisco Catalyst IE3100 Rugged Series.

Table 8. Power supply options

Product number	Wattage	Rated nominal input operating range	More details
PWR-IE50W-AC=¹	50W	AC 100-240V/1.25A 50-60Hz orDC 125-250V/1.25A	For more details on these DIN rail power supplies, see the power supplies data sheet.Additional supported power supplies can be found in Table 15.
PWR-IE50W-AC-L=¹	50W	AC 100-240V/1.2A 50-60Hz

¹ The power supplies are not certified for smart grid and hazardous locations. These power supplies are IP20 rated.

² Power Supplies Datasheet Link: https://www.cisco.com/c/en/us/products/collateral/switches/industrial-ethernet-switches/datasheet-c78-742180.html

Tables 9 and 10 highlight the software features supported by the Cisco Catalyst IE3100 Rugged Series.

Table 9. Key supported software features (Network Essentials license)

Network Essentials license (perpetual)	Features
Layer 2 switching	802.1Q, 802.1w, 802.1ab, 802.1s, 802.3ad, Per-VLAN Rapid Spanning Tree (PVRST+), Per-VLAN Spanning Tree (PVST+), Rapid PVST (RPVST), Switch Port Analyzer (SPAN), Remote-SPAN (RSPAN), Flow-Based SPAN (FSPAN), STP, Storm Control, VLAN Trunk Protocol (VTP) v2/v3, 802.1Q Tunneling, Layer 2 Tunneling Protocol (L2TP), Q-in-Q, Selective Q-in-Q, EtherChannel
Multicast	IGMP v1/v2/v3, IGMP snooping, Multicast Listener Discovery (MLD) snooping
Management	WebUI, MIB, Simple Network Management Protocol (SNMP), syslog, Dynamic Host Configuration Protocol (DHCP) server, NETCONF, RESTCONF, Embedded Event Manager (EEM), Cisco Network Plug and Play (PnP), Express Setup
Security	DHCPv6 Guard, IP Source Guard, IPv6 Destination Guard, IPv6 Neighbor Discovery Multicast Suppress, IPv6 Router Advertisement (RA) Guard, IPv6 Snooping, IPv6 Source/Prefix Guard, IPv6 Neighbor Discovery Duplicate Address Detection, PACL, VACL, Network Edge Authentication Topology (NEAT), HTTPS, RADIUS, TACACS+, X.509v3, Secure Shell (SSH), DHCP Snooping, 802.1X, Client Information Signaling Protocol (CISP), Dynamic ARP Inspection (DAI), authentication, authorization, and accounting (AAA), Secure Copy Protocol (SCP)
Quality of Service (QoS)	802.1p, priority queuing, Modular QoS command-line interface (MQC), class-based shaping and marking, Ingress policing, egress queuing and shaping, Auto-QoS, Differentiated Services Code Point (DSCP) mapping and filtering, low-latency queuing
Layer 3 routing	Inter-VLAN routing, static routing
Industrial Ethernet	Locate Switch, Swap Drive, Generic Object-Oriented Substation Events (GOOSE) messaging, SCADA Protocol Classification, PTP (Default Profile, Power Profile 2011, Power Profile 2017²), Network Time Protocol (NTP) to PTP, Sampled Values
Redundancy	Resilient Ethernet Protocol (REP) ring, Media Redundancy Protocol (MRP)
Automation	YANG, NETCONF, RESTCONF
Industrial management	Layer 2 switching with 1:1 switching Network Address Translation (L2NAT)¹

¹ Supported on the IE-3105 variants only.

² Support planned with future software updates.

Table 10 highlights the details of Cisco DNA Essentials for the IE3100 Rugged Series.

Table 10. Cisco DNA Essentials license

Feature	Description	Cisco DNA Essentials¹
Cisco DNA Center	Discovery, topology, inventory, software image management	Yes
Visibility	Overall Health dashboard	Yes
Day-zero network bring-up automation	Cisco Network Plug-and-Play application	Yes

¹ Cisco DNA licenses for Industrial Ethernet switches are add-on/optional and not mandatory. They do not include Network Tier features.

Table 11 highlights the compliance specifications for the Cisco Catalyst IE3100 Rugged Series.

Table 14. SFP support

Part number	Specification	SFP type	Max distance	Cable type	Temperature range	Digital optical monitoring (DOM) support
GLC-FE-100FX-RGD=	100BASE-FX	FE	2km	MMF	IND	Yes
GLC-FE-100LX-RGD	100BASE-LX10	FE	10km	SMF	IND	Yes
GLC-FE-100FX=	100BASE-FX	FE	2km	MMF	COM	No
GLC-FE-100LX=	100BASE-LX10	FE	10km	SMF	COM	No
GLC-FE-100EX=	100BASE-EX	FE	40km	SMF	COM	No
GLC-FE-100ZX=	100BASE-ZX	FE	80km	SMF	COM	No
GLC-FE-100BX-D=	100BASE-BX10	FE	10km	SMF	COM	No
GLC-FE-100BX-U=	100BASE-BX10	FE	10km	SMF	COM	Yes
GLC-SX-MM-RGD=	1000BASE-SX	GE	550m	MMF	IND	Yes
GLC-LX-SM-RGD=	1000BASE-LX/LH	GE	550m/10km	MMF/SMF	IND	Yes
GLC-ZX-SM-RGD=	1000BASE-ZX	GE	70km	SMF	IND	Yes
GLC-BX40-U-I=	1000BASE-BX40	GE	40km	SMF	IND	Yes
GLC-BX40-D-I=	1000BASE-BX40	GE	40km	SMF	IND	Yes
GLC-BX40-DA-I=	1000BASE-BX40	GE	40km	SMF	IND	Yes
GLC-BX80-U-I=	1000BASE-BX80	GE	80km	SMF	IND	Yes
GLC-BX80-D-I=	1000BASE-BX80	GE	80km	SMF	IND	Yes
GLC-SX-MMD=	1000BASE-SX	GE	550m	MMF	EXT	Yes
GLC-LH-SMD=	1000BASE-LX/LH	GE	550m/10km	MMF/SMF	EXT	Yes
GLC-EX-SMD=	1000BASE-EX	GE	40km	SMF	EXT	Yes
GLC-ZX-SMD=	1000BASE-ZX	GE	70km	SMF	EXT	Yes
GLC-BX-D=	1000BASE-BX10	GE	10km	SMF	COM	Yes
GLC-BX-U=	1000BASE-BX10	GE	10km	SMF	COM	Yes
CWDM-SFP-xxxx= (8 freq)	CWDM 1000BASE-X	GE		SMF	COM	Yes
DWDM-SFP-xxxx= (40 freq)	DWDM 1000BASE-X	GE		SMF	COM	Yes
SFP-GE-S=	1000BASE-SX	GE	550m	MMF	EXT	Yes
SFP-GE-L=	1000BASE-LX/LH	GE	550m/10km	MMF/SMF	EXT	Yes
SFP-GE-Z=	1000BASE-ZX	GE	70km	SMF	EXT	Yes
GLC-SX-MM=	1000BASE-SX	GE	550m	MMF	COM	No
GLC-LH-SM=	1000BASE-LX/LH	GE	550m/10km	MMF/SMF	COM	No
GLC-ZX-SM=	1000BASE-ZX	GE	70km	SMF	COM	Yes
GLC-T=	1000BASE-T	GE	100m	Copper	EXT	NA
GLC-TE=	1000BASE-T	GE	100m	Copper	EXT	NA
GLC-T-RGD=	1000BASE-T	GE	100m	Copper	IND	NA

For DOM support and for first software release supporting SFP, refer to https://www.cisco.com/en/US/products/hw/modules/ps5455/products_device_support_tables_list.html

MMF = Multimode fiber

SMF = Single-mode fiber

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

IOS软件,3C证书,检测报告,操作手册,安装手册,命令手册,产品教程,配置教程，一对一指导

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)

交换机商城商务值班经理

促销商品

SFP-GE-T SFP-GE-(RJ45).
2023年3月10日 793
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-T
SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).
2023年3月10日 881
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-PX20-D-SM1490-M
SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1550-BIDI
2023年3月10日 828
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1550-BIDI
SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-FE-LX-SM1310-BIDI
2023年3月10日 835
- 设备品牌:华三(H3C)
- 型号SKU:SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1550-BIDI
2023年3月10日 618
- 设备品牌:华三(H3C)
- 型号SKU: SFP-GE-LH70-SM1550-BIDI
SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。
SFP-GE-LH70-SM1490-BIDI
2023年3月10日 633
- 设备品牌:华三(H3C)
- 型号SKU:SFP-GE-LH70-SM1490-BIDI
SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

产品型号图集

如果这想要获得更多高清图册，请加入交小圈获得 https://Q.JHJ.cn 交换机小圈

点击放大的图片列表

③ 采购咨询:186-1111-5727

官方描述：SD-IE-1GB= 1GB SD memory card for IE

交换机商城商务值班经理

最新产品

最新商品

促销商品

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

交换机商城商务值班经理

最新产品

最新商品

促销商品

产品型号图集
