C9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 ModuleC9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 ModuleC9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1XL-Y = Cisco Catalyst 9400 Series Supervisor 1XL-Y with 25G ModuleC9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module

C9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module

思科C9400系列引擎 1模块
C9400系列交换机 引擎模块 953
思科交换机配件C9400系列引擎思科 C9400系列引擎模块思科交换机引擎C9400-SUP-1=Cisco C9400-SUP-1=Cisco Catalyst 9400 Series Supervisor 1 Module思科 C9400-SUP-1=Supervisor 1 Module
加入咨询列表
去旗舰店购买
在线客服
②采购咨询:186-1111-5727
产品介绍
产品参数
资料下载
产品相册
C9400-SUP-1 (=)Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1/2Cisco Catalyst 9400 Series Redundant Supervisor 1 Module

C9400-SUP-1 | C9400-SUP-1= | C9400-SUP-1/2

C9400-SUP-1, C9400-SUP-1= (Spare), C9400-SUP-1/2 (Redundant Supervisor 1 Module)
C9400-SUP-1XL, C9400-SUP-1XL= (Spare), C9400-SUP-1XL/2 (Redundant Supervisor 1XL Module)
C9400-SUP-1XL-Y, C9400-SUP-1XL-Y= (Spare), C9400-SUP-1XL-Y/2 (Redundant Supervisor 1XL25 Module)
C9400X-SUP-2, C9400X-SUP-2= (Spare), C9400X-SUP-2/2 (Redundant Supervisor 2 Module)
C9400X-SUP-2XL, C9400X-SUP-2XL= (Spare), C9400X-SUP-2XL/2 (Redundant Supervisor 2XL Module)

C9400-SUP-1=

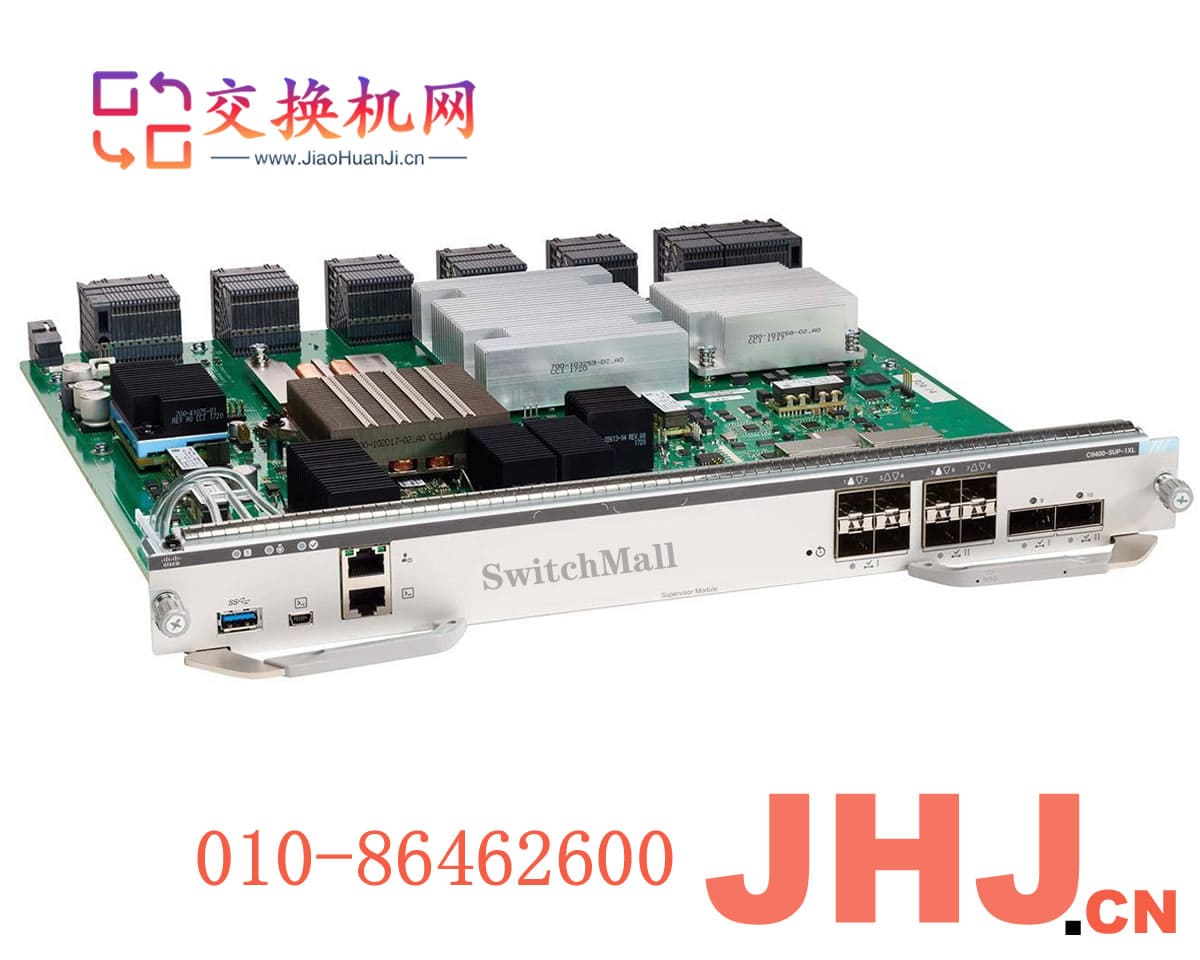

Cisco Catalyst C9400-SUP-1 管理引擎专为访问而设计（图 5）。

C9400-SUP-1= 管理引擎

图 5.

C9400-SUP-1 管理引擎

产品亮点

● C9400X-SUP-2XL、C9400X-SUP-2 上的思科统一接入数据平面 (UADP) 3.0 秒 ASIC 和 C9400-SUP-1/1XL/1XL-Y 上的思科统一接入数据平面 (UADP) 2.0 ASIC 已准备就绪具有可编程管道、微引擎功能以及基于模板的第 2 层、第 3 层、转发、访问控制列表 (ACL) 和服务质量 (QoS) 条目的可配置分配，适用于下一代技术

● Intel 2.4-GHz x86，具有高达 960 GB 的 SATA SSD 本地存储，用于基于容器的应用程序托管

● Supervisor-2/2XL 上最多 4 个非阻塞 100/40 千兆位以太网上行链路和最多 4 个非阻塞 25/10 千兆位以太网上行链路

● C9400-SUP-1XL-Y 管理引擎上最多 2 个无阻塞 25 Gb 以太网上行链路

● Supervisor-1/1XL/1XL-Y 上最多 2 个非阻塞 40 Gb 以太网上行链路（四路小型可插拔 [QSFP]）和最多 8 个非阻塞 10 Gb 以太网上行链路 (SFP+)

● 多达 384 个非阻塞 10/100/1000 RJ-45 端口

● 多达 392 个非阻塞 1 千兆位以太网光纤 (SFP) 端口 (Sup1/1XL/XL-Y)。384 个非阻塞 1Gigabit 以太网光纤 (SFP) 端口 (SUP2/2XL)

● 多达 392 个无阻塞 10 Gb 以太网 SFP+ 端口（8 个上行链路加 384 个 10G 线卡端口）（Sup1/1XL/XL-Y）；388 个无阻塞 10 Gb 以太网 SFP+ 端口（4 个上行链路加 384 个 10G 线卡端口）(SUP2/2XL)

● 多达 168 个 25 个千兆以太网 SFP28 端口（8 个上行链路加 160 个 25G 线卡端口）(SUP2/2XL)

● 多达 36 个 100 Gb 以太网 QSFP28 端口（4 个 100G 上行链路加 32 个 100G 线卡端口）(SUP2/2XL)

● 多达 384 个无阻塞 10G/5G mGig RJ-45 端口

● 384 个端口同时支持思科 UPOE+ (90 W)、思科 UPOE (60 W) 和 PoE+ (30 W) 功能

● 基于线速硬件的Flexible NetFlow (FNF) 可提供多达384,000 个流的流收集

● 硬件支持IPv6，为IPv6网络提供线速转发

● 对 IPv4 和 IPv6 的双栈支持以及动态硬件转发表分配，以方便 IPv4 到 IPv6 的迁移

● 支持静态和动态NAT 以及端口地址转换(PAT)

● 可扩展的路由（IPv4、IPv6 和组播）表和第 2 层表

● 开放式Cisco IOS ® XE：这款现代企业操作系统提供对模型驱动的可编程性、机载Python 脚本、流式遥测、基于容器的应用程序托管以及针对关键错误修复的修补的支持。该操作系统还具有内置防御措施来防止运行时攻击

● 支持在CPU 复合体上本地托管Cisco Spaces 的应用程序。Catalyst 9000 交换机上的 Cisco Spaces 物联网服务利用数据的力量桥接有线智能建筑技术，帮助加快返回可信工作场所和不可避免的返回办公室的速度。

● 利用思科ThousandEyes 网络和应用综合（包含在Cisco DNA Advantage 许可证中）对从园区/分支机构到云/DC 的路径进行端到端可视化

● SD-Access：思科 Catalyst 9400 系列交换机构成了 SD-Access（思科领先的企业架构）的基础构建块，其中包括：

◦ 从边缘到云的基于策略的自动化

◦ 分段和微分段变得简单，具有可预测的性能和可扩展性

◦ 通过 Cisco DNA Center ™实现自动化

◦ 通过思科身份服务引擎 (ISE) 制定策略

◦ 通过网络数据平台进行网络保障

◦ 能够更快地推出新业务服务并显着缩短问题解决时间

● 支持即插即用 (PnP)：简单、安全、统一和集成的产品可简化新分支机构或园区设备的部署，还可用于为现有网络提供更新

C9400X-SUP-2 (=)Cisco Catalyst 9400 Series Supervisor 2 Module
C9400X-SUP-2/2Cisco Catalyst 9400 Series Redundant Supervisor 2 Module
C9400X-SUP-2XL (=)Cisco Catalyst 9400 Series Supervisor 2XL Module
C9400X-SUP-2XL/2Cisco Catalyst 9400 Series Redundant Supervisor 2XL Module
C9400-SUP-1 (=)Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1/2Cisco Catalyst 9400 Series Redundant Supervisor 1 Module
C9400-SUP-1XL (=)Cisco Catalyst 9400 Series Supervisor 1XL Module
C9400-SUP-1XL/2Cisco Catalyst 9400 Series Redundant Supervisor 1XL Module
C9400-SUP-1XL-Y (=)Cisco Catalyst 9400 Series Supervisor 1XL-Y with 25G Module
C9400-SUP-1XL-Y/2Cisco Catalyst 9400 Series Redundant Supervisor 1XL-Y with 25G Module
思科-Catalyst-9400-管理引擎-模块下载

交换机商城商务值班经理

微信扫一扫，价格早知道
最新产品
最新商品
促销商品

最新产品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    879
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    825
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    834
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    616
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    632
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

最新商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    879
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    825
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    834
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    616
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    632
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

促销商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    879
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    825
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    834
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    616
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    632
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

C9400-SUP-1 (=)Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1/2Cisco Catalyst 9400 Series Redundant Supervisor 1 Module

Cisco Catalyst 9400 Series Supervisor 1 Module Features

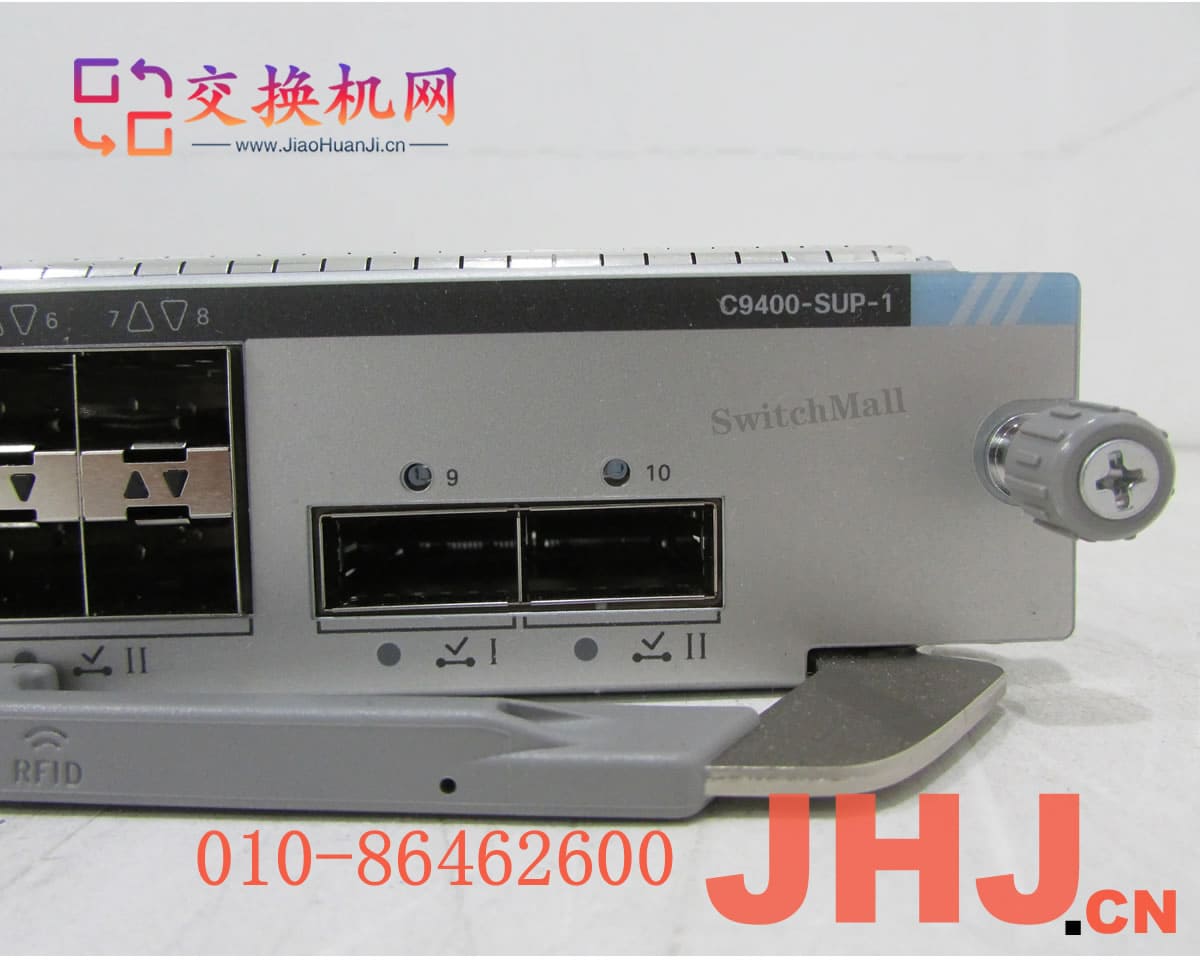

The following figure shows the front view of Cisco Catalyst 9400 Series Supervisor 1 Module, with the major features identified.

C9400-SUP-1=
Figure 1. Cisco Catalyst 9400 Series Supervisor 1 Module

The following table describes the major features of the supervisor module in the serial number order called out in Cisco Catalyst 9400 Series Supervisor 1 Module:

Call Out No.FeatureDescription
1USB Type A Host PortThis USB port is a host port for an external USB disk drive. It supports USB versions 3.0, 2.0, 1.1, and 1.0.See USB Type A Host Port
2USB mini Type B Console PortThis USB port can be used as a console port, allowing attachment to PCs that are not equipped with an RS-232 interface.See Console Ports.
310/100/1000 Ethernet Management Port (RJ-45 connector)The Ethernet management port is a Layer 3 host port to which you can connect a PC. By default, the Ethernet management port is enabled. You can use the Ethernet management port instead of the switch console port for network management. This port is not active while the switch is operating normally.Note When connecting a PC to the Ethernet management port, you must assign an IP address.See Ethernet Management Port
4Console port (RJ-45 connector)This is an RS-232 serial or console port for system management.See Console Ports
5RESET switch (recessed)The RESET switch is used to reset and restart the switch.Note The reset switch is recessed into the front panel. Use a paper clip or a small, pointed object to press the RESET switch.
61-GigabitEthernet (GE) or 10-GE uplink portsThe supervisor module has eight 1-GE or 10-GE ports. These ports require either small form-factor pluggable (SFP) or SFP+ transceivers. Ports are numbered 1 to 8.Note In the accompanying figure, the ejector lever is not displayed in the redundant supervisor module only for the purpose of displaying the LEDs behind it.See Uplink Ports
7RFIDSupervisor module Radio Frequency Identifier (RFID).The supervisor module has a built-in, front-facing, passive RFID tag that uses Ultra High Frequency (UHF) RFID technology and requires an RFID reader with compatible software. It provides auto-identification capabilities for asset management and tracking. The RFID tags are compatible with the Generation 2 GS1 EPC Global Standard and are ISO 18000-6C compliant. They operate in the 860- to 960-MHz UHF band. For more information, see Radio Frequency Identification (RFID) on Cisco Catalyst 9000 Family Switches.
840-GE uplink portsThe supervisor module has two 40-GE ports. These ports use QSFP transceivers. Ports are numbered 9 and 10.Note In the accompanying figure, the ejector lever is not displayed in the redundant supervisor module only for the purpose of displaying the LEDs behind it.See Uplink Ports
9Model NumberSupervisor module model number.
10Supervisor slot indicatorBar on the fan tray front panel that indicates the supervisor slots in a chassis.

Table 3 summarizes the performance capacities of the Supervisor Engine on a per-chassis basis.

Table 3.           Cisco Catalyst 9400 Supervisor Engine Bandwidth per Slot for Different Chassis

 C9404R chassisC9407R chassisC9410R chassis
C9400-SUP-180 Gbps per slot80 Gbps per slot80 Gbps per slot
C9400-SUP-1XL240 Gbps per slot120 Gbps per slot80 Gbps per slot
C9400-SUP-1XL-Y240 Gbps per slot120 Gbps per slot80 Gbps per slot
C9400X-SUP-2240 Gbps per slot240 Gbps per slot240 Gbps per slot
C9400X-SUP-2XL480 Gbps per slot480 Gbps per slot480 Gbps per slot

Table 4 summarizes the line card modules supported on Supervisor Engine.

Table 4.           Cisco Catalyst 9400 Supervisor Engine Line Card and Module Support

Supervisor EngineLine cardDescriptionMinimum software
C9400-SUP-1C9400-LC-48UCisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)Cisco IOS XE 16.6.1
C9400-LC-48TCisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)Cisco IOS XE 16.6.1
C9400-LC-48UXCisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45Cisco IOS XE 16.6.2
C9400-LC-24XSCisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)Cisco IOS XE 16.6.2
C9400-LC-48PCisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)Cisco IOS XE 16.8.1
C9400-LC-24SCisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)Cisco IOS XE 16.8.1
C9400-LC-48SCisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)Cisco IOS XE 16.8.1
C9400-LC-48HCisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)Cisco IOS XE 16.12.1
C9400-LC-48HNCisco Catalyst 9400 Series 48-Port 5G multigigabit w/ full 90W UPOE+Cisco IOS XE 17.5.1
C9400-SUP-1XLC9400-LC-48UCisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)Cisco IOS XE 16.6.2
C9400-LC-48TCisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)Cisco IOS XE 16.6.2
C9400-LC-48UXCisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45Cisco IOS XE 16.6.2
C9400-LC-24XSCisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)Cisco IOS XE 16.6.2
C9400-LC-48PCisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)Cisco IOS XE 16.8.1
C9400-LC-24SCisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)Cisco IOS XE 16.8.1
C9400-LC-48SCisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)Cisco IOS XE 16.8.1
C9400-LC-48HCisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)Cisco IOS XE 16.12.1
C9400-LC-48HNCisco Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+Cisco IOS XE 17.5.1
C9400-SUP-1XL-YC9400-LC-48UCisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)Cisco IOS XE 16.9.1
C9400-LC-48TCisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)Cisco IOS XE 16.9.1
C9400-LC-48UXCisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45Cisco IOS XE 16.9.1
C9400-LC-24XSCisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)Cisco IOS XE 16.9.1
C9400-LC-48PCisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)Cisco IOS XE 16.9.1
C9400-LC-24SCisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)Cisco IOS XE 16.9.1
C9400-LC-48SCisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)Cisco IOS XE 16.9.1
C9400-LC-48HCisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)Cisco IOS XE 16.12.1
C9400-LC-48HNCisco Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+Cisco IOS XE 17.5.1
C9400X-SUP-2C9400-LC-48UCisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-48TCisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-48UXCisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45Cisco IOS XE 17.7.1
C9400-LC-24XSCisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)Cisco IOS XE 17.7.1
C9400-LC-48PCisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-24SCisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)Cisco IOS XE 17.7.1
C9400-LC-48SCisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)Cisco IOS XE 17.7.1
C9400-LC-48HCisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-48HNCisco Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+Cisco IOS XE 17.7.1
C9400-LC-48HXCisco Catalyst 9400 Series 48-Port 10G multiGigabit w/ full 90W UPOE+Cisco IOS XE 17.8.1
C9400-LC-48XSCisco Catalyst 9400 Series 48-Port 10 Gigabit (SFP+)Cisco IOS XE 17.8.1
C9400-LC-24XYCisco Catalyst 9400 Series 20-Port 25G (SFP28), 4-Port 10G (SFP+)Cisco IOS XE 17.12.1
C9400-LC-12QCCisco Catalyst 9400 Series 12-Port 40G (QSFP+) or 4-Port 100G (QSFP28), 4-Port 40G (QSFP+)Cisco IOS XE 17.12.1
C9400X-SUP-2XLC9400-LC-48UCisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-48TCisco Catalyst 9400 Series 48-Port 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-48UXCisco Catalyst 9400 Series 48-Port UPOE with 24p mGig 24p RJ-45Cisco IOS XE 17.7.1
C9400-LC-24XSCisco Catalyst 9400 Series 24-Port 10 Gigabit Ethernet (SFP+)Cisco IOS XE 17.7.1
C9400-LC-48PCisco Catalyst 9400 Series 48-Port POE+ 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-24SCisco Catalyst 9400 Series 24-Port Gigabit Ethernet (SFP)Cisco IOS XE 17.7.1
C9400-LC-48SCisco Catalyst 9400 Series 48-Port Gigabit Ethernet (SFP)Cisco IOS XE 17.7.1
C9400-LC-48HCisco Catalyst 9400 Series 48-Port UPOE+ 10/100/1000 (RJ-45)Cisco IOS XE 17.7.1
C9400-LC-48HNCisco Catalyst 9400 Series 48-Port 5G multiGigabit w/ full 90W UPOE+Cisco IOS XE 17.7.1
C9400-LC-48HXCisco Catalyst 9400 Series 48-Port 10G multiGigabit w/ full 90W UPOE+Cisco IOS XE 17.8.1
C9400-LC-48XSCisco Catalyst 9400 Series 48-Port 10 Gigabit (SFP+)Cisco IOS XE 17.8.1
C9400-LC-24XYCisco Catalyst 9400 Series 20-Port 25G (SFP28), 4-Port 10G (SFP+)Cisco IOS XE 17.12.1
C9400-LC-12QCCisco Catalyst 9400 Series 12-Port 40G (QSFP+) or 4-Port 100G (QSFP28), 4-Port 40G (QSFP+)Cisco IOS XE 17.12.1

Performance and scalability

Table 5 highlights the performance and scalability enhancements of the Cisco Catalyst 9400 Supervisor Engine.

Table 5.           Cisco Catalyst 9400 Supervisor Engine Performance and Scalability Features

FeaturesPerformance and scalability
Supervisor EngineC9400-SUP-1C9400-SUP- 1XL/C9400-SUP-1XL-YC9400X-SUP-2C9400X-SUP-2XL
Centralized wired capacityUp to 1.44 TbpsUp to 1.44 TbpsUp to 9.6 TbpsUp to 9.6 Tbps
Per-slot switching Capacity80 Gbps240 Gbps – C9404R120 Gbps – C9407R80 Gbps – C9410R240 Gbps – C9404R240 Gbps – C9407R240 Gbps – C9410R480 Gbps – C9404R480 Gbps – C9407R480 Gbps – C9410R
Total number of MAC addressesUp to 64,0001Up to 64,0001,2Up to 64,0001,2Up to 64,0001,2
Total number of IPv4 routes (ARP plus learned routes)Up to 112,0003Up to 144,0001,4Up to 256,0005Up to 256,0005
FNF entries (v4/v6)Up to 384,000/192,000Up to 384,000/192,000Up to 384,000/192,0006Up to 384,000/192,0006
DRAM16 GB16 GB16 GB16 GB
Flash10 GB10 GB10 GB10 GB
VLAN IDs4096409640964096
PVST Instances30073007300300
STP Virtual Ports (Port* VLANs) for PVST13,00013,00013,00013,000
STP Virtual Ports (Port* VALNs) for MST13,00013,00013,00013,000
SSD capacity960 GB960 GB960 GB960 GB
Total Switched Virtual Interfaces (SVIs)1,0001,0001,0001,000
Jumbo frame9216 bytes9216 bytes9216 bytes9216 bytes
Forwarding rate●  900 Mpps for IPv4●  782.6 Mpps for IPv6 (@95 byte)●  900 Mpps for IPv4●  782.6 Mpps for IPv6 (@95 byte)●  3 Bpps for IPv4 and IPv6●  3 Bpps for IPv4 and IPv6
IPv4 routing entriesUp to 112,0003Up to 144,0002,4Up to 256,0002,5Up to 256,0002,5
IPv6 routing entriesUp to 56,000Up to 56,0002Up to 256,0002,5Up to 256,0002,5
Multicast routesUp to 16,000Layer 2 up to 16,0002Layer 3 up to 32,0002Layer 2 up to 32,0008Layer 3 up to 32,0008Layer 2 up to 32,0008Layer 3 up to 32,0008
QoS hardware entriesUp to 18,000Up to 18,000Up to 16,0002Up to 16,0002
Security ACL hardware entriesUp to 18,000Up to 18,000Up to 16,0002Up to 16,0002
2 Packet buffer96 MB96 MB108 MB108 MB

1 24,000 host + 32,000 indirect

2 Varies based on selected flexible ASIC template. Flexible ASIC template currently not supported on C9400X-SUP-2/2XL in software

3 48,000 host + 64,000 indirect

4 80,000 host + 64,000 indirect

5 Currently 112,000 IPv4/IPv6 Routes are supported without template

6 Currently 288,000/144,000 FNF entries are supported without template

7 300 with IOS XE 17.1.1 or later. 256 with IOSXE 16.12 or earlier

8 Currently Layer2 and Layer3 Multicast routes scale is 16,000 without template

Host routes refer to any /32 routes, including those that are learned indirectly (for instance, learned over Open Shortest Path First [OSPF] or other routing protocols). It does not mean the supervisor module can install 80,000 directly connected clients (/32) for attached VLANs or SVIs. In other words, directly connected routes in engineering terms refers to any /32 prefix. This includes clients attached to switch’s own VLAN/SVI and those /32 prefixes learned over any routing protocols as well. An indirectly connected route is a route with a prefix other than /32.

C9400X-SUP-2 (=)Cisco Catalyst 9400 Series Supervisor 2 Module
C9400X-SUP-2/2Cisco Catalyst 9400 Series Redundant Supervisor 2 Module
C9400X-SUP-2XL (=)Cisco Catalyst 9400 Series Supervisor 2XL Module
C9400X-SUP-2XL/2Cisco Catalyst 9400 Series Redundant Supervisor 2XL Module
C9400-SUP-1 (=)Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1/2Cisco Catalyst 9400 Series Redundant Supervisor 1 Module
C9400-SUP-1XL (=)Cisco Catalyst 9400 Series Supervisor 1XL Module
C9400-SUP-1XL/2Cisco Catalyst 9400 Series Redundant Supervisor 1XL Module
C9400-SUP-1XL-Y (=)Cisco Catalyst 9400 Series Supervisor 1XL-Y with 25G Module
C9400-SUP-1XL-Y/2Cisco Catalyst 9400 Series Redundant Supervisor 1XL-Y with 25G Module

下载的支持 (软件下载定制，参数文案定制，产品选型培训定制，设备调试培训定制，设备运维服务定制)

IOS软件,3C证书,检测报告,操作手册,安装手册,命令手册,产品教程,配置教程，一对一指导

加入交换机小圈，获得更详细的资料，更专业的支持，更全面的支持教程。(https://q.jhj.cn/thread/3)

如果没有找到满意的资料，可以在交小圈发布请求贴，让更多网友来帮你想办法，或者找找以前有没有类似资源 (https://q.jhj.cn)

相关文档

Cisco-Catalyst-9400-Series-Switch-Data-Sheet-v2023-06下载

交换机商城商务值班经理

微信扫一扫，价格早知道
最新产品
最新商品
促销商品

最新产品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    879
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    825
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    834
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    616
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    632
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

最新商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    879
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    825
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    834
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    616
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    632
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

促销商品

  • SFP-GE-T SFP-GE-(RJ45).

    SFP-GE-T SFP-GE-(RJ45).

    793
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-T

    SFP-GE-T,华三10G SFP电口光模块,H3C SFP-GE-T,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    SFP-GE-PX20-D-SM1490-M SFP 1G Transceiver-(1490nm(Transmit)/1310nm(Recieve),20km,RSSI,SC/PC).

    879
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-PX20-D-SM1490-M

    SFP-GE-PX20-D-SM1490-M,华三1G SFP光模块,H3C SFP-GE-PX20-D-SM1490-M,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI

    825
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1550-BIDI

    SFP-FE-LX-SM1550-BIDI ,华三百兆 SFP光模块,SFP-FE-LX-SM1550-BIDI ,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI

    834
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-FE-LX-SM1310-BIDI

    SFP-FE-LX-SM1310-BIDI,华三百兆 SFP光模块,H3C SFP-FE-LX-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI

    616
    • 设备品牌:华三(H3C)
    • 型号SKU: SFP-GE-LH70-SM1550-BIDI

    SFP-GE-LH70-SM1550-BIDI,华三1G SFP光模块,H3C SFP-GE-LH70-SM1550-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

  • SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LH70-SM1490-BIDI

    632
    • 设备品牌:华三(H3C)
    • 型号SKU:SFP-GE-LH70-SM1490-BIDI

    SFP-GE-LX-SM1310-BIDI,华三10G SFP光模块,H3CSFP-GE-LH40-SM1310-BIDI,Transceiver Modules,由交换机商城提供华三光缆线缆全线产品在线销售服务。

loading…

已经是到最后一篇内容了！

产品型号图集

如果这想要获得更多高清图册，请加入交小圈获得 https://Q.JHJ.cn 交换机小圈

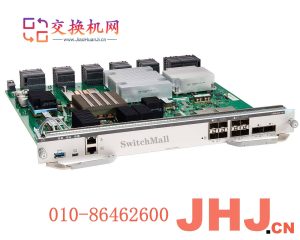

C9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 ModuleC9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module
C9400-SUP-1XL-Y = Cisco Catalyst 9400 Series Supervisor 1XL-Y with 25G ModuleC9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module

点击放大的图片列表

C9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 ModuleC9400-SUP-1= Cisco Catalyst 9400 Series Supervisor 1 Module
③ 采购咨询:186-1111-5727

批量采购咨询
批量采购咨询 提交咨询
